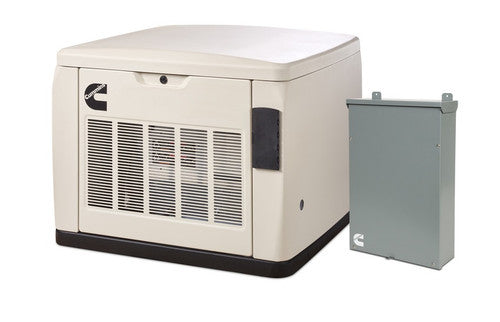

Cummins RS20AC 20KW QUIET CONNECT Home Standby Generator
.. people are viewing this
.. Visitor Right Now
4 Great reasons to buy from us:
Enjoy the peace of mind that comes with owning the Cummins RS20AC Home Standby Generator. With 20KW of power and QUIET CONNECT technology, you can trust this generator to meet your energy needs in the event of a power outage. Rely on Cummins' trusted brand name and industry expertise for reliable, efficient energy.
EXPECTED LEAD TIME = 3 to 4 Weeks
SHIPPING IS FREE AND INCLUDED IN THIS PRICE!
Choose from one of these 4 options on this page :
- 20KW Enclosed Generator + Automatic Transfer Switch
- 20KW Enclosed Generator
- 20KW Enclosed Generator + Automatic Transfer Switch + Extreme Cold Option
- 20KW Enclosed Generator + Extreme Cold Option
Highlights:
- Fuel= Natural Gas or Propane
- Powers a 5-ton AC
- QuietConnect™ Air-Cooled: RS20AC
- Power Rating: 20kW
- Shipping - Factory Direct
Features and Benefits Robust Design –
The generator is designed to operate in cold weather with performance down to 0 °F (-18 °C) out of the box. The extreme cold weather models can perform down to -40 °F (-40 °C) out of the box. It is tested and certified per the latest EPA, UL, and CSA standards.
The generator meets NFPA 37 which allows it to be installed 18 inches from a building. It has powerful motor starting ability and can easily start and run a 5-ton A/C¹ under full pre-load.
Intelligent Load Management - The generator can control up to 4 loads and continuously monitors how much power is required independently for each load. It then controls each load for maximum utilization of generator power by only restoring loads the generator has capacity to run.
Flexible Exercise Modes - Exercise modes can be set for time, date, and frequency that suits the owner. Our patented ‘Crank only’ exercise mode allows the generator to crank the engine and run diagnostics without starting the engine. This reduces wear and tear on the engine, fuel costs, and further reduces the sound of an already quiet generator.
Remote Monitoring - Remote monitoring is built into every generator. Using a computer, tablet, or smartphone, an operator can monitor, change exercise modes, and manually run the generator remotely.
Generator and ATS packaged sets – The RS20AC comes with a 20-kW generator and 200A service entrance-rated ATS in one box to make ordering more convenient.
Weight, Size, and Sound Level
Size: Length: 34.1 in (865 mm), Width: 36.0 in (915 mm), Height: 27.3 in (694 mm)
Sound: 65 dB(A) at 23 ft. (7 m) at normal load2
Voltage / Frequency: 120/240V / 60Hz
SPECIFICATIONS
| VOLTAGE | 120/240 SINGLE PHASE |
| FREQUENCEY | 60 HERTZ |
| ALTERNATOR | BRUSH |
| AUTO VOLTAGE REGULATION | YES |
| RATED WATTS | 20000 WATTS |
| FUEL TYPE | LP/NATURAL GAS |
| NATURAL GAS POWER CAPACITY | 18000 WATTS |
| PROPANE POWER CAPACITY | 20000 WATTS |
| NG FUEL CONSUMPTION @ 50% | 205FT³/HR |
| NG FUEL CONSUMPTION @ 100% | 300FT³/HR |
| LP FUEL CONSUMPTION @ 50% | 1.9 GALLONS/HR |
| LP FUEL CONSUMPTION @ 100% | 3.2 GALLONS/HR |
| RATED AMPS | 75 (NG) & 83.3 (LPV) AMPS |
| DECIBEL RATING @ 7M | 65dB |
| HOUR METER | YES |
| VOLTAGE METER | YES |
| TRANSFER SWITCH | AUTOMATIC |
| ENCLOSURE | ALUMINUM |
| CIRCUIT BREAKER SIZE | 100 AMPS |
| COOLING SYSTEM | AIR COOLED |
| UL LISTED | YES |
| GRADE TYPE | EMERGENCY |
| ENGINE BRAND | CUMMINS ONAN |
| STARTING SYSTEM | 12V AUTO START |
| ENGINE SIZE | 999 CC |
| ENGINE RPM | 3600 RPM |
| LOW OIL ALERT/SHUTDOWN | YES |
| WEIGHT | 540 LBS |
| MADE IN USA | YES |
| PRODUCT LENGTH | 34.1" |
| PRODUCT WIDTH | 36" |
| PRODUCT HEIGHT | 27.3" |
The extreme cold weather models can perform down to -40 °F (-40 °C) out of the box. It is tested and certified per the latest EPA, UL, and CSA standards. The generator meets NFPA 37 which allows it to be installed 18 inches from a building. It has powerful motor starting ability and can easily start and run a 5-ton A/C under full pre-load.
Files:
PACKAGE CONTENTS
20kW GENERATOR
200A SE-RATED ATS RS20AC (AUTOMATIC TRANSFER SWITCH)
ALUMINUM ENCLOSURE
 |
