This powerful Marine Diesel Generator for Boats runs at 6500 Watts continuously at 1800 RPM.
PAGURO RANGE: FLEXIBLE AND SILENT PERFORMANCE
VTE’s marine generator sets are the market benchmark for the optimal ratio of performance, quietness and small size. The PAGURO range is very wide to satisfy every need for power and performance, for sailboats and motorboats.
SILENT

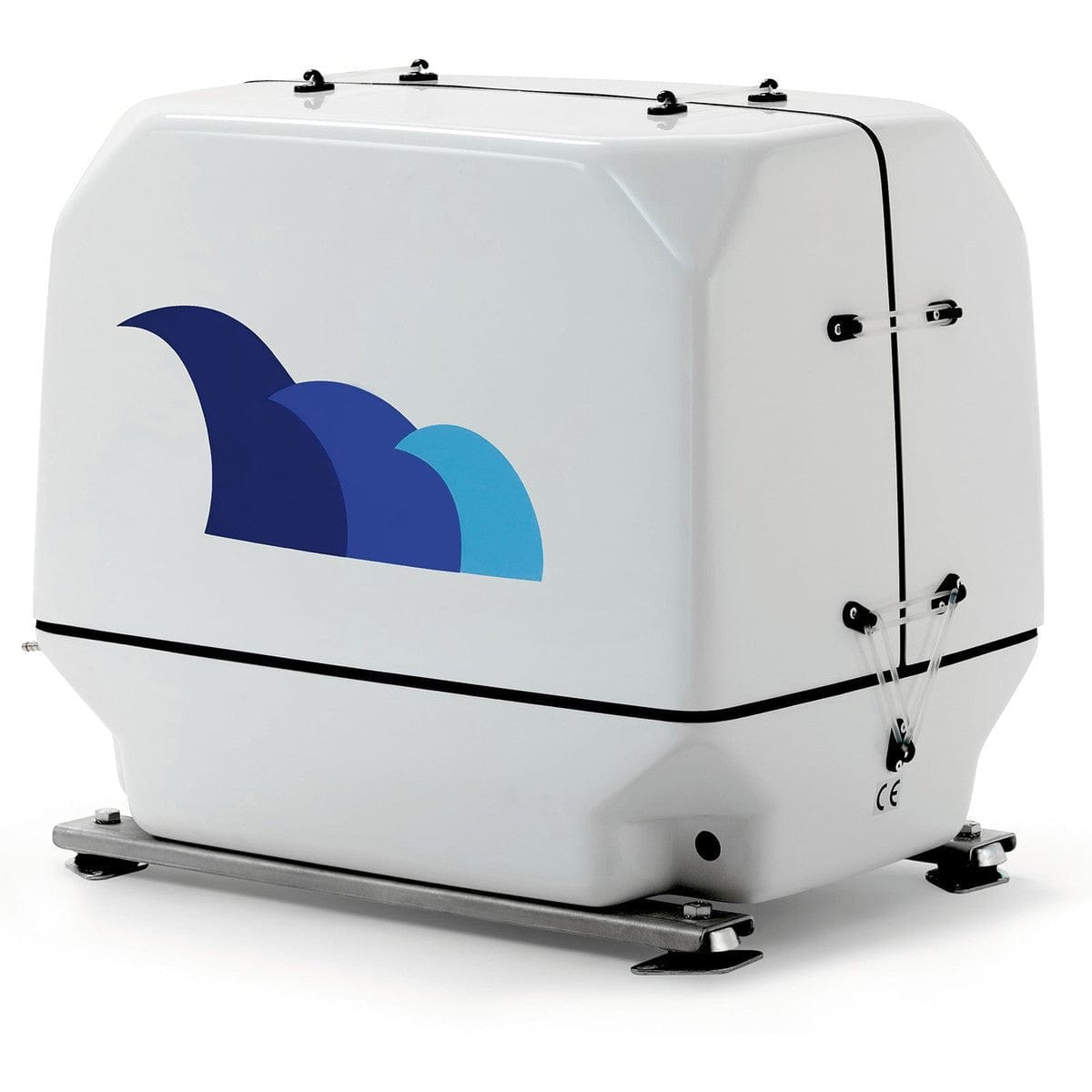

Both the engine and the alternator of the Paguro generators are water-cooled: as there is no need for ventilation for cooling, the noise is drastically reduced. In addition, the outer shell has a single small opening for the entrance of the combustion air with a labyrinth path that prevents the noise from coming out; the outer casing is made of reinforced multilayer fiberglass and covered in high density neoprene for maximum sound insulation.
LIGHTWEIGHT AND COMPACT
Each product of the Paguro range is designed and built with custom-made components to reduce the overall dimensions and exploit the empty spaces inside. Thanks to the VTE technology, each Paguro generator is compact with the same energy performance. with only 374 Lbs of weight and ultra compact dimensions (L30.3xW18.1xH24.4), produces 6.5 kW continuous.
SAFE
The VTE generators are equipped with warning lights and a load indicator with a luminous column with LED for an immediate evaluation of power usage. The panel will stop the unit. automatically in case of low oil pressure or overtemperature.
Paguro 6500 user Manual and Instructions
| PAGURO 6500 | |
|---|---|
| Generator manufacturer | VTE Srl - Italy |
| Alternator type | Synchronous, brushless, capacitor regulation |
| Continuous electrical power | 6.5 KW (60HZ) 6.5 KVA - 6 KW (50 HZ) |
| Voltage output | Single phase 115/230 V (60HZ) Single-phase 230 V (50 HZ) |
| Peak Current | 144 A (60 HZ) 72 A (50 HZ) |
| Alternator cooling system | Water-cooled through a water jacket made in stainless steel AISI 316 L |
| Engine manufacturer and type | Lombardini 1003 |
| Cylinders nr. | 3 |
| Engine speed | 1800 (60 HZ) 1500 (50 HZ) RPM |
| Starting and shut-off system | 12V electrical starter, remote controlled |
| Specific fuel consumption | 0.35 lt/KW/h |
| Engine cooling system | Fresh water with heat exchanger |
| Cooling pump | Self-priming |
| Alternator | Synchronous, brushless, capacitor regulation, Water-cooled through a water jacket made in stainless steel AISI 316 L, Battery charger for dedicated starting battery (12V 8A), Insulation Class H |
| Engine | Diesel fueled, 3 cylinders, Four cycle, Fresh water cooling circuit, via heat exchanger |
| Remote control | Remote control with LCD display Load indicator, hour meter, frequency / engine speed Automatic shut down for low oil pressure and/or high temperature With 15 meters of cable and quick connector Automatic start (optional) |
| Soundproof capsule | Soundproof capsule made from multilayer GRP, a high-density sound-absorbing material and heat-insulating foam lining Split into two halves, the capsule lids enable easy off access for servicing, even in tight spaces Dual anti-vibration system based on 4 internal soft shock absorbers and 4 firm captive engine mounts outside the capsule |
| Dimensions L x W x H (in) | 30.3 X 18.1 X 24.4 |
| Weight (capsule included) (lbs) | 374 |
| Noise level dB(A) 7 mt | 49 dB(A) |
| Shipping | This item ships to |
 |
Fast Shipping in the USA. Items ship the same or next day We process orders 7 days a week to ensure the fastest shipping possible. All generators are shipped as fast as possible out of several US locations to ensure the fastest delivery. |
|
 |
We Put Our Customers First We have done the research for you to find the best manufacturers with the best warranties. Every unit on our site is covered by a high quality manufacturers warranty. |
|
 |
We offer the absolute lowest price we can offer |
|
 |
We insist that you love our service. If you're unhappy for any reason whatsoever, just let us know and we'll bend over backwards to make things right again. |
|
 |
Ordering from AllProGenerators.com is 100% safe and secure so you can rest easy. Your personal details are never shared, sold or rented to anyone either. |
Description
This powerful Marine Diesel Generator for Boats runs at 6500 Watts continuously at 1800 RPM.
PAGURO RANGE: FLEXIBLE AND SILENT PERFORMANCE
VTE’s marine generator sets are the market benchmark for the optimal ratio of performance, quietness and small size. The PAGURO range is very wide to satisfy every need for power and performance, for sailboats and motorboats.
SILENT
Both the engine and the alternator of the Paguro generators are water-cooled: as there is no need for ventilation for cooling, the noise is drastically reduced. In addition, the outer shell has a single small opening for the entrance of the combustion air with a labyrinth path that prevents the noise from coming out; the outer casing is made of reinforced multilayer fiberglass and covered in high density neoprene for maximum sound insulation.
LIGHTWEIGHT AND COMPACT
Each product of the Paguro range is designed and built with custom-made components to reduce the overall dimensions and exploit the empty spaces inside. Thanks to the VTE technology, each Paguro generator is compact with the same energy performance. with only 374 Lbs of weight and ultra compact dimensions (L30.3xW18.1xH24.4), produces 6.5 kW continuous.
SAFE
The VTE generators are equipped with warning lights and a load indicator with a luminous column with LED for an immediate evaluation of power usage. The panel will stop the unit. automatically in case of low oil pressure or overtemperature.
Paguro 6500 user Manual and Instructions
| PAGURO 6500 | |
|---|---|
| Generator manufacturer | VTE Srl - Italy |
| Alternator type | Synchronous, brushless, capacitor regulation |
| Continuous electrical power | 6.5 KW (60HZ) 6.5 KVA - 6 KW (50 HZ) |
| Voltage output | Single phase 115/230 V (60HZ) Single-phase 230 V (50 HZ) |
| Peak Current | 144 A (60 HZ) 72 A (50 HZ) |
| Alternator cooling system | Water-cooled through a water jacket made in stainless steel AISI 316 L |
| Engine manufacturer and type | Lombardini 1003 |
| Cylinders nr. | 3 |
| Engine speed | 1800 (60 HZ) 1500 (50 HZ) RPM |
| Starting and shut-off system | 12V electrical starter, remote controlled |
| Specific fuel consumption | 0.35 lt/KW/h |
| Engine cooling system | Fresh water with heat exchanger |
| Cooling pump | Self-priming |
| Alternator | Synchronous, brushless, capacitor regulation, Water-cooled through a water jacket made in stainless steel AISI 316 L, Battery charger for dedicated starting battery (12V 8A), Insulation Class H |
| Engine | Diesel fueled, 3 cylinders, Four cycle, Fresh water cooling circuit, via heat exchanger |
| Remote control | Remote control with LCD display Load indicator, hour meter, frequency / engine speed Automatic shut down for low oil pressure and/or high temperature With 15 meters of cable and quick connector Automatic start (optional) |
| Soundproof capsule | Soundproof capsule made from multilayer GRP, a high-density sound-absorbing material and heat-insulating foam lining Split into two halves, the capsule lids enable easy off access for servicing, even in tight spaces Dual anti-vibration system based on 4 internal soft shock absorbers and 4 firm captive engine mounts outside the capsule |
| Dimensions L x W x H (in) | 30.3 X 18.1 X 24.4 |
| Weight (capsule included) (lbs) | 374 |
| Noise level dB(A) 7 mt | 49 dB(A) |
