Kubota GL11000TM 11000 Watt Lowboy II Series Industrial Diesel Generator w Output Terminals

SKU: GL11000TM
Your Price:
$10,399.99 $12,999.95
You Save: $2,599.96 20%
  • Free Shipping
  • Lowest Pricing
  • No Sales Tax
  • Premium Authorized Dealer

Size

Currently out of stock
Currently out of stock
Add to wishlist
Checkout Secure

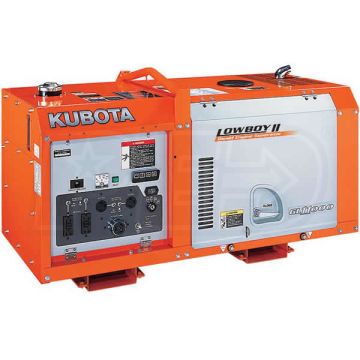

Kubota GL11000TM – 11,000 Watt Lowboy II Series Industrial Diesel Generator w/ Output Terminals

The Kubota LOWBOY II Model GL11000 USA Series is designed to have the minimum possible height while using vertical diesel engines. This is achieved by direct coupling of the engine crankshaft with the cooling fan. Since they require less space for operation, the range of possible applications has been greatly increased. This genset has a very small foot print of 51 x 24.3 x 27.5 inches.



Add an automatic start module and this is ready for a commercial or residential back up or an off the grid primary power source. Units are not weather proof.

This model features a premium Kubota model D722, 3 cylinder, 18.9 HP, diesel fueled, liquid cooled engine with electric start. This model runs at 3600 RPM and generates 11 kW (11 kVA) 60 Hz,of Standby (emergency or maximum) power and 9.9 kW prime (continuous) power at a primary voltage of 120/240 VAC, single phase, 60 Hertz, with voltage accuracy.

Enclosed weight is 650 lbs. Shipping weight 690 lbs. Shipping dimensions 52 W x 25 L x 31 H. Enclosed quietness is 68 db at 7 meter

FEATURES

Kubota Low Boy II Industrial Diesel Generator

  • Quieter, more compact & cleaner (EPA Tier II) than original Low Boy

479cc Kubota Z482 Liquid-Cooled Diesel Engine

  • Large capacity oil pan provides oil change intervals up to 200 hours

Dual-element air filter design for heavy-duty jobs in dusty conditions

  • Keyed Electric Start (Battery Included)

Starter safety relay prevent starter from engaging after start-up

  • Compact Design & Easy Maintenance

By direct coupling the engine crankshaft w/ cooling fan

  • Simple maintenance of oil, fuel, battery & cooling water on One side

Large Capacity 7.4 Gallon Diesel Fuel Tank

  • Provides up to 10 hours @ 100% load on a single fill-up

Monitor Gauges & Automatic Safety Shutdowns

  • Easily see when there’s water temperature & oil pressure issues

Double Circuit Breaker Protection (Generator & Receptacle)

  • Shuts the engine down to prevent overcurrent damage

Less Noise During Operation (66 dB(A) @ 23′)

  • Slower-speed fan, built-in muffler & reduced air intake sound

Plus Forklift pockets, One-Point Lifting Eye & ATS Terminal 1-Year Limited Warranty

SPECIFICATIONS

MODEL Unit GL11000
 Type Rotating field single-phase AC generator
 Frequency Hz 60
 Standby Output kVA (kW) 11.0 (11.0)
 Prime Output kVA (kW) 10.0 (10.0)
 Voltage – Single Phase V 120/240
 Armature Connection Series
 Phase / Wire 1/3
 Power Factor 1.0
 No. of Poles 2
 Insulation Class Rotor coil; class F, Stator coil; class B
 Type of Coupling Direct coupled
 AMPS
 Single Phase 120V A 83.3
 Single Phase 240V A 41.7
 5-15R (GFCI) N/A
 5-20RA (GFCI) 2
 6-15R N/A
 L5-30R 1
 L6-30R 1
 CS-6369 1

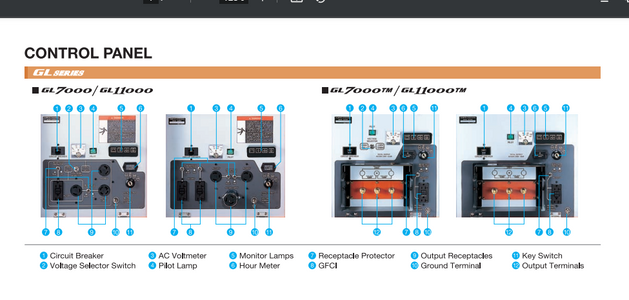

 TERMINAL
 Terminal Available
 DIESEL ENGINE
 Type Vertical, liquid-cooled,
4-cycle diesel engine
 Model D722
 No. of Cylinders 3
 Bore x Stroke mm (in.) 67.0 x 68.0 (2.6 x 2.7)
 Displacement L (cu. in.) 0.719 (43.9)
 Engine Speed rpm 3600
 Continuous Rated Output kW (HP) 12.2 (16.3)
 Lubricant
(API classification)
Above CD grade
 Oil Capacity L (qts.) 3.4 (0.9)
 Coolant Capacity L (qts.) 4.1 (1.1)
 Starting System Electric – 12 volt DC
 SET
 Fuel Diesel fuel No.2
(ASTM D975)
 Fuel
Consumption
at Full Load L/h (gal./h) 4.1 (1.09)
at 3/4 Load L/h (gal./h) 3.3 (0.86)
at 1/2 Load L/h (gal./h) 2.7 (0.71)
at 1/4 Load L/h (gal./h) 2.2 (0.59)
 Fuel Tank Capacity L (gal.) 28.0 (7.4)
 Continous
Operation
Hours
at Full Load h 7.0
at 3/4 Load h 8.5
at 1/2 Load h 10.4
at 1/4 Load h 12.7
 Battery (Ah/5h) 55B24R (12V x 36Ah)
 Dimensions
L x W x H
mm
(in.)
1281 x 618 x 698
(50.4 x 24.3 x 27.5)
 Approx. Net Weight kg (lbs.) 295 (650)
 Sound Level
(Full Load at 23 ft. [7m])
dB (A) 68
 Emergency Stop System In case of abnormal: oil pressure, water temperature, or when the access terminal cover is opened (terminal type only)

Note regarding oil fill level at oil change:  Here’s the update from Kubota Engines.  The 722 generator on the GL11000 comes with either a 101mm or a 120mm deep oil pan. (4” or 4.75”). The 101 takes  .9 gallons of oil.  The 120 takes 1 gallon.  If the unit has the 4.75” deep oil pan it requires 1 gallon to fill it to the top mark on the dipstick. The GL11000-USA uses dip stick part #1G304-36410.

KUBOTA FILTERS  for GL 4500, GL 6500, GL 7000, GL 11000 AND GL14000 Watt Diesel Generators

For the first 2 years or 2000 hours you must use factory filters, or you will void warranty. The owner’s manual recommends you change oil and oil filter first 50 hours. After that change the oil every 100 hours and the oil filter every 200 hours. Suggestion: I like to use Mobil ® Delvac 1300 Super Diesel Motor oil for the engine oil and oil changes. Do not use automotive grade oil.

KUBOTA FILTERS  for GL 4500, GL 6500, GL 7000, GL 11000 AND GL14000 Watt Diesel Generators





Shipping This item ships to



Fast Shipping in the USA. Items ship the same or next day We process orders 7 days a week to ensure the fastest shipping possible. All generators are shipped as fast as possible out of several US locations to ensure the fastest delivery.

Here are 4 more great reasons to buy from us:

You can rest assured that we offer our lowest price and bring the highest value in terms of service and reliability.


We Put Our Customers First We have done the research for you to find the best manufacturers with the best warranties. Every unit on our site is covered by a high quality manufacturers warranty.

We offer the absolute lowest price we can offer
