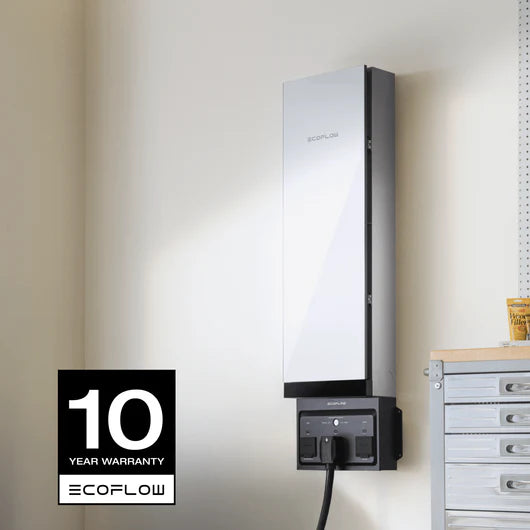

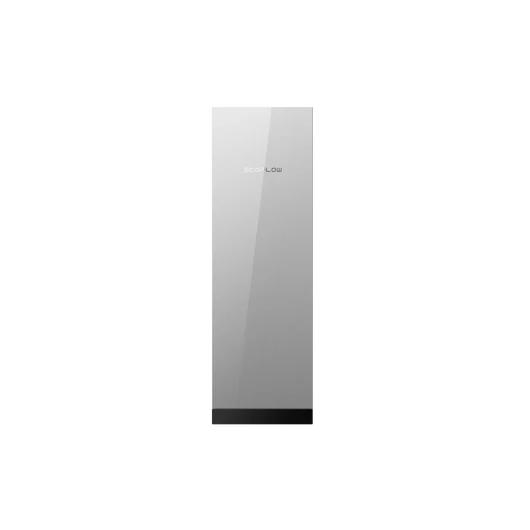

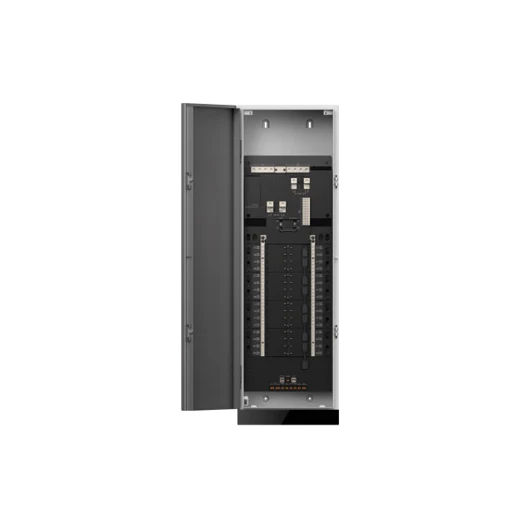

The Ecoflow Smart Home Panel 3 is a complete energy management system that works with the Ecoflow products to give you complete control of your home power integration.
Key Features:
- Control your home power with 32 smart circuits
- Seamless Backup in <20 milliseconds
- Energy Smart Savings up to $6,000/year
- Extends Your Power Backup time by up to 42%
With a massive 32 separate circuits, the Ecoflow Smart Home Panel 3 has you covered across your home or business. Enjoy complete control of your Ecoflow power supply.
Specs:
Technical Specifications – EcoFlow Smart Home Panel 3
| Model | EcoFlow Smart Home Panel 3 |
|---|---|
| Number of Load Branches | 32 independently controllable circuits |
| Service / Input Voltage | 120/240V AC (split-phase), 120/208V AC (3-wire from 3Ø 4-wire), 60 Hz |
| Maximum Continuous Input Current | 160A |
| Service Rating | Up to 200A main service (see installation guide and local code) |
| Switchover Time | < 20 ms (grid to backup, with compatible EcoFlow backup system) |
| Branch Circuit Ratings | 8 × high-current circuits up to 90A; 24 × standard circuits up to 60A |
| Dimensions (H × W × D) | 365 × 188 × 1150 mm (14.37 × 7.40 × 45.28 inches) |
| Net Weight | 88.8 ± 0.4 lb (40.3 ± 0.2 kg) |
| Enclosure Rating | NEMA 3R, outdoor-capable |
| Operating Temperature | −30°C to 50°C (−22°F to 122°F) |
| Storage Temperature | −30°C to 50°C (−22°F to 122°F) |
| Maximum Operating Altitude | ≤ 3000 m (9843 ft) |
| Power Measurement Accuracy | Main circuits: ±0.5%; Sub-circuits: ±1% (typical) |
| Communication | Bluetooth, Wi-Fi, Ethernet, CAN, RS485 |
| Certifications | UL67, UL869A, UL916, UL1741, FCC Part 15B / 15C |
| Compatible EcoFlow Products | EcoFlow DELTA Pro Ultra Inverter, EcoFlow DELTA Pro Ultra X Inverter, EcoFlow PowerPulse EV Charger (see EcoFlow docs for latest list) |
| Warranty | 10 years (EcoFlow, with proper installation & registration) |
| Shipping | This item ships to |
 |
Fast Shipping in the USA. Items ship the same or next day We process orders 7 days a week to ensure the fastest shipping possible. All generators are shipped as fast as possible out of several US locations to ensure the fastest delivery. |
|
 |
We Put Our Customers First We have done the research for you to find the best manufacturers with the best warranties. Every unit on our site is covered by a high quality manufacturers warranty. |
|
 |
We offer the absolute lowest price we can offer |
|
 |
We insist that you love our service. If you're unhappy for any reason whatsoever, just let us know and we'll bend over backwards to make things right again. |
|
 |
Ordering from AllProGenerators.com is 100% safe and secure so you can rest easy. Your personal details are never shared, sold or rented to anyone either. |
Description
The Ecoflow Smart Home Panel 3 is a complete energy management system that works with the Ecoflow products to give you complete control of your home power integration.
Key Features:
- Control your home power with 32 smart circuits
- Seamless Backup in <20 milliseconds
- Energy Smart Savings up to $6,000/year
- Extends Your Power Backup time by up to 42%
With a massive 32 separate circuits, the Ecoflow Smart Home Panel 3 has you covered across your home or business. Enjoy complete control of your Ecoflow power supply.
Specs:
Technical Specifications – EcoFlow Smart Home Panel 3
| Model | EcoFlow Smart Home Panel 3 |
|---|---|
| Number of Load Branches | 32 independently controllable circuits |
| Service / Input Voltage | 120/240V AC (split-phase), 120/208V AC (3-wire from 3Ø 4-wire), 60 Hz |
| Maximum Continuous Input Current | 160A |
| Service Rating | Up to 200A main service (see installation guide and local code) |
| Switchover Time | < 20 ms (grid to backup, with compatible EcoFlow backup system) |
| Branch Circuit Ratings | 8 × high-current circuits up to 90A; 24 × standard circuits up to 60A |
| Dimensions (H × W × D) | 365 × 188 × 1150 mm (14.37 × 7.40 × 45.28 inches) |
| Net Weight | 88.8 ± 0.4 lb (40.3 ± 0.2 kg) |
| Enclosure Rating | NEMA 3R, outdoor-capable |
| Operating Temperature | −30°C to 50°C (−22°F to 122°F) |
| Storage Temperature | −30°C to 50°C (−22°F to 122°F) |
| Maximum Operating Altitude | ≤ 3000 m (9843 ft) |
| Power Measurement Accuracy | Main circuits: ±0.5%; Sub-circuits: ±1% (typical) |
| Communication | Bluetooth, Wi-Fi, Ethernet, CAN, RS485 |
| Certifications | UL67, UL869A, UL916, UL1741, FCC Part 15B / 15C |
| Compatible EcoFlow Products | EcoFlow DELTA Pro Ultra Inverter, EcoFlow DELTA Pro Ultra X Inverter, EcoFlow PowerPulse EV Charger (see EcoFlow docs for latest list) |
| Warranty | 10 years (EcoFlow, with proper installation & registration) |
