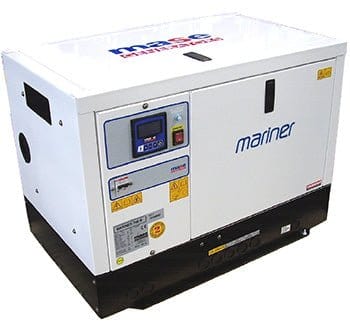

MASE IS 1304 12 kW 60 Hz, Marine Generator

SKU: MASE IS 1304
  • Free Shipping
  • Lowest Pricing
  • No Sales Tax
  • Premium Authorized Dealer

The highest quality, most reliable marine generators on the water. This new 12000 watt marine diesel generator will supply all the power you need. This reliable boat generator is Powered by Yanmar diesel, Mase Generators marine gensets are specifically designed and manufactured for installation on-board boats. The diesel generators assure shipbuilders and end users easy installation with high efficiency and performance. Designed for the special demands of the marine environment, Mase Generators marine gensets feature low sound levels and very low emissions.

 The IS ( Intercooler system )


The cooling system used on IS series generators is based on double cooling system.
Heat exchangers type sea water/air and sea water/coolant able to assure the perfect functioning of the generator independently from the external ambient temperatures.

Advantages:
• The generator may be installed in any room on the vessel without the need to install ventilation blowers.
• Engine and alternator operate in ideal temperature conditions.
• Extremely compact and quiet.
• Maximum generator efficiency.
• Simplified generator installation.
• The generator does not heat the environment where it is installed.
• The first shock-absorber system absorbs vibrations from engine-alternator to the frame.
• The second shock-absorber system absorbs residual micro-vibrations from frame to vessel.

CBU control panel (Mod-Bus transmission Unit)

New design, latest technology, big display and soft touch buttons for quick menu navigation, start and stop procedure, IP54 protection grade. Very compact 86x124mm (3.84x4.9 in) with a shielded connecting cable 10mts (32.8 ft) long, CBU has many functions for an easy monitoring of the generator:

  • ON/OFF/START/STOP/MENU
  • Digital hour-meter, Main voltage, Generator Battery voltage, external battery pack voltage, Frequency, Service time, Event list of last 10 alarms and
  • 13 different alarms icons
  • 485 Mod-Bus connector for monitoring generator by boat main control



Engine

Easy access in case of maintenance to the feeding system and lubrication, of the sea/water pump and the air filter.

Safety stop in case of low oil pressure.

Safety stop in case high water/exhaust gas temperature. Oil and fuel filters of easy access.



Alternator

  • Synchronous, 4 poles, self-regulated, brush less self-excited.
  • Rotor and stator epoxy resin coated against external
  • Rotor dynamically
  • Insulation class
  • Safety stop for high coilings

MASE

IS 13.04


12 kW 60 Hz



Engine

60 Hz

Model

YANMAR 3TNM88F-UGGE

Type

Diesel 4 stroke

Cylinders (nr.)

3

Cylinder block material

Cast iron

Bore (mm - in.)

88

Stroke (mm - in.)

90

Displacement (cc - cu.in.)

993

Power (hp)

20,4

Rated rpm

1800

Combustion system

Indirect

Engine head material

Cast iron

Speed governor

Centrifugal mechanical

Lubrication system

Forced

Oil sump capacity (L - qt.)

6,7

Engine stop system

Stop solenoid

Fuel pump

Electric

Fuel pump discharge (cm - in.)

70

Full load consumption (L/h - qt/h)

4,8 -  5,0

Starting battery (Ah-V)

45 - 12

Battery charger (Ah-V)

40 - 12

Starter (kW-V)

0,8 - 12

Max. inclination

30°

Water pump flow

(L/min - gal/min)

24



Alternator

60 Hz

Type

Synchronous, 4-poles,

self-excited

Cooling

Air

Voltage (V)

120 - 240

Frequency (Hz)

60

Current (A)

100,0 - 50,0

Max. power (kW)

12

Continuous power (kW)

11,5

Power factor ( cos ø )

1

Insulating class

H

Voltage stability

±2%

Frequency stability

±5%



Soundproof cabin

The structure is composed by a steel mainframe and painted panels of aluminum 5754 type, that has a very high resistance to external agents.

Thanks to this structure, soundproof cabin has a limited weight and an easy accessibility in case of maintenance services, also if installed in narrow places.


Cooling system

The cooling of the engine is based on a closed inner flow of coolant. The system is based on a cupronickel heat exchanger seawater/coolant type, where the thermal exchange occurs between coolant and seawater. Two separate pumps contribute to the flow of the coolant and the sea water.



60 Hz

Dimensions (Length. x Width x Height)

985 x 585   x 730 mm

38,8 x 23,0 x 28,7 in.

Weight

344      -     758,39 -kg - lb

Noise level emission

50 dBA @ 7mt





FITTINGS (optional)

  • EXHAUST COMPONENTS KIT
  • SIPHON BREAK
  • WATER-GAS SEPARATOR KIT
  • STARTING REMOTE CONTROL PANEL WITH A SHIELD CONNECTING CABLE 10 ( 32.8 ft ) LONG OR
  • SLAVE CBU CONTROL PANEL WITH A SHIELD CONNECTING CABLE 10 ( 32.8 ft ) LONG
