SONALI SOLAR SOLAR PANELS 310 Watt 24 Volt
.. people are viewing this
.. Visitor Right Now
4 Great reasons to buy from us:
Sonali Solar- 1PALLET OF of 33 UNITS.

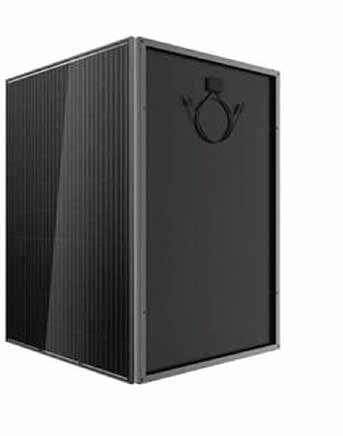

SS310w Mono-Perc PV Solar Module 60 Cell 24v BOB
Quality Product
All manufactured modules are tested 100% by EL (Electro-luminescence) during the production process and free from micro cracks.
Our high-performance modules are highly efficient, reliable, and provide optimal output. The company manufactures solar modules in compliance with global standard including MNRE, IEC 61215, 61730-1, 61730-2, 61701,
UL 1703 ISO 9001:2008 and ISO 14001:2008 and 18001:2007.
High Efficiency
Highly efficient modules, which perform at their best even in diffuse lighting conditions. We are leaders in providing our customers with maximum sunlight conversion.
Application Possibilities
Residential and commercial rooftops, carports, solar farming, balconies, awnings, street lights fences, canopies, etc.
Guarantee
Our product is durable and has a 25 year performance warranty. Integrated manufacturing of cells and modules in one production line guarantee's optimum performance.
RFID
RFID is an Radio Frequency Identification Technology - enables every individual modules to be uniquely identified. We can provide RFID tag as per customer’s request.
Electrical Specifications
|
Models |
SSM305W |
SSM310W |
SSM315W |
|
Nominal Maximum Power (Pmax) |
305 |
310 |
315 |
|
Optimum Operating Voltage (Vmp) |
32.57 |
32.6 |
32.8 |
|
Optimum Operating Current (Imp) |
9.37 |
9.52 |
9.61 |
|
Open Circuit Voltage (Voc) |
40.05 |
40.1 |
40.2 |
|
Short Circuit Current (Isc) |
9.85 |
9.87 |
9.95 |
* Maximum System Voltage: 1500v IEC/UL
- Measurement Power Tolerance on Power 0 / +%
- Under Standard Test Conditions (STC) of irradiance of 1000W/m2, spectrum AM 5 and cell temperature of 25 C
- Normal Operating cell temperature (NOCT) of irradiance of 800W/m2, spectrum AM 5 and ambient temperature of 20 C, + 2 C
Mechanical Loading
|
Front Side Maximum Static Load |
5400Pa |
|
Rear Side Maximum Static Load |
4000Pa |
|
Rear Side Maximum Dynamic Load |
Measured for 3 second wind gusts |
|
Hailstone Test |
25mm Hailstone at speed of 23m/s |
Tested Operating Conditions
|
Temperature Cycling Range |
.40 to 85 |
|
Humidity Freeze, Damp Heat |
85% RH |
Mechanical Specification
|
Module Specifications |
(1640 X 990 X 40 mm) / (64.56 X 38.97 X 1.57 inch) |
|
Weight |
22.5 kgs / 49.60 lbs |
|
Junction |
Weatherproof PPO / IP67 rated enclosure with bypass diodes |
|
Cable & Connectors |
Solar Cable 1200mm length with 4.0mm2 cross section, MC4 compatible or IP67 rated |
|
Cell Arrangement |
60 (6 x 10) |
|
Front Cover |
Tempered & Low Iron Glass, 3.2 mm |
|
Encapsulate |
EVA |
|
Back Cover |
Black Composite Sheet |
|
Frame |
Black Anodized Aluminum Alloy |
Dimensions
Temperature Coefficient & Warranty
|
 |
