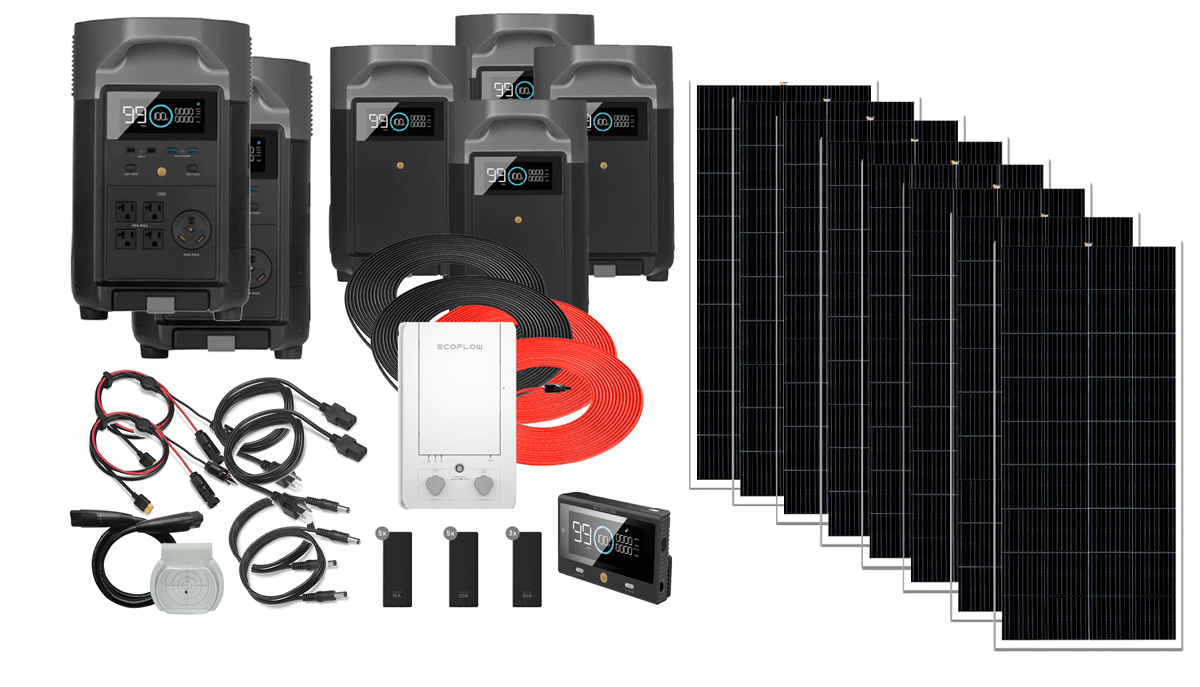

This complete custom 7,200W, 21,600 Watt-Hour complete solar system comes complete with everything you need to start running your solar power system. With 21.6KWH of battery and 2680 watts of solar, you are set to power just about anything. Save big with this custom complete setup. Your complete solar generator system with the 2 included Delta Pro units and 4 Delta Pro extra batteries is a complete power station to run your off-grid home or keep you fully prepared for an emergency.
(The Ecoflow Smart Home panel is used to connect this system to your home circuit breaker.) This 21,600 Watt-hour system is also available here with the Ecoflow Double Voltage Hub instead of the Smart Home Panel )
The items below are included with this system:

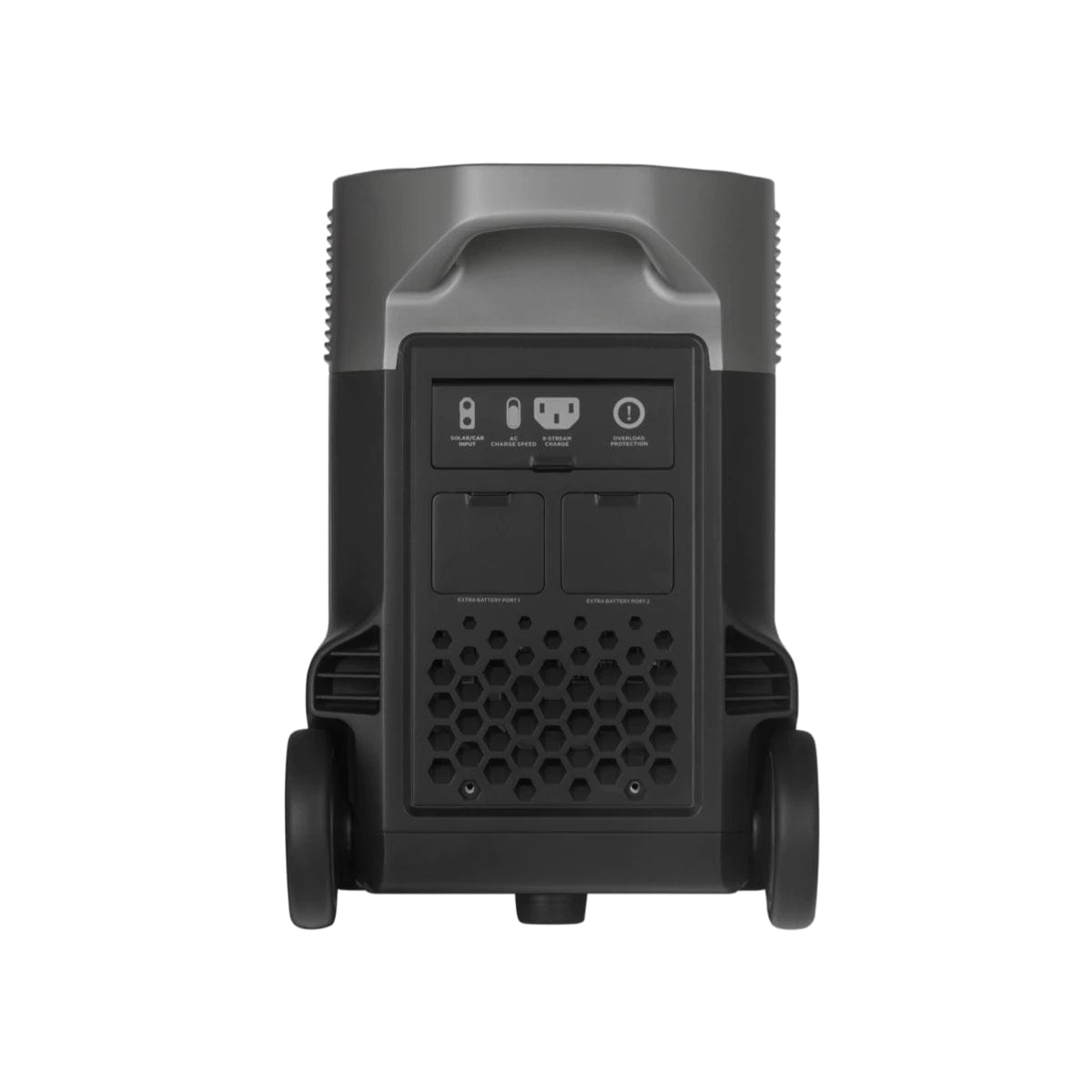

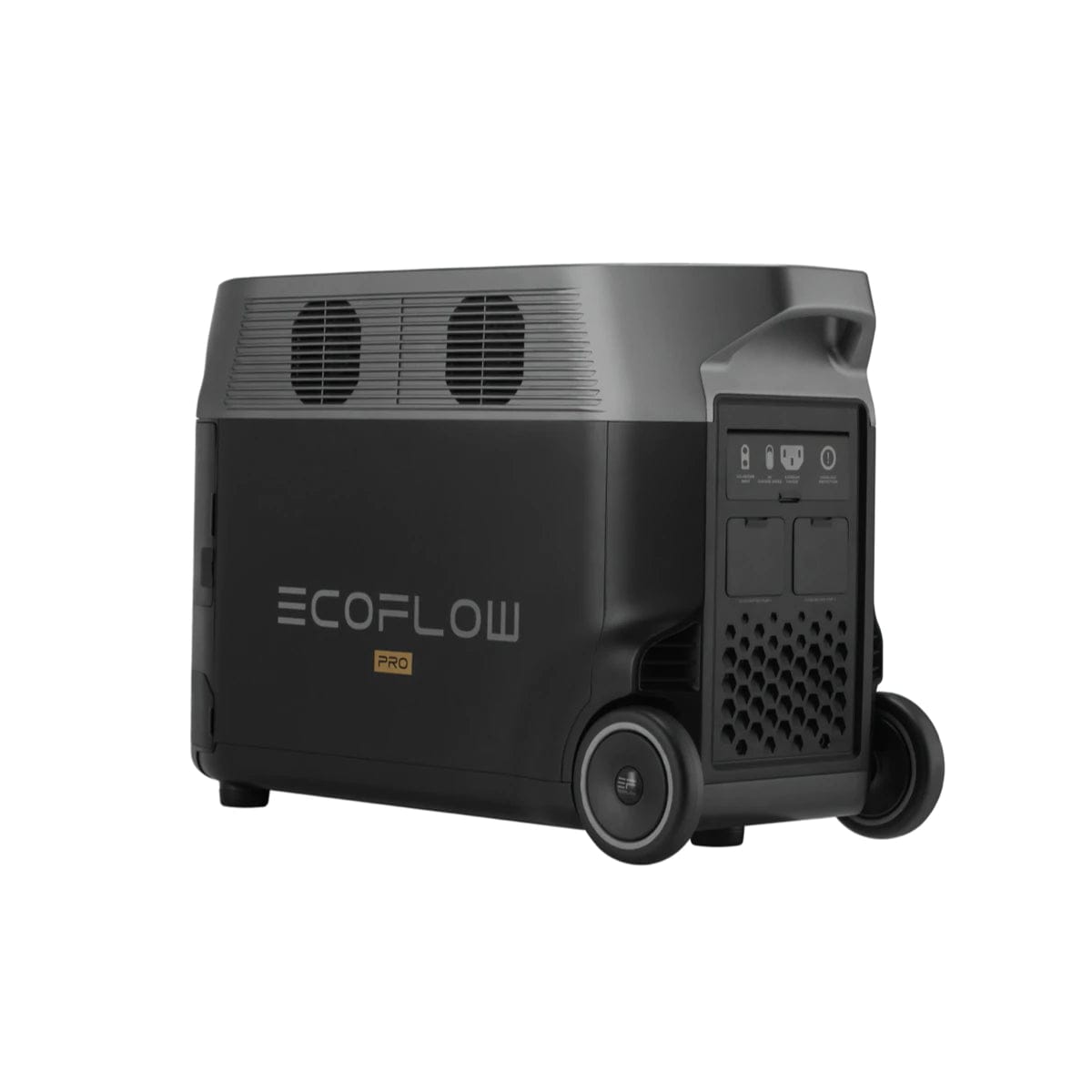

- 2 x EcoFlow DELTA PRO 3,600wH / 3,600W Solar Power Stations
- 4 x Ecoflow Delta Pro Smart Extra Batteries 3600 -wH Each

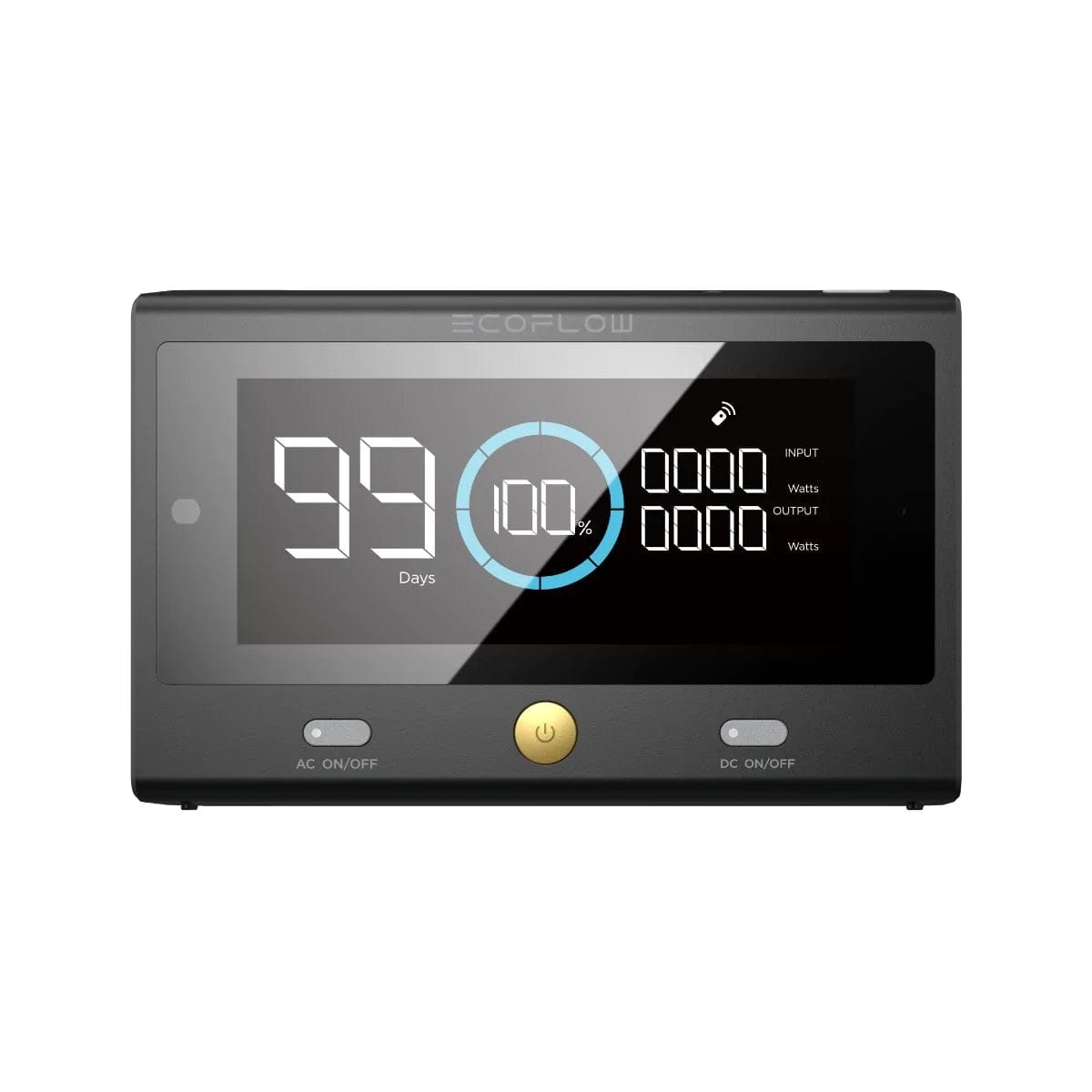

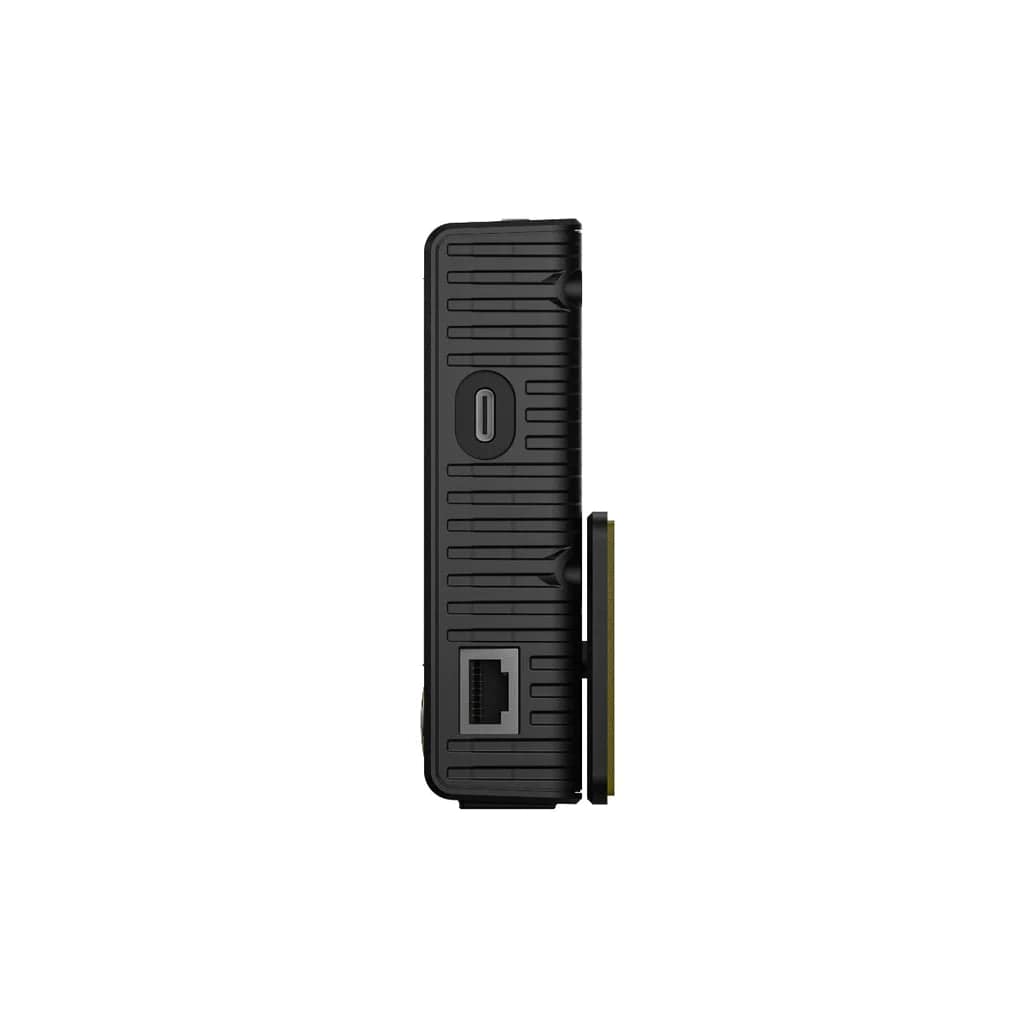

- 1 x Remote Control Monitor & Display Screen
- 1 x Smart Home Panel (for 120/240V Output)
- 8 x 335-Watt Rich Solar Rigid Monocrystalline Solar Panels -
- 2 x 50 ft. PV Solar Panel Extension Cable (10 AWG)

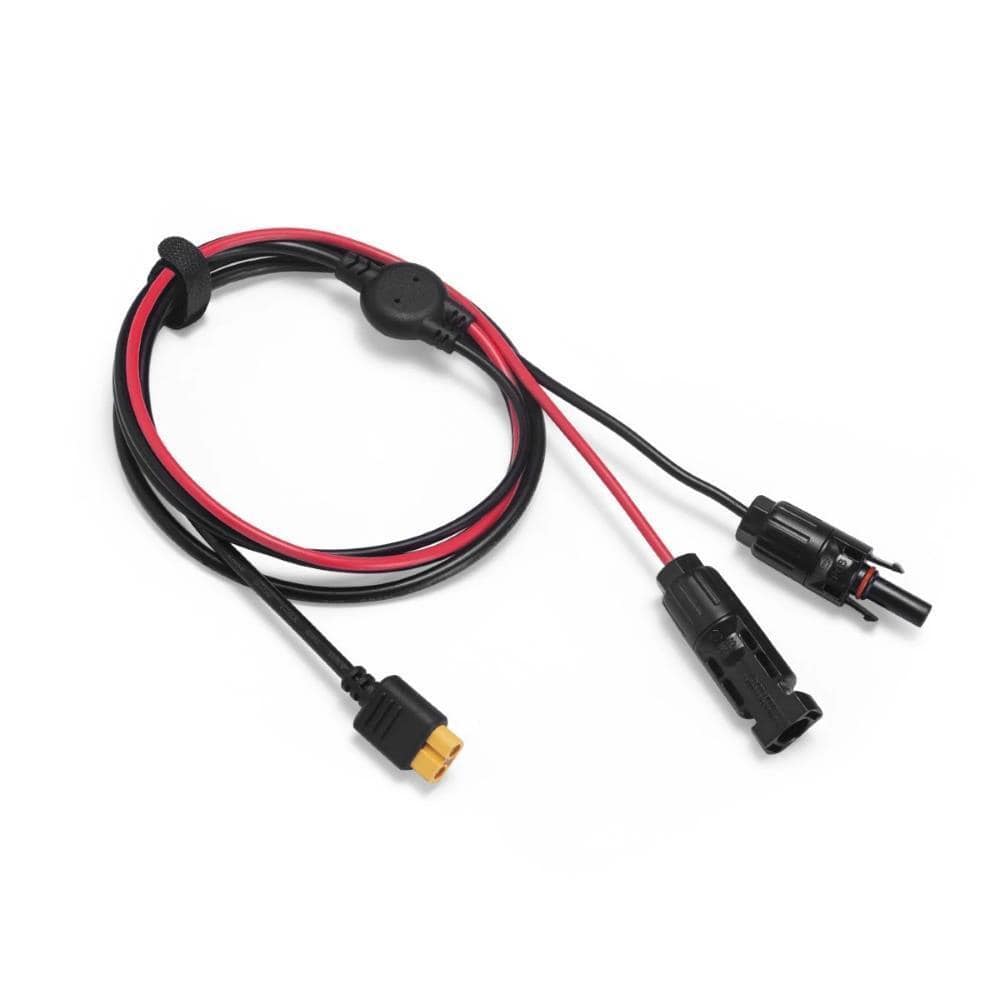

- 2 x PV Solar Charging Cable (PV to XT60)
- 2 x Car Charging Cable (Car to XT60)
- 2 x AC wall charger for charging from any standard wall outlet
- 2 x XT60 to Aviation Plug (input)
- 2 x 2 Sets of Two Way MC4 Branch Connectors - For Series-Parallel Connection
- 2 x Ecoflow Infinity Cables - (For Smart Panel Connection)

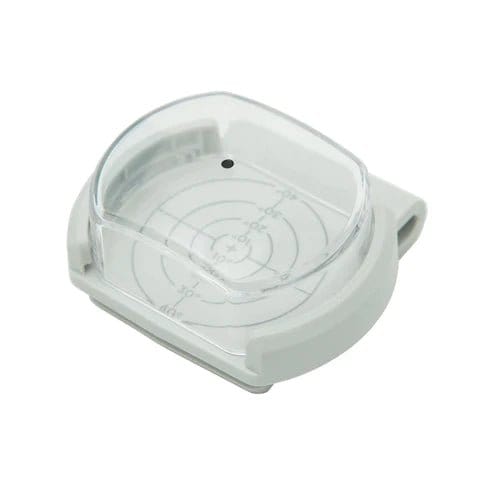

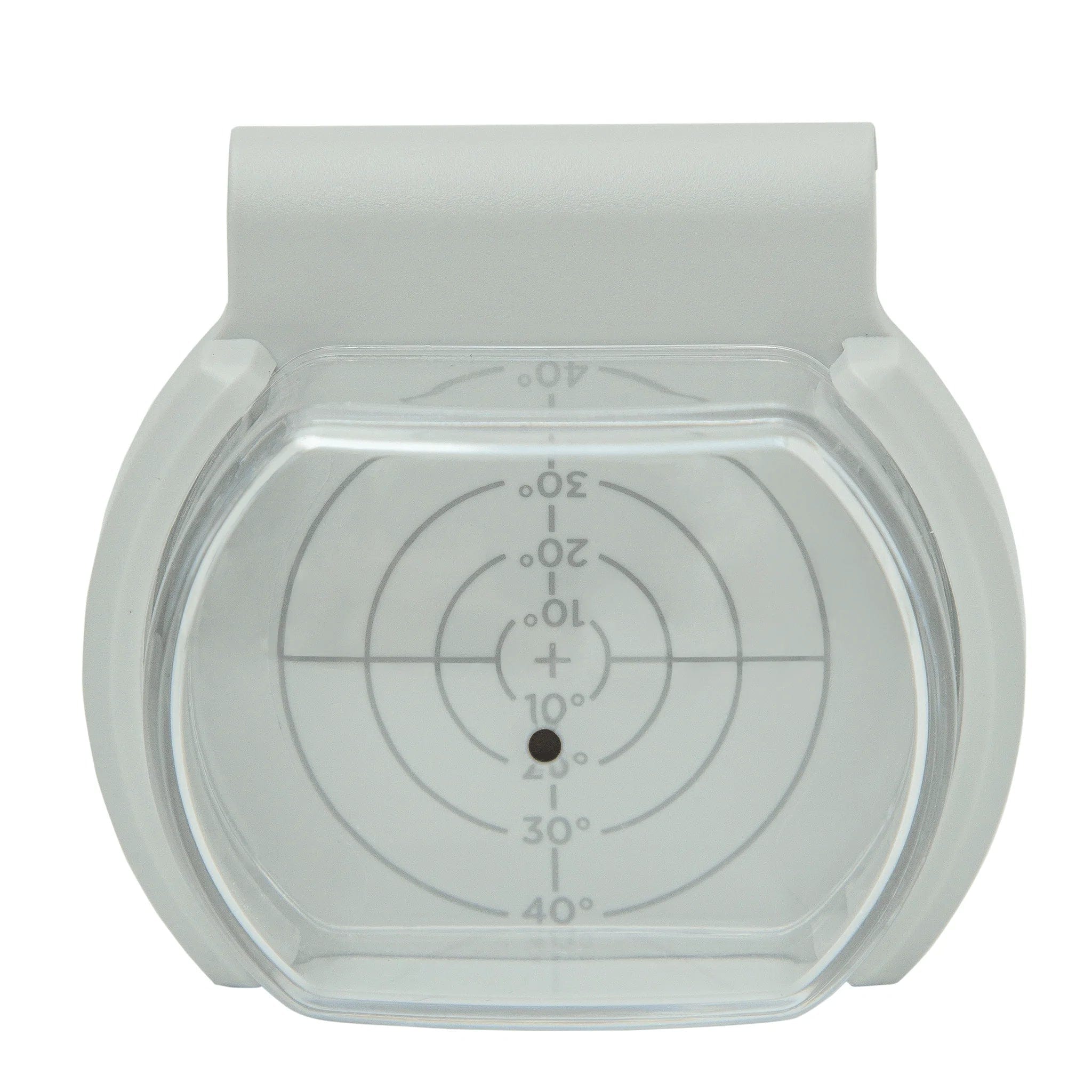

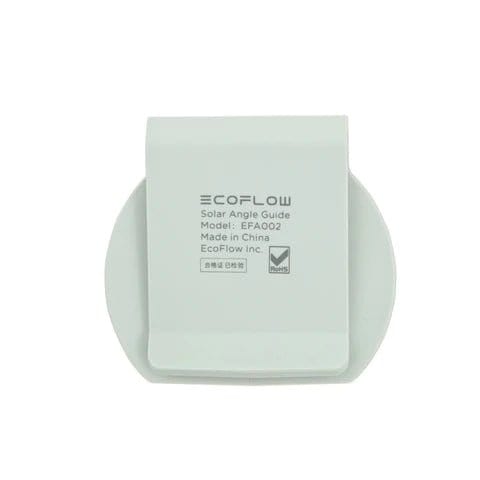

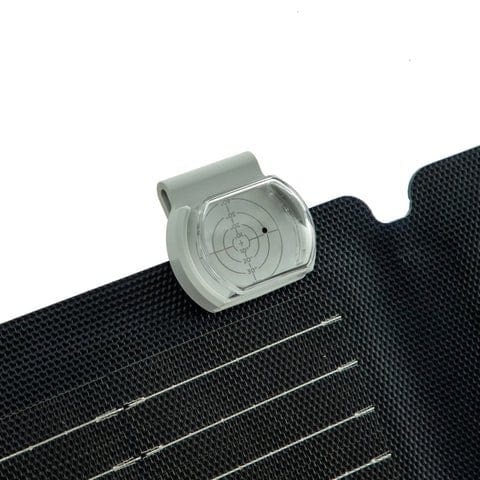

- 1 x Ecoflow Solar Angle Guide
- 2 x User Manual
- 1 x 2-Year Warranty Certification
- Free Shipping

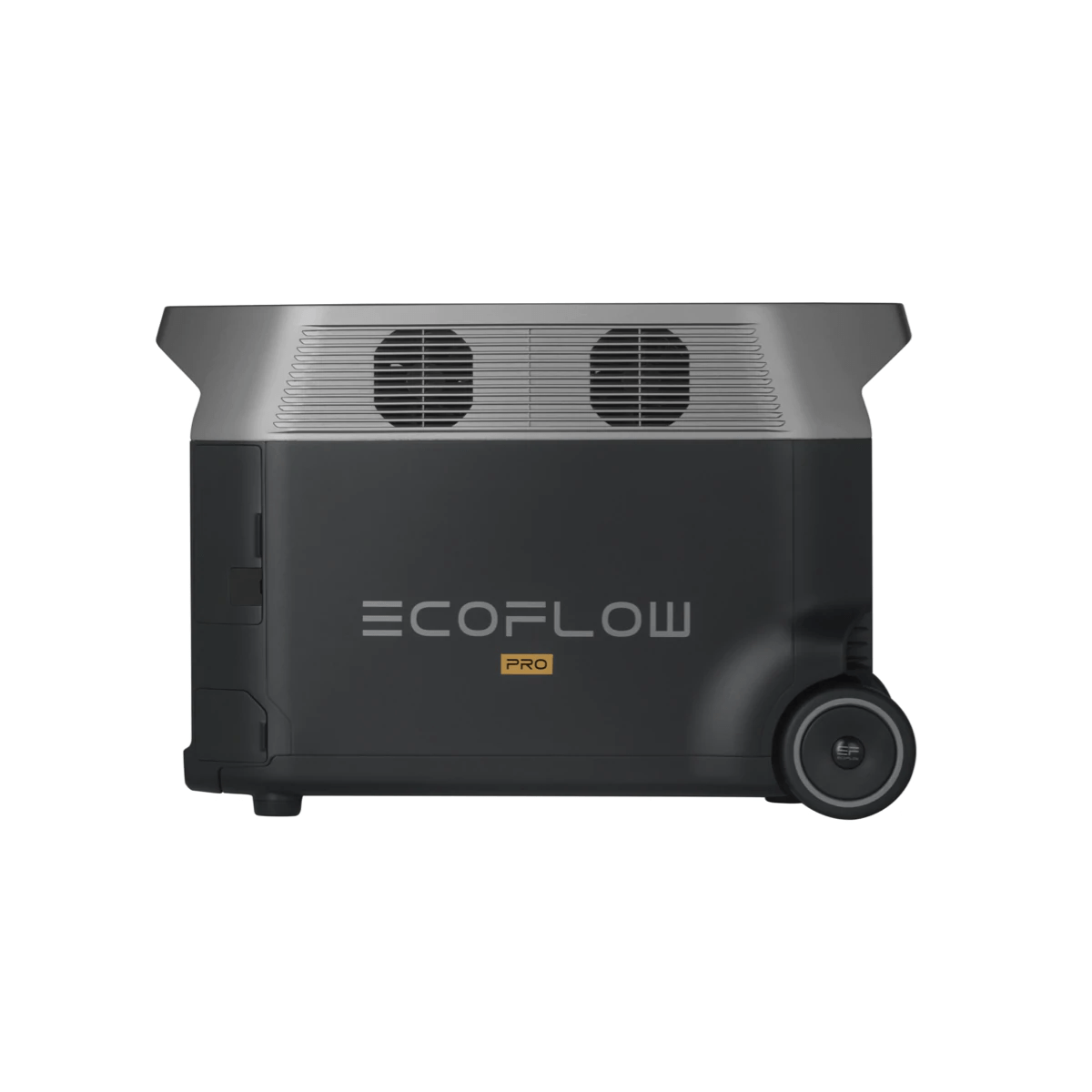

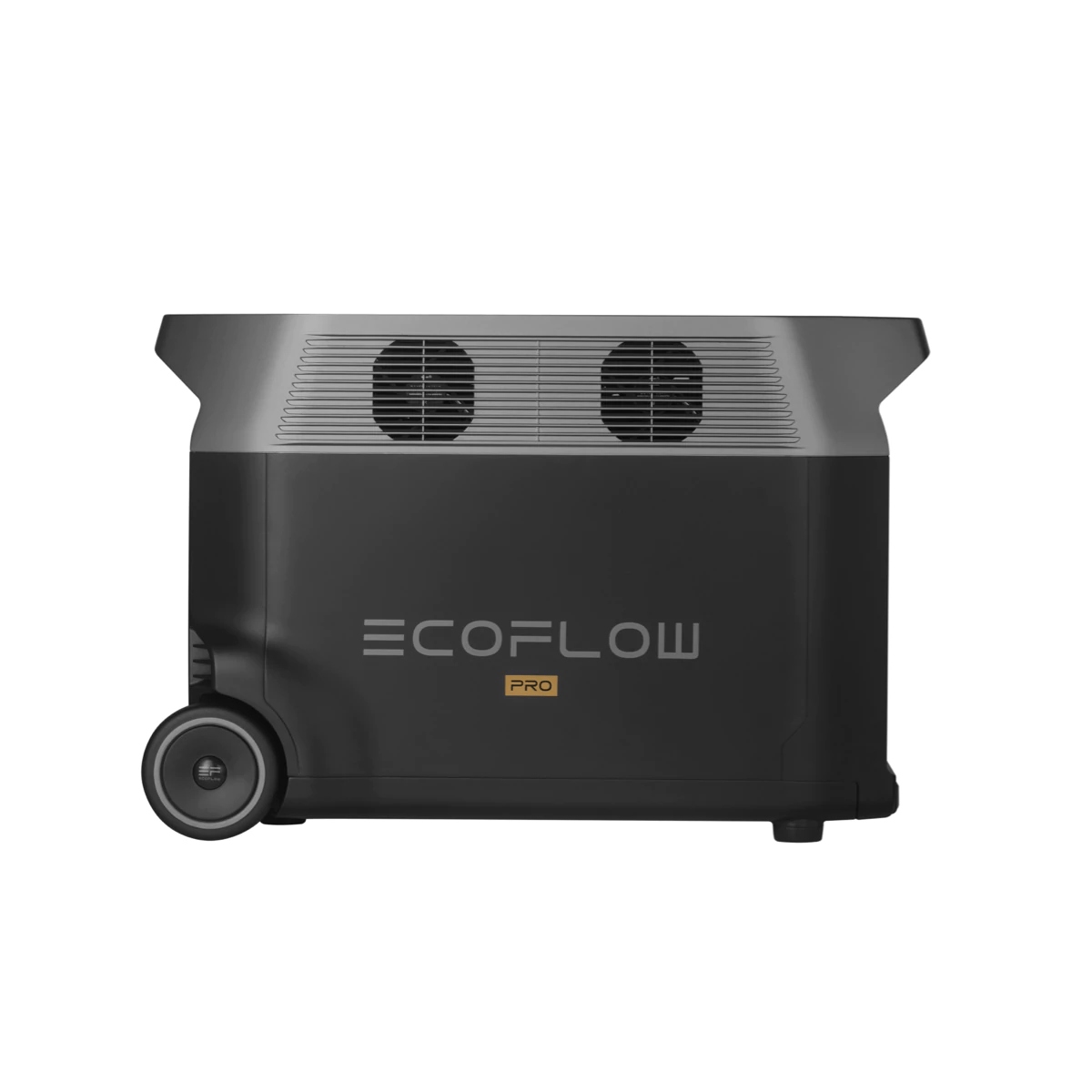

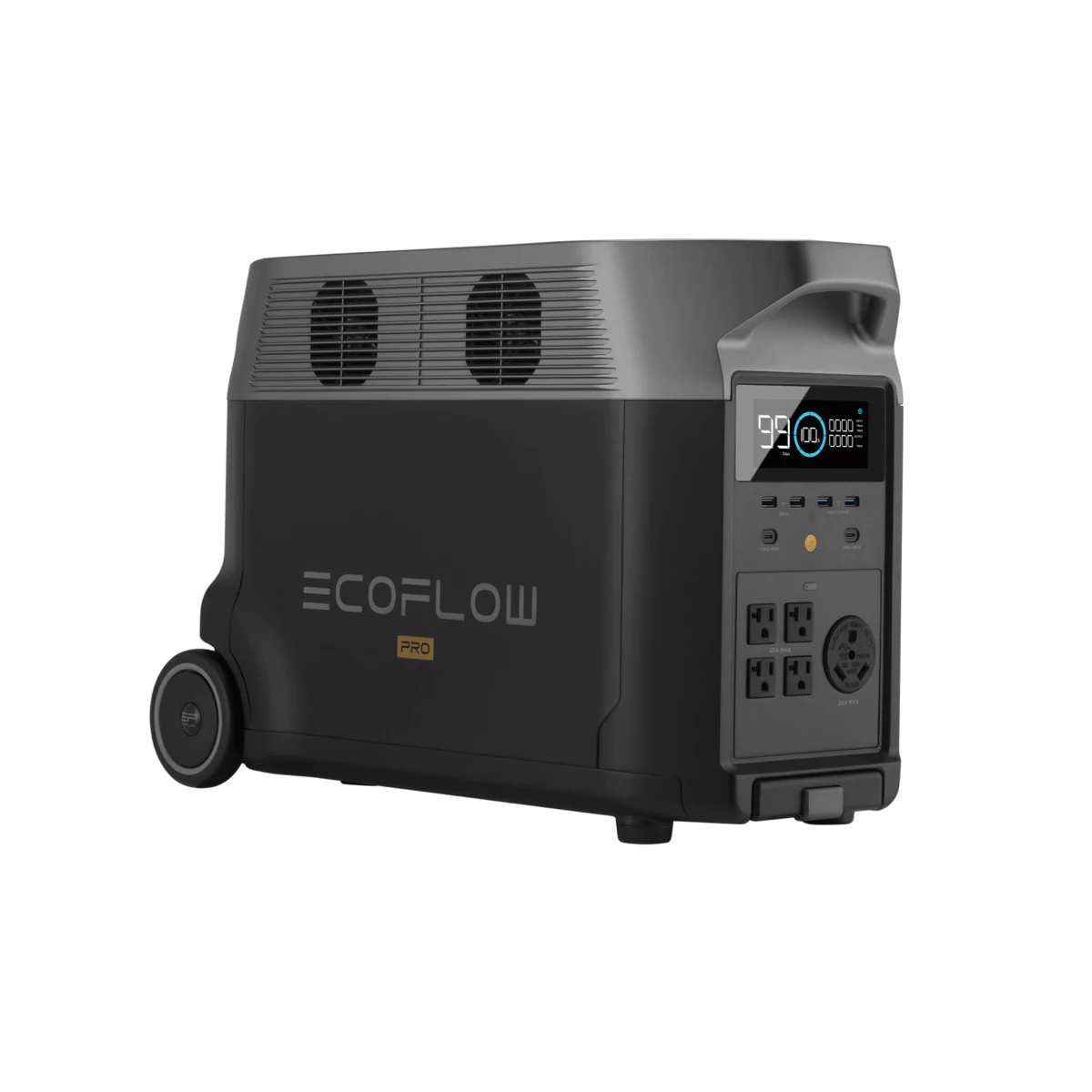

Ecoflow Pro Information:
The new EcoFlow Delta Pro is a 120-volt 3600-watt power station that can be expanded to 4500 watts with X-Boost Technology. If your appliances can use 240 volts, the Delta Pro can also be increased to 7200 watts at 240 volts by linking two Delta Pro units together with the Ecoflow EcoFlow Double Voltage Hub for the (DELTA Pro only). The included battery is a 3600 Watt Hour battery and the unit is expandable by up to 25,000 Watt-hours or 25kWh.
Disclaimer
*Qualifying battery storage technology of 3kWh or more must be installed by a connection to a dwelling in the United States, lived in by the taxpayer. You should always consult your tax professional to determine your eligibility for the Residential Clean Energy Credit under Section 25D of the Internal Revenue Code given your individual situation. EcoFlow does not guarantee any tax credit based on our products, and any information we provide is for educational purposes only and should not be considered legal advice. It does not constitute professional tax advice or financial guidance. It should not be used as the only source of information when making purchasing decisions, investment decisions, tax decisions, or execution. Consult a tax professional to evaluate your eligibility.
Effective date: Jan 1, 2023
The portable home battery: DELTA Pro sports a 3.6kWh capacity that can be expanded all the way to 25kWh. The kicker? You can integrate it directly with your home circuits via the Smart Home Panel. Ideal for home backup.
Power pretty much anything: DELTA Pro leads the industry when it comes to AC output. With 3600W you’ve got a portable generator that can power heavy-duty appliances such as dryers, AC units & more. Need even more power? Pair two units together to hit a massive 7200W.
An expandable ecosystem: DELTA Pro is more than a portable power station. It can be expanded with Extra Batteries, Smart Generators and even the Smart Home Panel. Control it all via your phone with the EcoFlow app.
The world’s fastest charging portable power station: DELTA Pro can charge via one of 6 methods. It's the first that can be charged from an EV station, and can even Multi-charge by combining methods to achieve a rapid 6500W charge. That’s the industry gold standard.
Integrates with your home: By using the Smart Home Panel (sold separately), DELTA Pro can provide power to up to 10 home circuits. Ideal for when a power outage hits, or for regular use to save on your bills.
Introducing the world's first portable home battery with an expandable ecosystem for home backup, smart energy management, lower energy bills, and more. The EcoFlow DELTA Pro is the next leap in portable power technology, offering you power security and independence, wherever you are.
Expandable Capacity
Power Pretty Much Anything (3600W-7200W Output)
World's Fastest Charging (MultiCharge 6500W)
Home Integration
Power for any situation.
From tailgate power to extreme blackouts that last for days on end, DELTA Pro delivers up to 25kWh of capacity. With that, you're covered for any situation. That's the industry gold standard.
All the AC output you’ll need.
A single DELTA Pro unit packs a 3600W AC output, which can be expanded up to 4500W with X-Boost technology. Power 99.99% heavy-duty devices at home, outdoors, or at work. You can even pair two units together to achieve 7200W.
The world’s fastest charging portable power station.
MultiCharge delivers record-breaking speeds at 6500W. To reach 6500W, you can opt for these charging methods.
Fully charge in 1.8 hours.
EcoFlow’s X-Stream charging technology isn't just fast, it's safe too. The battery management system ensures safety and longevity while you fully charge DELTA Pro from a standard AC wall outlet in 1.8 hours*.
Charge up at thousands of EV stations worldwide.
For the first time ever with a portable power station, you can charge up at thousands of EV stations worldwide. This unique charging method gives you up to 3000W fast charging on the go.
Go renewable with 1600W solar charging.
EcoFlow's suite of solar products give you a cost-effective renewable energy source to stay powered. You can use solar energy to charge DELTA Pro in just 2.8-5.6 hours. DELTA Pro has a wide voltage range from 11-150V, which makes it compatible with 90% of third-party solar panels with MC4 connectors. And when the weather gets unpredictable, the smart maximum power point tracking (MPPT) automatically adjusts, maximizing your solar generation at any time of the day.
Get emergency backup power with the EcoFlow Smart Generator.
The EcoFlow Smart Generator serves as an emergency option that integrates with your DELTA Pro ecosystem. It auto-starts when your DELTA Pro hits a low level of charge, re-charges your DELTA Pro, and stops the engine all by itself once your DELTA Pro hits a full charge. Compared to a traditional gas generator, the EcoFlow Smart Generator delivers less energy loss, faster charging and higher efficiency.
A battery that lasts for years on end.
DELTA Pro sports a brand-new LFP battery with 6500 cycles, which means you can use DELTA Pro for years and years before your unit reaches 50% of the original capacity. EcoFlow’s battery management system provides real-time analysis and regulation of voltage, current, and temperature. This unique protection mechanism makes DELTA Pro an incredibly safe and efficient home battery.
Multiple ways to control & monitor.
Control DELTA Pro either on the unit itself, using the remote control accessory, or unlock a ton of customization via the EcoFlow app. On the app, you can access your power settings, such as charging and discharging levels, AC charge speeds, control the Smart Generator and a whole lot more.
The world’s first portable home battery ecosystem.
DELTA Pro's expandable ecosystem provides you with power during blackouts, customizable energy around the clock, and lower energy bills. How does it achieve all this? With a selection of extra batteries, smart generators, solar trackers, wind turbines, a smart home panel, and more. From backup power to reducing your reliance on the grid with green alternatives, the DELTA Pro ecosystem can be customized to your needs.
Introducing the EcoFlow Smart Home Panel.
The new EcoFlow Smart Home Panel is the heart of the DELTA Pro home battery ecosystem. It integrates up to two DELTA Pro units with 10 home circuits. Each DELTA Pro can be connected with extra batteries, solar panels, or smart generators, giving you uninterrupted power during blackouts, smart energy management for your critical loads, and lower energy bills.
Uninterrupted home backup.
With a fast 20ms switchover time, DELTA Pro and the Smart Home Panel can keep you powered on during a blackout. All the while, the EcoFlow app keeps you in the know, letting you select and modify your device priorities.
Smart Energy Management.
The EcoFlow DELTA Pro ecosystem stores energy day and night, reducing your reliance on the grid and lowering your energy bills by combating time-of-use rates. It integrates directly with your home using the EcoFlow Smart Home Panel. The EcoFlow app gives you a smart breakdown of your energy habits, and you can customize your energy usage for any type of situation.
RV living made easy.
With DELTA Pro, you can take home with you, wherever you go. It features wheels and a suitcase-esque extendable handle that makes transport easy. And if you’re looking for a complete power solution for RV road trips and outdoor adventures, DELTA Pro comes with solar panels and dedicated 30A Anderson port and AC outlet.
Power that means business.
Not only does DELTA Pro provide home backup and off-grid power, it also gives you a secure power source for any type of professional work. Whether you’re working at home or outdoors, from DIY to professional projects, DELTA Pro helps you get the job done.
Light 10W
337 Hours (DC) 108 Hours (AC)
What's in the box
1.DELTA Pro 2.AC Charging Cable 3.Car Charging Cable 4.Solar Charging Cable 5.DC5521 to DC5525 cable 6.Handle Cover 7.User Manual
Frequently Asked Questions
Specs
Capacity
3600Wh
Extra Battery
Support up to two DELTA Pro Smart Extra Battery/Smart Generator
AC Output
5 outlets, 3600W total (Surge 7200W)
Max Device(s) Power Supported by X-Boost
4500W
USB-A Output
2 ports, 5V, 2.4A, 12W Max per port
USB-A Fast Charge
2 ports, 5V, 2.4A / 9V, 2A / 12V, 1.5A, 18W Max per port
USB-C Output
2 ports, 5/9/12/15/20V, 5A, 100W Max per port
Car Power Output
12.6V, 10A, 126W Max
DC5521 Output
2 ports, 12.6V, 3A, 38W Max per port
Anderson Port
12.6V, 30A
AC Charging Input
1800W Max, 120V~15A, 3000W Max, 240V~12.5A
Solar Charging Input
1600W Max, 11-150V, 15A
Car Charging Input
Support 12V/24V battery, 8A
Battery Chemistry
LFP
Cycle Life
6,500 cycles to 50% capacity, 3,500 cycles to 80% capacity
Shelf Life
1 year (after a full charge)
Connection
Wi-Fi, Bluetooth, wired
Net Weight
Approx. 99lbs/45kg
Dimension
25*11.2*16.4 in/63.5*28.4*42cm
*International version (2900W at 1.9 hrs) US version (1800W at 2.7 hrs/3000W at 1.8 hrs)
Please use the AC Charging Cable included in the package for fast charging. Do not use other cables to charge. Plug directly into an AC wall outlet and make sure that the wall output current is more than 15A. Otherwise, reduce the unit charging speed with the AC Charge Speed Switch. EcoFlow takes no responsibility for any consequences caused by failures to follow instructions, including but not limited to charging with other AC charging cables.

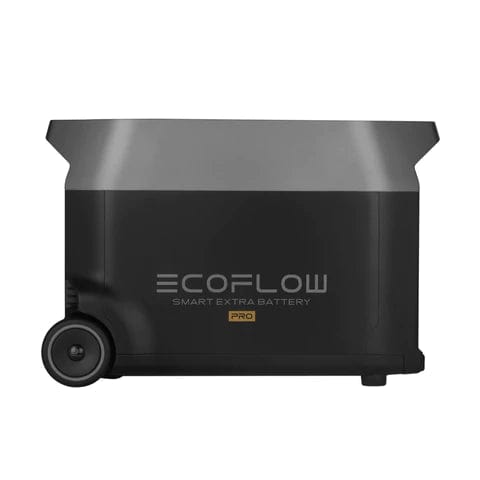

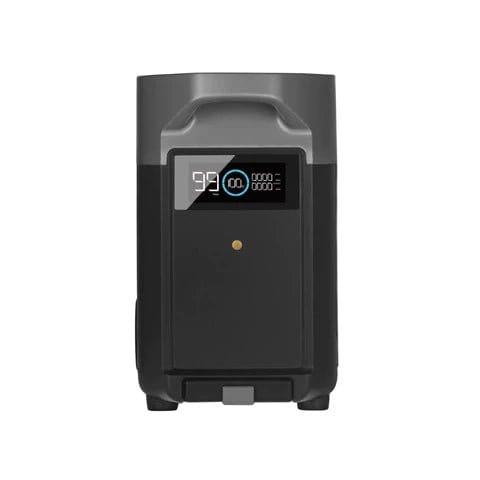

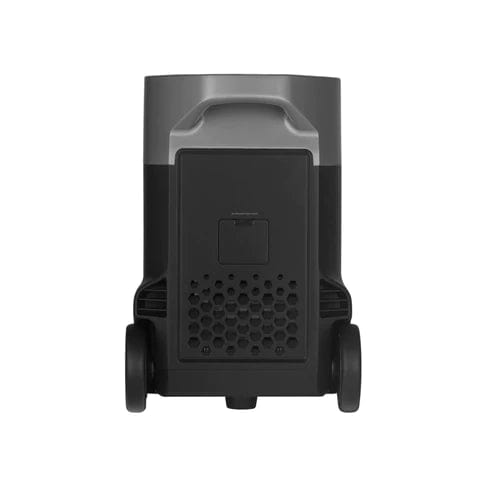

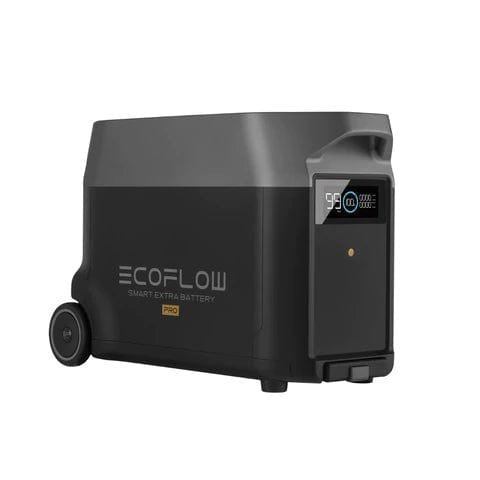

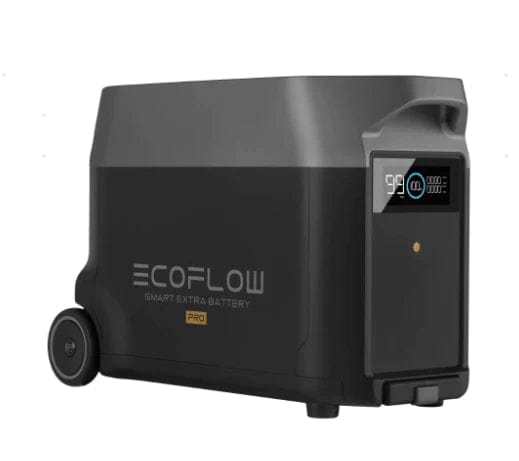

Delta Pro Smart Extra Battery Information:
Expandable capacity This add-on battery connects with a DELTA Pro to double the total capacity to 7200Wh. Connect two of them to DELTA Pro for a staggering 10.8kWh to use off-grid.
Convenient recharging Recharging from solar panels, AC outlets, EV charging stations, or our Smart Generator is easy. Plug the Extra Battery into DELTA Pro and they will recharge and discharge in tandem.
More watt-hours at home The Extra Battery can be integrated into your home’s wiring when connected to DELTA Pro. These battery units become part of your home’s peak shaving and emergency power solutions.
Ready for emergencies This Extra Battery can recharge directly from EcoFlow’s Smart Generator outdoors, giving you another option for emergencies.
LCD screen Get all the same info about battery percent, remaining recharge time, hours left, and more on the built-in screen. You can check the battery’s status anywhere from the EcoFlow app.
*Note: This product is exclusively for the EcoFlow DELTA Pro portable power station; only available for sale in the contiguous United States.
Make it a triple.
Double or triple the capacity of your DELTA Pro to 7.2kWh or 10.8kWh. That’ll give you days of power for your essential appliances.
Charge anytime, anywhere.
DELTA Pro’s Smart Extra Battery benefits from all the charging methods DELTA Pro has, including 6500W MultiCharge. That means you can charge anytime, anywhere as long as your extra battery is connected to DELTA Pro. Once connected, they’ll charge/discharge in unison, keeping the battery percent level across both units.
Ready for any emergency.
When the going gets tough and you’re out of charge options, get a 1800W DC fast charge with EcoFlow Smart Generator (sold separately). Just plug the generator directly into your extra battery via the port on the back. This works even when disconnected from your DELTA Pro.
Stay informed.
The Smart Extra Battery sports a bright LCD screen on the front of the unit giving you all the info you need. Output, input, remaining charge and time remaining. It’s all there. Need on-the-go info? The EcoFlow app can tell you all that & a whole lot more.
What's in the box
1.DELTA Pro Smart Extra Battery 2.DELTA Pro Extra Battery Cable 3.Handle Cover 4.User Manual
Specs
Model Name
DELTA Pro Smart Extra Battery
Capacity
3600Wh
Battery Chemistry
LFP
Battery Cycle Life
6,500 cycles to 50% capacity, 3,500 cycles to 80% capacity
Shelf Life
1 year (after a full charge)
Dimensions
25 x 11.2 x 16.4 in / 63.5 x 28.5 x 41.6 cm
Weight
Approx. 84lbs / 38kg
335 WATT RIGID SOLAR PANEL INFORMATION
SMART HOME PANEL INFORMATION:
The Smart Home Panel requires the included Relay Module (s) to work.
Thuis unit includes the following Relays -Default Combo [ 1xSmart Home Panel + 5xRelay Module(15A) + 5xRelay Module(20A) + 3xRelay Module(30A) ]
A smart home battery system Made specifically for the DELTA Pro ecosystem, the Smart Home Panel connects the DELTA Pro portable power station right to your home’s wiring.
Backup power for essential home appliances When the grid goes down, the Smart Home Panel instantly switches to battery backup mode using any connected DELTA Pro units. Your home will go on strong with up to 7200W of power and 25kWh of energy when properly equipped.
EcoFlow app control Monitor, control, and manage energy through the EcoFlow app. The app gives real-time metrics and lets you avoid peak rates.
Peak rate avoidance If you’re on a time-of-use billing rate, you can use the Smart Home Panel and attached DELTA Pros to store energy when rates are low and consume it when rates are high.
Sustainable & self-sufficient When you attach MC4-compatible solar panels to DELTA Pro, your home gets a little more eco-conscious. The Smart Home Panel links free, renewable solar energy to your wall outlets, lighting, and other fixtures. With enough solar input, your home can become self-sufficient.
The EcoFlow Smart Home Panel integrates EcoFlow DELTA Pro with your home to achieve a flexible, expandable home battery solution to store energy for later use. Link up to 10 of your home circuits for uninterrupted power during blackouts, smart energy management, and more. All while saving money in the process.
Backup Your Home
App Control
Save Money
Power Self Sufficiency
Prepare your home for power outages.
When a blackout hits, the Smart Home Panel immediately switches to your 10 integrated circuits and draws power from your DELTA Pro(s). You’ll barely notice a loss of power as your chosen circuits stay powered with a mere 20ms switchover time.
Expand capacity and output.
The Smart Home Panel supports and fast charges up to two DELTA Pro(s) at a time, alongside their extra batteries + smart generator(s). That gives you a potential 240V, 7200W output and 25kWh of capacity at your control, enough to power pretty much anything in your home, delivering days of power during blackouts.
Control, monitor, and manage your energy use.
Control each of your integrated home circuits via the EcoFlow app and get a birds-eye view of your energy consumption habits. Dive into the settings to customize your power use. You can optimize for home backup, saving money, or custom options to schedule your energy use based on your needs. Once you’re set, you can even control which power source your house uses, all from your phone.
Save money on your electricity bills.
Draw power from your DELTA Pro(s) to power your home during peak energy use hours, this lowers your bills and reduces pressure on the grid during peak hours. During off-peak hours, use low-cost/renewable energy to charge your DELTA Pro(s) back to full.
How it all comes together.
The DELTA Pro Ecosystem all links together with the Smart Home Panel at its heart.
Achieve power self-sufficiency.
Reduce your reliance on the grid and prepare for blackouts. Opt for EcoFlow’s range of portable solar panels to store energy at any time, or charge from your AC coupled rooftop solar panels while the grid is on-line. No sun? We’re working on a wind turbine. No sun or wind? Charge via the grid. No sun, no wind, and a blackout hits? You’re still good. Lean on the EcoFlow Smart Generator as a last resort to charge your batteries.
Tutorial Videos
This video explains the installation process for the Smart Home Panel.
Tutorial Videos
This video introduces EcoFlow DELTA Pro Ecosystem.
What‘s in the box
1. Smart Home Panel, 2. Infinity Cable, 3. Wall Mounts, 4. Wire Connectors, 5. User Manual
*This product does not provide an AFCI (Arc Fault Circuit Interrupter) function. All upstream breakers should be non-GFCI/AFCI. GFCI and AFCI protection should be downstream of the SHP using GFCI/AFCI breakers or outlets.
**How to choose Relay Modules:
-
Load planning: With a Smart Home Panel, selective loads are installed where they will be the most effective during power outages or energy savings management. Consider areas that would significantly affect comfort, such as refrigerator and lights, and choose the maximum of 10 selective loads from your breaker panel based on their efficiency in load.
-
Collect the load info: Determine the number and current rating of the load circuits that you plan to connect. Consult your electrician if you need support with this.
-
Determine the relay modules needed: Choose the relay module that matches the current rating for the circuit breaker upstream of that load circuit. Recommended relay modules for regions: 15A, 20A, 30A for US and Japan.
Frequently Asked Questions
It varies based on your chosen set up and how you use the ecosystem. However, if used optimally to reduce spending during peak hours, you could save over $1000 a year with 2 DELTA Pro’s, a smart home panel and 2400W worth of EcoFlow solar panels. That assumes average US energy rates. You can save up to double that if you use DELTA Pro’s extra batteries in addition, and if your home has a higher solar supply.
Yes. You can plug in up to two DELTA Pros and benefit 3400W fast charging for your units. You can choose which speed is best for you in the EcoFlow app.
You can monitor and optimize your energy usage from anywhere with a Wi-Fi connection via the EcoFlow app, as long as your units are online.
Yes. You can use your existing rooftop Solar Panels so long as they are AC coupled and the grid is on-line. During blackouts, you can rely on other power sources such as EcoFlow Solar Panels, and the Smart Generator.
Specs
Output Voltage
120V / 240V
System Frequency
60Hz
# of Controlled Circuits
10
Rate Current
30A, 20A, 15A
Max Backup Power
3600W / 7200W
Max Connected Battery Energy
21.6kWh
Charging Input (DELTA Pro)
3400W Max
IP Code
IP20
Installation
Wall mount, to be installed by a licensed electrician
Warranty
3 Years
Dimensions
18.1 x 11.8 x 4.7 in / 460 x 330 x 120 mm
Weight
20 lb / 9 kg
MORE INFORMATION - CLICK BELOW FOR THE SMART HOME PANEL MANUAL OR THE SMART HOME PANEL INSTALLATION MANUAL
SMART HOME PANEL INSTALLATION MANUAL

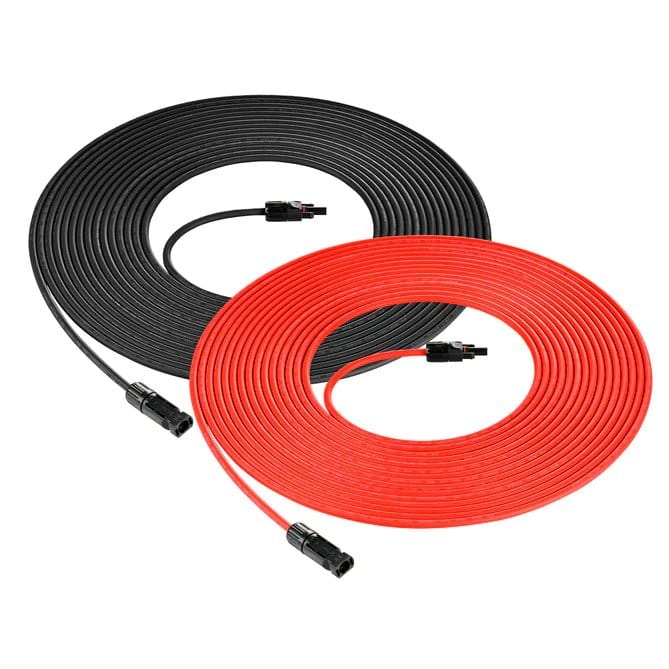

50 foot extension cable information:
10 GAUGE 50 FEET SOLAR EXTENSION CABLE + PARALLEL CONNECTORS
- 50' Red Cable with Solar Connectors Both Ends
- 50' Black Cable with Solar Connectors Both Ends
- One pair Y Branch Parallel Connectors
Features
- Extension cable for solar panels.
- Customized length of 50 feet, 10 gauge.
- Two wires with solar connectors.
- Each wire is 50 feet, one pair is double length.
- UL 4703 solar panel cable is designed for outdoor use and is moisture, UV and corrosion resistant.
Specifications
- Wire Gauge: 10AWG
- Length: 50 feet
- Rating Voltage: DC: 1.8KV / AC: 0.6~1KV
- Waterproof: IP65
- Fire Rated: IEC60332-1
- Insulation Material: TPE
- Contact Material: Tinned Copper
- Temperature Range: -40°C ~ +90°C
- Service life: >25 years

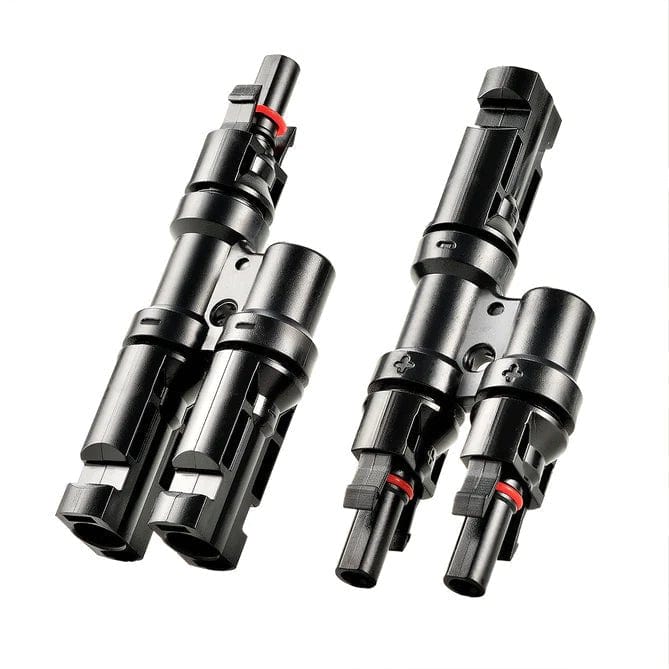

TWO WAY MC4 Branch Connectors
- Provides a quick and easy parallel wiring solution for solar panels.
- Compatible with all solar connectors.
- Designed for photovoltaic solar systems with high mechanical requirements and extreme weather conditions.
- Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.
- Lower contact resistance.
- Waterproof and dustproof.
Specifications
- Rated Current: 30A
- Maximum Voltage: 1000VDC
- Waterproof: IP67
- Wire Range: 10AWG, 12AWG
- Insulation Material: PPO + PA
- Contact Material: Tinned Cooper
- Temperature Range: -40°C ~ +90°C
- Safety Class: II

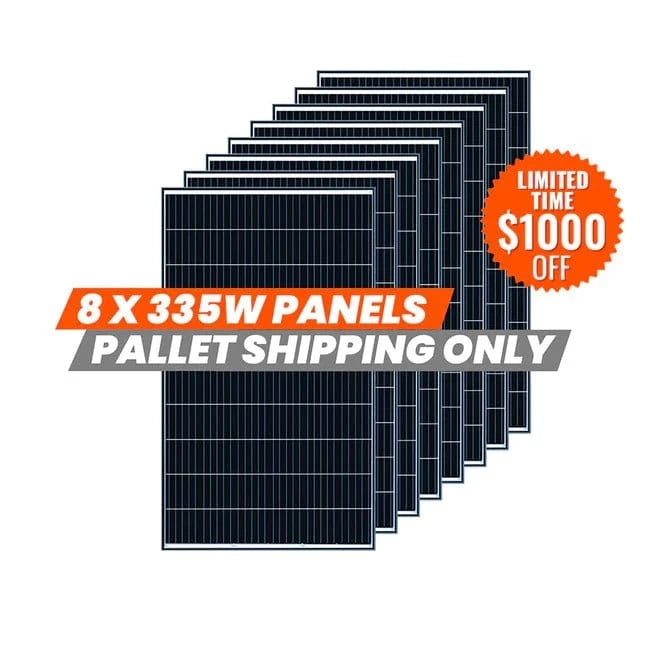

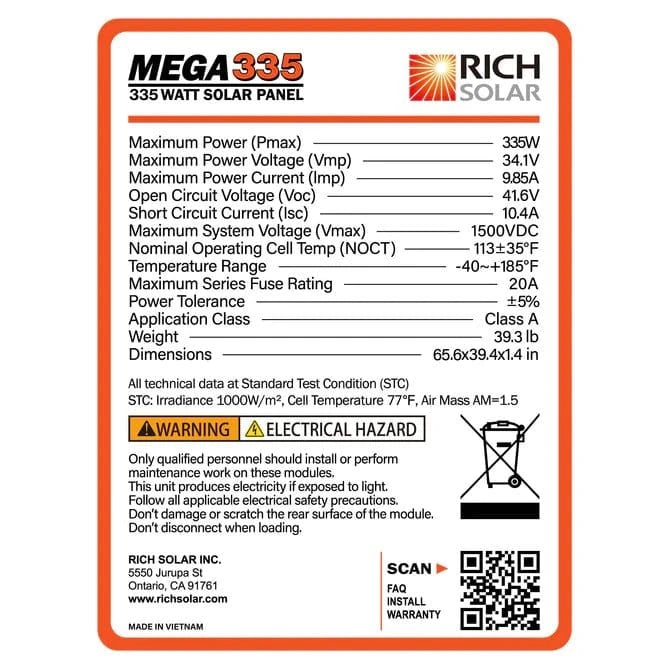

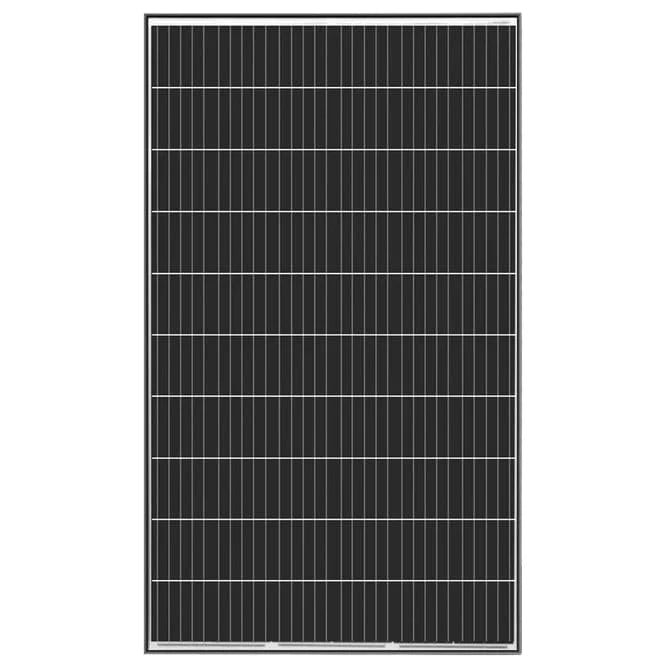

335 Watt Solar Panel specifications
Features
- 5 buss bar solar cell configuration
- Mono PERC Technology
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug and play junction box
- Industry standard quick connect cables work in series or in parallel
- Certified to withstand challenging environmental conditions
- Excellent low light performance on cloudy days, mornings and evenings
Installation
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
- Compatible with on-grid and off-grid inverters
Warranty
- 25 year limited power output
Built-in Components
- RICH SOLAR 335-watt monocrystalline solar panel
- Panel leads (pair): 3 feet each
- IP65 rated waterproof junction box
- IP67 rated waterproof solar connectors
- Bypass diodes built-in the junction box
Specifications
- Maximum Power(Pmax): 335W
- Maximum Power Voltage(Vmp): 34.1V
- Maximum Power Current(Imp): 9.85A
- Open Circuit Voltage(Voc): 41.6V
- Short Circuit Current(Isc): 10.4A
- Maximum System Voltage(Vmax): 1000VDC
- Temperature Range: -40°F ~ 194°F
- Max Series Fuse Rating: 20A
- Weight: 39.3 lb
- Dimensions: 65.6 x 39.4 x 1.4 in
Shipping | This item ships to |
Fast Shipping in the USA. Items ship the same or next day We process orders 7 days a week to ensure the fastest shipping possible. All generators are shipped as fast as possible out of several US locations to ensure the fastest delivery. |
||
We Put Our Customers First We have done the research for you to find the best manufacturers with the best warranties. Every unit on our site is covered by a high quality manufacturers warranty. |
||
We offer the absolute lowest price we can offer |
||
We insist that you love our service. If you're unhappy for any reason whatsoever, just let us know and we'll bend over backwards to make things right again. |
||
Ordering from AllProGenerators.com is 100% safe and secure so you can rest easy. Your personal details are never shared, sold or rented to anyone either. |
Description
This complete custom 7,200W, 21,600 Watt-Hour complete solar system comes complete with everything you need to start running your solar power system. With 21.6KWH of battery and 2680 watts of solar, you are set to power just about anything. Save big with this custom complete setup. Your complete solar generator system with the 2 included Delta Pro units and 4 Delta Pro extra batteries is a complete power station to run your off-grid home or keep you fully prepared for an emergency.
(The Ecoflow Smart Home panel is used to connect this system to your home circuit breaker.) This 21,600 Watt-hour system is also available here with the Ecoflow Double Voltage Hub instead of the Smart Home Panel )
The items below are included with this system:
- 2 x EcoFlow DELTA PRO 3,600wH / 3,600W Solar Power Stations
- 4 x Ecoflow Delta Pro Smart Extra Batteries 3600 -wH Each
- 1 x Remote Control Monitor & Display Screen
- 1 x Smart Home Panel (for 120/240V Output)
- 8 x 335-Watt Rich Solar Rigid Monocrystalline Solar Panels -
- 2 x 50 ft. PV Solar Panel Extension Cable (10 AWG)
- 2 x PV Solar Charging Cable (PV to XT60)
- 2 x Car Charging Cable (Car to XT60)
- 2 x AC wall charger for charging from any standard wall outlet
- 2 x XT60 to Aviation Plug (input)
- 2 x 2 Sets of Two Way MC4 Branch Connectors - For Series-Parallel Connection
- 2 x Ecoflow Infinity Cables - (For Smart Panel Connection)
- 1 x Ecoflow Solar Angle Guide
- 2 x User Manual
- 1 x 2-Year Warranty Certification
- Free Shipping
Ecoflow Pro Information:
The new EcoFlow Delta Pro is a 120-volt 3600-watt power station that can be expanded to 4500 watts with X-Boost Technology. If your appliances can use 240 volts, the Delta Pro can also be increased to 7200 watts at 240 volts by linking two Delta Pro units together with the Ecoflow EcoFlow Double Voltage Hub for the (DELTA Pro only). The included battery is a 3600 Watt Hour battery and the unit is expandable by up to 25,000 Watt-hours or 25kWh.
Disclaimer
*Qualifying battery storage technology of 3kWh or more must be installed by a connection to a dwelling in the United States, lived in by the taxpayer. You should always consult your tax professional to determine your eligibility for the Residential Clean Energy Credit under Section 25D of the Internal Revenue Code given your individual situation. EcoFlow does not guarantee any tax credit based on our products, and any information we provide is for educational purposes only and should not be considered legal advice. It does not constitute professional tax advice or financial guidance. It should not be used as the only source of information when making purchasing decisions, investment decisions, tax decisions, or execution. Consult a tax professional to evaluate your eligibility.
Effective date: Jan 1, 2023
The portable home battery: DELTA Pro sports a 3.6kWh capacity that can be expanded all the way to 25kWh. The kicker? You can integrate it directly with your home circuits via the Smart Home Panel. Ideal for home backup.
Power pretty much anything: DELTA Pro leads the industry when it comes to AC output. With 3600W you’ve got a portable generator that can power heavy-duty appliances such as dryers, AC units & more. Need even more power? Pair two units together to hit a massive 7200W.
An expandable ecosystem: DELTA Pro is more than a portable power station. It can be expanded with Extra Batteries, Smart Generators and even the Smart Home Panel. Control it all via your phone with the EcoFlow app.
The world’s fastest charging portable power station: DELTA Pro can charge via one of 6 methods. It's the first that can be charged from an EV station, and can even Multi-charge by combining methods to achieve a rapid 6500W charge. That’s the industry gold standard.
Integrates with your home: By using the Smart Home Panel (sold separately), DELTA Pro can provide power to up to 10 home circuits. Ideal for when a power outage hits, or for regular use to save on your bills.
Introducing the world's first portable home battery with an expandable ecosystem for home backup, smart energy management, lower energy bills, and more. The EcoFlow DELTA Pro is the next leap in portable power technology, offering you power security and independence, wherever you are.
Expandable Capacity
Power Pretty Much Anything (3600W-7200W Output)
World's Fastest Charging (MultiCharge 6500W)
Home Integration
Power for any situation.
From tailgate power to extreme blackouts that last for days on end, DELTA Pro delivers up to 25kWh of capacity. With that, you're covered for any situation. That's the industry gold standard.
All the AC output you’ll need.
A single DELTA Pro unit packs a 3600W AC output, which can be expanded up to 4500W with X-Boost technology. Power 99.99% heavy-duty devices at home, outdoors, or at work. You can even pair two units together to achieve 7200W.
The world’s fastest charging portable power station.
MultiCharge delivers record-breaking speeds at 6500W. To reach 6500W, you can opt for these charging methods.
Fully charge in 1.8 hours.
EcoFlow’s X-Stream charging technology isn't just fast, it's safe too. The battery management system ensures safety and longevity while you fully charge DELTA Pro from a standard AC wall outlet in 1.8 hours*.
Charge up at thousands of EV stations worldwide.
For the first time ever with a portable power station, you can charge up at thousands of EV stations worldwide. This unique charging method gives you up to 3000W fast charging on the go.
Go renewable with 1600W solar charging.
EcoFlow's suite of solar products give you a cost-effective renewable energy source to stay powered. You can use solar energy to charge DELTA Pro in just 2.8-5.6 hours. DELTA Pro has a wide voltage range from 11-150V, which makes it compatible with 90% of third-party solar panels with MC4 connectors. And when the weather gets unpredictable, the smart maximum power point tracking (MPPT) automatically adjusts, maximizing your solar generation at any time of the day.
Get emergency backup power with the EcoFlow Smart Generator.
The EcoFlow Smart Generator serves as an emergency option that integrates with your DELTA Pro ecosystem. It auto-starts when your DELTA Pro hits a low level of charge, re-charges your DELTA Pro, and stops the engine all by itself once your DELTA Pro hits a full charge. Compared to a traditional gas generator, the EcoFlow Smart Generator delivers less energy loss, faster charging and higher efficiency.
A battery that lasts for years on end.
DELTA Pro sports a brand-new LFP battery with 6500 cycles, which means you can use DELTA Pro for years and years before your unit reaches 50% of the original capacity. EcoFlow’s battery management system provides real-time analysis and regulation of voltage, current, and temperature. This unique protection mechanism makes DELTA Pro an incredibly safe and efficient home battery.
Multiple ways to control & monitor.
Control DELTA Pro either on the unit itself, using the remote control accessory, or unlock a ton of customization via the EcoFlow app. On the app, you can access your power settings, such as charging and discharging levels, AC charge speeds, control the Smart Generator and a whole lot more.
The world’s first portable home battery ecosystem.
DELTA Pro's expandable ecosystem provides you with power during blackouts, customizable energy around the clock, and lower energy bills. How does it achieve all this? With a selection of extra batteries, smart generators, solar trackers, wind turbines, a smart home panel, and more. From backup power to reducing your reliance on the grid with green alternatives, the DELTA Pro ecosystem can be customized to your needs.
Introducing the EcoFlow Smart Home Panel.
The new EcoFlow Smart Home Panel is the heart of the DELTA Pro home battery ecosystem. It integrates up to two DELTA Pro units with 10 home circuits. Each DELTA Pro can be connected with extra batteries, solar panels, or smart generators, giving you uninterrupted power during blackouts, smart energy management for your critical loads, and lower energy bills.
Uninterrupted home backup.
With a fast 20ms switchover time, DELTA Pro and the Smart Home Panel can keep you powered on during a blackout. All the while, the EcoFlow app keeps you in the know, letting you select and modify your device priorities.
Smart Energy Management.
The EcoFlow DELTA Pro ecosystem stores energy day and night, reducing your reliance on the grid and lowering your energy bills by combating time-of-use rates. It integrates directly with your home using the EcoFlow Smart Home Panel. The EcoFlow app gives you a smart breakdown of your energy habits, and you can customize your energy usage for any type of situation.
RV living made easy.
With DELTA Pro, you can take home with you, wherever you go. It features wheels and a suitcase-esque extendable handle that makes transport easy. And if you’re looking for a complete power solution for RV road trips and outdoor adventures, DELTA Pro comes with solar panels and dedicated 30A Anderson port and AC outlet.
Power that means business.
Not only does DELTA Pro provide home backup and off-grid power, it also gives you a secure power source for any type of professional work. Whether you’re working at home or outdoors, from DIY to professional projects, DELTA Pro helps you get the job done.
Light 10W
337 Hours (DC) 108 Hours (AC)
What's in the box
1.DELTA Pro 2.AC Charging Cable 3.Car Charging Cable 4.Solar Charging Cable 5.DC5521 to DC5525 cable 6.Handle Cover 7.User Manual
Frequently Asked Questions
Specs
Capacity
3600Wh
Extra Battery
Support up to two DELTA Pro Smart Extra Battery/Smart Generator
AC Output
5 outlets, 3600W total (Surge 7200W)
Max Device(s) Power Supported by X-Boost
4500W
USB-A Output
2 ports, 5V, 2.4A, 12W Max per port
USB-A Fast Charge
2 ports, 5V, 2.4A / 9V, 2A / 12V, 1.5A, 18W Max per port
USB-C Output
2 ports, 5/9/12/15/20V, 5A, 100W Max per port
Car Power Output
12.6V, 10A, 126W Max
DC5521 Output
2 ports, 12.6V, 3A, 38W Max per port
Anderson Port
12.6V, 30A
AC Charging Input
1800W Max, 120V~15A, 3000W Max, 240V~12.5A
Solar Charging Input
1600W Max, 11-150V, 15A
Car Charging Input
Support 12V/24V battery, 8A
Battery Chemistry
LFP
Cycle Life
6,500 cycles to 50% capacity, 3,500 cycles to 80% capacity
Shelf Life
1 year (after a full charge)
Connection
Wi-Fi, Bluetooth, wired
Net Weight
Approx. 99lbs/45kg
Dimension
25*11.2*16.4 in/63.5*28.4*42cm
*International version (2900W at 1.9 hrs) US version (1800W at 2.7 hrs/3000W at 1.8 hrs)
Please use the AC Charging Cable included in the package for fast charging. Do not use other cables to charge. Plug directly into an AC wall outlet and make sure that the wall output current is more than 15A. Otherwise, reduce the unit charging speed with the AC Charge Speed Switch. EcoFlow takes no responsibility for any consequences caused by failures to follow instructions, including but not limited to charging with other AC charging cables.
Delta Pro Smart Extra Battery Information:
Expandable capacity This add-on battery connects with a DELTA Pro to double the total capacity to 7200Wh. Connect two of them to DELTA Pro for a staggering 10.8kWh to use off-grid.
Convenient recharging Recharging from solar panels, AC outlets, EV charging stations, or our Smart Generator is easy. Plug the Extra Battery into DELTA Pro and they will recharge and discharge in tandem.
More watt-hours at home The Extra Battery can be integrated into your home’s wiring when connected to DELTA Pro. These battery units become part of your home’s peak shaving and emergency power solutions.
Ready for emergencies This Extra Battery can recharge directly from EcoFlow’s Smart Generator outdoors, giving you another option for emergencies.
LCD screen Get all the same info about battery percent, remaining recharge time, hours left, and more on the built-in screen. You can check the battery’s status anywhere from the EcoFlow app.
*Note: This product is exclusively for the EcoFlow DELTA Pro portable power station; only available for sale in the contiguous United States.
Make it a triple.
Double or triple the capacity of your DELTA Pro to 7.2kWh or 10.8kWh. That’ll give you days of power for your essential appliances.
Charge anytime, anywhere.
DELTA Pro’s Smart Extra Battery benefits from all the charging methods DELTA Pro has, including 6500W MultiCharge. That means you can charge anytime, anywhere as long as your extra battery is connected to DELTA Pro. Once connected, they’ll charge/discharge in unison, keeping the battery percent level across both units.
Ready for any emergency.
When the going gets tough and you’re out of charge options, get a 1800W DC fast charge with EcoFlow Smart Generator (sold separately). Just plug the generator directly into your extra battery via the port on the back. This works even when disconnected from your DELTA Pro.
Stay informed.
The Smart Extra Battery sports a bright LCD screen on the front of the unit giving you all the info you need. Output, input, remaining charge and time remaining. It’s all there. Need on-the-go info? The EcoFlow app can tell you all that & a whole lot more.
What's in the box
1.DELTA Pro Smart Extra Battery 2.DELTA Pro Extra Battery Cable 3.Handle Cover 4.User Manual
Specs
Model Name
DELTA Pro Smart Extra Battery
Capacity
3600Wh
Battery Chemistry
LFP
Battery Cycle Life
6,500 cycles to 50% capacity, 3,500 cycles to 80% capacity
Shelf Life
1 year (after a full charge)
Dimensions
25 x 11.2 x 16.4 in / 63.5 x 28.5 x 41.6 cm
Weight
Approx. 84lbs / 38kg
335 WATT RIGID SOLAR PANEL INFORMATION
SMART HOME PANEL INFORMATION:
The Smart Home Panel requires the included Relay Module (s) to work.
Thuis unit includes the following Relays -Default Combo [ 1xSmart Home Panel + 5xRelay Module(15A) + 5xRelay Module(20A) + 3xRelay Module(30A) ]
A smart home battery system Made specifically for the DELTA Pro ecosystem, the Smart Home Panel connects the DELTA Pro portable power station right to your home’s wiring.
Backup power for essential home appliances When the grid goes down, the Smart Home Panel instantly switches to battery backup mode using any connected DELTA Pro units. Your home will go on strong with up to 7200W of power and 25kWh of energy when properly equipped.
EcoFlow app control Monitor, control, and manage energy through the EcoFlow app. The app gives real-time metrics and lets you avoid peak rates.
Peak rate avoidance If you’re on a time-of-use billing rate, you can use the Smart Home Panel and attached DELTA Pros to store energy when rates are low and consume it when rates are high.
Sustainable & self-sufficient When you attach MC4-compatible solar panels to DELTA Pro, your home gets a little more eco-conscious. The Smart Home Panel links free, renewable solar energy to your wall outlets, lighting, and other fixtures. With enough solar input, your home can become self-sufficient.
The EcoFlow Smart Home Panel integrates EcoFlow DELTA Pro with your home to achieve a flexible, expandable home battery solution to store energy for later use. Link up to 10 of your home circuits for uninterrupted power during blackouts, smart energy management, and more. All while saving money in the process.
Backup Your Home
App Control
Save Money
Power Self Sufficiency
Prepare your home for power outages.
When a blackout hits, the Smart Home Panel immediately switches to your 10 integrated circuits and draws power from your DELTA Pro(s). You’ll barely notice a loss of power as your chosen circuits stay powered with a mere 20ms switchover time.
Expand capacity and output.
The Smart Home Panel supports and fast charges up to two DELTA Pro(s) at a time, alongside their extra batteries + smart generator(s). That gives you a potential 240V, 7200W output and 25kWh of capacity at your control, enough to power pretty much anything in your home, delivering days of power during blackouts.
Control, monitor, and manage your energy use.
Control each of your integrated home circuits via the EcoFlow app and get a birds-eye view of your energy consumption habits. Dive into the settings to customize your power use. You can optimize for home backup, saving money, or custom options to schedule your energy use based on your needs. Once you’re set, you can even control which power source your house uses, all from your phone.
Save money on your electricity bills.
Draw power from your DELTA Pro(s) to power your home during peak energy use hours, this lowers your bills and reduces pressure on the grid during peak hours. During off-peak hours, use low-cost/renewable energy to charge your DELTA Pro(s) back to full.
How it all comes together.
The DELTA Pro Ecosystem all links together with the Smart Home Panel at its heart.
Achieve power self-sufficiency.
Reduce your reliance on the grid and prepare for blackouts. Opt for EcoFlow’s range of portable solar panels to store energy at any time, or charge from your AC coupled rooftop solar panels while the grid is on-line. No sun? We’re working on a wind turbine. No sun or wind? Charge via the grid. No sun, no wind, and a blackout hits? You’re still good. Lean on the EcoFlow Smart Generator as a last resort to charge your batteries.
Tutorial Videos
This video explains the installation process for the Smart Home Panel.
Tutorial Videos
This video introduces EcoFlow DELTA Pro Ecosystem.
What‘s in the box
1. Smart Home Panel, 2. Infinity Cable, 3. Wall Mounts, 4. Wire Connectors, 5. User Manual
*This product does not provide an AFCI (Arc Fault Circuit Interrupter) function. All upstream breakers should be non-GFCI/AFCI. GFCI and AFCI protection should be downstream of the SHP using GFCI/AFCI breakers or outlets.
**How to choose Relay Modules:
-
Load planning: With a Smart Home Panel, selective loads are installed where they will be the most effective during power outages or energy savings management. Consider areas that would significantly affect comfort, such as refrigerator and lights, and choose the maximum of 10 selective loads from your breaker panel based on their efficiency in load.
-
Collect the load info: Determine the number and current rating of the load circuits that you plan to connect. Consult your electrician if you need support with this.
-
Determine the relay modules needed: Choose the relay module that matches the current rating for the circuit breaker upstream of that load circuit. Recommended relay modules for regions: 15A, 20A, 30A for US and Japan.
Frequently Asked Questions
It varies based on your chosen set up and how you use the ecosystem. However, if used optimally to reduce spending during peak hours, you could save over $1000 a year with 2 DELTA Pro’s, a smart home panel and 2400W worth of EcoFlow solar panels. That assumes average US energy rates. You can save up to double that if you use DELTA Pro’s extra batteries in addition, and if your home has a higher solar supply.
Yes. You can plug in up to two DELTA Pros and benefit 3400W fast charging for your units. You can choose which speed is best for you in the EcoFlow app.
You can monitor and optimize your energy usage from anywhere with a Wi-Fi connection via the EcoFlow app, as long as your units are online.
Yes. You can use your existing rooftop Solar Panels so long as they are AC coupled and the grid is on-line. During blackouts, you can rely on other power sources such as EcoFlow Solar Panels, and the Smart Generator.
Specs
Output Voltage
120V / 240V
System Frequency
60Hz
# of Controlled Circuits
10
Rate Current
30A, 20A, 15A
Max Backup Power
3600W / 7200W
Max Connected Battery Energy
21.6kWh
Charging Input (DELTA Pro)
3400W Max
IP Code
IP20
Installation
Wall mount, to be installed by a licensed electrician
Warranty
3 Years
Dimensions
18.1 x 11.8 x 4.7 in / 460 x 330 x 120 mm
Weight
20 lb / 9 kg
MORE INFORMATION - CLICK BELOW FOR THE SMART HOME PANEL MANUAL OR THE SMART HOME PANEL INSTALLATION MANUAL
SMART HOME PANEL INSTALLATION MANUAL
50 foot extension cable information:
10 GAUGE 50 FEET SOLAR EXTENSION CABLE + PARALLEL CONNECTORS
- 50' Red Cable with Solar Connectors Both Ends
- 50' Black Cable with Solar Connectors Both Ends
- One pair Y Branch Parallel Connectors
Features
- Extension cable for solar panels.
- Customized length of 50 feet, 10 gauge.
- Two wires with solar connectors.
- Each wire is 50 feet, one pair is double length.
- UL 4703 solar panel cable is designed for outdoor use and is moisture, UV and corrosion resistant.
Specifications
- Wire Gauge: 10AWG
- Length: 50 feet
- Rating Voltage: DC: 1.8KV / AC: 0.6~1KV
- Waterproof: IP65
- Fire Rated: IEC60332-1
- Insulation Material: TPE
- Contact Material: Tinned Copper
- Temperature Range: -40°C ~ +90°C
- Service life: >25 years
TWO WAY MC4 Branch Connectors
- Provides a quick and easy parallel wiring solution for solar panels.
- Compatible with all solar connectors.
- Designed for photovoltaic solar systems with high mechanical requirements and extreme weather conditions.
- Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.
- Lower contact resistance.
- Waterproof and dustproof.
Specifications
- Rated Current: 30A
- Maximum Voltage: 1000VDC
- Waterproof: IP67
- Wire Range: 10AWG, 12AWG
- Insulation Material: PPO + PA
- Contact Material: Tinned Cooper
- Temperature Range: -40°C ~ +90°C
- Safety Class: II

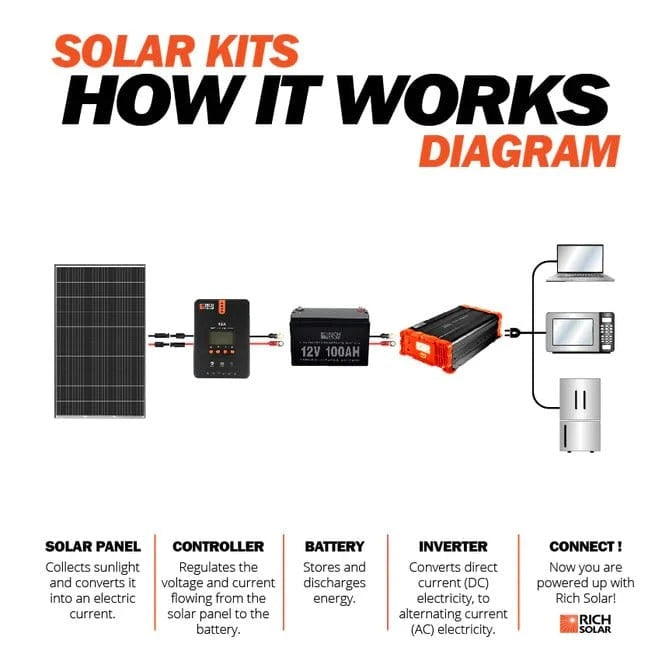

335 Watt Solar Panel specifications
Features
- 5 buss bar solar cell configuration
- Mono PERC Technology
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug and play junction box
- Industry standard quick connect cables work in series or in parallel
- Certified to withstand challenging environmental conditions
- Excellent low light performance on cloudy days, mornings and evenings
Installation
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
- Compatible with on-grid and off-grid inverters
Warranty
- 25 year limited power output
Built-in Components
- RICH SOLAR 335-watt monocrystalline solar panel
- Panel leads (pair): 3 feet each
- IP65 rated waterproof junction box
- IP67 rated waterproof solar connectors
- Bypass diodes built-in the junction box
Specifications
- Maximum Power(Pmax): 335W
- Maximum Power Voltage(Vmp): 34.1V
- Maximum Power Current(Imp): 9.85A
- Open Circuit Voltage(Voc): 41.6V
- Short Circuit Current(Isc): 10.4A
- Maximum System Voltage(Vmax): 1000VDC
- Temperature Range: -40°F ~ 194°F
- Max Series Fuse Rating: 20A
- Weight: 39.3 lb
- Dimensions: 65.6 x 39.4 x 1.4 in
Shipping
Shipping | This item ships to |
Delivery
Fast Shipping in the USA. Items ship the same or next day We process orders 7 days a week to ensure the fastest shipping possible. All generators are shipped as fast as possible out of several US locations to ensure the fastest delivery. |
||
Why Buy From Us
We Put Our Customers First We have done the research for you to find the best manufacturers with the best warranties. Every unit on our site is covered by a high quality manufacturers warranty. |
||
We offer the absolute lowest price we can offer |
||
We insist that you love our service. If you're unhappy for any reason whatsoever, just let us know and we'll bend over backwards to make things right again. |
||
Ordering from AllProGenerators.com is 100% safe and secure so you can rest easy. Your personal details are never shared, sold or rented to anyone either. |
Review
Choose Voltage and Enclosure or No Enclosure (Skid Mount)
