Anker SOLIX E10 Whole-Home Backup System | 6–90kWh | Outdoor Rated

Anker SOLIX E10 Whole-Home Backup System

The Anker SOLIX E10 is the ultimate home backup battery and solar generator system. It's even portable using the specially designed cart! One of the features that makes it really special is that it is the first one that was designed so it can be left outside. This is something that custoemrs have been asking for for years now. Anker finally did it. It's a powerful and scalable whole-home backup energy system that combines high-output battery storage, solar charging, smart home integration, and optional generator support. Designed for residential backup, off-grid power, and long-term energy independence, the E10 can start with a single 6.144kWh battery and expand into a multi-unit system with up to approximately 90kWh of total battery storage.

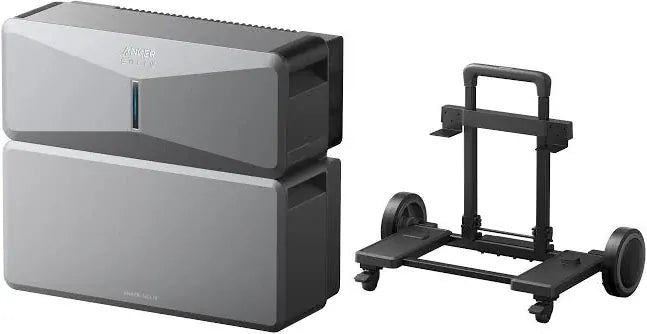

Take it anywhere.

Just a bonus: This trolley can be used to make this powerful home backup system portable.

Click here to buy the trolley

Homeowners comparing advanced whole-home battery systems often evaluate the Anker SOLIX E10 alongside solutions such as the EcoFlow DELTA Pro Ultra. The E10 stands out with 120V/240V split-phase power, high motor-starting capability, up to 9kW of solar input per E10, modular LFP battery expansion, optional automatic whole-home backup through the Anker SOLIX Power Dock, and compatibility with generator-assisted charging.

What the Anker SOLIX E10 System Does

The E10 provides a modular path from essential backup power to a high-capacity whole-home energy system. Each E10 Power Module delivers up to 7.68kW of continuous 120V/240V split-phase power and accepts up to 9kW of solar input. When paired with two or more B6000 batteries, a single E10 can provide up to 10kW of Turbo Backup output for up to 90 minutes.

The system can scale to as many as three E10 Power Modules through a compatible Power Dock installation, providing up to 30kW of Turbo Backup capability, up to 27kW of combined solar input, and battery expansion approaching 90kWh.

Outdoor-Ready Design

The Anker SOLIX E10 Power Module and B6000 Battery Module feature NEMA Type 4 / IP66-rated enclosures designed for demanding indoor or outdoor installations. The system supports both floor-mounted and compatible wall-mounted installation, providing flexibility for garages, exterior walls, utility areas, and locations where floor space or flood exposure may be a concern.

Fast Automatic Backup Switching

When integrated with the Anker SOLIX Power Dock, the E10 can automatically transition the home to battery backup power in approximately 20 milliseconds or less. This allows compatible household equipment to continue operating with minimal interruption during a utility outage.

Purchase Options – 5 E10 Backup Bundles

Choose the Anker SOLIX E10 configuration that best matches your current backup requirements. Because the E10 uses a modular architecture, battery capacity and system power can be expanded later as household energy demands increase.

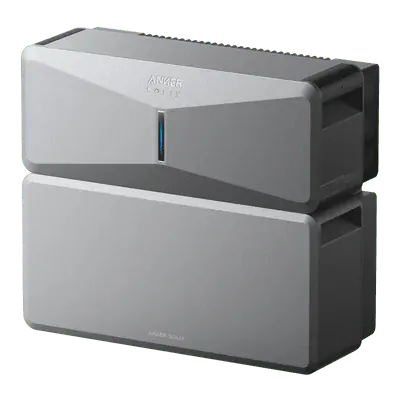

1. Starter Kit – 7.68kW / 6.144kWh

The Starter Kit is the entry point into the E10 platform and is ideal for customers who want high-output 120V/240V battery power with the ability to expand later.

• E10 Power Modules: 1
• B6000 Battery Modules: 1
• Total Battery Capacity: 6,144Wh / 6.144kWh
• Continuous AC Output: Up to 7,680W / 7.68kW
• AC Output: 120V / 240V Split Phase
• Maximum Solar Input: Up to 9,000W
• PV Inputs: 2 independent MPPT inputs
• Maximum PV Input per Port: 4,500W
• Motor Starting Capability: Up to approximately 120A LRA with one battery
• Battery Expansion: Up to 5 B6000 batteries on one E10 Power Module
• Maximum Battery Capacity on One E10: 30.72kWh nominal
• Backup Configuration: Manual or standalone configuration depending on installation equipment

Best Uses – Starter Kit

• Essential-load emergency backup
• Refrigerators and freezers
• Lighting and electronics
• Home office and internet equipment
• Power tools and workshop equipment
• Cabins and remote properties
• Customers who want to start small and add batteries later
• 120V and compatible 240V equipment within system output limits

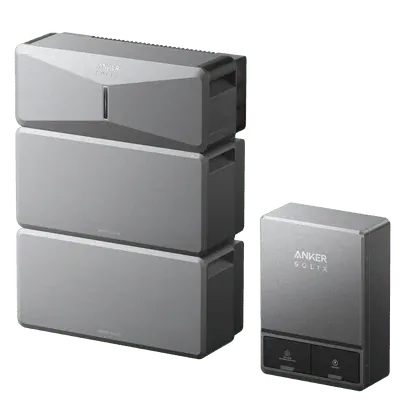

2. Manual Backup Kit – 10kW Turbo / 12.288kWh

The Manual Backup Kit doubles the included battery storage and unlocks the E10's higher Turbo Backup capability. It is designed for homeowners who want substantial home backup capacity while using a manual transfer configuration.

• E10 Power Modules: 1
• B6000 Battery Modules: 2
• Total Battery Capacity: 12,288Wh / 12.288kWh
• Continuous AC Output: Up to 7,680W / 7.68kW
• Turbo Backup Output: Up to 10,000W / 10kW
• Turbo Duration: Up to 90 minutes under applicable operating conditions
• AC Output: 120V / 240V Split Phase
• Motor Starting Capability: Up to approximately 155A LRA
• Maximum Solar Input: Up to 9,000W
• PV Inputs: 2 independent MPPT inputs
• Manual Home Backup: Designed for use with compatible manual transfer equipment / Smart Inlet Box configuration
• Battery Expansion: Expandable up to 5 B6000 batteries on one E10

Best Uses – Manual Backup Kit

• Manual whole-home or selected-circuit backup
• Existing homes with compatible transfer-switch equipment
• Hurricane and severe-weather preparation
• Refrigeration and freezer backup
• Well pumps and compatible 240V loads
• Home offices and communications equipment
• Extended outages where additional battery runtime is important
• Solar-powered off-grid or grid-independent applications
• Customers who do not require automatic outage switching

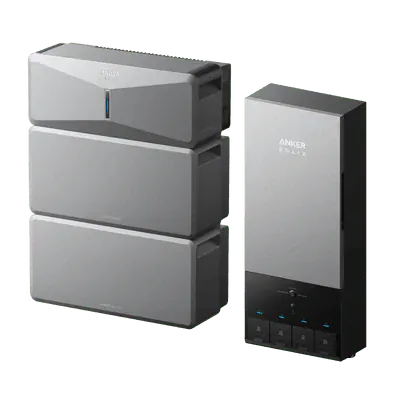

3. Automatic Backup Kit – 10kW Turbo / 12.288kWh

This configuration combines one E10 Power Module, two B6000 batteries, and the Anker SOLIX Power Dock to provide automatic whole-home backup. It is a strong choice for homeowners who want seamless backup protection without manually operating a transfer switch during an outage.

• E10 Power Modules: 1
• B6000 Battery Modules: 2
• Total Battery Capacity: 12,288Wh / 12.288kWh
• Continuous AC Output: Up to 7,680W / 7.68kW
• Turbo Backup Output: Up to 10,000W / 10kW
• Turbo Duration: Up to 90 minutes under applicable operating conditions
• AC Output: 120V / 240V Split Phase
• Motor Starting Capability: Up to approximately 155A LRA
• Maximum Solar Input: Up to 9,000W
• Home Integration: Anker SOLIX Power Dock
• Backup Type: Automatic
• Automatic Switchover: ≤20ms
• Battery Expansion: Expandable up to 5 B6000 batteries on this E10

Best Uses – Automatic 12kWh Kit

• Automatic residential backup power
• Homes where uninterrupted refrigeration is important
• Internet, security systems, and home office equipment
• Well pumps and compatible 240V appliances
• Central air-conditioning systems when properly sized
• Hurricane and storm backup
• Solar self-consumption and energy storage
• Homeowners who want automatic protection without manually connecting a generator or transfer switch

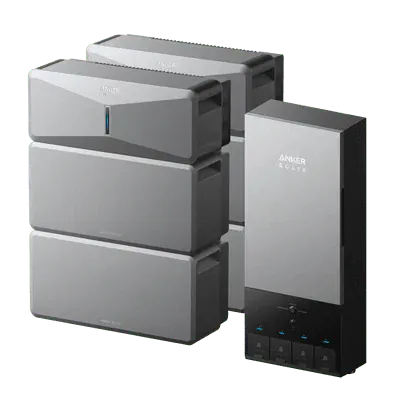

4. Automatic Backup Kit – 20kW Turbo / 24.576kWh

Designed for larger homes and higher electrical demand, this dual-E10 configuration provides significantly more inverter power, battery storage, solar charging capability, and motor-starting performance.

• E10 Power Modules: 2
• B6000 Battery Modules: 4
• Total Battery Capacity: 24,576Wh / 24.576kWh
• Combined Continuous AC Output: Up to 15,360W / 15.36kW
• Combined Turbo Backup Output: Up to 20,000W / 20kW
• AC Output: 120V / 240V Split Phase
• Motor Starting Capability: Up to approximately 275A LRA with an applicable multi-E10 configuration
• Maximum Combined Solar Input: Up to 18,000W / 18kW
• PV Inputs: 4 total independent PV inputs across two E10 Power Modules
• Home Integration: Anker SOLIX Power Dock
• Backup Type: Automatic
• Automatic Switchover: ≤20ms
• Future Battery Expansion: Additional B6000 batteries can be added within E10 system limits

Best Uses – Automatic 24kWh Kit

• Larger whole-home backup systems
• Homes with central air conditioning
• Multiple refrigerators and freezers
• Well pumps and other high-starting-current equipment
• Electric kitchen appliances
• Pool equipment and pumps when properly sized
• Extended hurricane outages
• Higher-consumption households
• Large rooftop or ground-mounted solar arrays
• Homes requiring greater overnight battery capacity

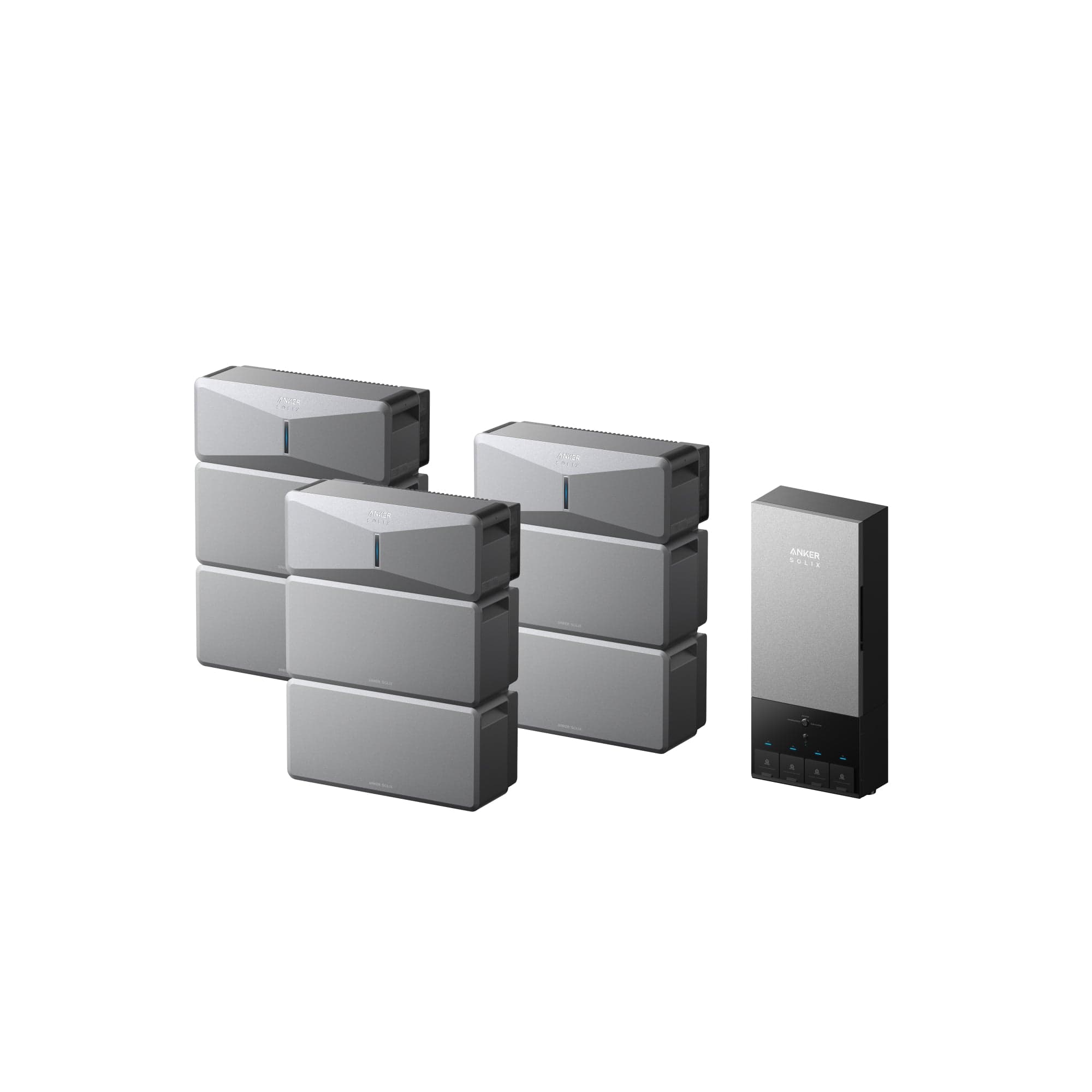

5. Automatic Backup Kit – 30kW Turbo / 36.864kWh

The largest of these five configurations combines three E10 Power Modules with six B6000 batteries and a Power Dock. It is designed for high-demand residences that need maximum E10 system output along with substantial battery storage and solar input capability.

• E10 Power Modules: 3
• B6000 Battery Modules: 6
• Total Battery Capacity: 36,864Wh / 36.864kWh
• Combined Continuous AC Output: Up to 23,040W / 23.04kW
• Combined Turbo Backup Output: Up to 30,000W / 30kW
• AC Output: 120V / 240V Split Phase
• High Motor Starting Capability: Designed for demanding residential motor loads when properly sized and installed
• Maximum Combined Solar Input: Up to 27,000W / 27kW
• PV Inputs: Up to 6 independent PV inputs across three E10 Power Modules
• Home Integration: Anker SOLIX Power Dock
• Maximum E10 Units per Power Dock: 3
• Backup Type: Automatic
• Automatic Switchover: ≤20ms
• Battery Expansion: System can be expanded substantially beyond the included 36.864kWh configuration

Best Uses – Automatic 36kWh Kit

• Large whole-home backup applications
• High-energy-consumption households
• Multiple HVAC systems when properly sized
• Homes with well pumps, pool pumps, and other motor loads
• Large refrigerators and multiple freezers
• Extended multi-day power outages
• Large solar installations
• High-capacity off-grid homes
• Properties seeking maximum E10 power capability
• Customers planning significant future battery expansion

Anker SOLIX E10 vs. EcoFlow DELTA Pro Ultra

The Anker SOLIX E10 and EcoFlow DELTA Pro Ultra are advanced modular battery systems designed for residential backup and energy storage. Both can be configured for high-output home backup, battery expansion, and solar charging.

What Can the Anker SOLIX E10 Power?

The exact appliances and runtime depend on the selected E10 configuration, battery capacity, appliance starting requirements, solar production, and the number of loads operating simultaneously.

Important: Appliance power figures are general estimates only. HVAC systems, well pumps, compressors, and other motor-driven equipment can have starting requirements several times higher than their normal running wattage. System sizing should account for both continuous consumption and startup surge.

Full Component Specifications

Anker SOLIX E10 Power Module

• Product: Anker SOLIX E10 Power Module
• Rated AC Output: 120V / 240V Split Phase
• Rated Frequency: 60Hz
• Maximum Continuous Output: 7,680W / 32A
• Turbo Backup Output: Up to 10,000W / 41.6A for up to 90 minutes when paired with two or more B6000 batteries
• Solar Input: Up to 9,000W per E10
• Number of PV Inputs: 2
• Maximum PV Power per Input: 4,500W
• PV Input Voltage Range: 30–450V DC
• Maximum Recommended PV Current: 15A Imp per input
• 240V AC Charging: Up to 7,680W / 32A
• 120V AC Charging: Up to 1,800W / 15A
• AC Bypass: Up to 9,600W / 240V / 40A
• DC Generator Input: Up to 4,500W
• Battery Expansion: Supports up to 5 B6000 battery modules per E10
• Connectivity: Wi-Fi and Bluetooth
• Enclosure: NEMA Type 4 / IP66
• Operating Temperature: -4°F to 131°F (-20°C to 55°C)
• Installation: Floor Mount or Compatible Wall Mount
• Dimensions: 26.4 × 11.8 × 10.2 in. (670 × 300 × 260 mm)
• Weight: 60.6 lb (27.5 kg)
• Warranty: 5 Years

Anker SOLIX B6000 Battery Module

• Battery Model: B6000
• Battery Type: Lithium Iron Phosphate (LFP / LiFePO4)
• Capacity per Battery: 6,144Wh / 6.144kWh
• Battery Voltage: 400V Class
• Voltage Terminal Range: 380–450V DC
• Maximum Batteries per E10: 5
• Maximum Nominal Capacity per E10: 30.72kWh with 5 B6000 batteries
• Maximum Multi-E10 System Storage: Approximately 90kWh
• Enclosure: NEMA Type 4 / IP66
• Operating Temperature: -4°F to 131°F (-20°C to 55°C)
• Installation: Floor Mount or Compatible Wall Mount
• Dimensions: 26.4 × 12.7 × 11.1 in. (670 × 322 × 281 mm)
• Weight: 130 lb (59 kg) each
• Certifications: UL 9540 / UL 9540A
• Warranty: 5 Years

Anker SOLIX Power Dock

• Purpose: Automatic whole-home E10 integration
• Automatic Backup Switchover: ≤20ms
• Whole-Home Integration: Up to 200A service capability when properly configured
• Maximum E10 Power Modules: Up to 3 E10 units per Power Dock
• Maximum E10 Turbo Output: Up to 30kW with three properly configured E10 systems
• Maximum Combined Solar Input: Up to 27kW with three E10 Power Modules
• Maximum System Battery Expansion: Approximately 90kWh
• Function: Automatic transfer and home electrical integration
• Grid Export: E10 / Power Dock does not feed electricity back to the utility grid

Anker SOLIX Smart Inlet Box

• Purpose: Manual home backup connection for the Anker SOLIX E10
• Backup Type: Manual
• Application: Compatible manual transfer and home-inlet installations
• Best For: Homes where automatic Power Dock transfer is not required
• System Integration: Provides an E10 connection point for compatible manual home backup configurations

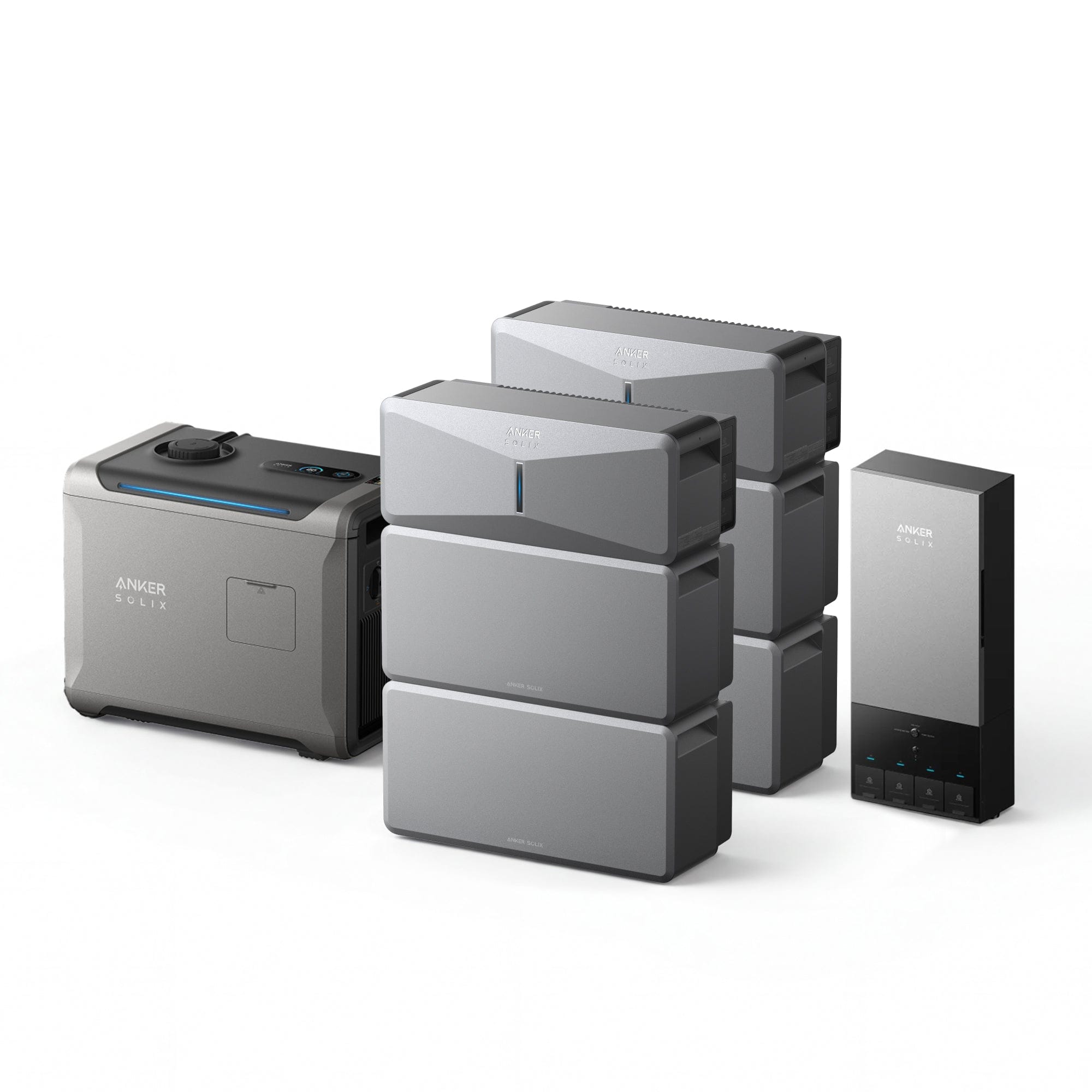

Anker SOLIX Smart Generator 5500

• Generator Type: Smart Tri-Fuel Generator
• Supported Fuels: Gasoline, Propane and Natural Gas
• Purpose: Extended-duration backup and E10 battery recharging
• Integration: Designed for smart integration with compatible Anker SOLIX systems
• AC Output: 120V AC
• 120V Receptacles: NEMA TT-30R and NEMA 5-20R
• Direct DC Integration: Supported with compatible Anker SOLIX equipment
• Best Use: Automatically or manually replenishing battery energy during extended outages when solar production alone is insufficient

Best Uses for the Anker SOLIX E10

Whole-Home Backup Power

Power Dock configurations can provide automatic home backup during utility outages. Larger dual- and triple-E10 configurations provide substantially greater capacity for operating multiple household loads simultaneously.

Hurricane & Severe Weather Backup

The expandable battery system is well suited for areas where hurricanes and severe storms can produce extended utility outages. Battery storage can be combined with solar and compatible generator charging to extend available backup power.

Central Air Conditioning

The E10 is designed with substantial motor-starting capability for demanding loads. Properly sized multi-battery and multi-E10 configurations can support large residential HVAC equipment, subject to the specific system's running and locked-rotor requirements.

Well Pumps & 240V Equipment

Native 120V/240V split-phase output makes the E10 suitable for many residential well pumps, appliances, tools, and other compatible 240V equipment when the system is properly sized for both running wattage and startup surge.

Solar Energy Storage

Each E10 Power Module supports up to 9kW of solar input. Dual-E10 systems can support up to 18kW, while three E10 Power Modules can provide up to 27kW of total solar input capacity.

Off-Grid Living

The combination of high-capacity battery storage, large solar input, 120V/240V output, and generator compatibility makes the E10 a strong solution for cabins, remote homes, farms, workshops, and other properties where grid service is unavailable or unreliable.

Extended Multi-Day Outages

Battery capacity can be expanded as energy requirements grow, while solar and generator charging provide additional ways to replenish stored energy during prolonged outages.

Energy Savings

Compatible E10 installations can store energy for later household use, allowing homeowners to better manage when grid energy is consumed and increase utilization of available solar generation.

Workshops, Garages & Outbuildings

The system's high-output 120V/240V architecture can support compatible tools, pumps, refrigeration, lighting, electronics, and other equipment where dependable battery power is required.

Anker SOLIX E10 System Expansion

Anker SOLIX E10 Frequently Asked Questions

Can the Anker SOLIX E10 be installed outdoors?

Yes. The E10 Power Module and B6000 Battery Module use NEMA Type 4 / IP66 enclosures and are designed for compatible indoor or outdoor installations. Installation requirements and local electrical codes must still be followed.

How much battery capacity does one B6000 provide?

Each Anker SOLIX B6000 Battery Module provides 6,144Wh, or 6.144kWh, of nominal energy storage.

How many batteries can connect to one E10?

One E10 Power Module supports up to five B6000 Battery Modules, providing 30.72kWh of nominal combined battery capacity.

How large can the complete E10 system become?

The platform can expand to approximately 90kWh of total battery storage when configured as a multi-E10 system.

How much power does one E10 produce?

One E10 Power Module provides up to 7,680W of continuous output. With two or more B6000 batteries, the system can provide up to 10,000W of Turbo Backup output for up to 90 minutes under applicable conditions.

Can multiple E10 Power Modules work together?

Yes. The Anker SOLIX Power Dock supports up to three E10 Power Modules, allowing significantly higher combined output, solar input, and battery capacity.

How quickly does automatic backup activate?

When the E10 is properly installed with the Anker SOLIX Power Dock, automatic backup switchover is rated at approximately 20 milliseconds or less.

How much solar can the E10 accept?

Each E10 supports up to 9,000W of PV input through two independent PV inputs rated for up to 4,500W each. A two-E10 system can support up to 18kW of solar input, while three E10 units can support up to 27kW.

Can the E10 run 240V appliances?

Yes. The E10 provides native 120V/240V split-phase AC output. Actual compatibility depends on the appliance's continuous power consumption and starting-current requirements.

Can the E10 power a central air conditioner?

Yes, appropriately sized E10 configurations are designed to support demanding residential loads including central air-conditioning systems. The HVAC system's running current and locked-rotor starting requirements should be checked before selecting an E10 configuration.

Can the E10 work with a generator?

Yes. The E10 supports generator-assisted charging and can be integrated with the Anker SOLIX Smart Generator 5500 or compatible AC generator solutions depending on the installation.

Does the Anker SOLIX Smart Generator 5500 use multiple fuels?

Yes. The Smart Generator 5500 is a tri-fuel generator designed to operate on gasoline, propane, or natural gas.

Does the E10 feed excess solar electricity back to the grid?

No. According to Anker, the E10 and Power Dock do not support feeding electricity back to the utility grid.

Can I start with a smaller E10 system and expand later?

Yes. Expandability is one of the primary benefits of the E10 platform. Additional B6000 batteries can be added to increase runtime, and compatible installations can expand to multiple E10 Power Modules for greater output and solar capacity.

What is the difference between the Manual Backup Kit and Automatic Backup Kit?

The Manual Backup Kit is intended for a compatible manual transfer configuration, typically using the Smart Inlet Box or compatible transfer equipment. Automatic Backup configurations use the Anker SOLIX Power Dock, which automatically transfers the home's electrical system to E10 backup power when grid power is lost.

Which E10 configuration is best for me?

The Starter Kit is best for smaller loads and future expansion. The 12.288kWh Manual Kit is a good choice for customers comfortable with manual transfer. The 12.288kWh Automatic Kit adds seamless Power Dock backup. The 24.576kWh dual-E10 configuration is better suited to larger homes and heavier loads, while the 36.864kWh triple-E10 configuration provides the greatest power and storage of these five options for high-demand whole-home applications.

Anker SOLIX E10 Whole-Home Solar Generator Overview

The Anker SOLIX E10 combines the benefits of a high-capacity solar generator, modular home battery, and whole-home backup system into one expandable platform. Customers can start with a single E10 and 6.144kWh battery or build a much larger automatic backup system using multiple E10 Power Modules, additional B6000 batteries, the Power Dock, solar panels, and compatible generator charging.

Whether you are comparing the Anker SOLIX E10 vs. EcoFlow DELTA Pro Ultra, researching an Anker SOLIX E10 whole-home backup system, or looking for an expandable solar generator for home backup, the E10 provides a flexible path from essential-load protection to high-capacity whole-home energy storage.

Important Installation Note: Whole-home electrical integration, Power Dock installation, transfer equipment, PV wiring, breakers, conduit, permits, and other site-specific electrical work may require a licensed electrician and are not included unless specifically stated in the selected package. Always verify appliance starting loads and local electrical requirements before installation.
