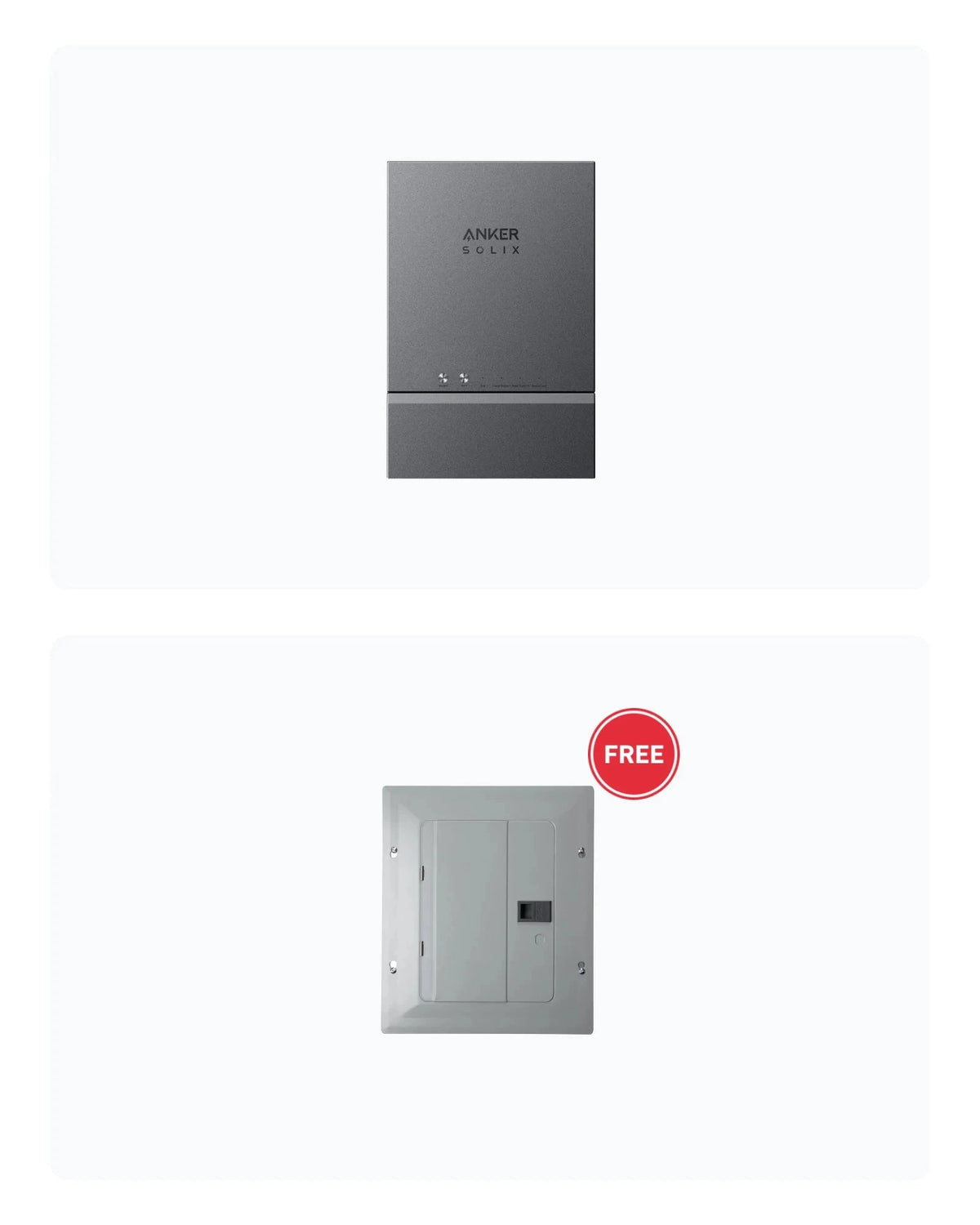

Effortlessly power your home with the Anker Solix Home Power Panel. This innovative panel from Anker provides reliable and efficient electricity for all of your home needs. Say goodbye to high energy bills and hello to a more sustainable and budget-friendly option. Experience the convenience and peace of mind with the Anker Home Power Panel.
Features
- Seamlessly integrates Anker SOLIX F3800, utility grid, and roof solar power.
- Provides backup power for essential home appliances during outages.
- Easily control and monitor energy usage with the Anker app.
- Avoid peak rate charges and optimize energy consumption.
- Significantly promotes sustainability and self-sufficiency.
How to Install Anker SOLIX Home Power Panel
INSTALLATION INSTRUCTIONS:
How to Use Anker App to Set up Anker SOLIX Home Power Panel
SPECS
Specifications
|
Model
|
A17B1
|
|
Product Weight
|
19 lbs / 8.8 kg
|
|
Product Dimensions
|
19.7×13×5.7 in
500×330.2×144.8 mm
|
|
Installation
|
Wall
|
|
Warranty
|
5 Years
|
|
Rated System Voltage
|
120 / 240V AC
|
|
Grid Wiring Area (Input)
|
18kW Max, 75A Max, 60Hz, L1+L2+N+PE
|
|
Grid Wiring Area (Output)
|
6kW Max (Continuous), 25A Max (Continuous), 60Hz, L1+L2+N+PE
|
|
Overvoltage Protection of Grid Wiring Area
|
Phase Voltage:
|
|
Undervoltage Protection of Grid Wiring Area
|
Phase Voltage:
|
|
|
|
|
|
|
|
|
|
|
|
Line Voltage:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Backup Wiring Area (Output)
|
12kW Max (Continuous), 50A Max (Continuous), 60Hz, L1+L2+N+PE
|
|
Power Station 1 Ports (Input)
|
6kW Max, 25A Max, 60Hz, L1+L2+N+PE
|
|
Power Station 1 Ports (Output)
|
3.8kW Max (Continuous), 15.8A Max (Continuous), 60Hz, L1+L2+N+PE
|
|
Power Station 2 Ports (Input)
|
6kW Max (Continuous), 25A Max (Continuous), 60Hz, L1+L2+N+PE
|
|
Power Station 2 Ports (Output)
|
3.8kW Max (Continuous), 15.8A Max (Continuous), 60Hz, L1+L2+N+PE
|
|
Power Stations 1 and 2 Ports (Total Output)
|
6kW Max (Continuous), 25A Max (Continuous), 60Hz, L1+L2+N+PE
|
|
Power Stations 1 and 2 Ports (Total Input)
|
12kW Max (Continuous), 50A Max (Continuous), 60Hz, L1+L2+N+PE
|
|
Output Power Factor Rating
|
One Anker SOLIX F3800, (30% Load) 1.9 W Load, PF > 0.96
Two Anker SOLIX F3800s, (60% Load) 3.8kW Load, PF > 0.98 Two Anker SOLIX F3800s, (100% Load) 6kW Load, PF > 0.985
|
|
Nominal Output Voltage (AC)
|
120/240V
|
|
Normal Output Frequency
|
60Hz
|
|
Normal Temperature Range Operation
|
-4°F - 104°F / -20°C - 40°C
|
