Choose the panel package that fits your property, or start with the battery and inverter system and add a professionally designed array later. This Rich Solar platform combines four ALPHA 5 PRO batteries with two NOVA 6548 inverters. The 30-panel option supplies 12.3kW of rated solar capacity; the No Panel option supplies none.
Factory SKU: RS-CBK1301A. Installation is required. Battery capacity is nominal; usable AC energy is lower after losses and reserve settings.
Best use cases
- Permanent off-grid properties with space for a 30-panel array
- Cabins seeking a 20.48kWh storage foundation
- Sites adding their own compatible solar panels
Why choose this kit?
- Choice of solar-array package on one existing product page
- Four rack batteries with included rack on the current 30-panel and No Panel kits
- Dual hybrid inverters for properly configured split-phase operation

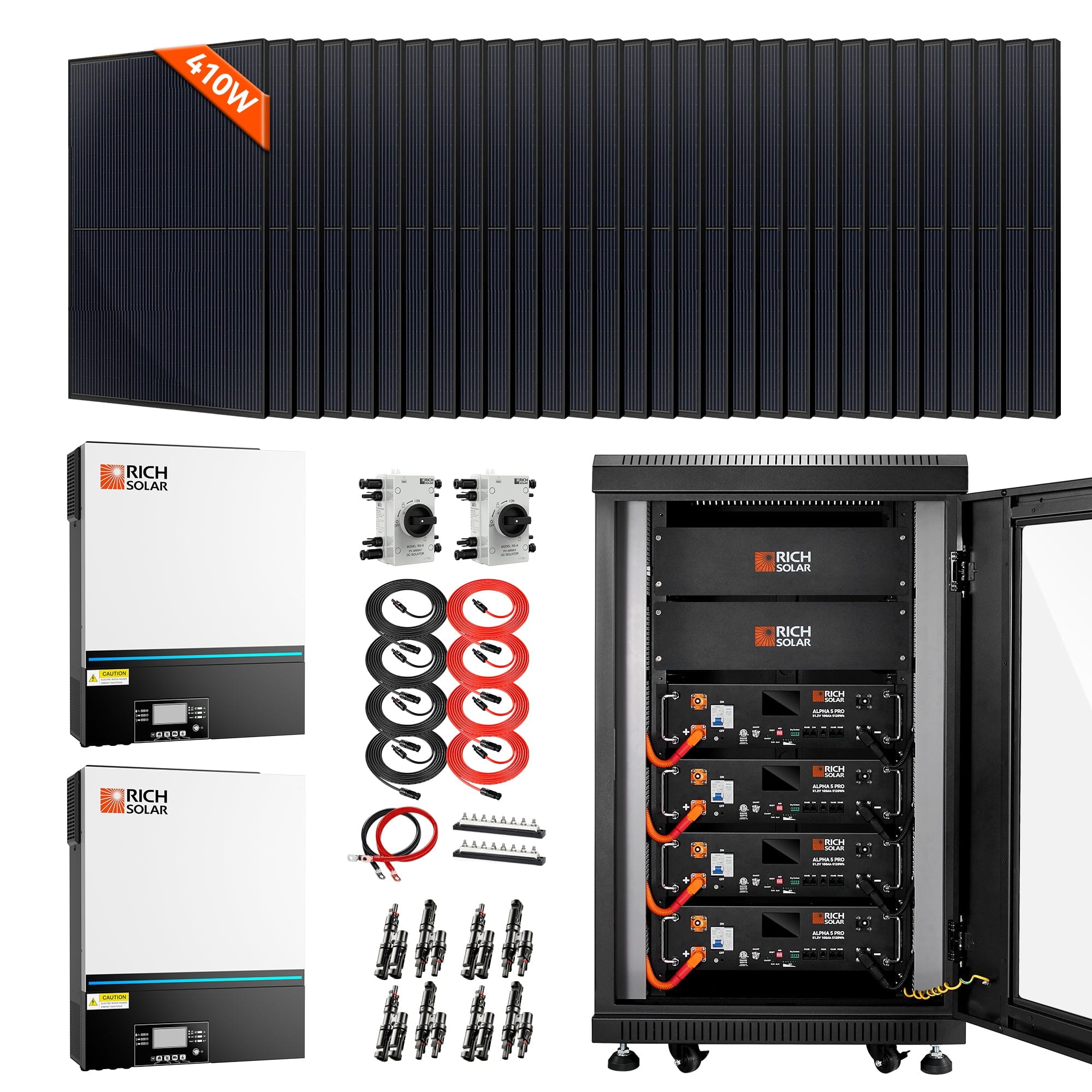

What is included?

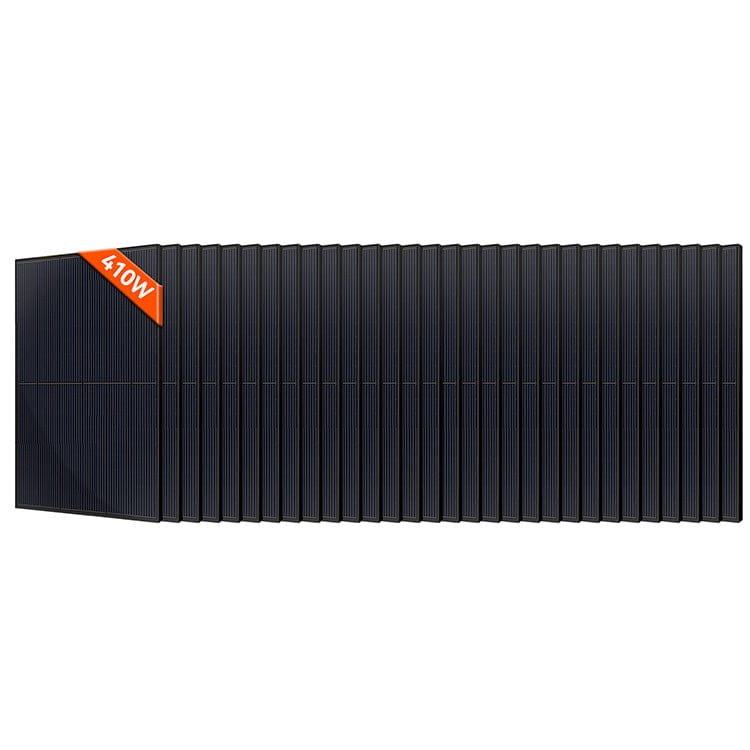

- 30 x MEGA 410 24V 410W Solar Panels (RS-M410)

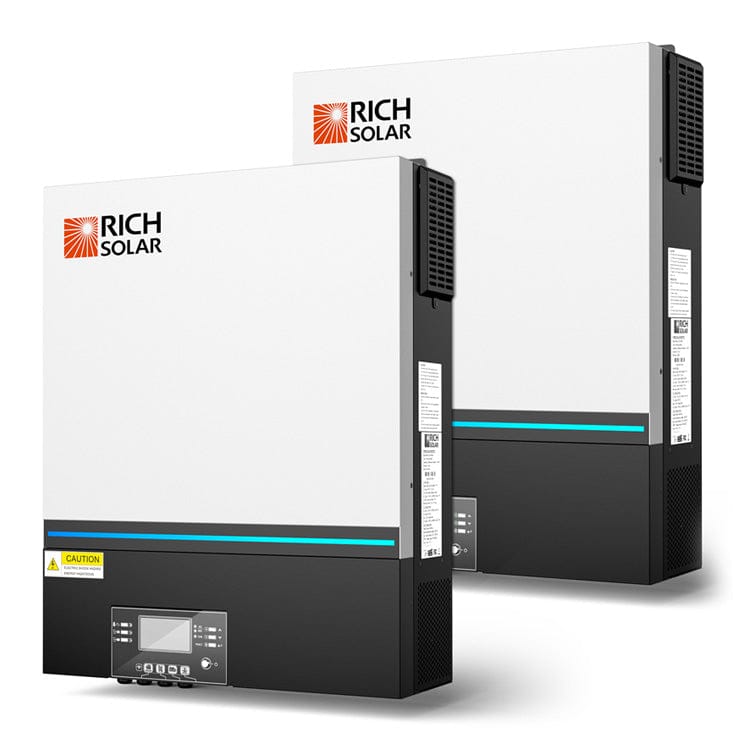

- 2 x 6500W 48V Off-grid Hybrid Solar Inverters (RS-H6548)

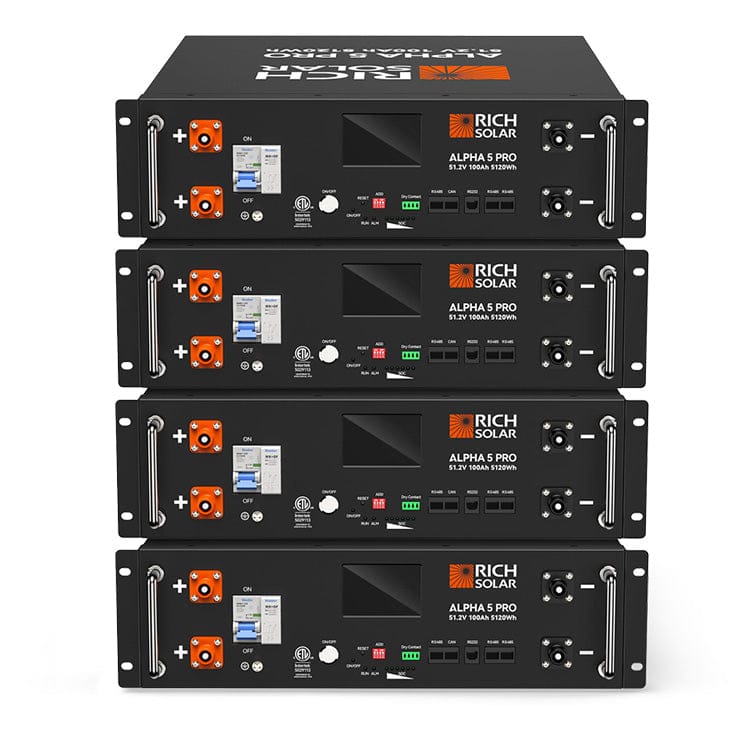

- 4 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Batteries (RS-B5121P)
- 2 x Solar PV DC Quick Disconnect Switches (RS-i4)
- 2 x 600 AMP Busbars
- 4 x 4 ft 2/0 Gauge AWG Wire Sets 3/8"
- 8 x 10 AWG 50 ft Solar Extension Cables (RS-50102)
- 4 x 10 AWG 30 ft Solar Extension Cables (RS-30102-T2)
- 1 x Free Battery Rack

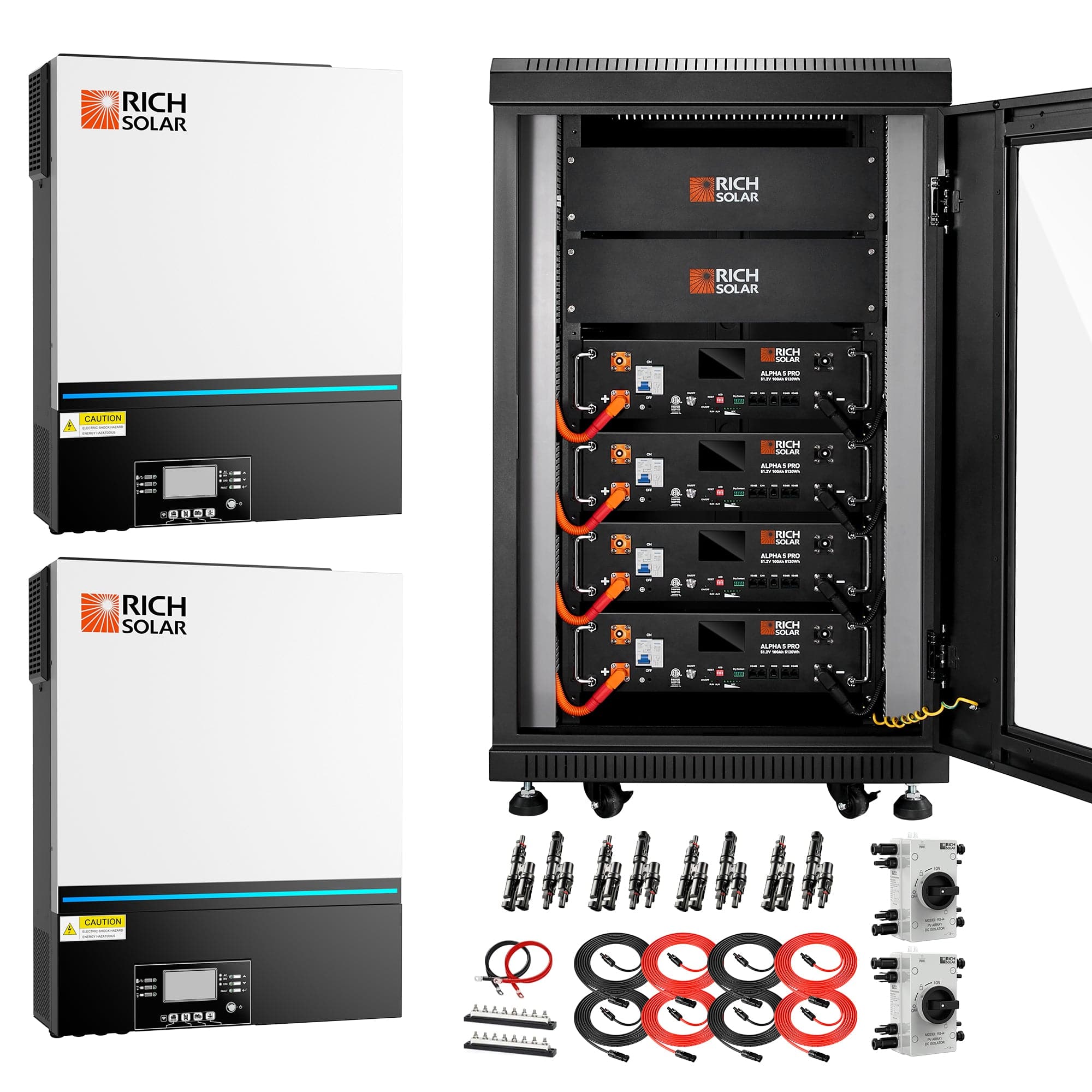

No Panel option: RS-CBK1301D
- 2 x 6500W 48V Off-grid Hybrid Solar Inverters (RS-H6548)
- 4 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Batteries (RS-B5121P)
- 2 x Solar PV DC Quick Disconnect Switches (RS-i4)
- 2 x 600 AMP Busbars
- 4 x 4 ft 2/0 AWG Wire Sets 3/8"
- 8 x 10 AWG 50 ft Solar Extension Cables (RS-50102)
- 4 x 10 AWG 30 ft Solar Extension Cables (RS-30102-T2)
- 1 x Free Battery Rack

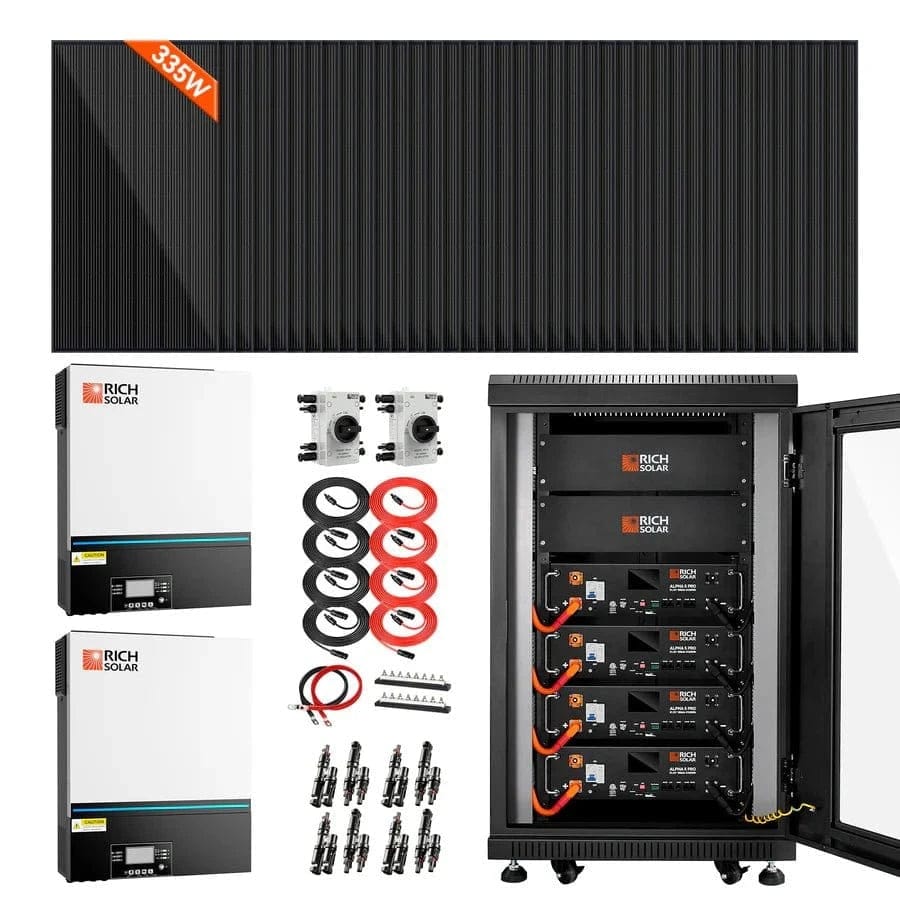

The 32 × 400W and 38 × 335W options remain separate selections. Panel counts and array ratings apply only to the option selected. Component photos illustrate the hardware; they do not add items to the selected package.
Only the listed equipment is included. Installation labor, permits, building transfer equipment, and additional site-specific materials are separate. A rack is included only where explicitly listed.
Full specifications
| Factory SKU | RS-CBK1301A |
|---|---|
| Solar array | 12300W |
| Battery bank | 20.48kWh nominal |
| Battery count | 4 |
| DC system | 48V class |
| AC configuration | 120/240V split phase when configured |
| Inverter nameplate total | 13000W |
| Surge nameplate | 26000VA combined; system and battery limits apply |
Solar panel specifications
| Panel model | RS-M410 |
|---|---|
| Rated power per panel | 410W |
| Vmp / Imp | 31.3V / 13.1A |
| Voc / Isc | 37.5V / 13.8A |
| Maximum series fuse | 25A |
| Dimensions per panel | 67.8 × 44.7 × 1.2 in |
| Weight per panel | 45.2 lb |
| Operating temperature | -40°F to 185°F |
| Frame / glass | Anodized aluminum / AR-coated tempered glass |
| Power output warranty | 25 years; manufacturer terms apply |
Battery specifications — per ALPHA 5 PRO
| Model | ALPHA 5 PRO / RS-B5121P |
|---|---|
| Per-battery voltage / capacity | 51.2V / 100Ah / 5,120Wh |
| Chemistry | LiFePO4 |
| Max charge / continuous discharge | 100A / 100A per battery |
| Max charge voltage / cutoff | 57.6V / 40.0V |
| Recommended charge current | 20A per battery |
| Cycle rating | 7,000+ at 70% depth of discharge |
| Dimensions per battery | 17.7 × 17.8 × 5.2 in |
| Weight per battery | 100.9 lb |
| Protection / housing | IP21 / metal; protected indoor location |
| Charging / discharge temperatures | 32°F to 140°F / -4°F to 149°F |
| Monitoring / communication | Wi-Fi, Bluetooth, RS485, CAN, RS232, dry contact |
| Heating | 150W internal heater |
| Expansion | Up to 30 in parallel, subject to design and revision compatibility |
| Warranty | 10-year limited manufacturer warranty |
Hybrid inverter specifications — per unit
| Model | NOVA 6548 / RS-H6548 |
|---|---|
| Per-inverter continuous / surge | 6,500W / 13,000VA; battery limits apply |
| Per-inverter AC output | 120V ±5%, pure sine wave |
| Two-inverter configuration | 120/240V split phase only when correctly wired and configured |
| Nominal DC input | 48V |
| Nominal AC input / sensing | 120V; 50/60Hz automatic |
| Peak efficiency | 91% |
| Transfer time | 10ms UPS / 20ms appliance setting per unit; parallel operation may differ |
| Maximum PV array per inverter | 8,000W (4,000W × 2) |
| MPPT / maximum PV Voc | 90–450V / 550V |
| PV input current | 18A × 2 |
| Maximum total charging current | 120A per inverter; set within battery-bank limits |
| Dimensions per inverter | 5.8 × 17.0 × 21.8 in |
| Weight per inverter | 40.6 lb |
| Operating temperature | 14°F to 104°F |
| Humidity | 5–95% noncondensing |
| Communication | USB, RS232, RS485, Wi-Fi, dry contact |
| Parallel capability | Up to 6 compatible units |
| Warranty | 3-year limited manufacturer warranty |
Power planning and installation
The 13kW number describes inverter capacity, while the 30-panel option has 12.3kW of rated solar capacity. Battery storage is 20.48kWh, a separate measure.
Have a qualified installer check cold-weather panel open-circuit voltage, MPPT startup voltage, input current, battery settings, cable ampacity, fusing, grounding, and mounting. House circuits require approved transfer or isolation equipment. Keep indoor-rated electronics protected, and never backfeed an outlet.
Solar production depends on location, season, shade, panel angle, and system losses. Panel wattage is a laboratory rating; it is not a guaranteed charging rate. Loads running during charging reduce the energy stored.
Frequently asked questions
Which option includes the thirty panels?
Select 30 × 410 Watt – 12.3kW Total. The No Panel option includes no solar modules, and other panel selections have their own quantities.
Is the battery rack included?
The current RS-CBK1301A and RS-CBK1301D manufacturer lists include a free battery rack. It is part of those packages, not an extra battery.
How do I estimate runtime?
The shared four-battery foundation is rated at 20,480Wh. Choosing more panels can replenish it faster in suitable sunlight, but does not increase stored energy. Runtime still depends on the appliances and reserve settings.
Is installation included?
No installation labor is included with any panel choice. A qualified installer must verify array layout, cold-weather voltage, disconnects, battery wiring, and the building’s transfer or isolation arrangement.
What warranty applies?
Battery, inverter, panel, and accessory warranties are separate. Current listed terms include 10 years for ALPHA 5 PRO batteries, 3 years for the hybrid inverters, and 25-year panel output coverage where panels are selected.
Manufacturer specifications and manuals
- RS-M400 410 20260717.pdf
- RS-H6548-Specification 250625.pdf
- ALPHA 5 PRO 20260826.pdf
- RS-H6548 Manual 8befb997-a343-44ab-89e8-5cc2dd27b83f.pdf
- ALPHA 5 PRO MANUAL 241128 compressed.pdf
Battery figures above follow the linked August 2026 sheets. Earlier kit copy may show different revision specifications; confirm delivered labels and manuals before configuring the system.
AllProGenerators support
Not sure whether you need panels with the kit? We can help compare the options for your property. Call Frank at 954-249-2314. AllProGenerators has served generator buyers since 2018.
