Jackery Explorer 5000 Plus | 5040Wh, 7200W Home Backup

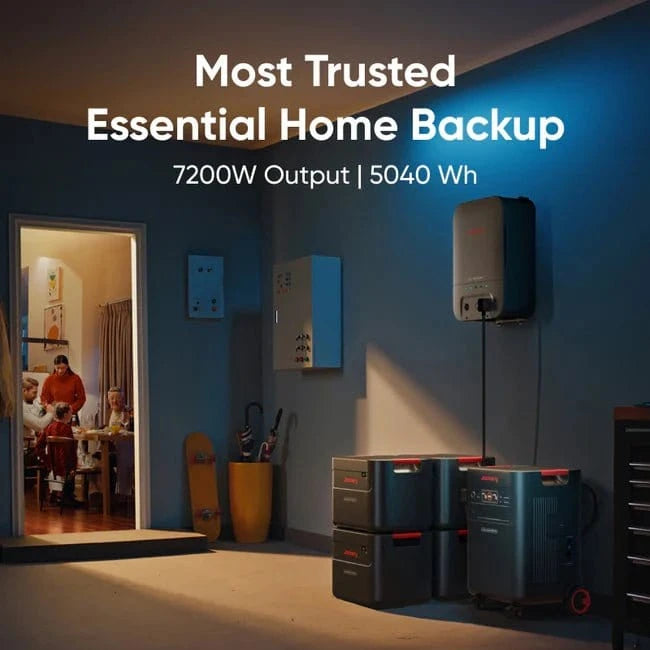

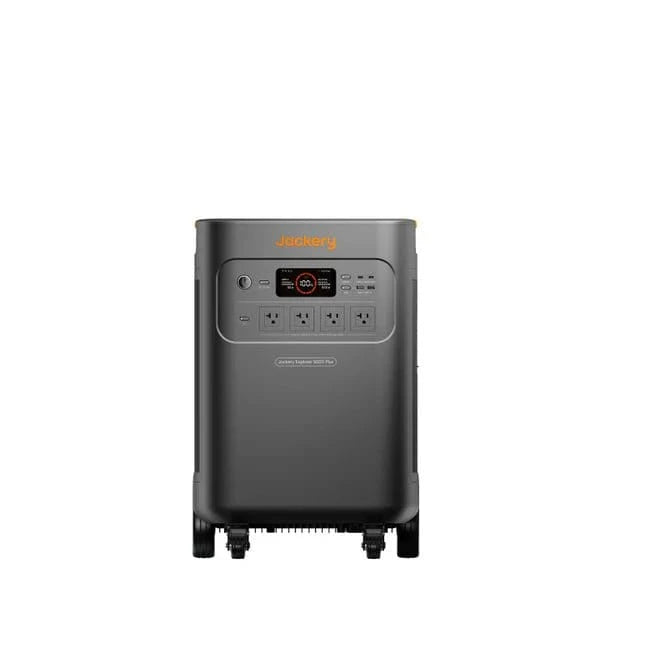

The Jackery Explorer 5000 Plus is a 120/240V whole-home-capable battery backup platform with 5,040Wh per power station and up to 7,200W of rated AC output. It is built for serious outage protection, high-demand appliances, well pumps, RVs, workshops, and expandable home energy storage—without gasoline, exhaust, or engine noise.

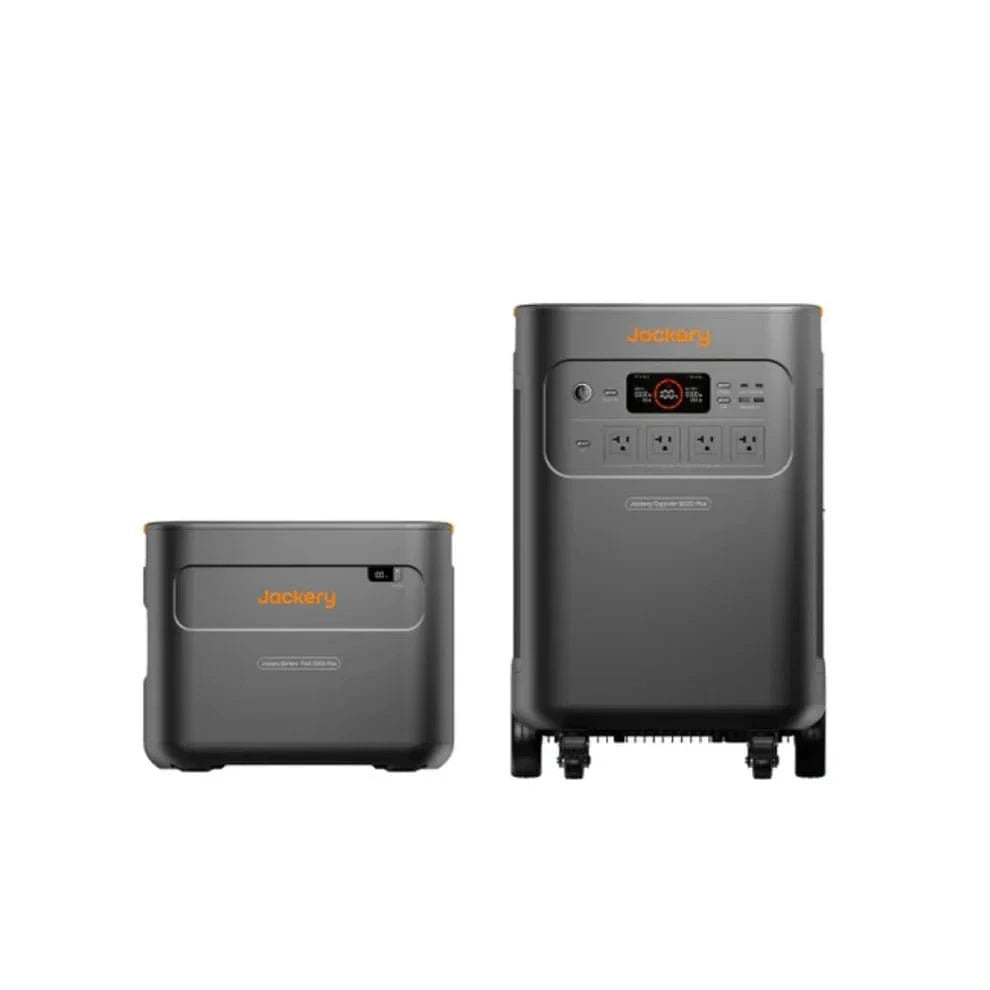

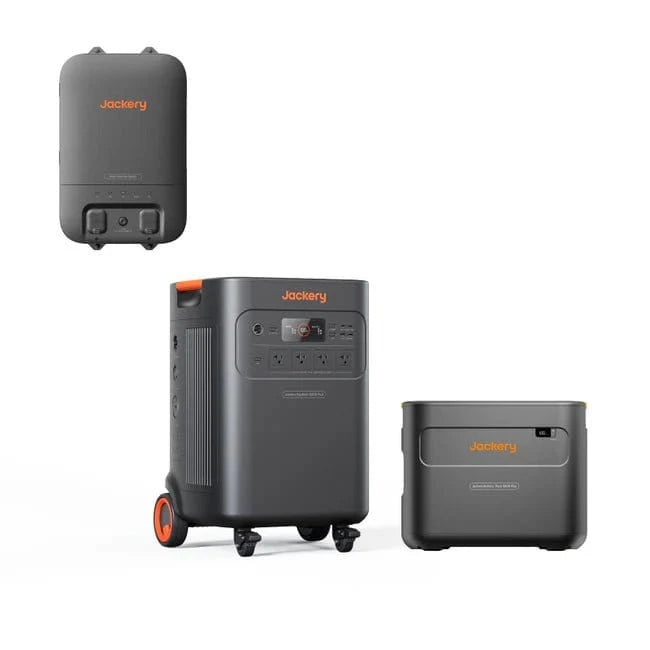

Select the exact configuration you need. The updated 20kWh Whole-Home Backup Kit combines two Explorer 5000 Plus units, two Battery Pack 5000 Plus modules, and one Smart Transfer Switch for 20,160Wh of total nominal storage and 14,400W of combined rated output.

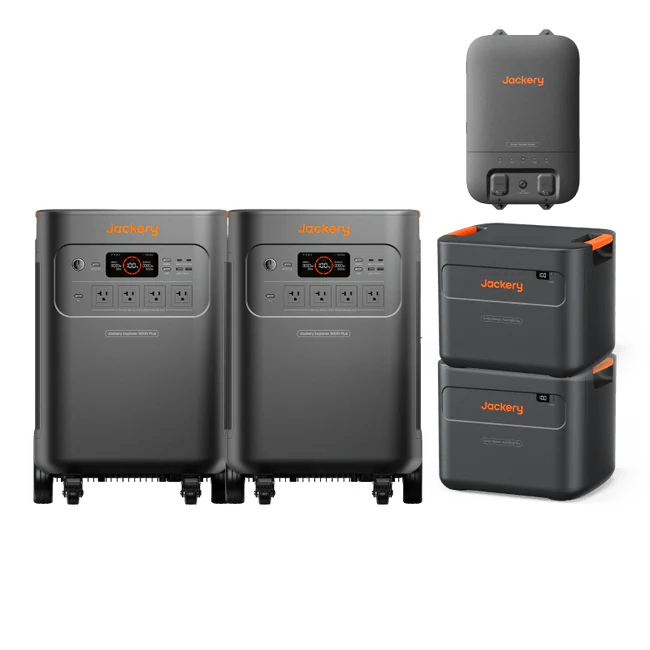

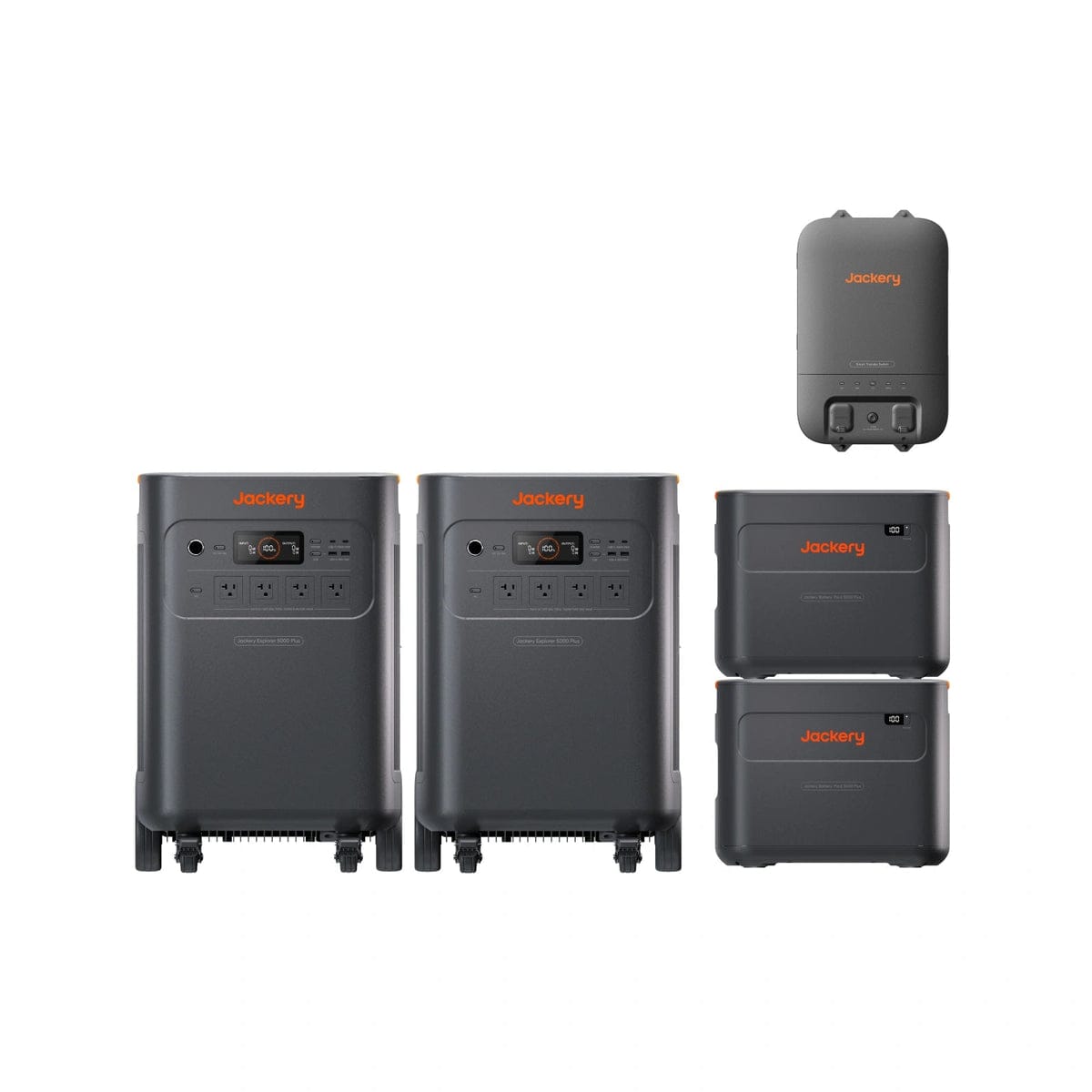

20kWh Whole-Home Backup Kit

Official bundle SKU: 60-505000-US00057.

• 2 × Jackery Explorer 5000 Plus power stations
• 2 × Jackery Battery Pack 5000 Plus expansion batteries
• 1 × Jackery Smart Transfer Switch
• 2 × AC charging cables
• 2 × MC4 wrenches
• 2 × expansion cables

System totals: 20,160Wh nominal battery capacity, 14,400W combined rated AC output, and up to 28,800W combined surge output when configured according to Jackery’s instructions. The Smart Transfer Switch provides integrated 120/240V split-phase backup for selected household circuits.

Why This System Stands Out

• True 120/240V capability: supports compatible 240V loads as well as standard 120V circuits.
• Expandable 5,040Wh modules: grow capacity as your backup needs change.

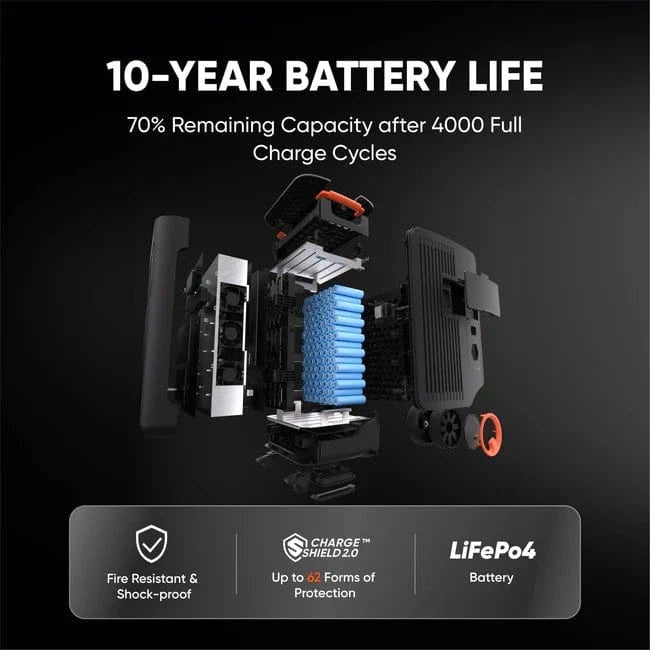

• LiFePO4 battery chemistry: rated for 4,000 cycles to 70% original capacity.
• High-output inverter: 7,200W rated and 14,400W surge per Explorer 5000 Plus.
• Whole-home integration: the Smart Transfer Switch manages up to 12 branch circuits.

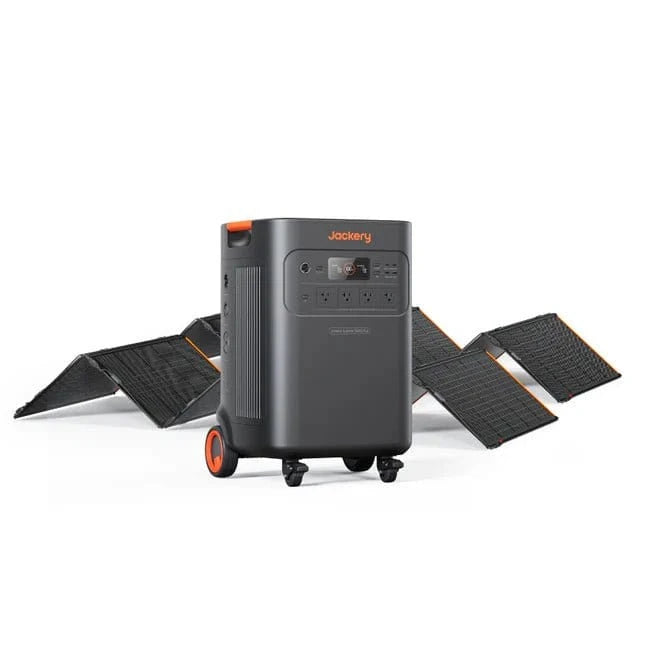

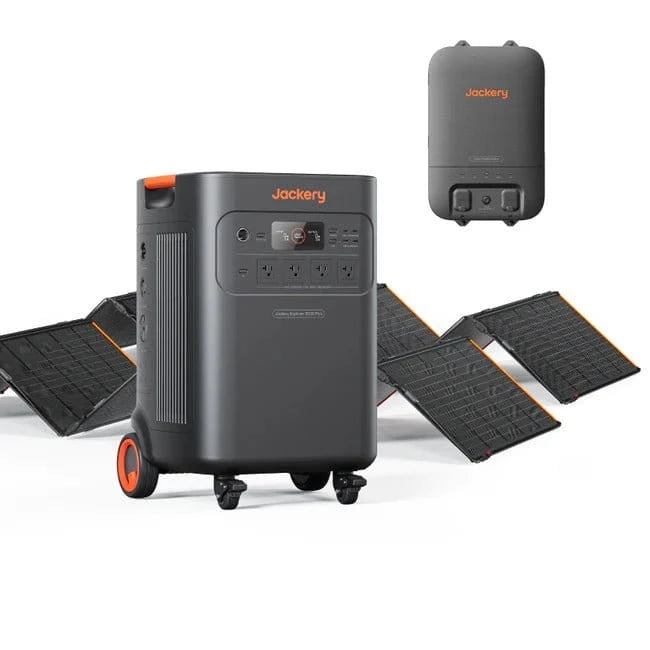

• Solar-ready: high-voltage and low-voltage PV inputs support flexible charging configurations within Jackery’s electrical limits.
• App monitoring: Wi-Fi and Bluetooth connectivity for compatible control and status functions.
• Quiet indoor backup: no fuel storage, fumes, or engine maintenance.

Best Use Cases

• Whole-home emergency backup for selected essential circuits
• Refrigerators, freezers, lighting, communications, and home offices
• Compatible well pumps, sump pumps, and 240V appliances
• Medical-device and CPAP backup within system limits
• Workshops, mobile service, food trucks, and high-demand job sites
• RV, cabin, and off-grid energy storage
• Long-duration outage preparation with optional solar recharging

Explorer 5000 Plus Specifications

Battery Pack 5000 Plus Specifications

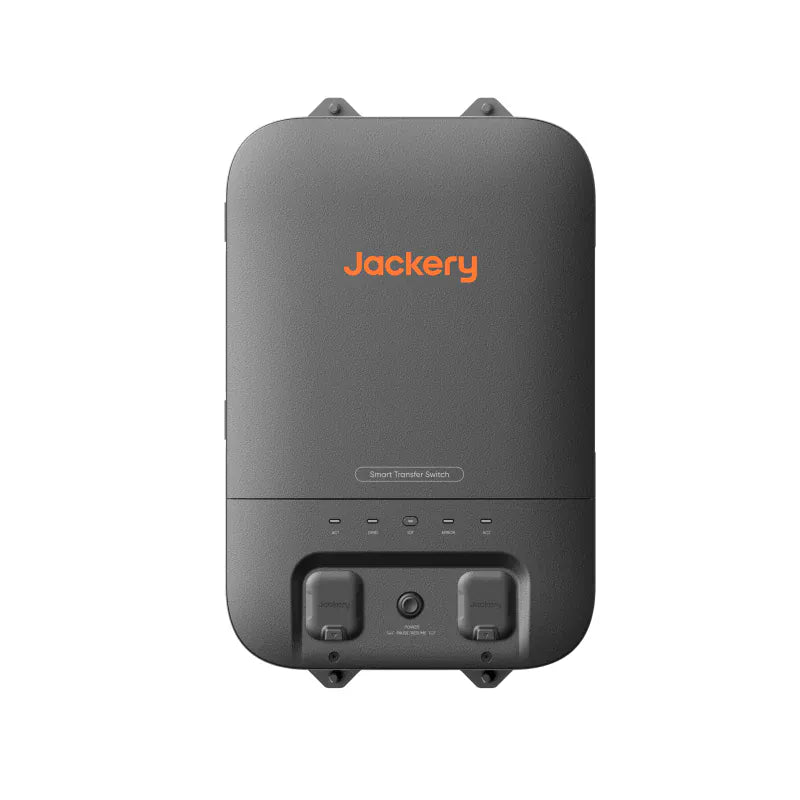

Smart Transfer Switch Specifications

Installation and Sizing Notes

Whole-home backup is not one-size-fits-all. Actual runtime depends on which circuits are backed up, the starting surge of motors and compressors, thermostat settings, weather, and how often loads cycle. Large central air conditioners, electric heat, tankless water heaters, and other high-draw equipment must be checked individually. A qualified electrician should verify panel compatibility, circuit selection, grounding, permits, and code requirements before installation.

Frequently Asked Questions

How much battery capacity is in the 20kWh kit?

The kit includes four 5,040Wh battery modules in total—two inside the Explorer 5000 Plus units and two external Battery Pack 5000 Plus modules—for 20,160Wh of nominal storage.

Can this power 240V appliances?

Yes, the Explorer 5000 Plus platform supports 120/240V split-phase output. The appliance’s running wattage, surge requirement, and connection method must stay within the system specifications.

Will it run central air conditioning?

It may run compatible systems, but central air startup requirements vary widely. Confirm the compressor’s locked-rotor amps or startup wattage and running load. A soft starter may be helpful for some systems, but suitability must be determined for the specific equipment.

Can I recharge it with solar panels?

Yes. The system supports both high-voltage and low-voltage PV input within the voltage, current, and wattage limits shown above. Panel strings must be designed so they never exceed Jackery’s input limits, including in cold weather.

Does the Smart Transfer Switch require an electrician?

Yes. It connects to household electrical circuits and should be installed by a qualified professional in accordance with local electrical code and permit requirements.

Is it safe indoors?

Yes. It produces no engine exhaust. Install and operate it in a dry, temperature-controlled location with the clearances and ventilation specified by Jackery.

Talk to a Real Person Before You Size It

For whole-home backup, send AllProGenerators a list of the circuits and appliances you want to run. We will help you compare the load against the system’s capacity and output before you order.
