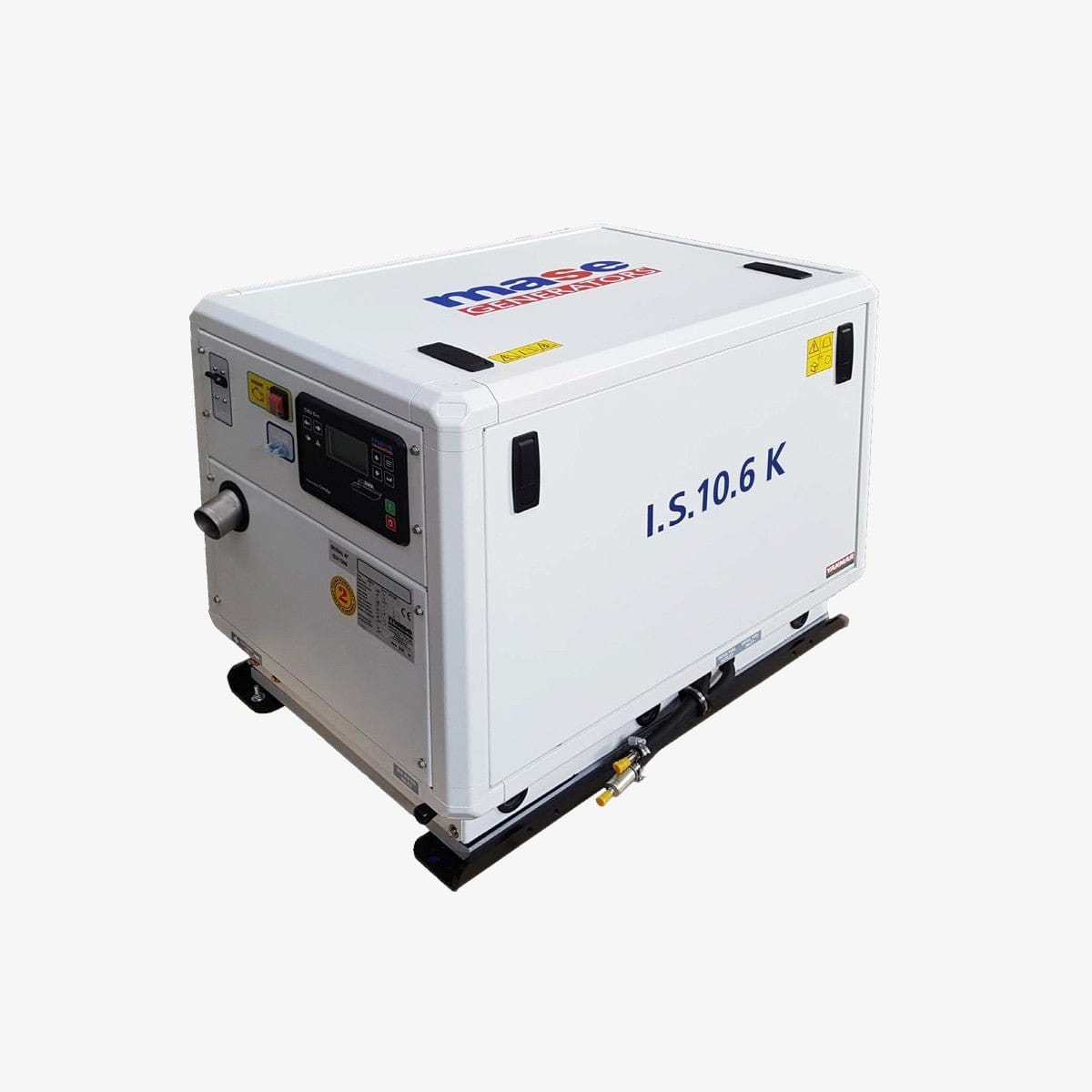

MASE 10.6 KW Marine Generator
.. people are viewing this
.. Visitor Right Now
4 Great reasons to buy from us:
| Description |
| • Marine power generator |
| • Diesel engine 1800 rpm |
| • Silenced version |
|
AC generator - 60HZ |
| • Type: synchronous, 4 poles, self-excited, |
| brushless, with AVR |
| • Cooling: Air/water (Intercooler W/A) |
| • Max. power: 9,9 kW |
| • Continuous power: 9 kW |
| • Voltage (V): 120 - 240 |
| • Amps: 75 - 37,5 |
| • Power factor: cos ф 1 |
| • Voltage stability: ±2% |
| • Frequency stability: ±5% |
| Diesel Engine |
| 1800 rpm |
| • Type: Kubota D1105 - 3 cyl. - 15,4 hp (11,5 |
| kWm) - 1123 cm3 |
| • Starting system: electric (12Vdc) |
| • Fuel: Diesel fuel No. 2-D (ASTM D975) |
| • Lubrificating oil: Class CF lubrificating oil as per |
| API classification, SAE 10W-40 is recommended |
| • Fuel consumption @ 100%: 247 g/kWh |
| • Cylinder block material: Cast iron |
| • Bore (mm): 78 |
| • Stroke (mm): 78,4 |
| • Injection system: direct |
| • Engine head material: Cast iron |
| • Speed governor: Mechanical |
| • Lubrication system: Forced |
| • Oil sump capacity (L): 4 |
| • Engine stop system: Stop solenoid |
| • Fuel pump: Electric |
| • Head max. fuel pump (cm): 70 |
| • Starter battery (Ah-V): 80 - 12 |
| • Battery-charger (Ah-V): 75 - 12 |
| • Starter motor (kW-V): 1,2 - 12 |
| • Coolant antifreeze blue type density: 1,13 g/ |
| • Easy access in case of maintenance of feeding |
| the system, lubrication system, sea/water pump and air filter |
| • Safety stop in case of low oil pressure |
| • Safety stop in case of high water temperature and high exhaust gas temperature |
| • Oil filter and fuel filter easy to replace |
| Standard Features |
| • Controller with digital display for full |
| monitoring of generator parameters: manual |
| start, Vac voltage, frequency Hz, power, |
| amperage, engine rpm, hourmeter, genset |
| battery voltage, engine oil pressure, low |
| oil pressure alarm, engine temperature, |
| engine pre-heating, high engine temperature |
| warning and shutdown alarm, high alternator |
| temperature warning and shutdown alarm, |
| alternator battery charger failure alarm, inverter |
| failure alarm, protection alarm for Overload, |
| history, maintenance warning |
| short circuit, high and low voltage, high and |
| low frequency, high and low rpm, alarms |
| Other features: direct ECU communication via |
| CAN line, possibility to disable all protections |
| (emergency mode operation), automatic |
| start for low battery voltage level, possibility |
| for a Start/Stop remote switch (AUT mode), |
| possibility to have multiple remote devices |
| • Thermal and magneto-thermal protection |
| • Emergency stop button |
Accessories and specifications
| Accessories | • Siphon break | • Remote START/STOP panel (20 mt cable) | |||
| on request | • Filter kit | ||||
| • Exhaust kit | • Insulated two poles kit | ||||
| • Separator and exhaust advice | |||||
| Noise level | • | 51 dBA @ 7mt - 23 ft | |||
| Other features | • Insulation Class: H | • Water pump flow: 25 lt/min - 6,6 gal/min | |||
| • Ambient temperature: 40 °C - 104 °F (*) | • Cooling system: cupronickel exchanger (heat | ||||
| • Altitude: 1000 mt - 3281 ft (*) | exchange between coolant liquid and sea | ||||
| • Mechanical Protection: IP 23 | water) | ||||
| • Dimensions (L x W x H): 800 x 514 x 647,5 mm | • Soundproof cabin made of extremely light | ||||
| - 31,5 x 20,2 x 25,5 in | marine aluminum with very high resistance to | ||||
| • Dry weight: 295 kg - 650 lb | external agents | ||||
| • Max. inclination: 30° | |||||
| (*) - For altitude and temperature values other than those listed above, please consult the manufacturer to verify the | |||||
| available power. | |||||
