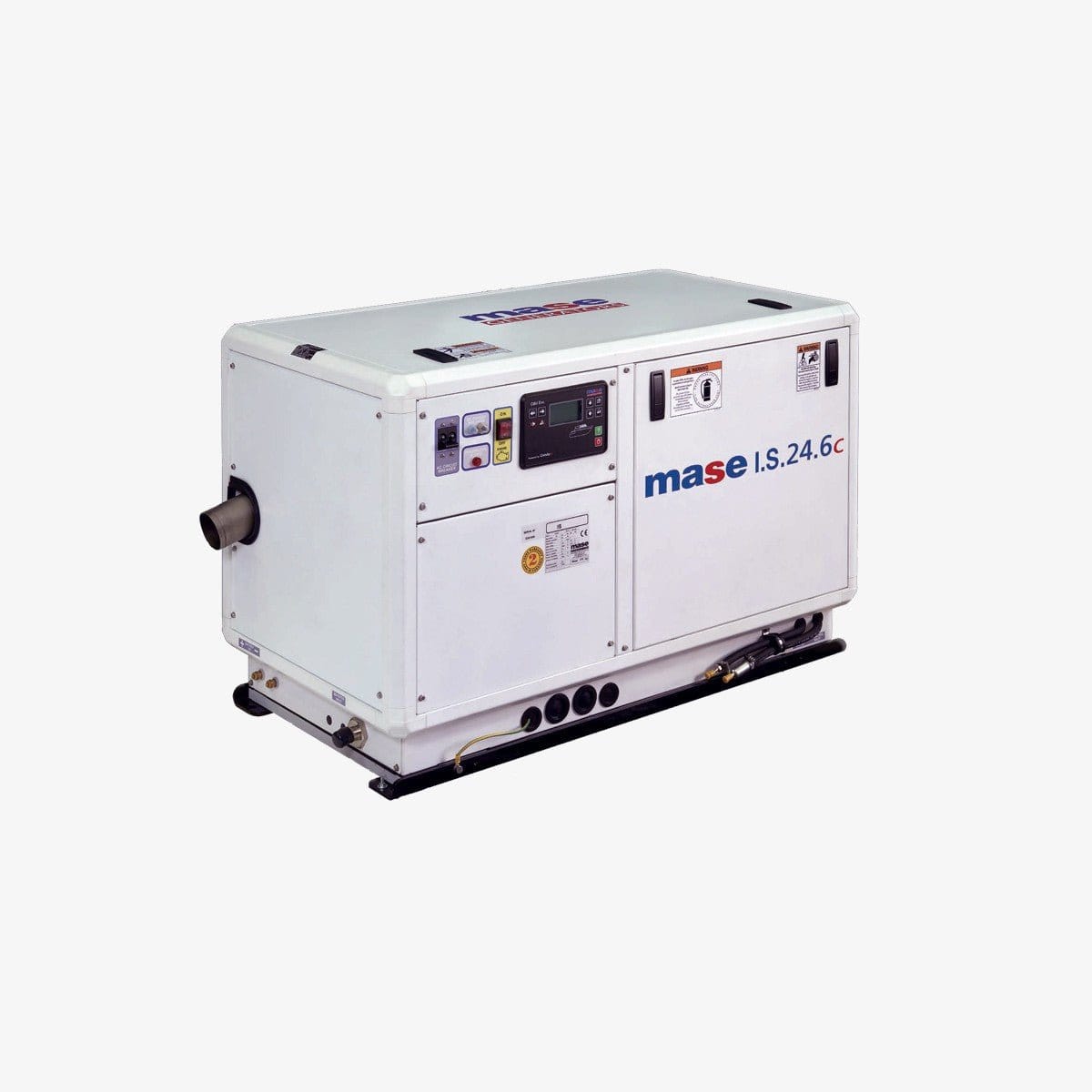

Well-known for durability, power, and reliability, the 24KW MASE Marine Generator will provide the needed power on a consistent basis when you need it.
Mase Generators marine gensets are specifically designed and manufactured for installation on-board boats. The diesel generators assure shipbuilders and end users easy installation with high efficiency and performance. Designed for the special demands of the marine environment, Mase Generators marine gensets feature low sound levels and very low emissions.
Description | • Marine power generator | • Silenced version | |
• Diesel engine 1800 rpm |
AC generator - 60Hz | • Type: synchronous, 4 poles, self-excited, | • Max. current (A): 200 - 100 | ||
brushless, with AVR | • Power factor: cos ф 1 | |||
• Cooling: Air/water (Intercooler W/A) | • Voltage stability: ±1% | |||
• Max. power: 24 kW | • Frequency stability: ±2% | |||
• Voltage (V): 120 - 240 |
Diesel Engine | • Type: Kubota V2403 - 4 cyl. - 39,8 hp (29,6 | air filter |
E
1800 rpm | kWm) - 2434 cc - 148,5 cid | • Safety stop in case of low oil pressure | |
• Starting system: electric (12Vdc) | • Safety stop in case high water temperature and | ||
• Fuel consumption @ 100%: 6,5 lt/h - 1,7 gal/h | high exhaust gas temperature | ||
• Easy access in case of maintenance of feeding | • Oil filter and fuel filter easy to replace | ||
system, lubrication system, sea/water pump and | • Quick access to seawater pump |
Standard Features | • Controller with digital display for full | short circuit, high and low voltage, high and | |
monitoring of generator parameters: manual | low frequency, high and low rpm, alarms | ||
start, Vac voltage, frequency Hz, power, | history, maintenance warning | ||
amperage, engine rpm, hourmeter, genset | -- | Other features: direct ECU communication via | |
battery voltage, engine oil pressure, low | CAN line, possibility to disable all protections | ||
oil pressure alarm, engine temperature, | (emergency mode operation), automatic | ||
engine pre-heating, high engine temperature | start for low battery voltage level, possibility | ||
warning and shutdown alarm, high alternator | for a Start/Stop remote switch (AUT mode), | ||
temperature warning and shutdown alarm, | possibility to have multiple remote devices | ||
alternator battery charger failure alarm, inverter | • Emergency stop button | ||
failure alarm, protection alarm for Overload, | • Thermal and magneto-thermal protection | ||
Accessories | • Siphon break | • Remote START/STOP panel (20 mt cable) | |
on request | |||
• Filter kit | • Remote start panel with display (20 mt cable) | ||
• Exhaust kit | • Insulated two poles kit | ||
• Separator and exhaust advice | |||
Noise level | • | 49 dBA @ 7mt - 23 ft | |
Other features | • Insulation Class: H | • Water pump flow: 20 lt/min - 5,3 gal/min | |
• Ambient temperature: 40 °C - 104 °F (*) | • Cooling system: cupronickel exchanger (heat | ||
• Altitude: 1000 mt - 3281 ft (*) | exchange between coolant liquid and sea | ||
• Mechanical Protection: IP 23 | water) | ||
• Dimensions (L x W x H): 1115 x 585 x 730 mm - | • Soundproof cabin made of extremely light | ||
43,9 x 23 x 28,7 in | marine aluminum with very high resistance to | ||
• Dry weight: 475 kg - 1048 lb | external agents | ||
• Max. inclination: 30° | |||
(*) - For altitude and temperature values other than those listed above, please consult the manufacturer to verify the | |||
available power. |
See the Product manual below for more information.
