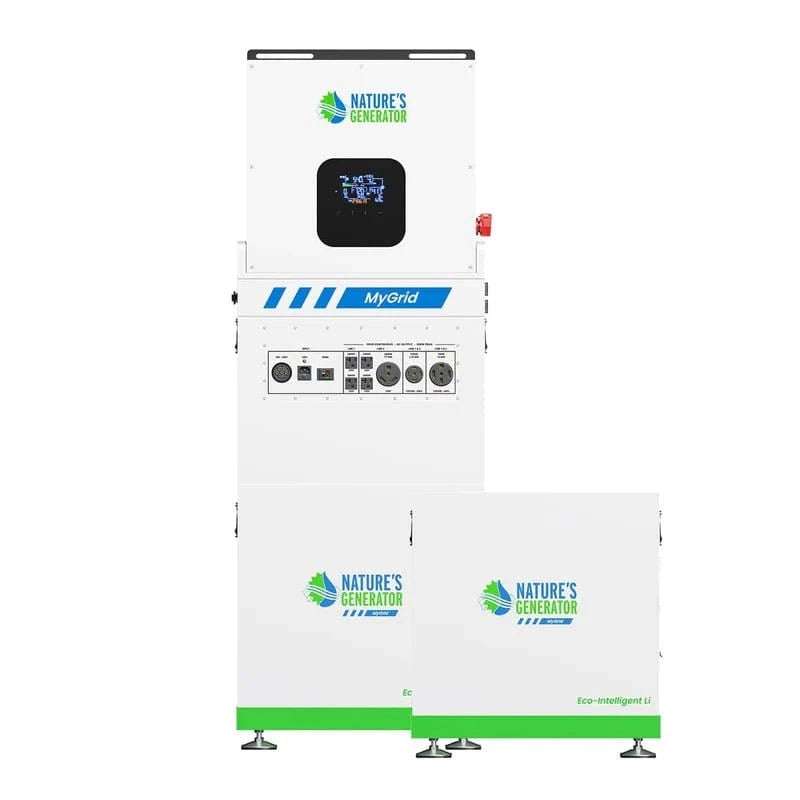

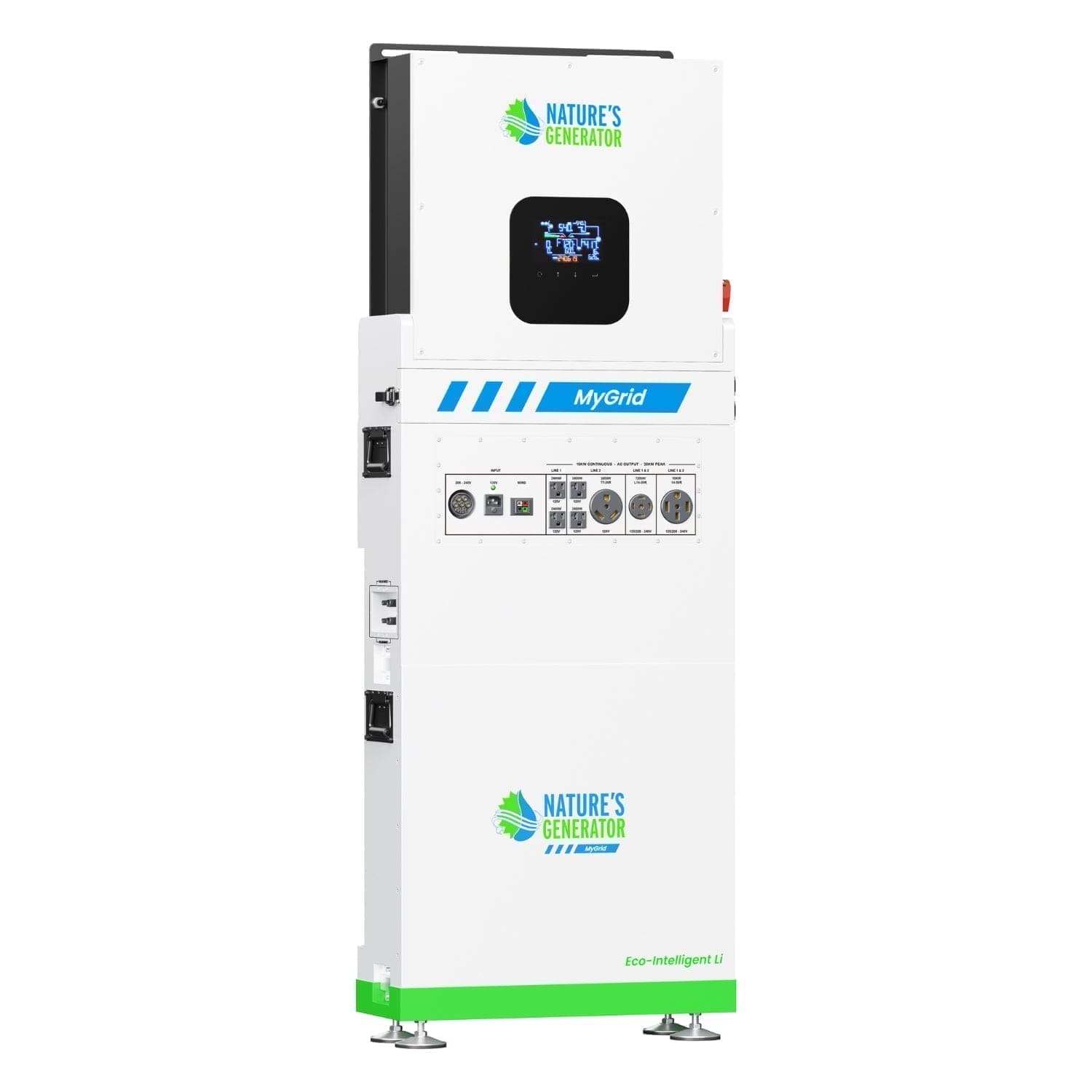

MyGrid 10K Gen 2 Solar and Wind Generator for Home

The Nature’s Generator MyGrid 10K Gen 2 Solar and Wind Generator for Home combines a 10,000W split-phase inverter, 10,496Wh LiFePO4 battery storage, high-output 440W bifacial solar panels and a 350W wind turbine in one expandable home-energy package. It supplies 120/240V split-phase power for demanding household loads and gives you several ways to recharge: solar, wind, standard 120V AC, 208V/240V AC or a compatible fuel generator.

I get asked all the time whether a battery system like this will really run a house. The honest answer is that it depends on what you expect it to run and for how long. Ten thousand watts is serious output, but central air conditioning, well pumps, electric water heaters, dryers and EV charging can change the load quickly. If you arent sure, jsut call us at 954-249-2314. Tell us what you need to power and we will help you look at the running watts, startup surge and battery capacity instead of just guessing.

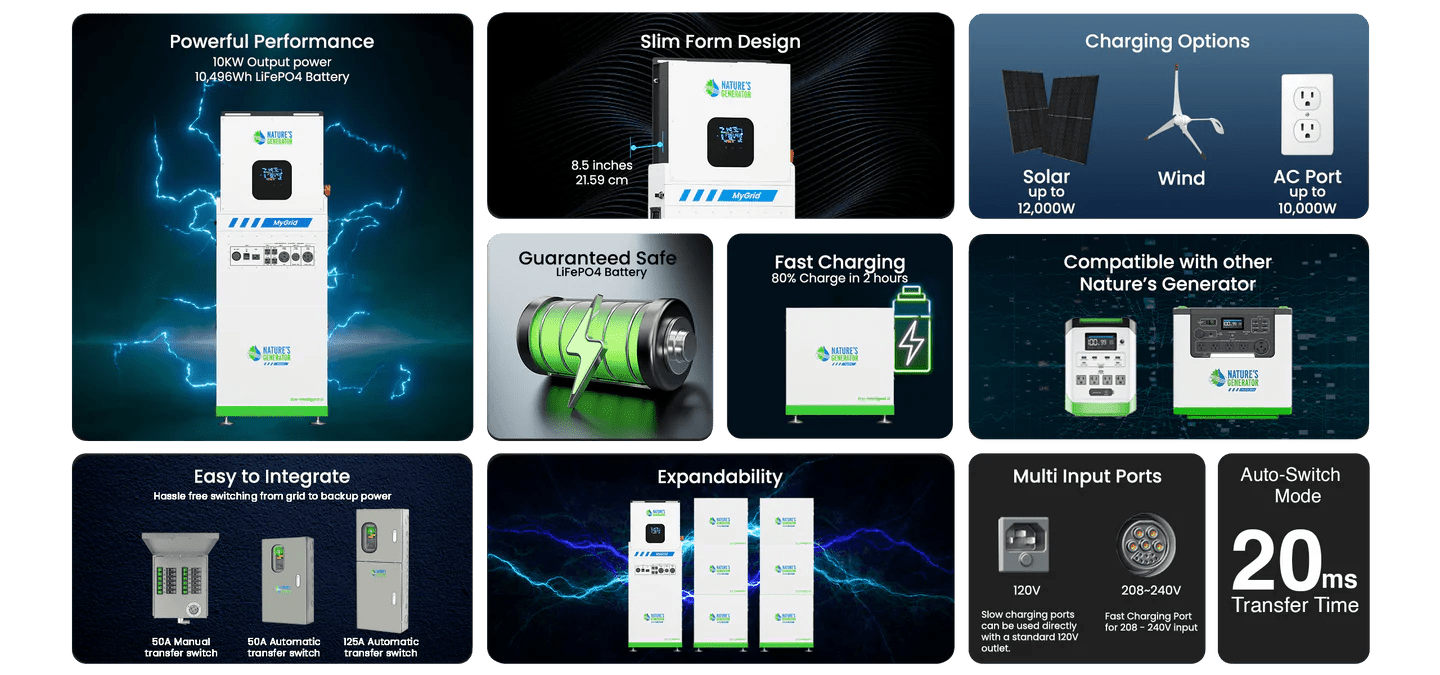

Why Choose the MyGrid 10K Gen 2?

• 10,000W continuous output: substantial 120/240V split-phase power for major appliances, pumps, tools and selected home circuits.
• 20,000W surge capacity: helps start compatible motor-driven loads that briefly demand more power.
• 10,496Wh LFP battery: long-life lithium iron phosphate storage with more than 70% capacity remaining after 6,000 cycles under rated conditions.
• Solar and wind charging: the included 440W bifacial panels handle daytime renewable charging, while the 350W turbine can supplement production when local wind conditions are suitable.
• Fast automatic switching: less than 20 ms transfer time for compatible backup equipment.
• Expandable system: connect a second MyGrid 10K for up to 20,000W continuous output and expand storage to 73.4kWh with compatible batteries.
• Large solar capability: dual MPPT inputs support up to 12,000W of compatible solar input across the complete expanded system design.
• Multiple charging sources: recharge from 120V AC, 208V/240V AC, solar, wind or a compatible external generator.
• Home-energy flexibility: supports compatible AC-coupled solar and rapid-shutdown configurations when properly designed and installed.

Best Uses

• Whole-home outage planning: back up selected 120V and 240V household circuits through compatible transfer equipment installed by a qualified electrician.
• Hurricane preparedness: maintain refrigeration, lighting, communications, pumps and other priority loads when utility power is unavailable.
• Homes with well pumps: the split-phase output and high surge rating can support many compatible 240V well-pump systems after their exact electrical requirements are verified.
• Existing solar homes: suitable for professionally designed AC-coupled applications where compatible rooftop solar needs to contribute during an outage.
• Time-of-use energy management: store energy during lower-cost periods or from renewable sources and use it when utility rates are higher, subject to the installation and local rate plan.
• Off-grid homes and cabins: combine solar, wind and generator charging for a more diversified energy supply.
• Workshops and small businesses: provide backup power for compatible equipment, refrigeration, lighting, communications and other essential operations.

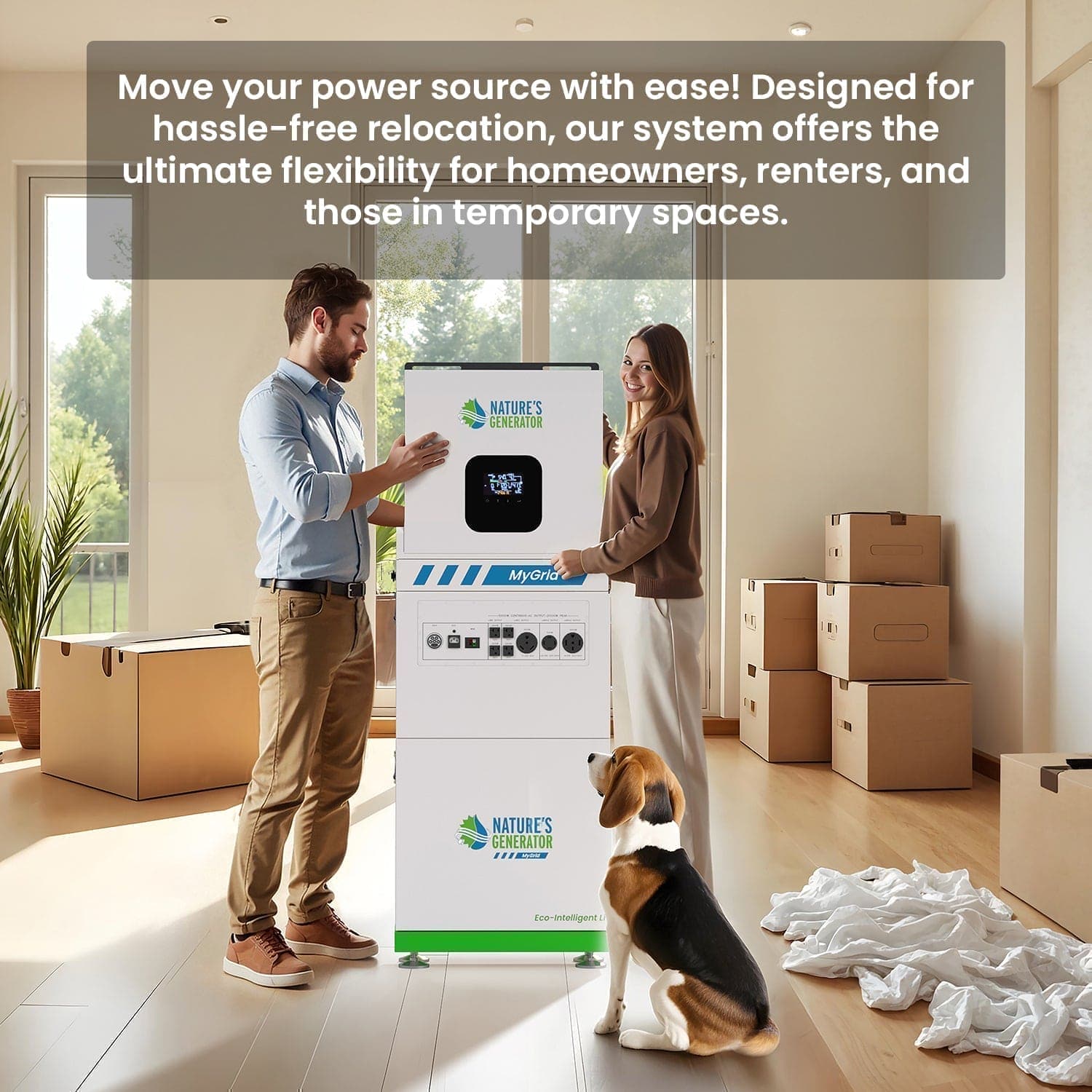

• Renters or future relocation: the modular equipment can be relocated more easily than many permanently installed battery systems, although electrical connections and renewable-energy installations must still follow applicable codes.

Choose the Right Package

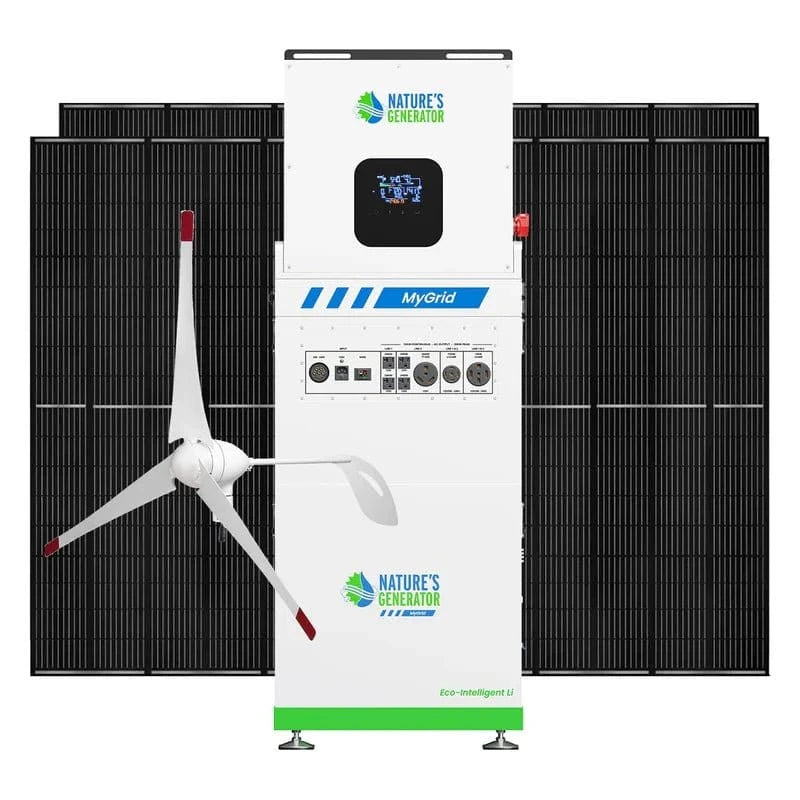

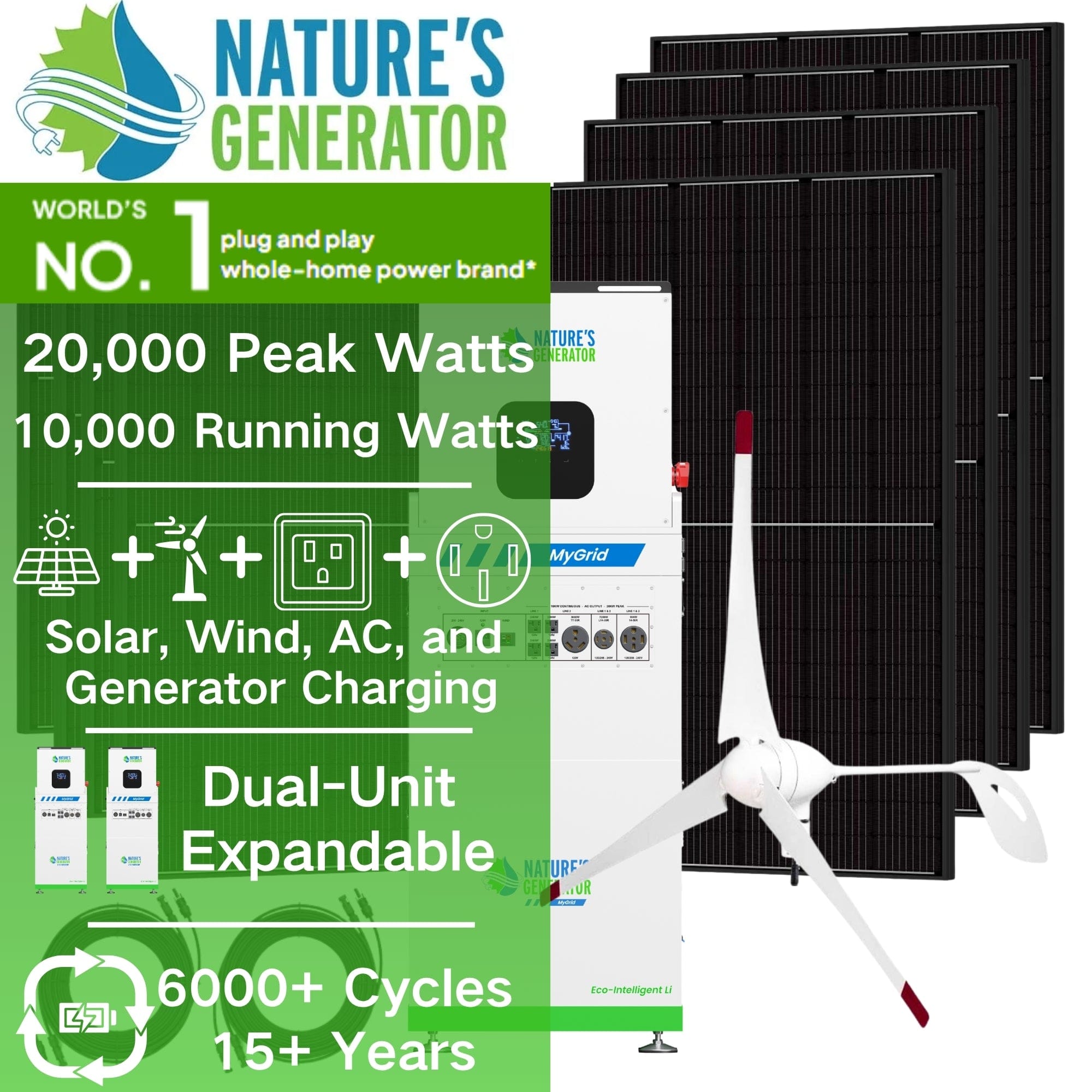

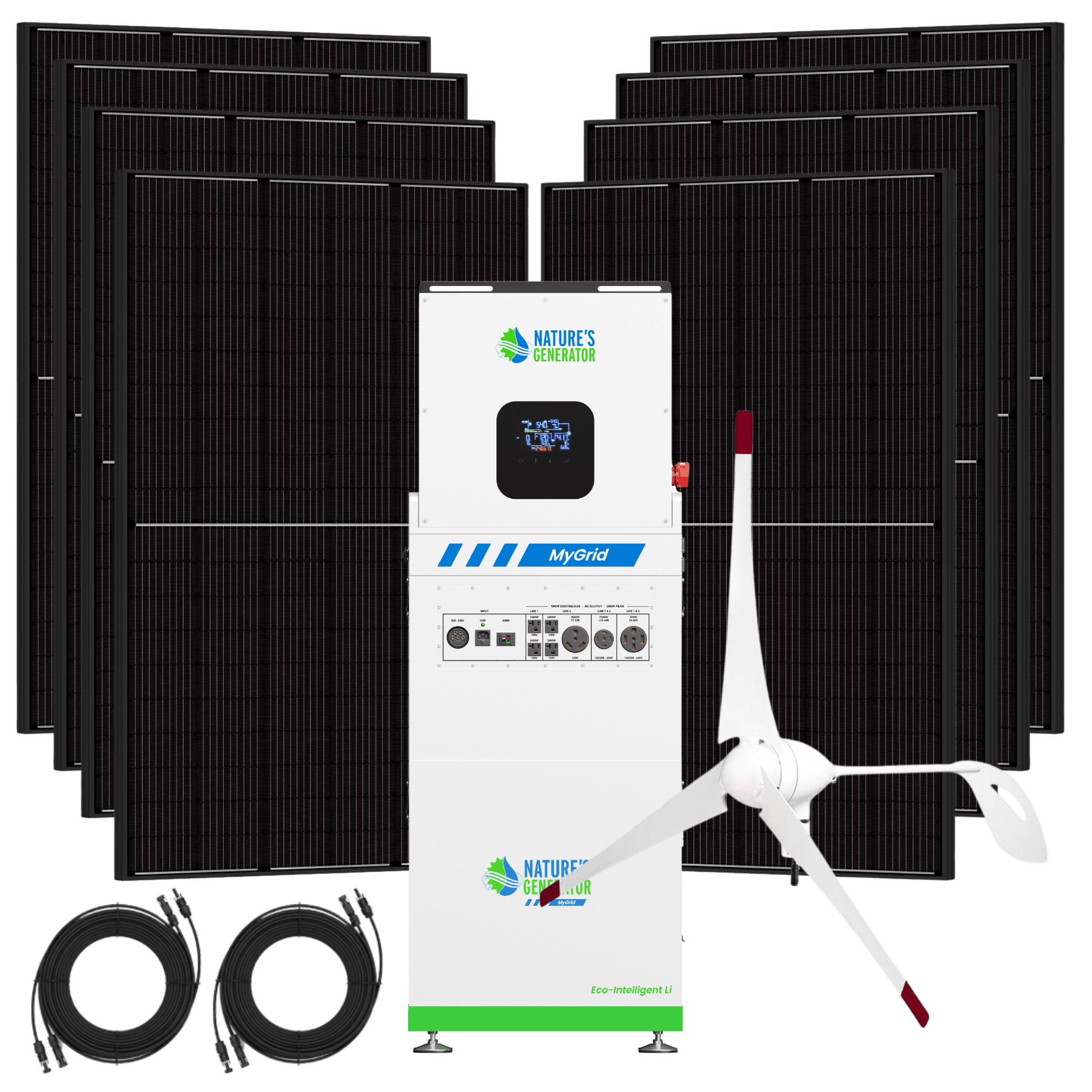

MyGrid 10K Gen 2 + 8 × 440W Solar Panels + 350W Wind Turbine

This package provides one 10,496Wh battery, 3,520W of rated solar-panel capacity and the 350W wind system. It is the better starting point for buyers who want the full 10,000W inverter output with renewable charging and plan to add storage later only if runtime requirements increase.

• 1 × MyGrid 10K Gen 2 generator/inverter

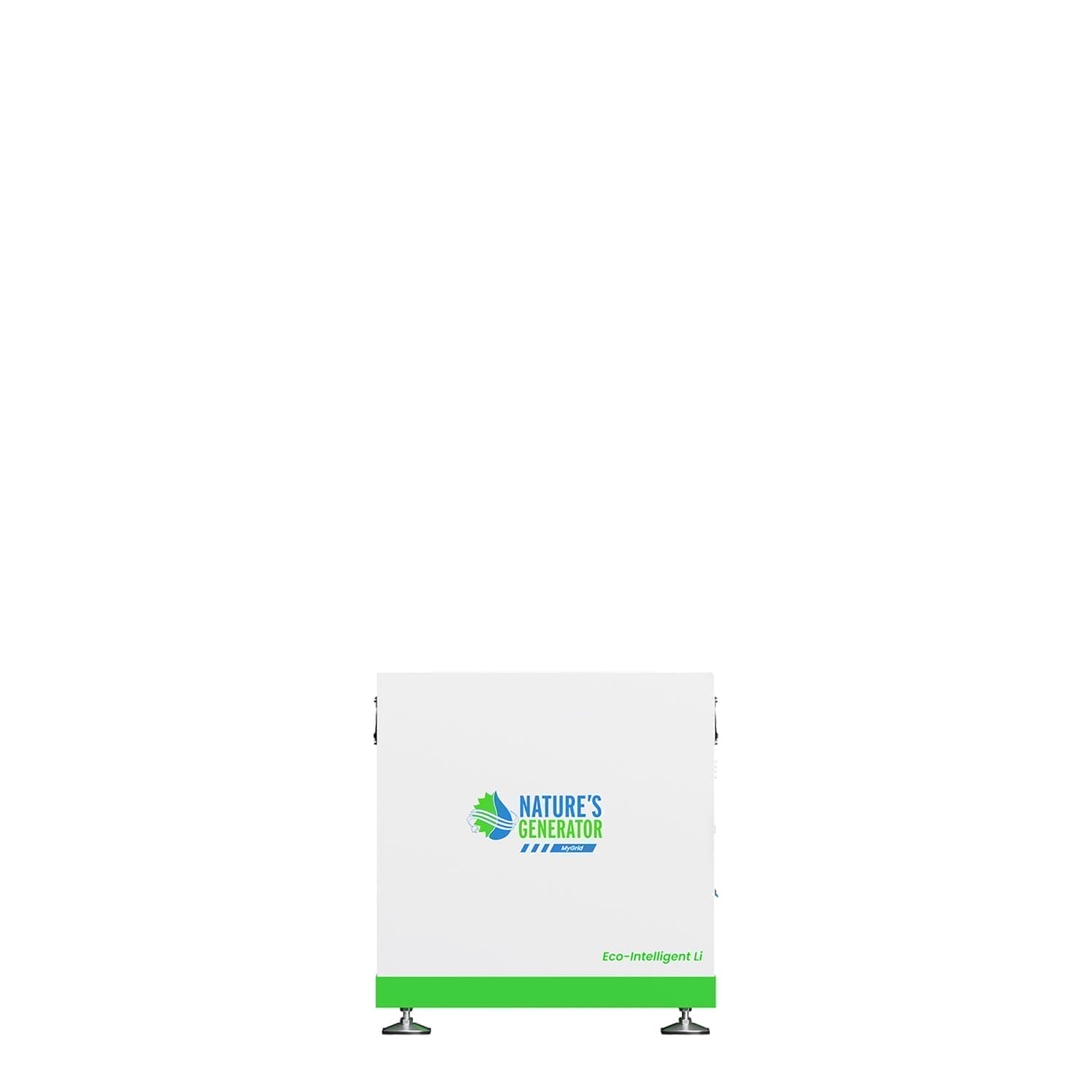

• 1 × MyGrid 10K battery

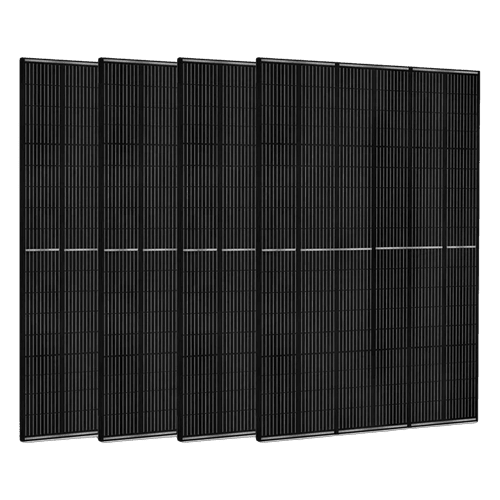

• 8 × 440W rigid bifacial solar panels
• 2 × 50-foot quick-release solar cable pairs

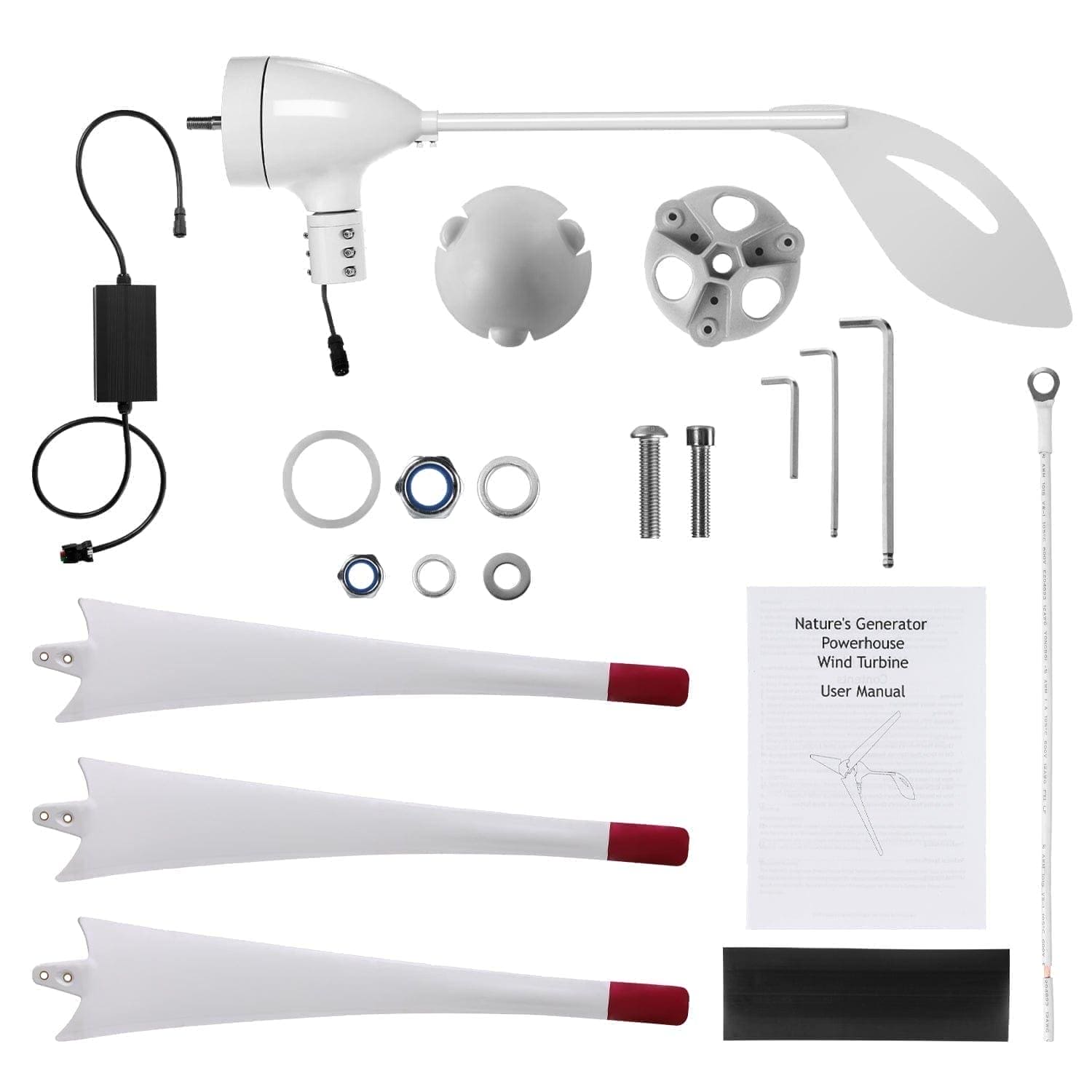

• 1 × 350W wind turbine
• 1 × 100-foot wind turbine cable
• 1 × wind-turbine blade set
• 1 × wind-turbine controller box and accessories
• 1 × AC power cord
• 1 × battery cable set
• 1 × communication cable
• 2 × MyGrid mounting and security hardware sets

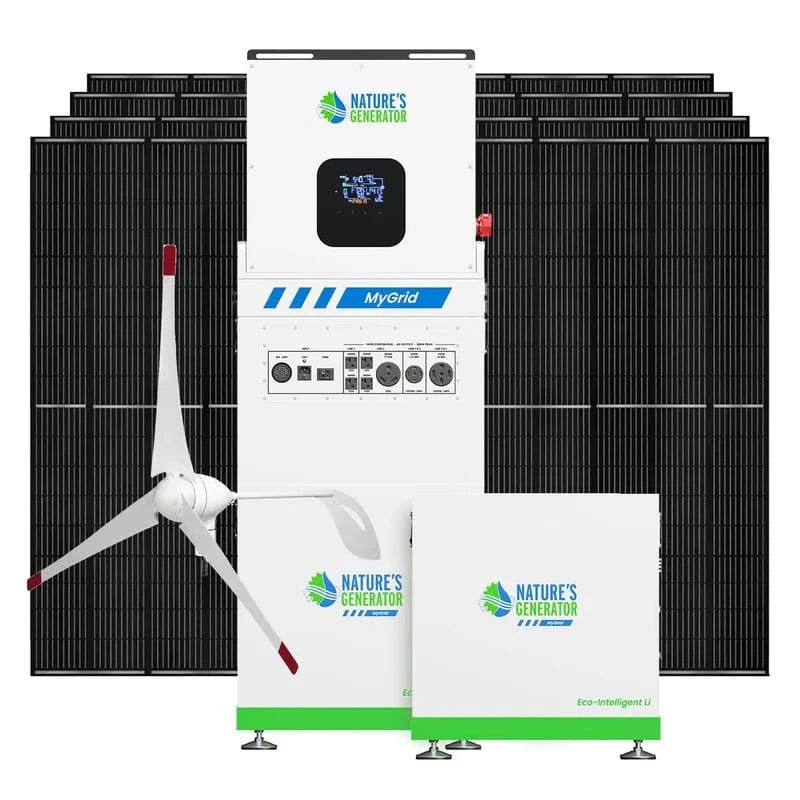

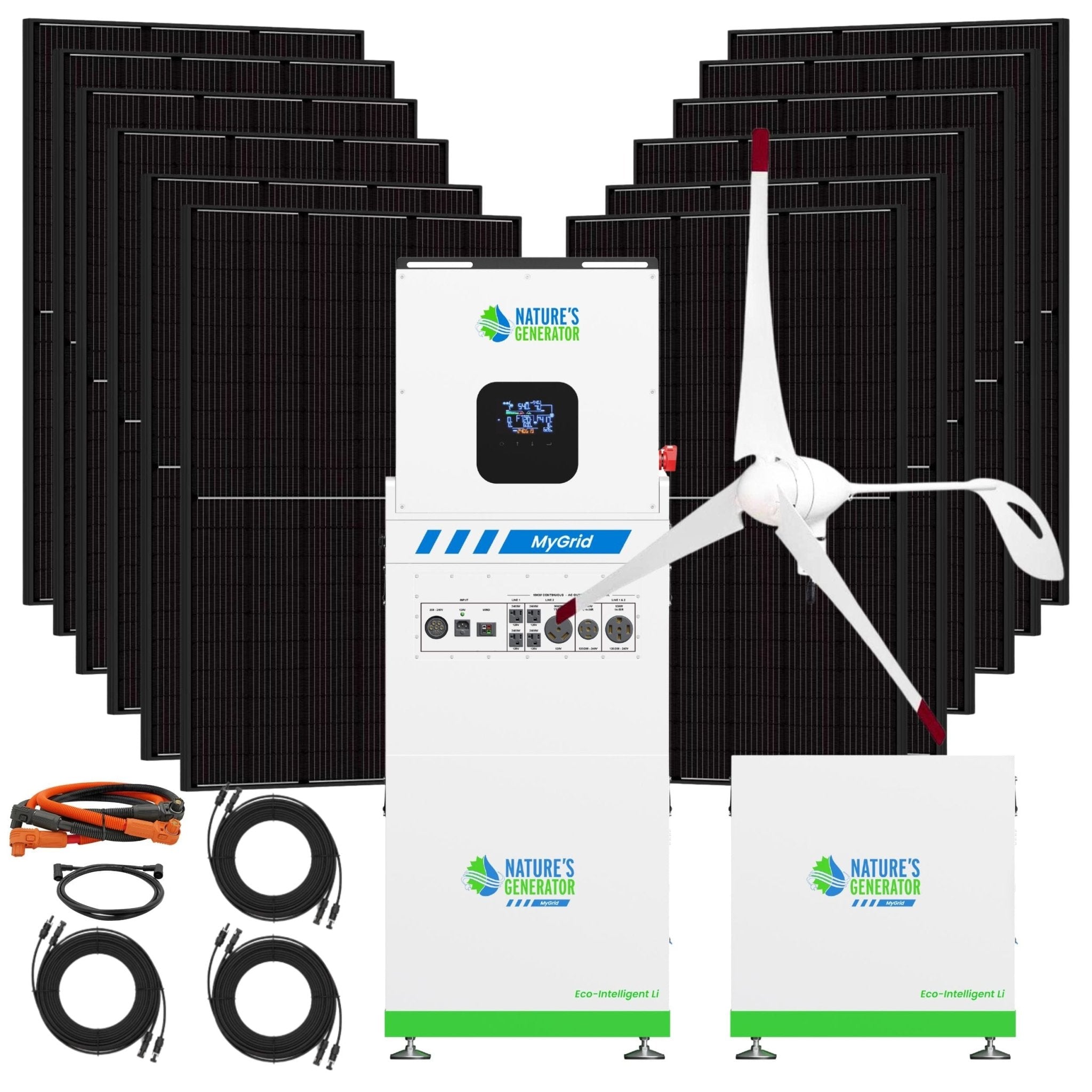

MyGrid 10K Gen 2 + Extra Battery + 12 × 440W Solar Panels + 350W Wind Turbine

This larger package doubles the included battery storage to 20,992Wh and increases the included rated solar-panel capacity to 5,280W. It is the stronger choice for longer outages, higher daily energy use or locations where more renewable charging capacity is important.

• 1 × MyGrid 10K Gen 2 generator/inverter
• 2 × MyGrid 10K batteries
• 12 × 440W rigid bifacial solar panels
• 3 × 50-foot quick-release solar cable pairs
• 1 × 350W wind turbine
• 1 × 100-foot wind turbine cable
• 1 × wind-turbine blade set
• 1 × wind-turbine controller box and accessories
• 1 × AC power cord
• 2 × battery cable sets
• 2 × communication cables
• 3 × MyGrid mounting and security hardware sets

Charging and Renewable Input

• 120V AC charging: up to 1,000W.
• 208V or 240V AC charging: up to 4,500W.
• Solar charging: dual MPPT architecture with support up to 12,000W and a 120–550V DC input range when configured within manufacturer requirements.

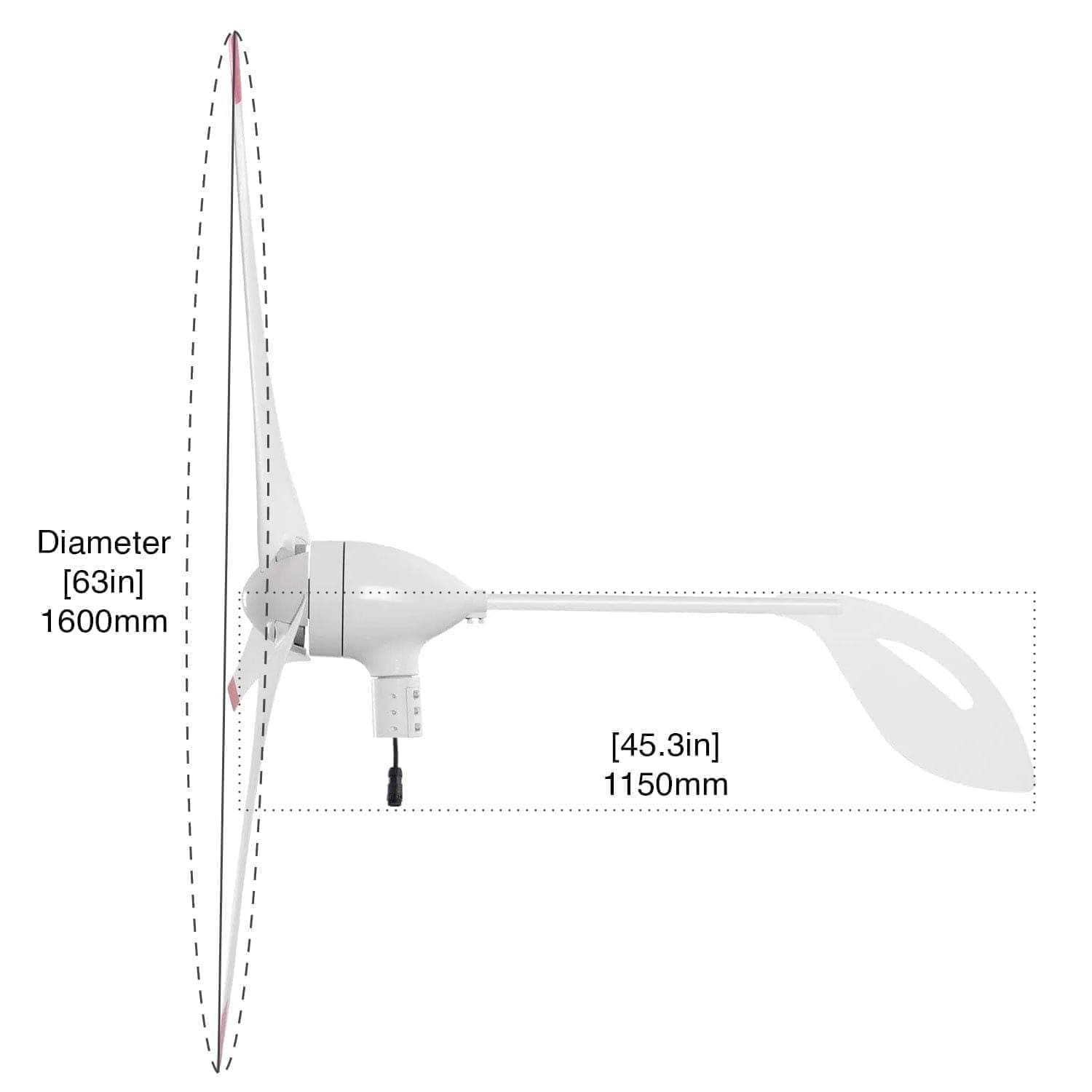

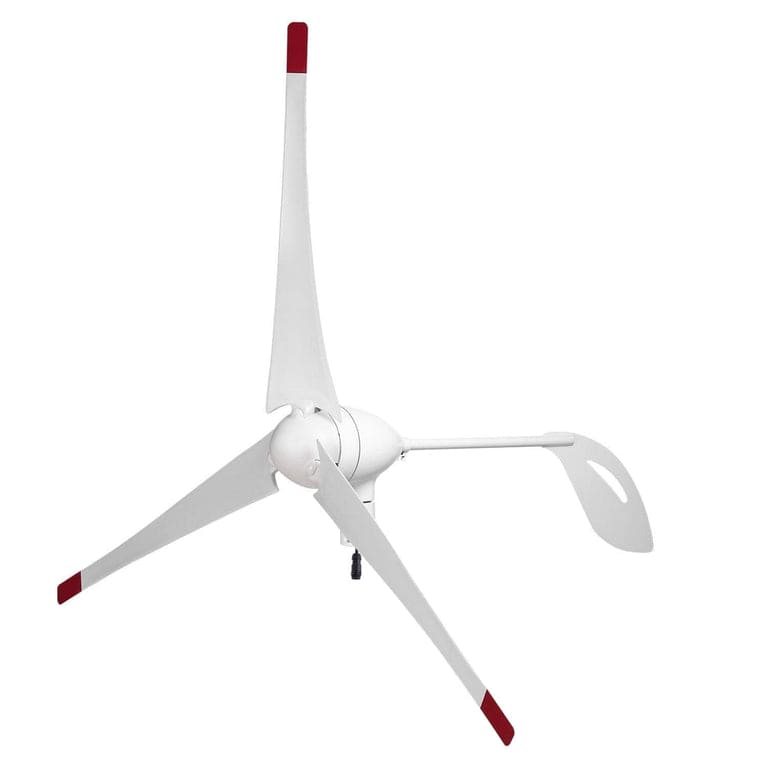

• Wind charging: designed for the included 350W Nature’s Generator wind turbine and controller.
• Combined fast charging: the manufacturer states a full recharge can be achieved in approximately 2.5 hours under qualifying maximum-input conditions. Actual charging time varies by configuration, source, weather, temperature and battery state.

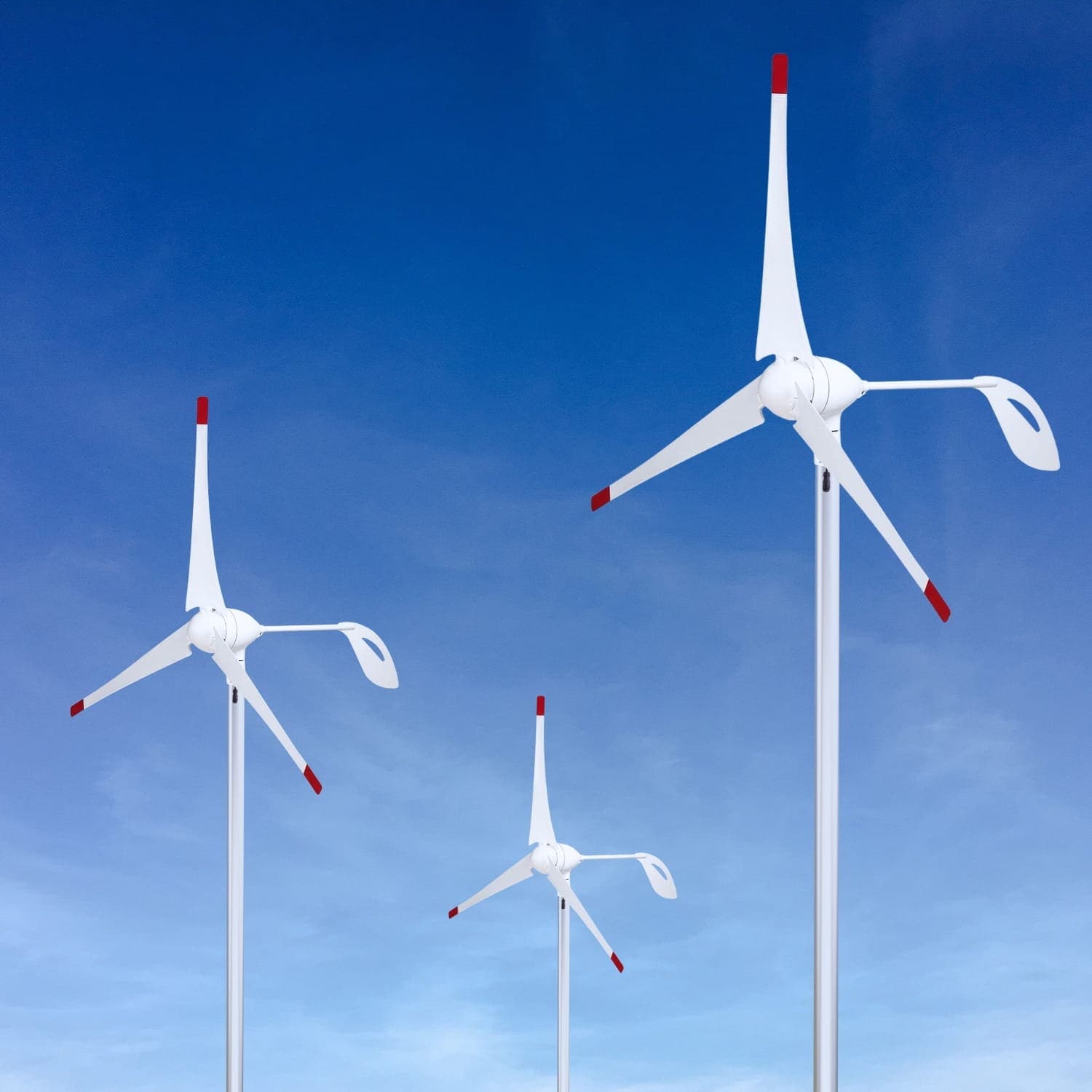

Wind-production note: a 350W turbine does not continuously produce 350W. Actual output depends heavily on average wind speed, tower height, turbulence, siting and local rules. Wind works best as a supplemental source in a properly evaluated location.

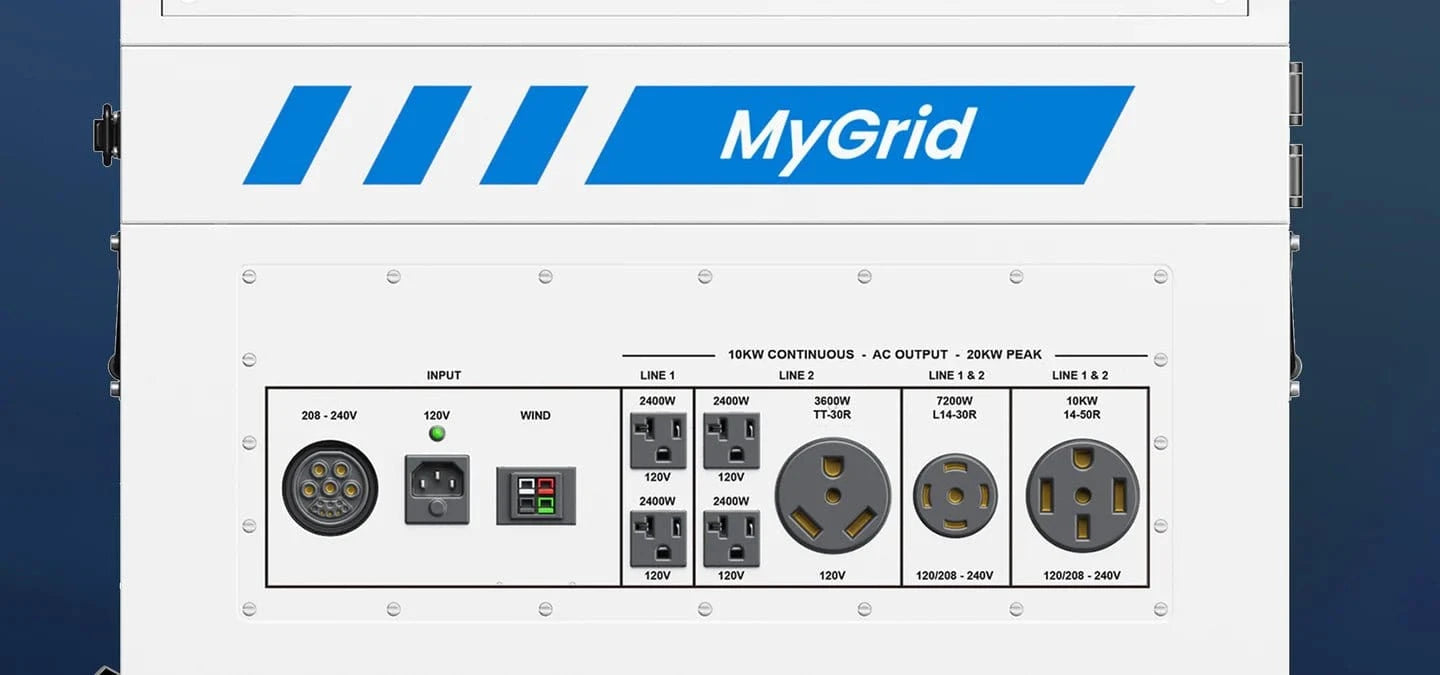

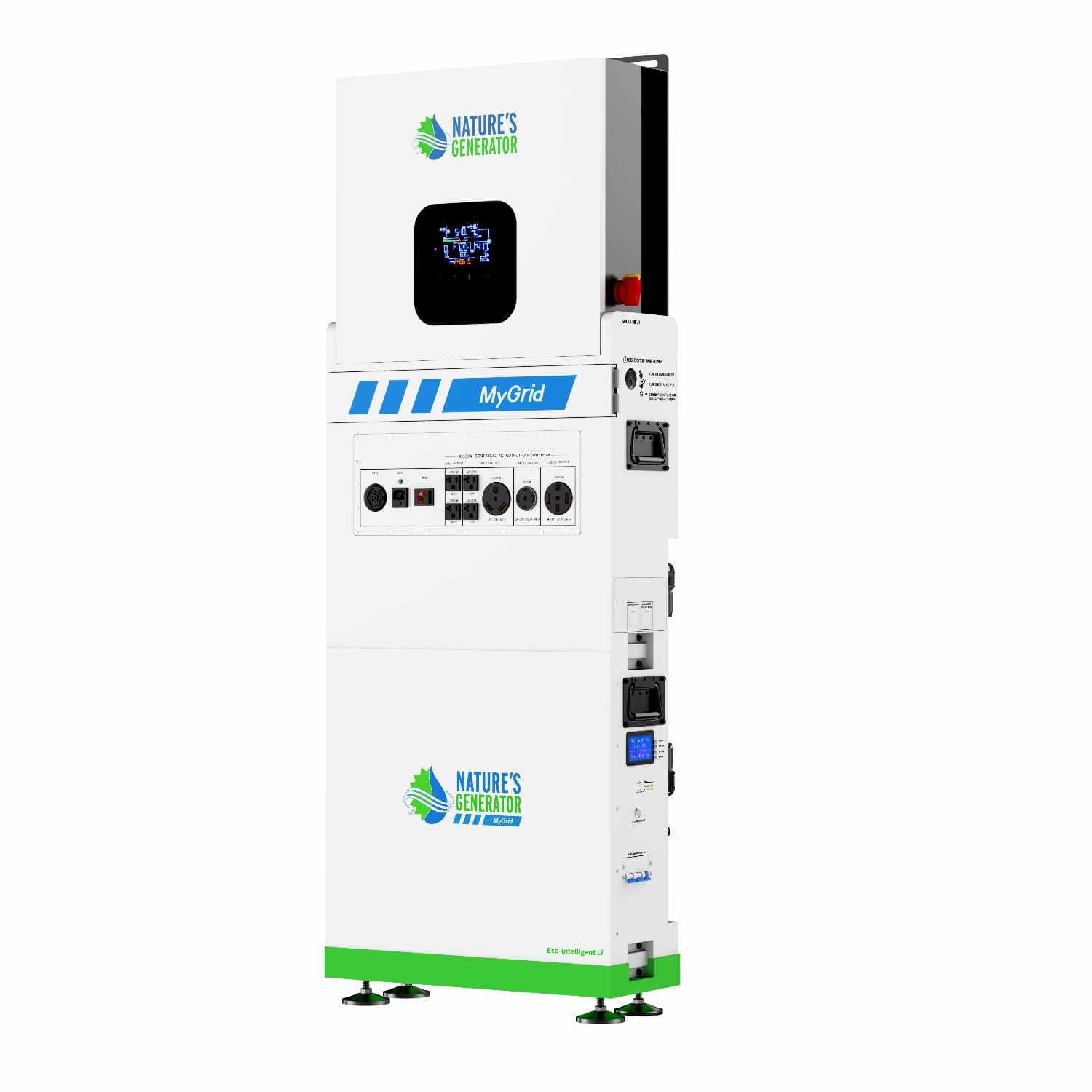

Output Connections

• 4 × NEMA 5-20R 120V outlets
• 1 × NEMA TT-30R outlet
• 1 × NEMA L14-30R 120/240V outlet
• 1 × NEMA 14-50R 120/240V outlet
• 1 × expansion port

Technical Specifications

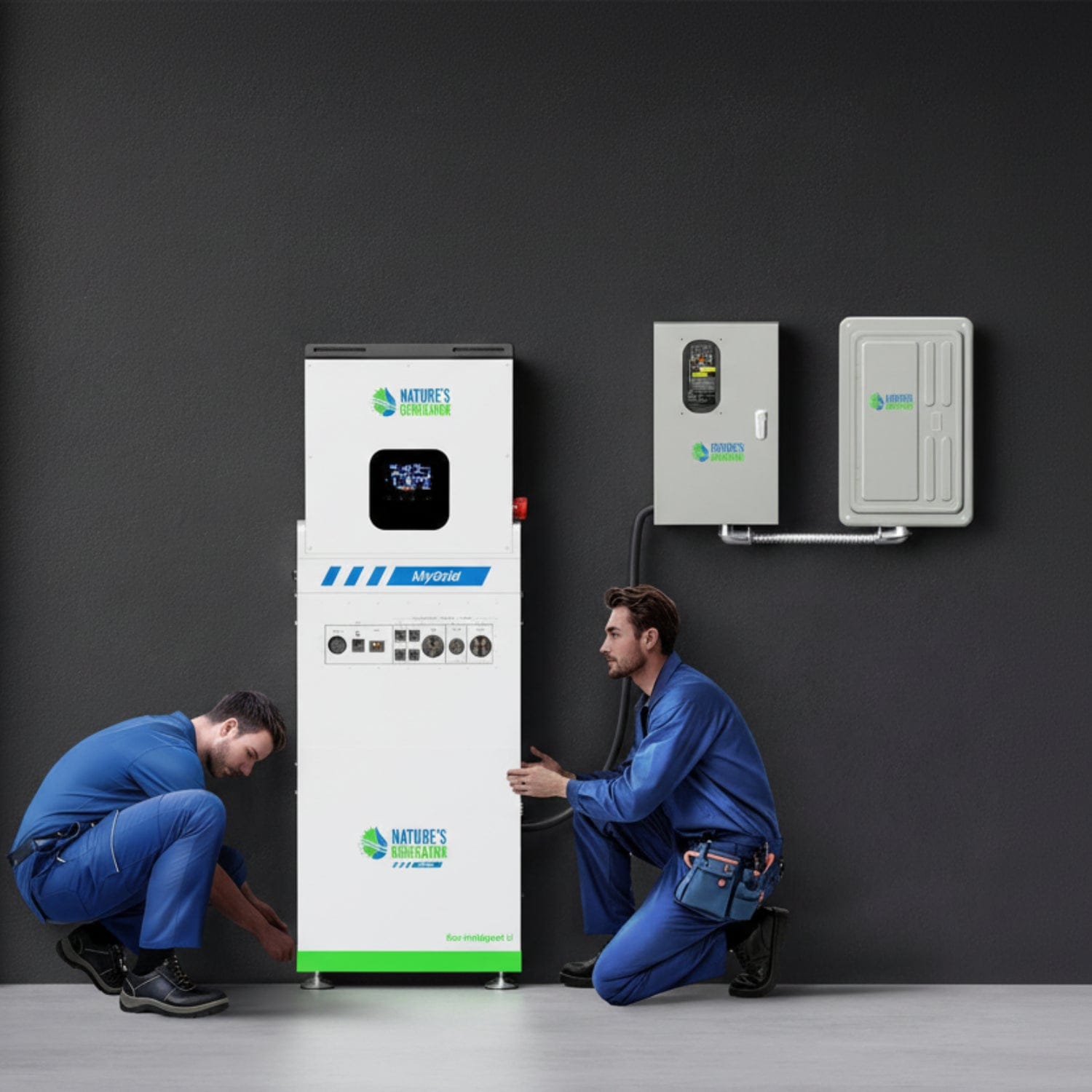

Installation and Planning

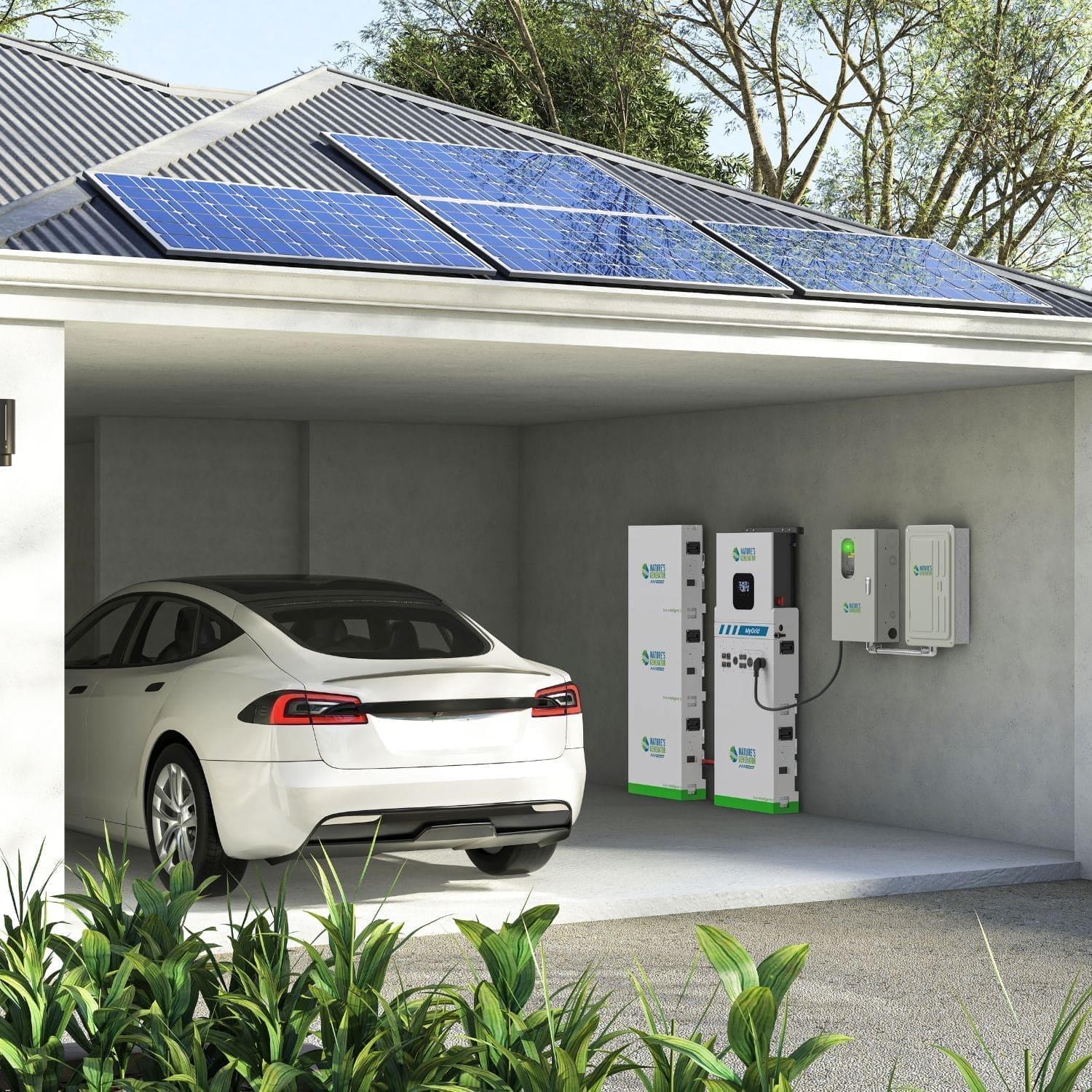

The MyGrid 10K can be charged from a standard 120V outlet, so purchasing the system does not automatically mean the home’s main electrical panel must be replaced. However, connecting 120V or 240V household circuits, transfer equipment, AC-coupled solar, rapid shutdown equipment or high-voltage solar strings requires proper system design and professional installation. Solar-panel mounting hardware, a transfer switch, permits and site-specific electrical components are not included unless explicitly listed with the selected package.

Before ordering, confirm panel placement, solar-string voltage, wind-turbine siting, cable distances, local building and electrical requirements, and the startup demand of your largest loads. This system is heavy; plan safe delivery access and installation before it arrives.

Frequently Asked Questions

Can the MyGrid 10K power an entire house?

It can supply up to 10,000W continuously and supports both 120V and 240V loads, but “whole home” does not mean every appliance can run at the same time without planning. The answer depends on the combined running load, motor startup surge and required runtime. A load calculation is the right way to decide which circuits and appliances to prioritize.

Will it run central air conditioning?

It may run a compatible central air-conditioning system if the running wattage and compressor startup surge remain within the system limits. Air-conditioner size, efficiency and the use of an approved soft starter can materially affect compatibility. Verify the exact HVAC electrical specifications before purchase.

Can it power a 240V well pump?

Many 240V well pumps may be compatible, but horsepower alone is not enough to confirm it. Check the pump’s running amperage, locked-rotor or startup demand and any other loads that will operate at the same time.

How long will the battery last during an outage?

Runtime depends on the selected package and actual load. A simple planning estimate is usable watt-hours divided by average watts, with an allowance for inverter losses and cycling appliances. The standard package includes 10,496Wh; the expanded package includes 20,992Wh. High-demand heating, cooling and water-heating loads reduce runtime quickly.

What is the difference between the two variants?

The standard package includes one battery and eight 440W panels. The expanded package includes two batteries and twelve 440W panels. Both include the same 10,000W Gen 2 inverter system and 350W wind turbine.

Does the wind turbine charge the system at night?

It can charge whenever sufficient wind is available, including at night, but output is site-dependent. Obstructions and turbulent low-level wind can greatly reduce production, so tower placement and local average wind speed matter.

Can I add more batteries later?

Yes. The MyGrid platform supports expansion up to seven compatible MyGrid batteries for approximately 73.4kWh total storage. Use only batteries, cables and configurations approved for the Gen 2 system.

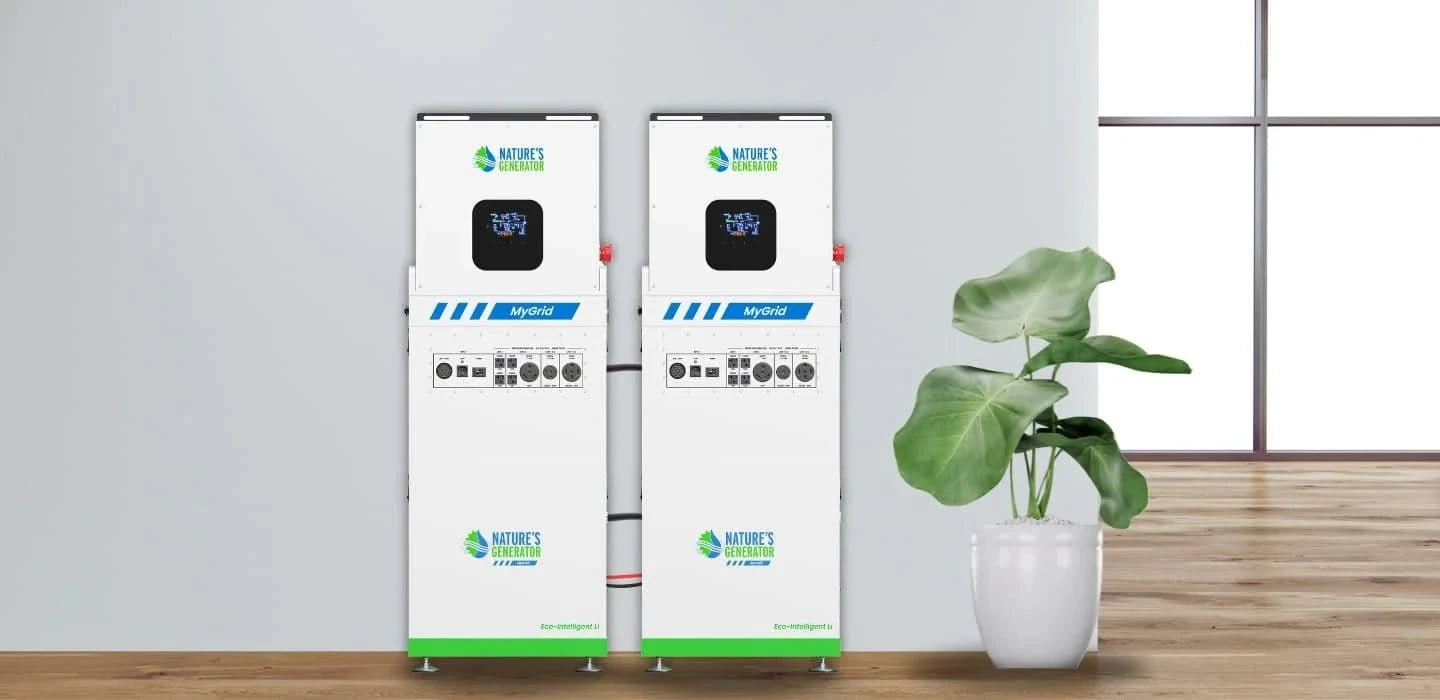

Can two MyGrid 10K units be combined?

Yes. Two compatible units can be configured for up to 20,000W continuous and 40,000W peak output when connected with the manufacturer-approved equipment and configuration.

Does it automatically back up home circuits?

Automatic home backup requires compatible transfer equipment and a compliant installation. A transfer switch is not listed as part of these two solar-and-wind variants. Confirm the intended transfer-switch setup before ordering.

Can it work with existing rooftop solar?

The Gen 2 system supports compatible AC-coupling and rapid-shutdown applications. Compatibility depends on the existing inverter, array design, voltage and code requirements, so the final design should be confirmed by a qualified installer.

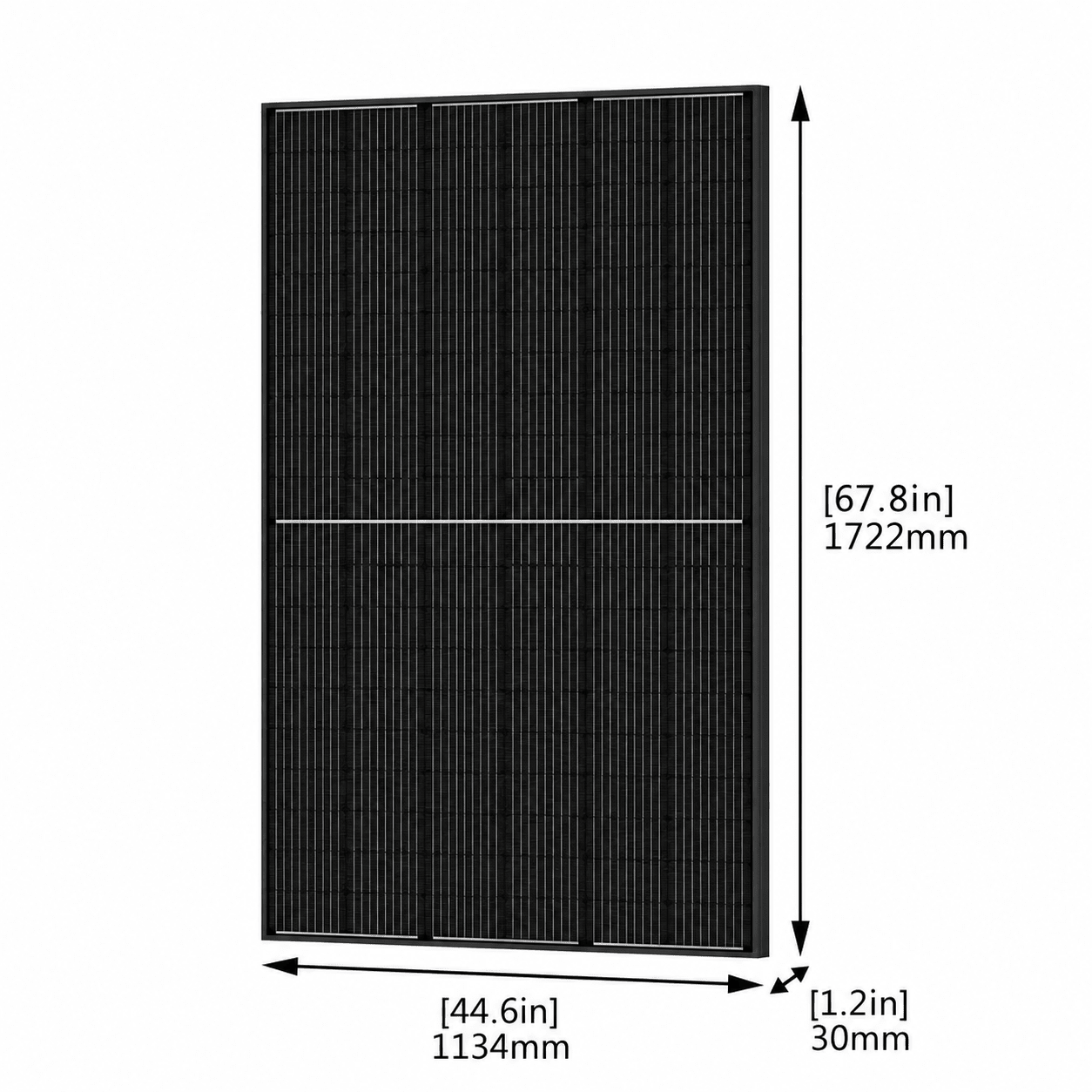

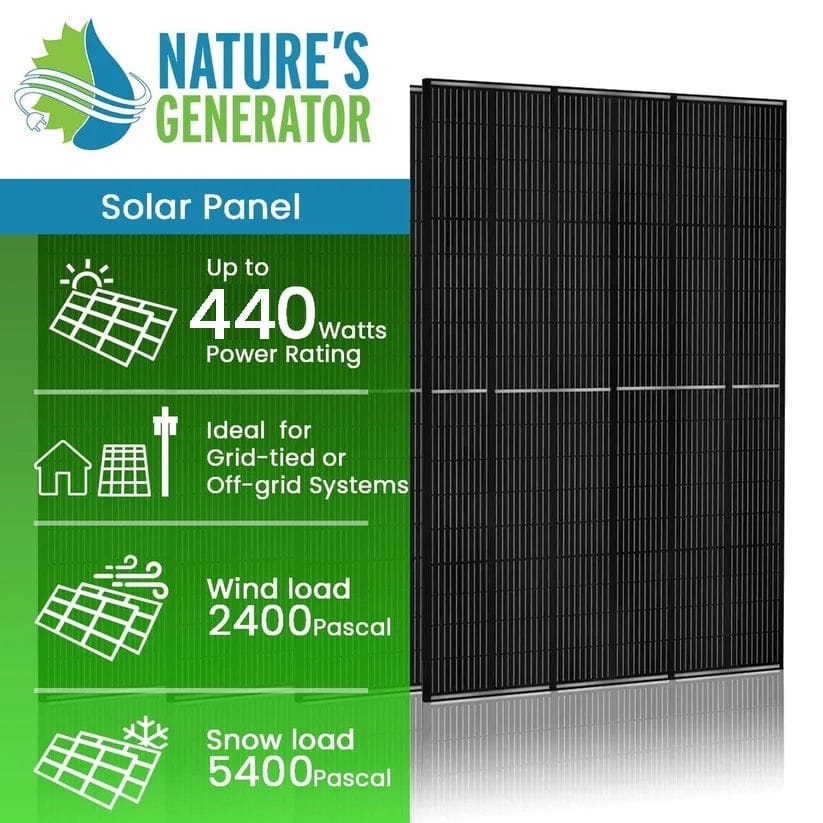

Are the solar panels bifacial?

Yes. These packages use 440W rigid bifacial solar panels. Actual production depends on sun angle, temperature, shading, mounting, rear-side exposure and local weather.

Is professional installation recommended?

Yes. The main equipment is modular, but home-circuit integration, 120/240V transfer equipment, high-voltage solar strings and wind-turbine mounting should be designed and installed by qualified professionals following the manufacturer’s instructions and local codes.
