LionESS Vault Commercial Battery Backup & Solar Generator

Power your business through outages with scalable, commercial-grade energy storage. The LionESS Vault from Lion Energy is a robust, pre-assembled commercial battery backup and solar energy storage system designed for businesses, facilities, offices, retail locations, refrigeration, equipment, critical loads and other applications where dependable power matters.

Built around Lion Energy's Sanctuary 3 hybrid inverter and Lithium Iron Phosphate (LiFePO4) battery technology, the LionESS Vault combines high-capacity battery storage, solar integration and automatic backup power in a weather-resistant outdoor enclosure.

Need help designing your system? The LionESS Vault is configurable based on your facility's power requirements, desired backup runtime and solar capacity. Call All Pro Generators for pricing and system sizing.

Base Unit Price Shown - The price on this page includes 1 Vault , 2 Batteries, 1 Inverter (It also includes all wiring and testing so it is ready to install on your concrete base.)

Commercial Battery Backup That Keeps Your Business Running

A power outage can mean lost sales, spoiled inventory, interrupted communications and expensive downtime. The LionESS Vault is engineered to automatically supply backup power when utility power is interrupted.

Depending on configuration, the system can support critical commercial loads including:

• Point-of-sale systems
• Commercial refrigeration and freezers
• Lighting
• HVAC equipment
• Computers, servers and networking equipment
• Wi-Fi and communications
• Tools and equipment
• Security systems
• Critical business circuits

Commercial Solar Generator & Energy Storage System

The LionESS Vault can also function as the heart of a commercial solar generator system. Connect compatible solar arrays to capture solar energy during the day, store that energy in the Vault's LiFePO4 batteries and use it when needed.

The system is designed for both on-grid and off-grid applications and is also generator-ready, giving businesses multiple ways to maintain reliable power.

Up to 171.6 kWh of Battery Storage

The LionESS Vault uses modular 14.3 kWh Sanctuary 3 Lithium Iron Phosphate batteries. Systems can be configured from 57.2 kWh up to 171.6 kWh of nominal battery storage, allowing the Vault to support applications ranging from large residential and light-commercial backup to substantial commercial installations.

Up to 72 kW Commercial Backup Power

Commercial LionESS Vault configurations can deliver up to 72 kW of AC output with up to 108 kW of solar input, providing the power needed for demanding business applications.

Popular LionESS Vault Configurations

*Output and solar-input specifications depend on the selected commercial configuration. Contact All Pro Generators for system design and confirmation.

Lithium Iron Phosphate Battery Technology

Each Sanctuary 3 battery provides 14.3 kWh of energy storage using Lithium Iron Phosphate (LiFePO4) chemistry. LFP technology is well suited to stationary energy storage because of its safety characteristics, long service life and stable chemistry.

Solar & Generator Ready

The LionESS Vault gives businesses multiple energy options. The system can integrate utility power, battery storage, solar generation and compatible generator backup to create a flexible commercial energy solution.

This makes the Vault an excellent option for businesses looking for:

• Commercial battery backup
• Commercial solar generator systems
• Commercial solar battery storage
• Business backup power
• Peak shaving
• Demand management
• On-grid energy storage
• Off-grid commercial power
• Solar plus storage
• Generator and battery hybrid backup

Peak Shaving & Energy Management

The LionESS Vault isn't limited to emergency backup. Stored energy can also help businesses manage when and how they consume utility power. Depending on the installation and utility program, this can help reduce peak demand and shift energy consumption to more favorable times.

Outdoor NEMA 3R Enclosure

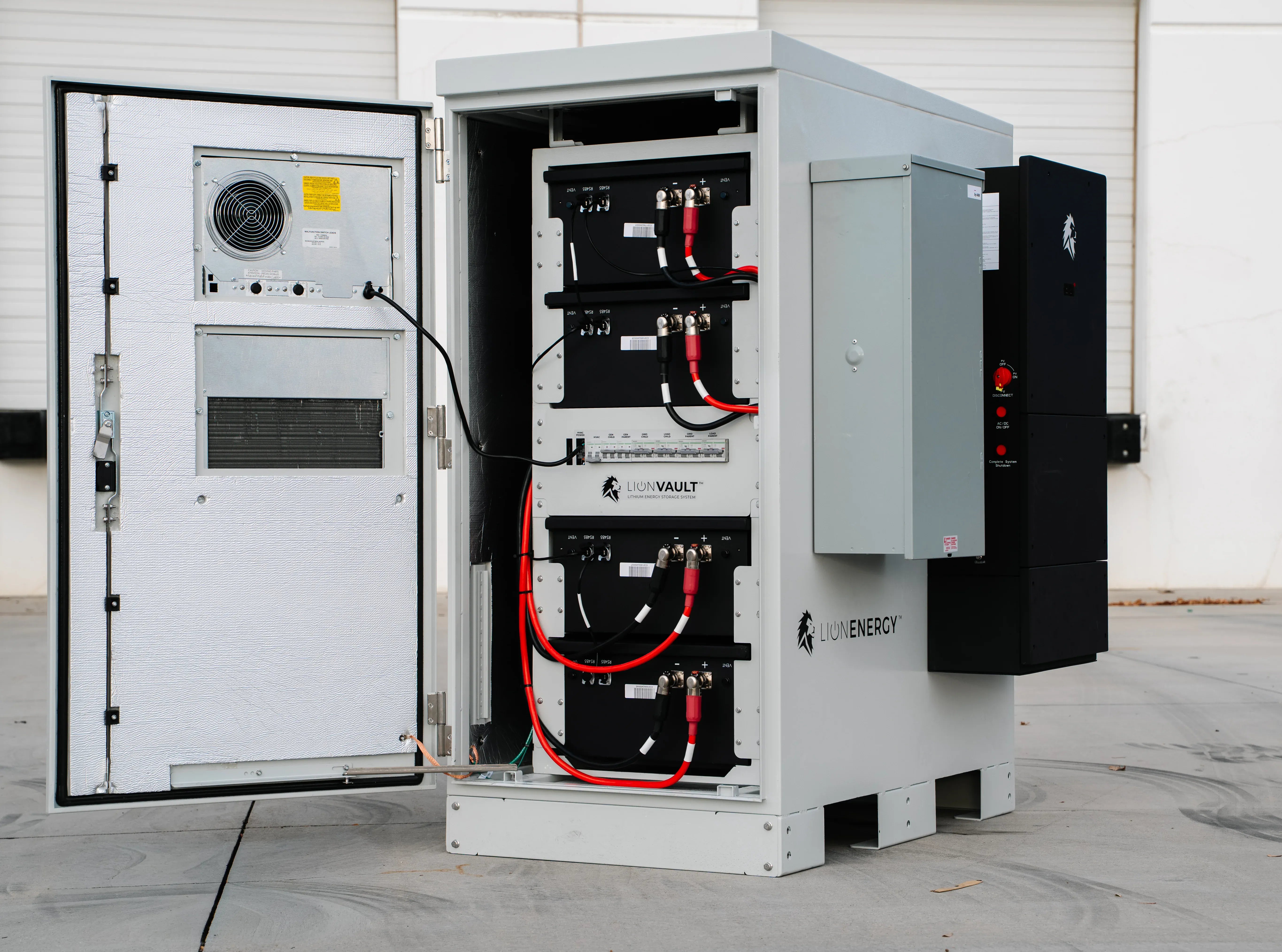

The Vault is housed in a secure Type 3R / NEMA 3R enclosure designed for outdoor installations. Major system components arrive pre-assembled with integrated internal wiring and breakers, helping simplify installation compared with assembling a large commercial battery system from individual components.

Remote Monitoring & Control

Monitor system performance and energy flow remotely. Lion Energy's monitoring capabilities provide visibility into battery status, solar production and energy usage, while allowing system settings and essential loads to be managed.

For businesses with multiple locations, centralized monitoring can make the LionESS Vault particularly attractive for commercial deployments.

LionESS Vault Technical Specifications

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Battery Capacity: 14.3 kWh per Sanctuary 3 battery
• System Capacity: Up to 171.6 kWh
• Commercial AC Output: Up to 72 kW depending on configuration
• Solar Input: Up to 108 kW depending on configuration
• Grid Voltage: 120/240V split-phase
• Grid Frequency: 60 Hz
• Maximum Efficiency: 96.5%
• Enclosure: NEMA 3R / Type 3R
• Vault Dimensions: 58.25" L × 51" W × 67.25" H
• Security: Lockable enclosure
• HVAC: Integrated
• Transfer Switch: Optional 200A two-position Vault/Bypass
• Installation: Forklift and craning provisions
• Solar Ready: Yes
• Generator Ready: Yes
• On-Grid Operation: Yes
• Off-Grid Operation: Yes

Sanctuary 3 Inverter Specifications

• Rated Output: 12 kVA per inverter
• Rated Output Current: 50A per inverter
• Maximum PV Input: 18 kW per inverter
• MPPT Input Voltage: 120–430V
• Grid Voltage: 120/240V split-phase
• Frequency: 60 Hz
• Grid Passthrough: 200A

Sanctuary 3 Battery Specifications

• Capacity: 14.3 kWh each
• Chemistry: Lithium Iron Phosphate (LiFePO4)
• Battery Weight: Approximately 290 lbs each
• Battery Dimensions: Approximately 44.4" H × 18.5" W × 9.75" D
• Compliance: UL 1973, UL 9540 and UL 9540A

Why Choose the LionESS Vault for Commercial Backup Power?

• Scalable to 171.6 kWh of battery storage
• Up to 72 kW commercial AC output
• Up to 108 kW solar input
• Automatic battery backup during utility outages
• Commercial solar generator capability
• On-grid and off-grid operation
• Generator-ready design
• LiFePO4 battery technology
• Peak shaving and demand management capability
• Remote monitoring
• Outdoor-rated enclosure
• Pre-assembled system design
• Expandable to meet growing energy requirements

Who Is the LionESS Vault For?

The LionESS Vault is designed for customers who need considerably more power and storage than a conventional portable power station or small solar generator can provide.

Potential applications include retail stores, restaurants, offices, warehouses, workshops, farms, medical and professional offices, communications facilities, remote sites and other commercial locations where power interruptions can become expensive.

Call for LionESS Vault Pricing & System Design

The LionESS Vault is a configurable commercial energy storage system and pricing varies based on inverter count, battery capacity, transfer equipment, solar requirements, freight and installation.

Contact All Pro Generators for current LionESS Vault pricing, availability and help determining the correct configuration for your business.

LionESS Vault Frequently Asked Questions

Is the LionESS Vault a commercial battery backup system?

Yes. The Vault is designed to provide automatic stored-energy backup for commercial and other high-demand applications during utility outages.

Can the LionESS Vault be used as a commercial solar generator?

Yes. When paired with a properly designed solar array, the Vault can capture and store solar energy and supply that stored electricity to connected loads. Unlike a portable solar generator, however, the Vault is a permanently installed energy storage system.

How much battery capacity does the LionESS Vault have?

Configurations can provide approximately 57.2 kWh to 171.6 kWh of nominal battery capacity.

How much power can the LionESS Vault provide?

Configurations range from 24 kW systems to commercial configurations capable of up to 72 kW of AC output.

How much solar can connect to the LionESS Vault?

Depending on configuration, maximum solar input can scale from approximately 36 kW to as much as 108 kW.

Can the LionESS Vault work without solar panels?

Yes. Battery backup does not inherently require solar panels. Solar can be added to recharge the batteries from renewable energy and increase energy independence.

Can a generator be connected to the LionESS Vault?

The Vault is designed to be generator-ready, allowing a properly designed installation to combine battery storage with generator backup.

Can the LionESS Vault operate off-grid?

Yes. The system supports both on-grid and off-grid applications when properly configured and installed.

Does the LionESS Vault need professional installation?

Yes. This is a permanently installed high-power energy storage system. System design, permitting and installation should be completed by appropriately qualified professionals and in accordance with applicable electrical codes and Lion Energy requirements.

How much does the LionESS Vault cost?

Pricing depends on the number of inverters and batteries, system capacity, transfer equipment, freight, installation and other project requirements. Contact All Pro Generators for current pricing and a system quote.
