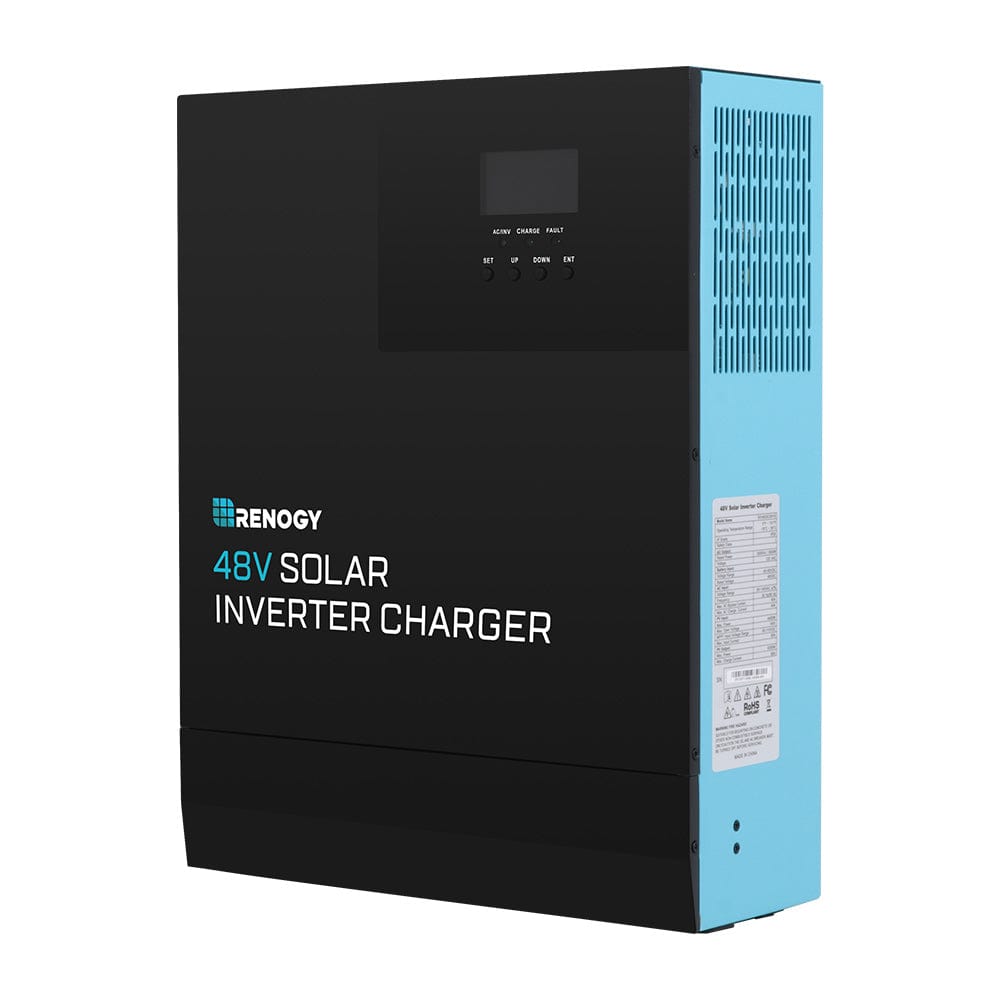

Renogy 48V 3500W Solar Inverter Charger

Your Price:

$899.00 $1,059.00

You Save: $160.00 16%

Free Shipping
Lowest Pricing
No Sales Tax
Premium Authorized Dealer

Harness the power of the sun with the Renogy 48V 3500W Solar Inverter Charger. This powerful solar inverter charger allows you to efficiently convert energy from the sun into usable energy for your home or business. Experience the convenience of unlimited clean energy and see the long-term savings in your wallet.

DESCRIPTION

【WORK WITH RENOGY ONE】 Add Renogy ONE Core to achieve smart energy monitoring with intuitive visuals and real-time data. This all-in-one display provides you access to accurate energy system data anywhere, anytime via the DC Home app.

【STABLE AND PURE SINE WAVE CHARGING】 3500W continuous, 7000W peak surge during load start-up and combines 80A MPPT solar charging, AC/generator battery charging, and battery inverting into one convenient solution to take your off-grid system to the hybrid level and can turn your system into an uninterruptible power supply (UPS).

【HYBRID SYSTEM 】 Integrated with 80A/145V MPPT solar charge controller, 3500W pure sine wave inverter, and 40A battery charger in one compact unit to let you enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances.

【POWER SAVING】 48W low idle power consumption and a maximum of 25W when the Power Saving Mode is on will not waste your precious power.

【UNINTERRUPTIBLE POWER SUPPLY】 In the event of AC Charging or the solar charging failure, the Inverter Charger takes over the supply to the alternative option within 10ms, which will not let your electronics shut down.

【ALL TYPE OF BATTERY】 Preset battery mode for 48V AGM/Sealed, Gel, Flooded, and Lithium batteries. Includes a User Mode for custom inputs to work with virtually all battery types.

【RELIABLE QUALITY】 Complete software and hardware protection, including short circuits, over-voltage, overload, and more! This device complies with Part 15 of the FCC Rules and is certified with ROHS.

Renogy's 3500W 48V Solar Inverter Charger combines solar charging, AC/generator battery charging, and battery inverting into one convenient solution to take your off-grid system to the hybrid level. Compatible with 48V battery banks, this solar inverter charger gives you the ultimate control with four user-configurable AC/Solar Charging modes and three Load Output modes that can turn your system into an uninterruptible power supply (UPS), automatically switching to Off-Grid Mode in just 10 milliseconds to keep loads securely powered.

Power-packed with the latest MPPT and battery charging technology, you can be sure that the charge controller captures maximum solar energy in real-time and uses the 120A battery charger to ensure the best system performance. This reliable, solar pure sine wave inverter charger has built-in electronic safeguards to protect you and your system. Equipped with multiple features and modes, the Renogy Solar Inverter Charger is a powerful addition to any 48V system!

NOTE

If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us with livechat for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!

MARINE

CAMPING

OUTDOOR

CABIN

TRUCK

PACKAGE INCLUDES

NOTE:

Please note that this package does not include cable. You can buy the inverter cable separately. Our recommended specifications for this inverter are: 3ft, 4AWG

48V 3500W Solar Inverter Charger 1 x	Inverter Remote Control 16.4ft X 1

RENOGY 48V 3500W SOLAR INVERTER CHARGER WITH 80A/145V MPPT

INVERTER MODE SPECIFICATIONS

Output Waveform: Pure Sine Wave

Continuous Output Power: 3500W

Peak Power Rating: 7000W

Output Voltage: 120VAC±5%

Output Frequency: 50 Hz ± 0.3% 60 Hz± 0.3%

Input Voltage / Rated Battery Voltage: 48VDC (minimum start-up voltage 44V)

Nominal Efficiency: > 90%

Bypass Breaker Current Load: 40A

Idle Consumption: 48W

Power Saver Mode Idle Consumption: ＜25W

SOLAR CHARGING MODE SPECIFICATIONS

Charge Controller Type: MPPT

Maximum Input Power: 4400W

Maximum Input Current: 50A

PV Charging Current Range: 0-80A

Recommended Max. PV Open Circuit Voltage: 145VDC

PV Operating Voltage: 60-145VDC

MPPT Voltage Range: 60-115VDC

Short-circuit Protection: Internal Fuse

Wiring Protection: Reverse Polarity

Recommended Wiring: 8 AWG

AC / GRID CHARGING MODE SPECIFICATIONS

Rated Input Voltage/Input Voltage Range: 120Vac/90 ~ 140VAC ± 2% Adjustable

Frenquency: 50 Hz / 60 Hz (auto detect)

Efficiency: ＞95%

Conversion Time: 10ms

Battery Type: Lead Acid and Lithium Battery

Maximum Charging Current: 40A

Charging Voltage Range: 40-60VDC

Short-circuit Protection: Breakers and fuses

Overcharge Protection: Yes. Automatically alerts and turns off charging after 1 min)

Reverse Flow Protection: Yes

MECHANICAL SPECIFICATIONS

Dimensions: 16.8*12.7*4.9 in / 426*322*124 mm

Weight: 23.8 lbs /10.8kg

Communication Port: RS485/CAN Communication Port (BT-2 Bluetooth Module)

Cooling Fan: Yes

Operating Temperature Range: 5°F ~ 131°F/ -15°C ~ 55°C

Storage Temperature: -13°F ~ 140°F / -25°C ~ 60°C

Humidity: 5% to 95% (three-layer paint protection)

Noise: ≤60dB

IP Grade: IP 20

Safety Class: I

RENOGY ONE M1

Model: RMS-LP4-G2

Wireless Communication: Wi-Fi (IEEE 802.11b/g/n 2.4 GHz); Bluetooth 2.1/4.2 and Bluetooth LE; Zigbee (IEEE 802.15.4)

Touch Screen: 4 inches (480 x 480p) White backlight with adjustable brightness

Casing Material: PC+ABS V0

Operating Humidity: 0% to 95% RH

Power Supply: Rated Power 3.5W 1.Power Port: 8V DC-16V DC 2.Type-C Port: 5V DC

Ports: 1.USB Type-C (5V DC) 2.RJ45 (CAN & RS485) 3. 2-pin 2.54 mm pluggable terminal block (12V DC)

Color: Black

Weight: 286 g/0.83 lbs

Load: ≤30V DC, 5A Max

Power Consumption: < 2.5W (standby)

Installation:: Flush mounting

Operating Temperature: -20℃ to 50℃ (-4℉ to 122℉)

Operating Altitude: Less than 2000 m above sea level

Connection: Zigbee (IEEE 802.15.4)

Protocols: RV-C/Modbus/Zigbee 3.0

Dimension: 181.8 x 86.8 x 42.2 mm (7.16 x 3.42 x 1.66 in)

Applicable Place: Indoor

CERTIFICATIONS

CE, FCC: Yes

opc:

WARRANTY

2-year Prorated Warranty: Yes
