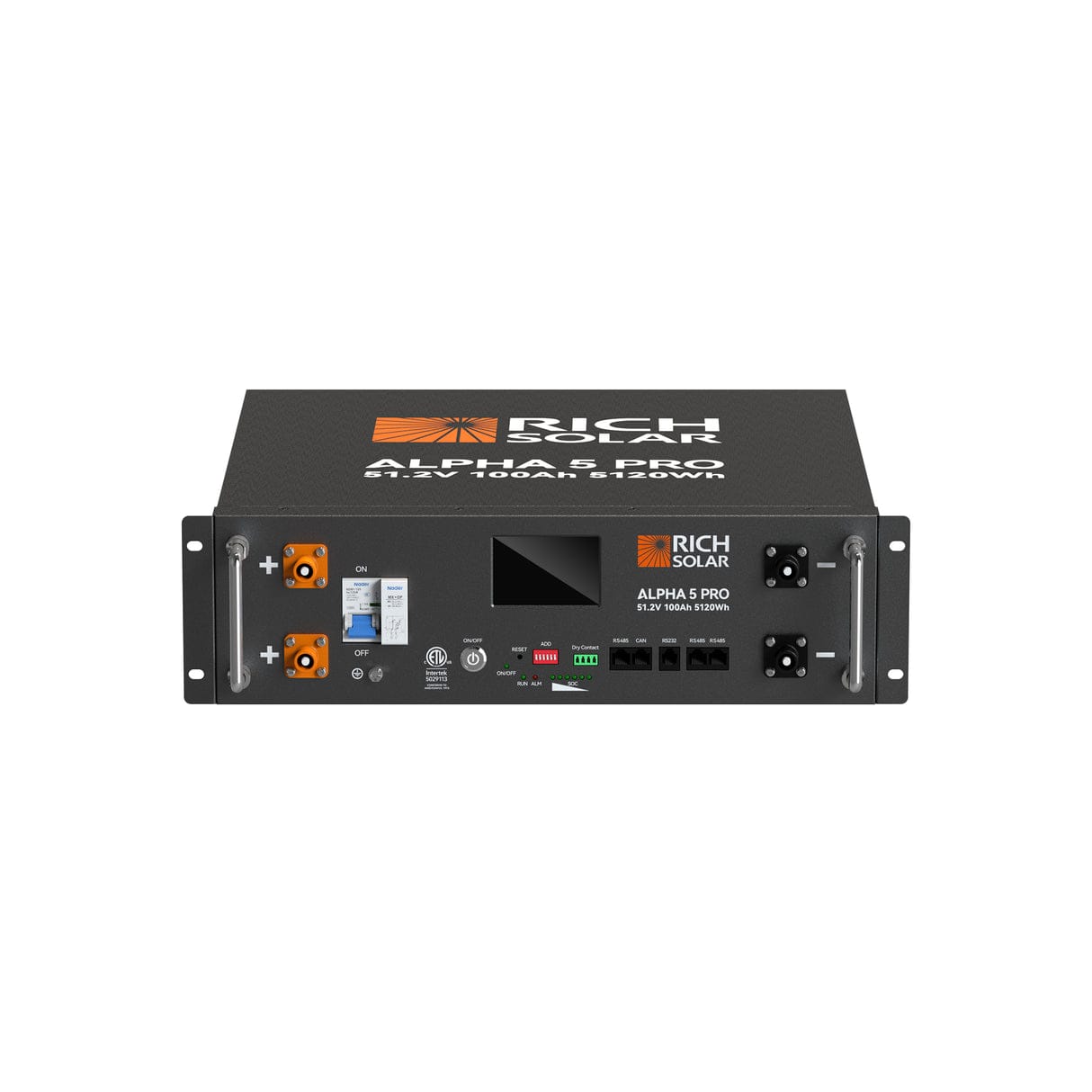

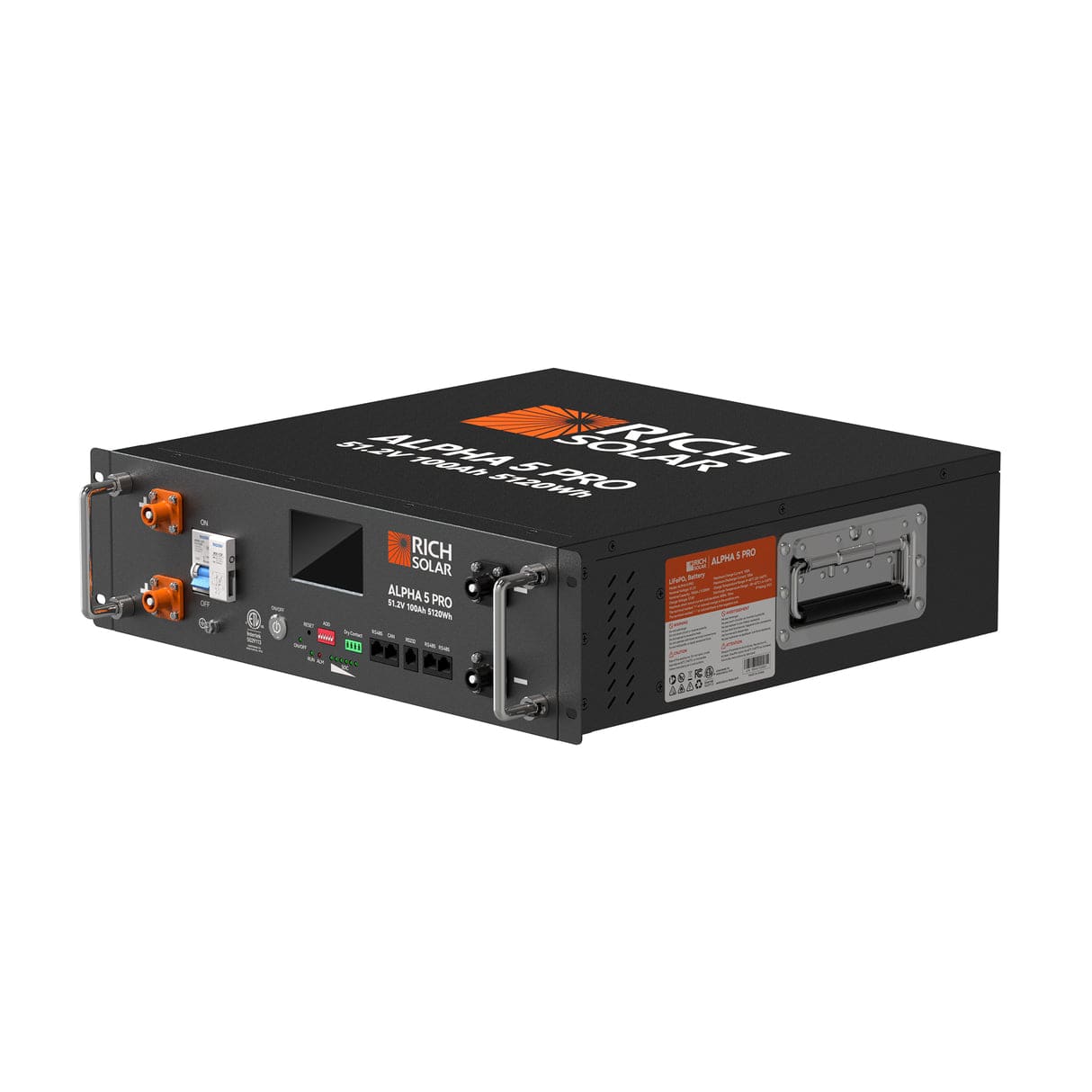

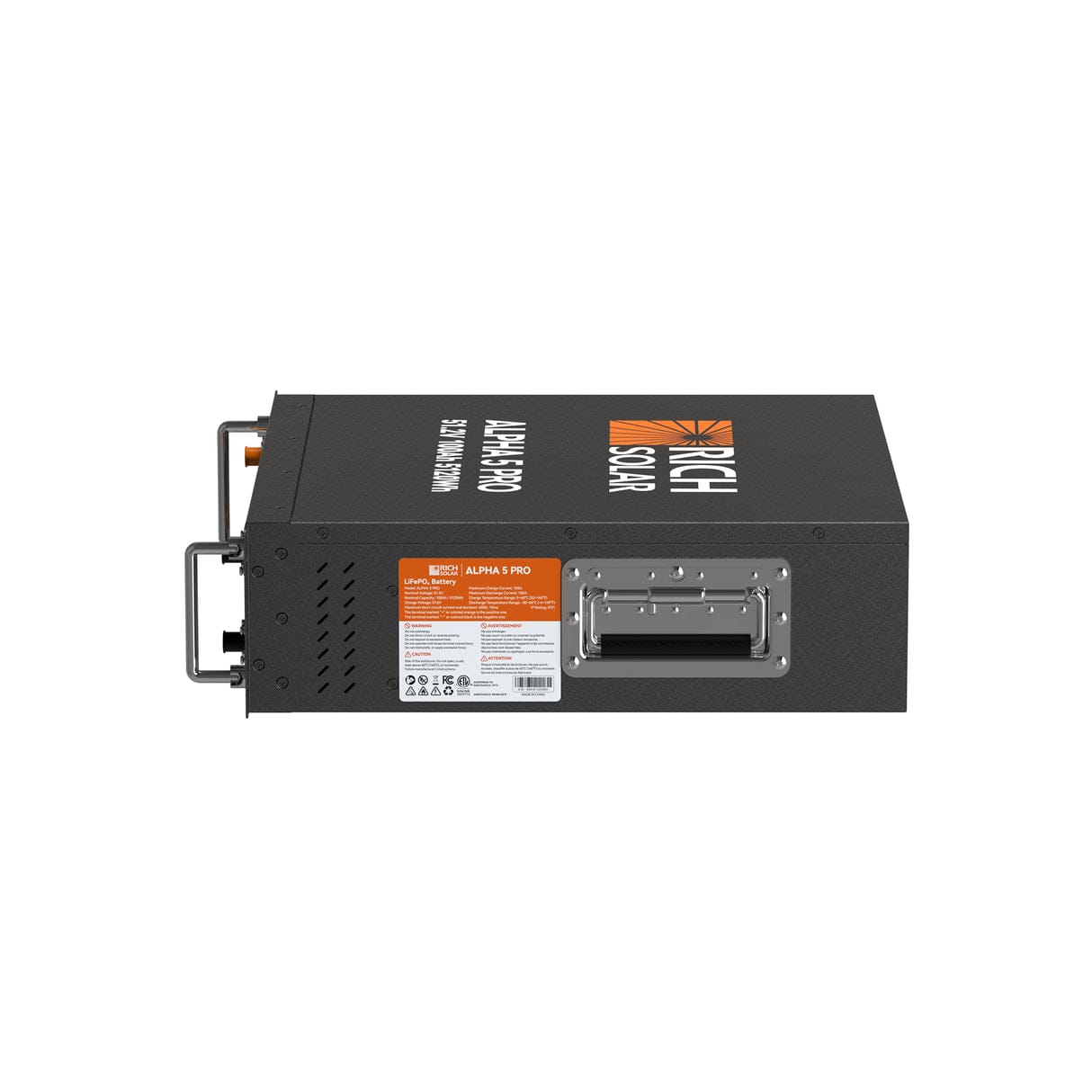

Rich Solar ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery
The ALPHA 5 PRO is a 5.12kWh server-rack-style battery for 48V solar, backup, and whole-home energy systems. It brings high storage density and system communication together in a serviceable cabinet format.
Built for real off-grid use: RS485, RS232, and CAN communication plus Wi-Fi and Bluetooth monitoring make it suitable for advanced inverter installations when protocol compatibility is confirmed.
Key Benefits
- 5.12kWh nominal storage
- 51.2V 100Ah LiFePO4 chemistry
- RS485, RS232, and CAN communications
- Wi-Fi and Bluetooth monitoring
- 7,000+ cycles at 80% depth of discharge
- UL 1973 and UL 9540A tested
What’s Included
- One Rich Solar ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery
- Integrated battery-management system (BMS)
- Manufacturer documentation
Best Uses
- 48V off-grid solar systems
- Whole-home backup battery banks
- Hybrid inverter systems
- Cabin and remote-site power
- Expandable commercial or residential storage
Full Specifications
| Model / SKU | RS-B5121P |
|---|---|
| Chemistry | LiFePO4 |
| Nominal Voltage | 51.2V |
| Rated Capacity | 100Ah |
| Nominal Energy | 5,120Wh |
| Maximum Charge Voltage | 57.6V |
| Maximum Charge Current | 100A |
| Maximum Discharge Current | 100A |
| Communications | RS485, RS232, CAN |
| Monitoring | Wi-Fi and Bluetooth |
| Cycle Life | 7,000+ cycles at 80% DoD |
| Protection Rating | IP21 |
| Dimensions | 17.7 × 17.8 × 5.2 in |
| Weight | 100.9 lb |
| Certifications | UL 1973, UL 9540A, FCC, UN38.3, MSDS |
Compatibility and Installation
Use a LiFePO4-compatible charger or inverter/charger set for the battery’s nominal voltage and charging profile. Size cables, terminals, disconnects, and overcurrent protection for the expected current. Confirm communication compatibility before relying on closed-loop BMS control. Do not wire batteries in series unless Rich Solar specifically approves that configuration. Installation must follow the manufacturer manual and applicable electrical codes.
Frequently Asked Questions
How much usable energy does it provide?
The nominal rating is 5,120Wh. Usable AC energy depends on inverter efficiency, system settings, temperature, and depth of discharge.
Does it have low-temperature support?
Charging is specified from 32°F to 140°F and discharging from -4°F to 149°F. It should be installed in a suitable protected location.
Can I add more battery capacity later?

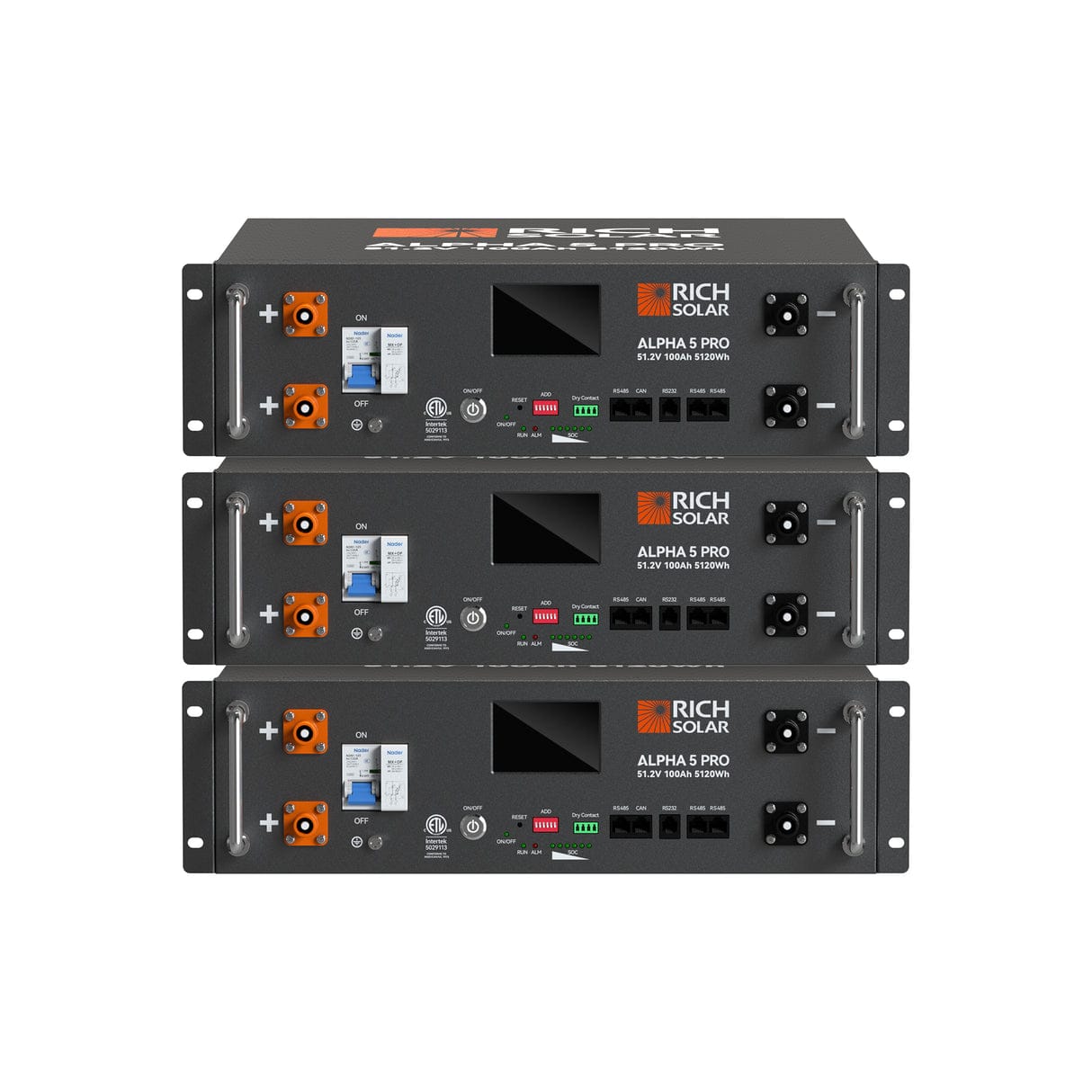

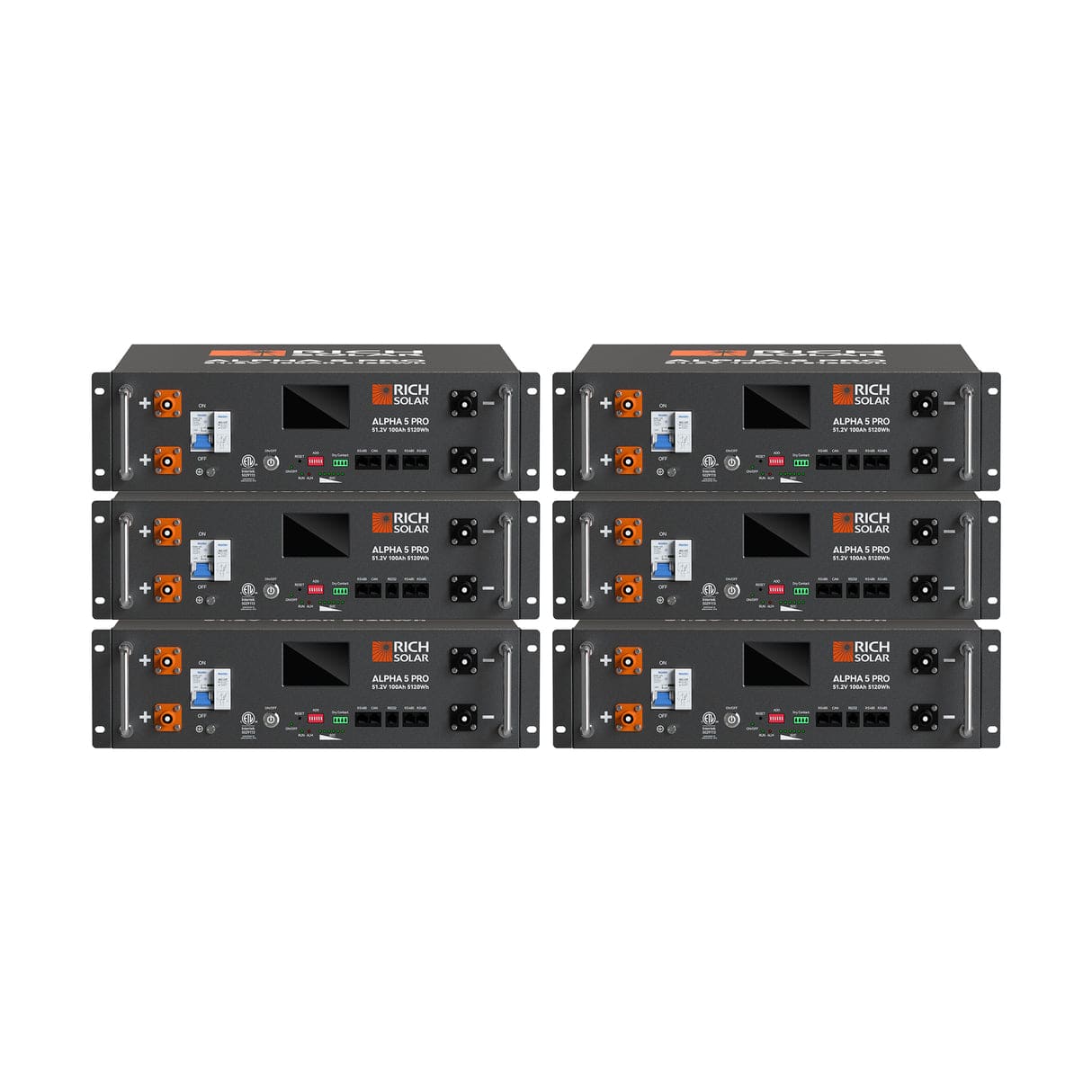

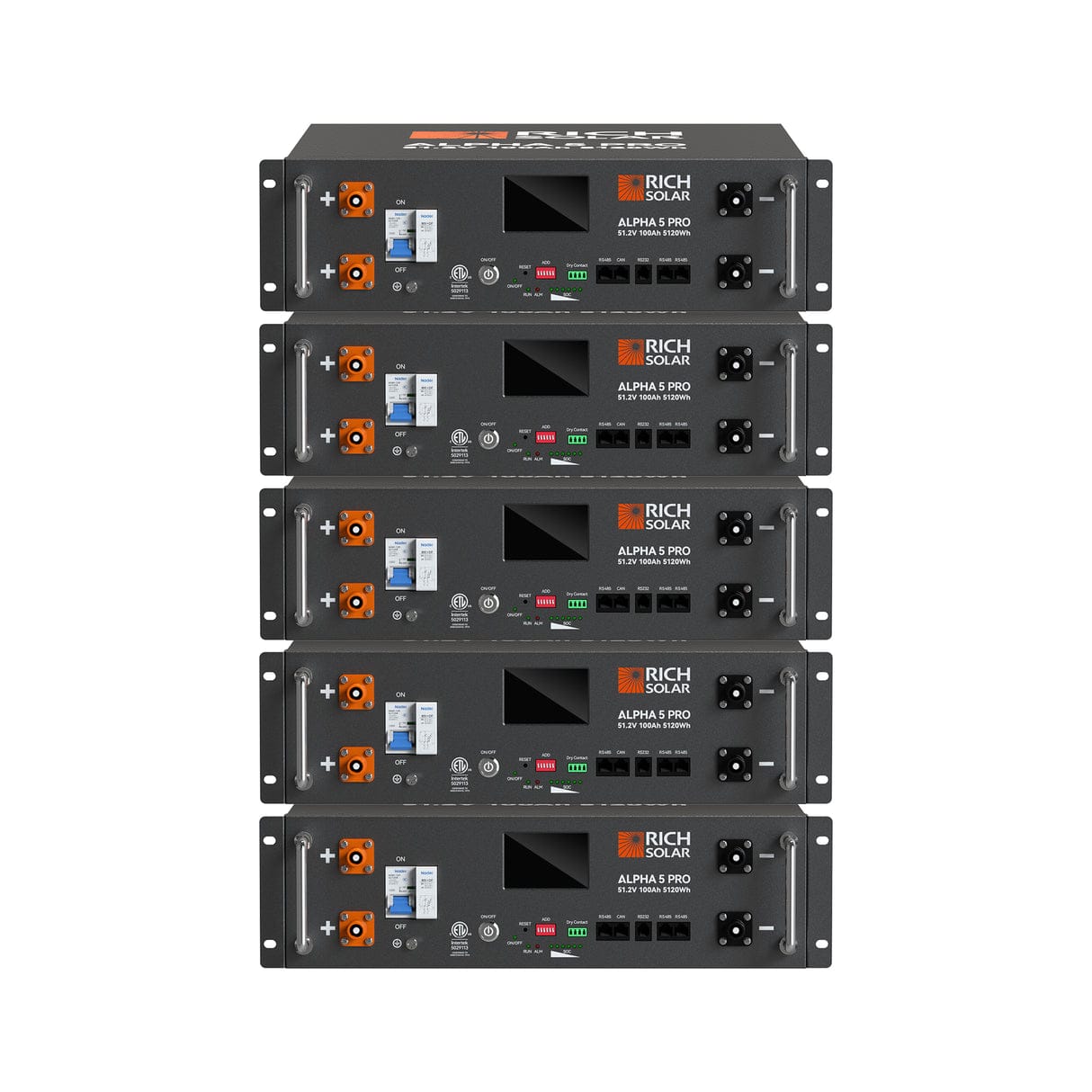

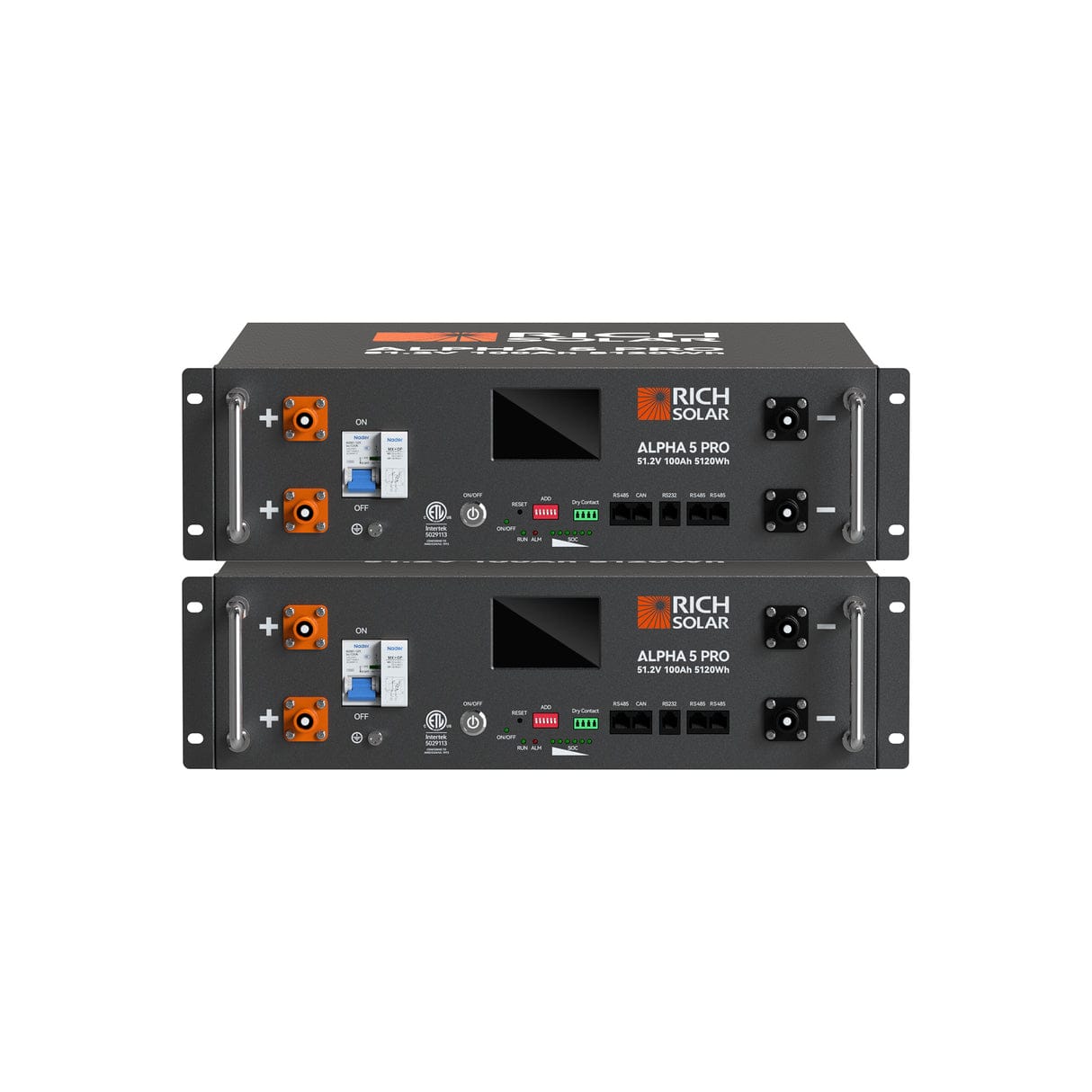

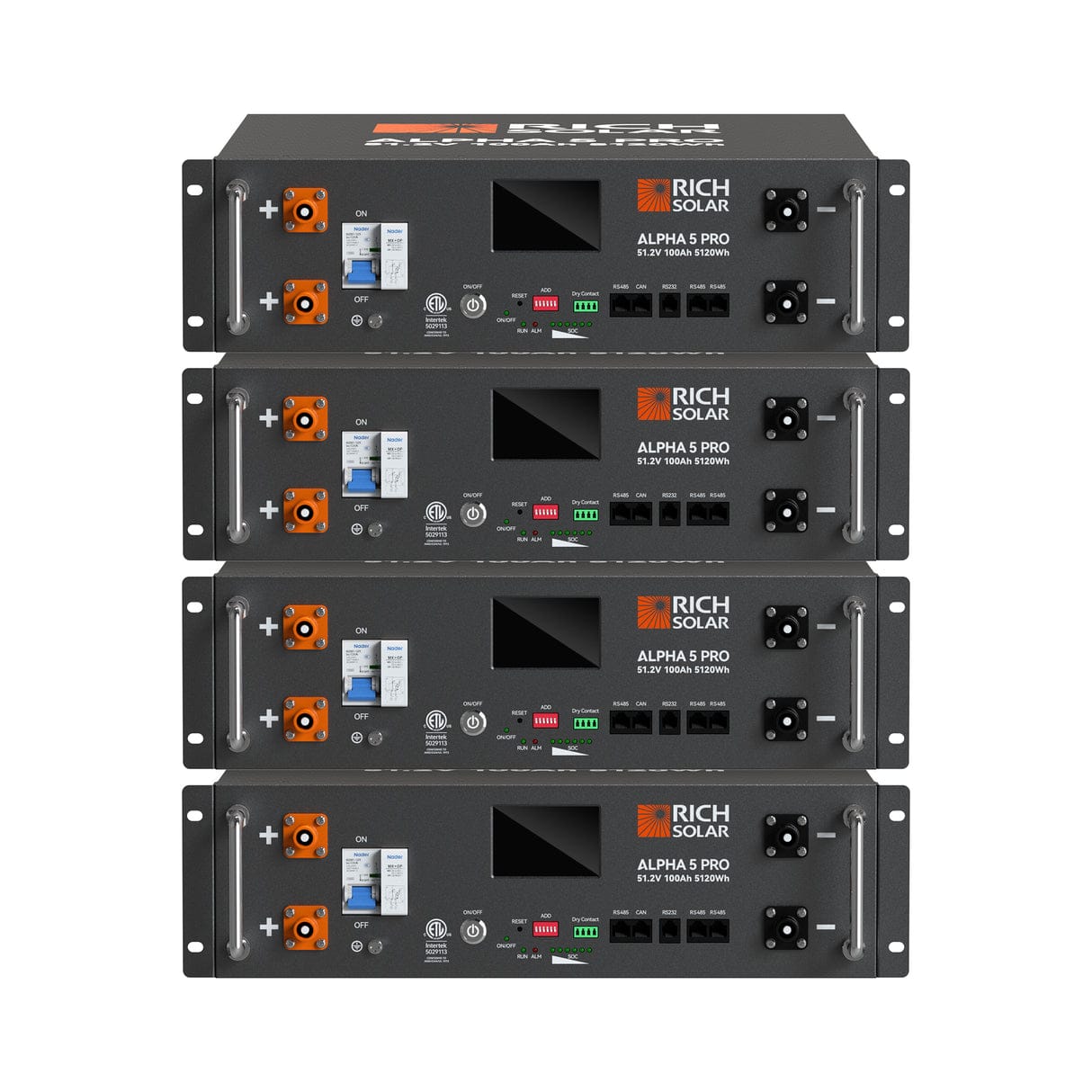

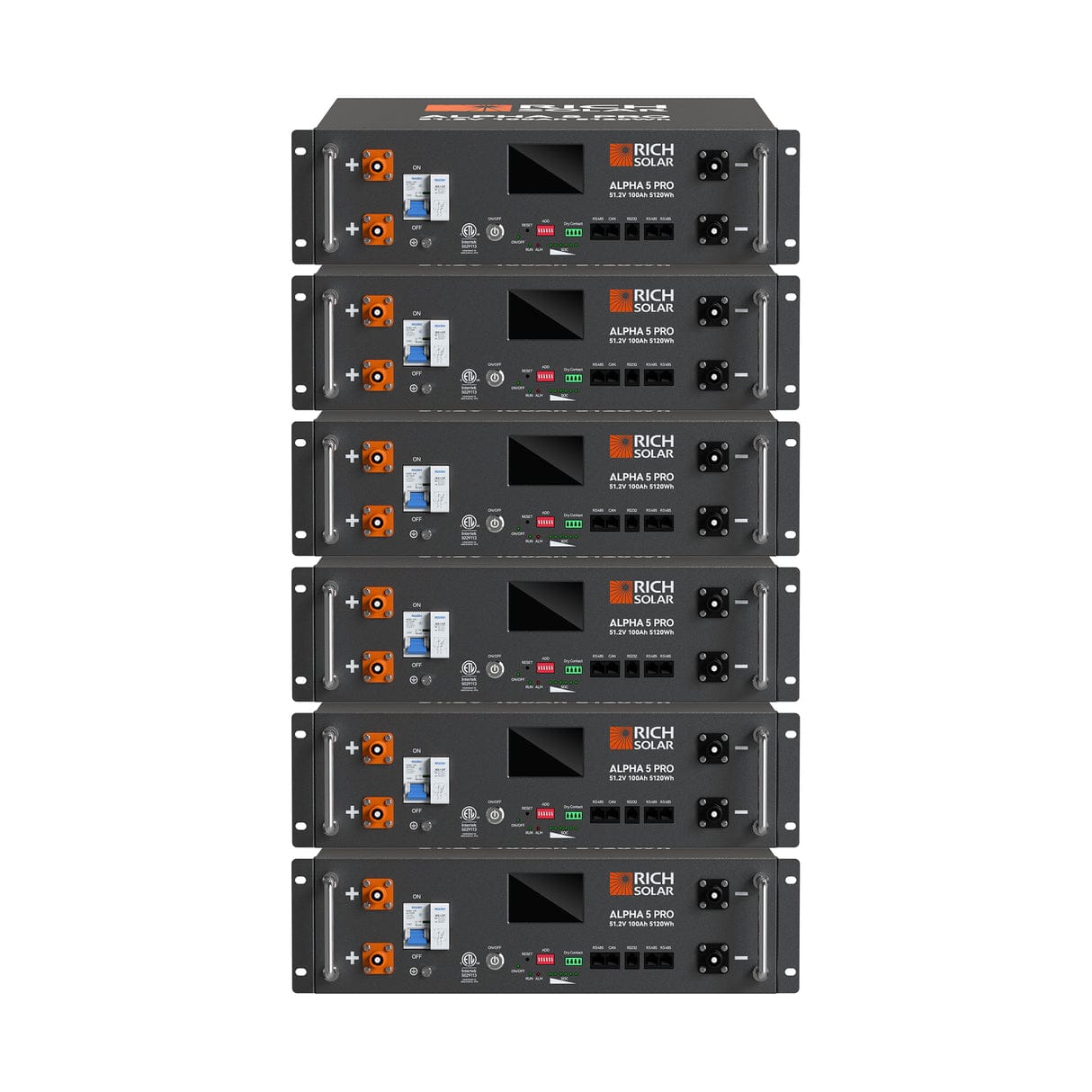

The official gallery shows multi-battery configurations. Confirm maximum bank size, cabinet/busbar requirements, firmware, and approved communication protocol for your inverter.
Will it work with my inverter?
It can work with an appropriately sized 48V-class inverter/charger that supports LiFePO4 charging. For communication-based systems, verify the exact protocol and firmware first.
What warranty applies?
Rich Solar lists a 10-year warranty for this model.
