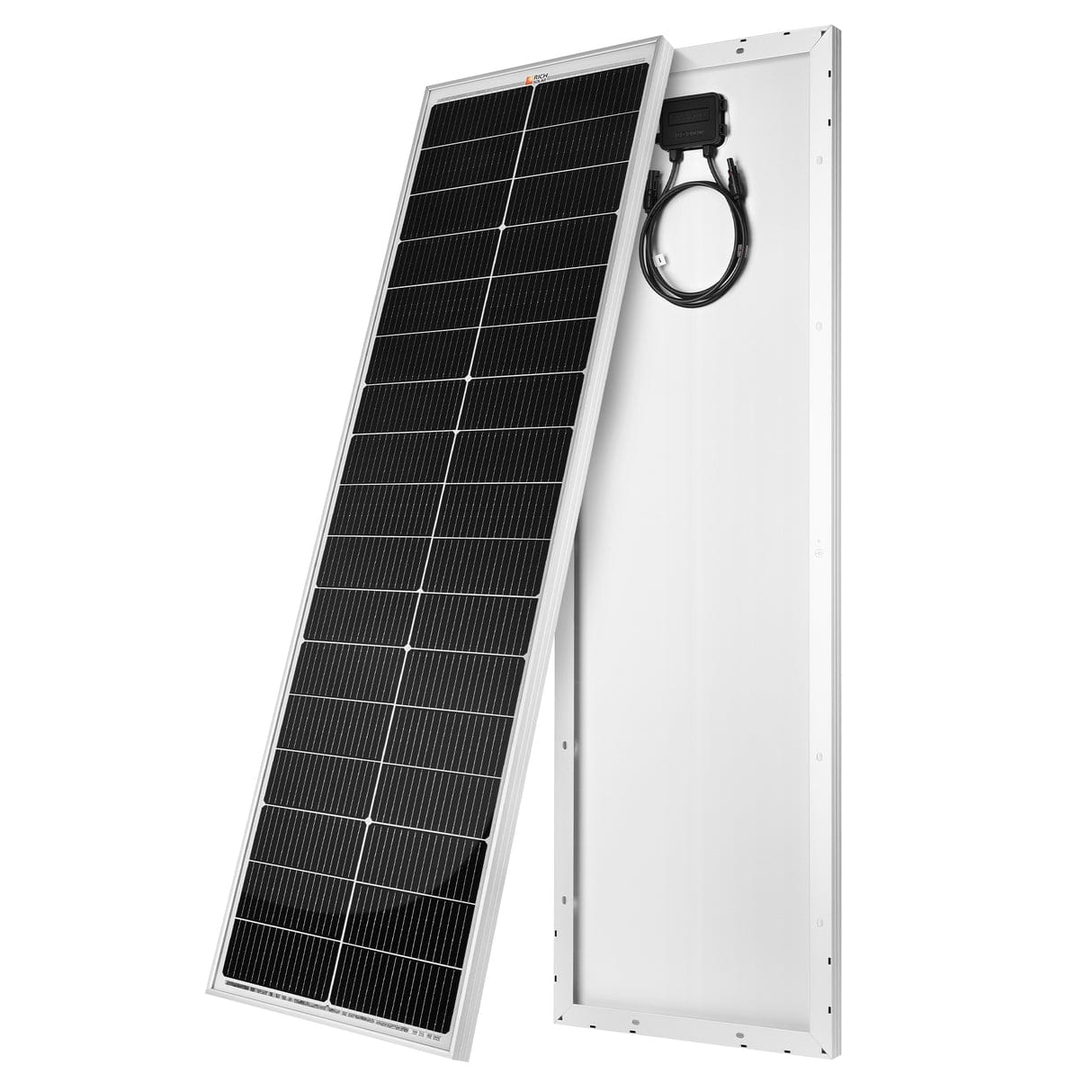

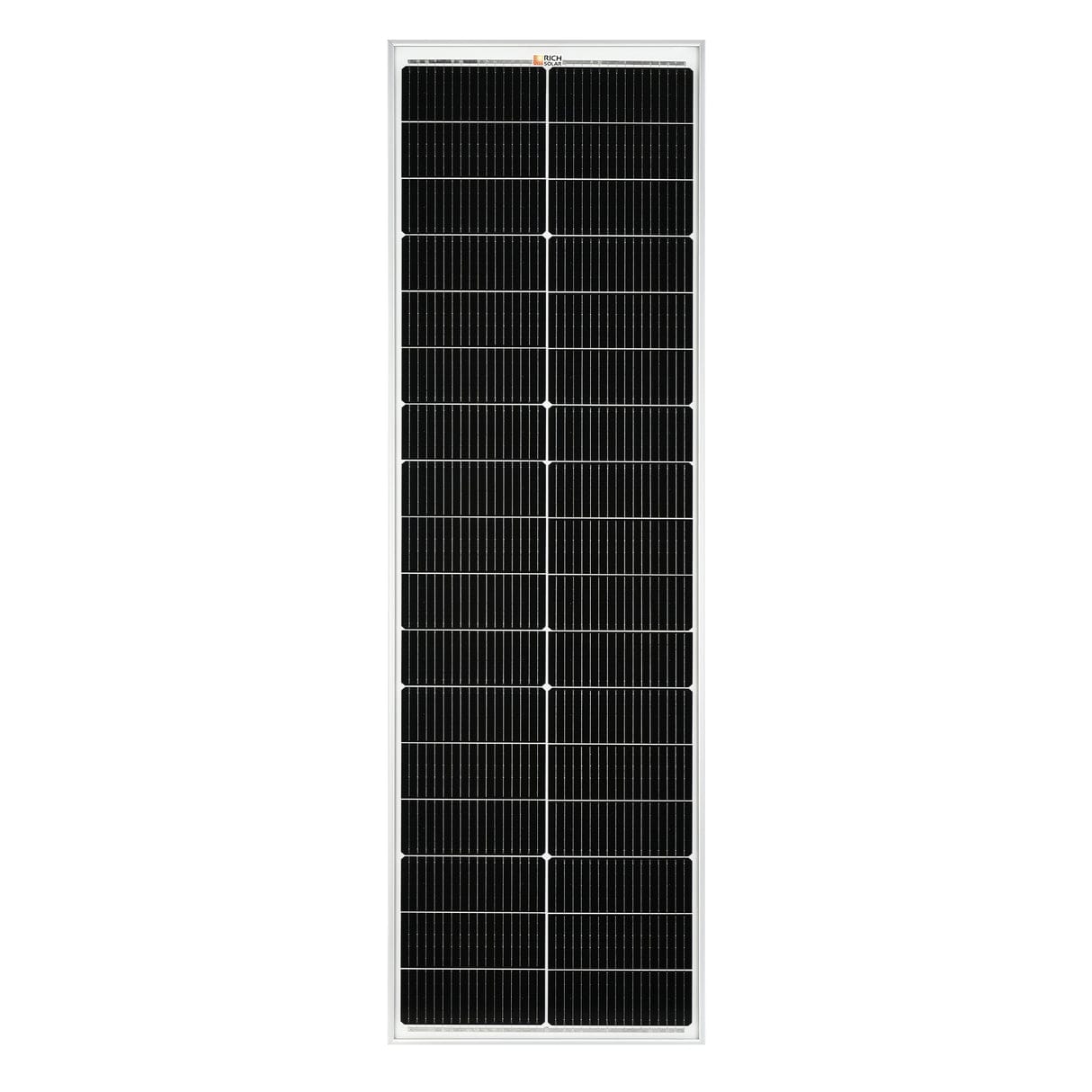

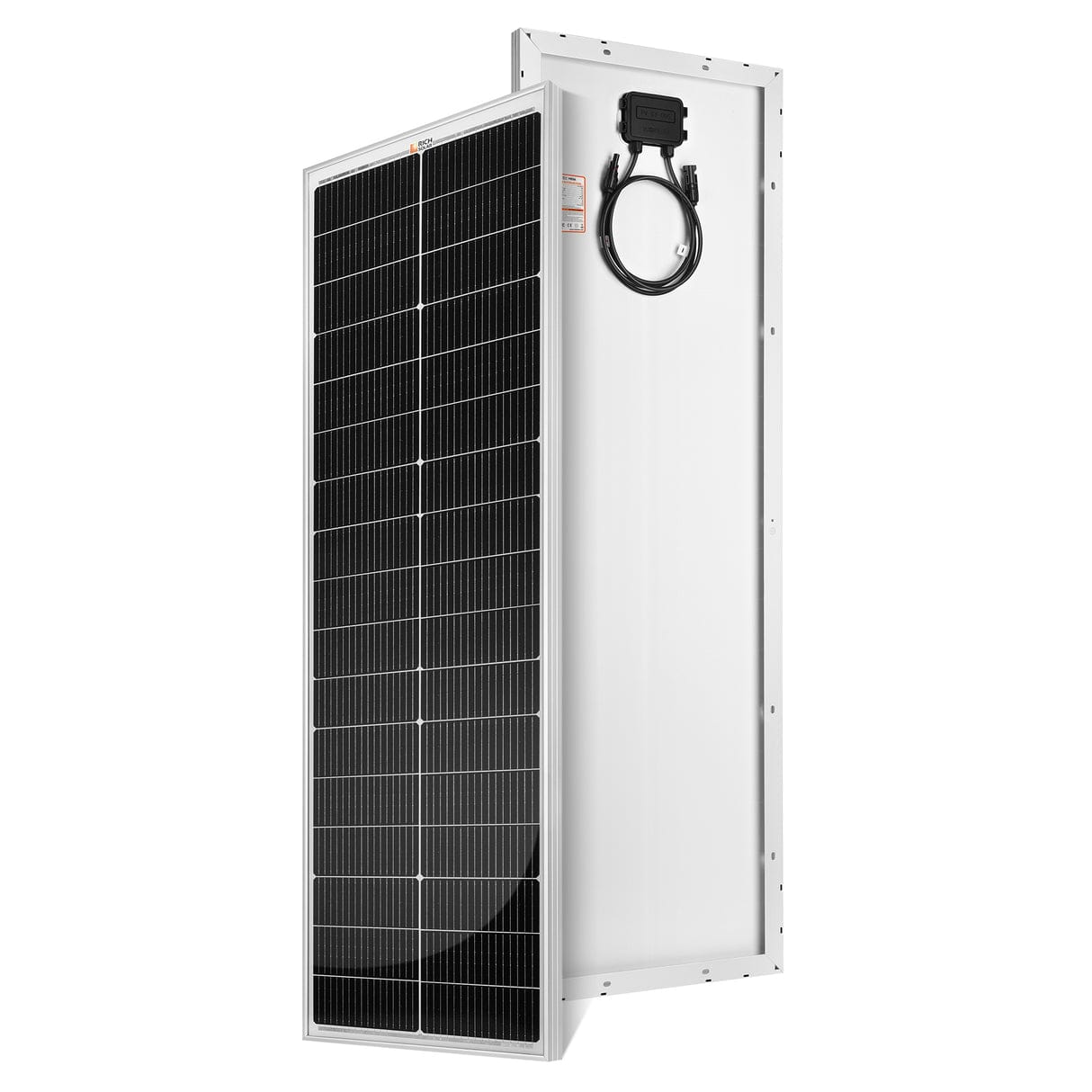

Rich Solar MEGA 100 SLIM 100W Solar Panel
This is the panel for vans, boats, campers, and tight roof layouts where a normal-width 100W module simply does not fit. The narrow 15.7-inch frame gives you a better chance of working around vents, racks, and air conditioners without giving up rated power.
Why Choose the MEGA 100 SLIM?

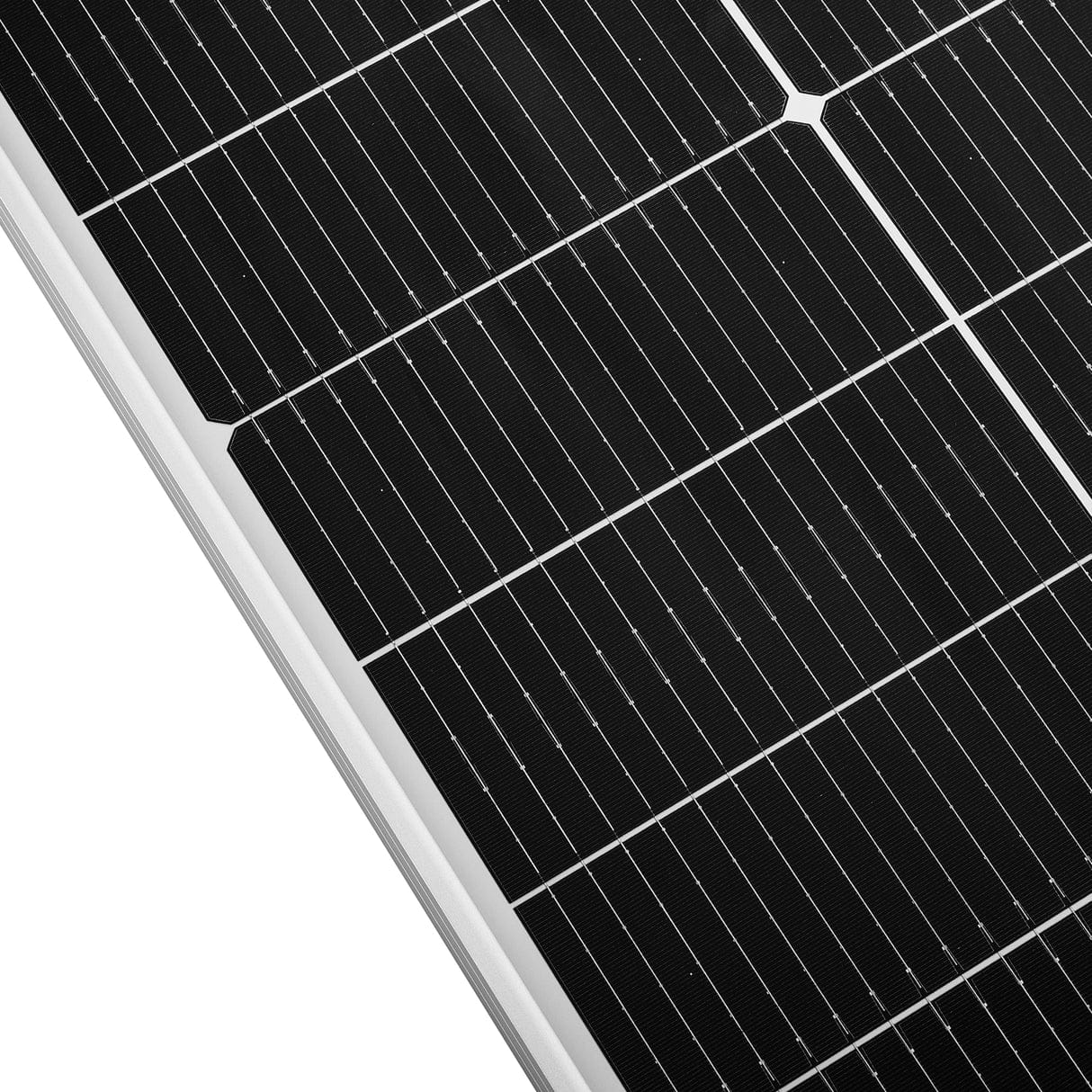

- 100W N-type TOPCon monocrystalline output
- Narrow 50 × 15.7-inch footprint
- Only 12.4 lb for easier mounting

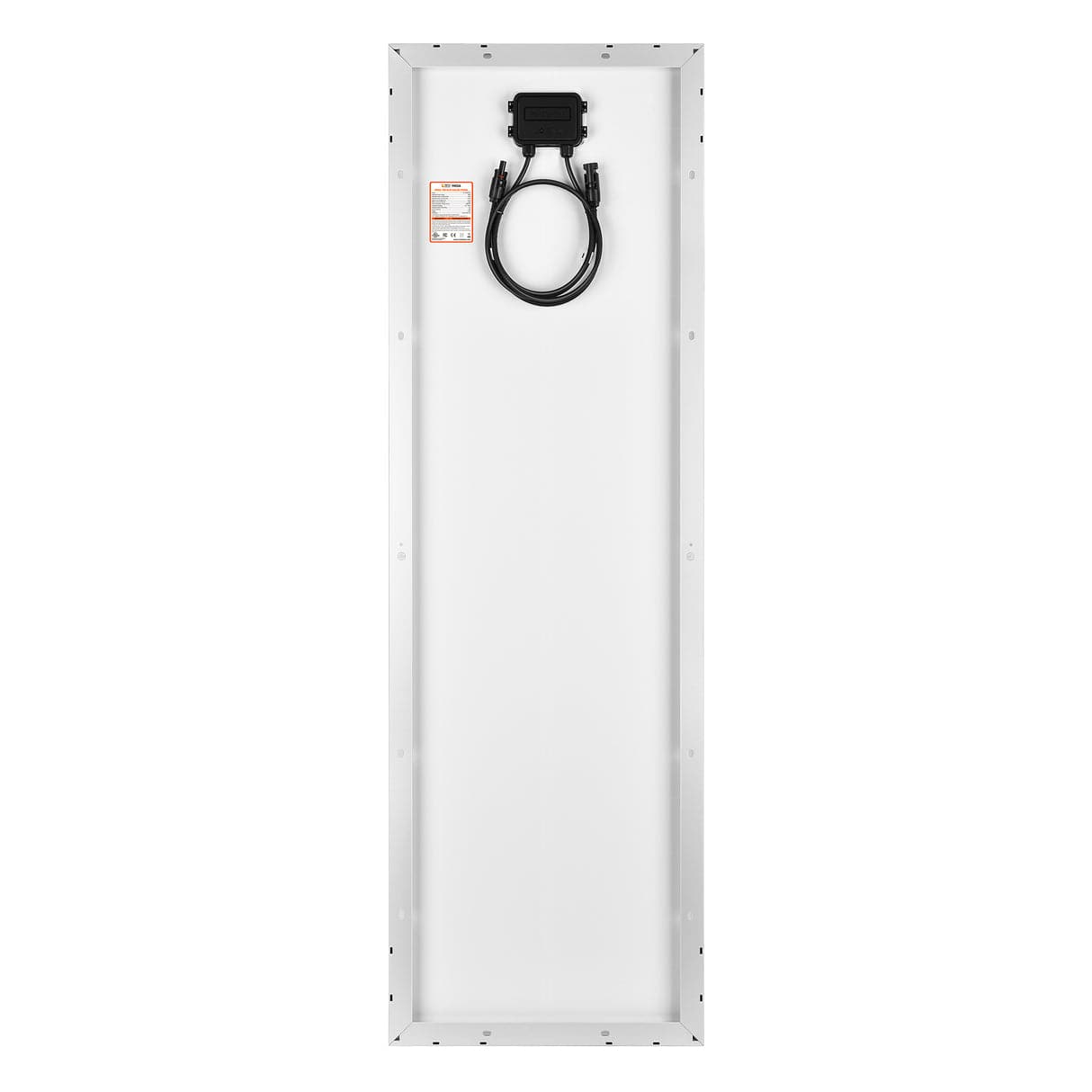

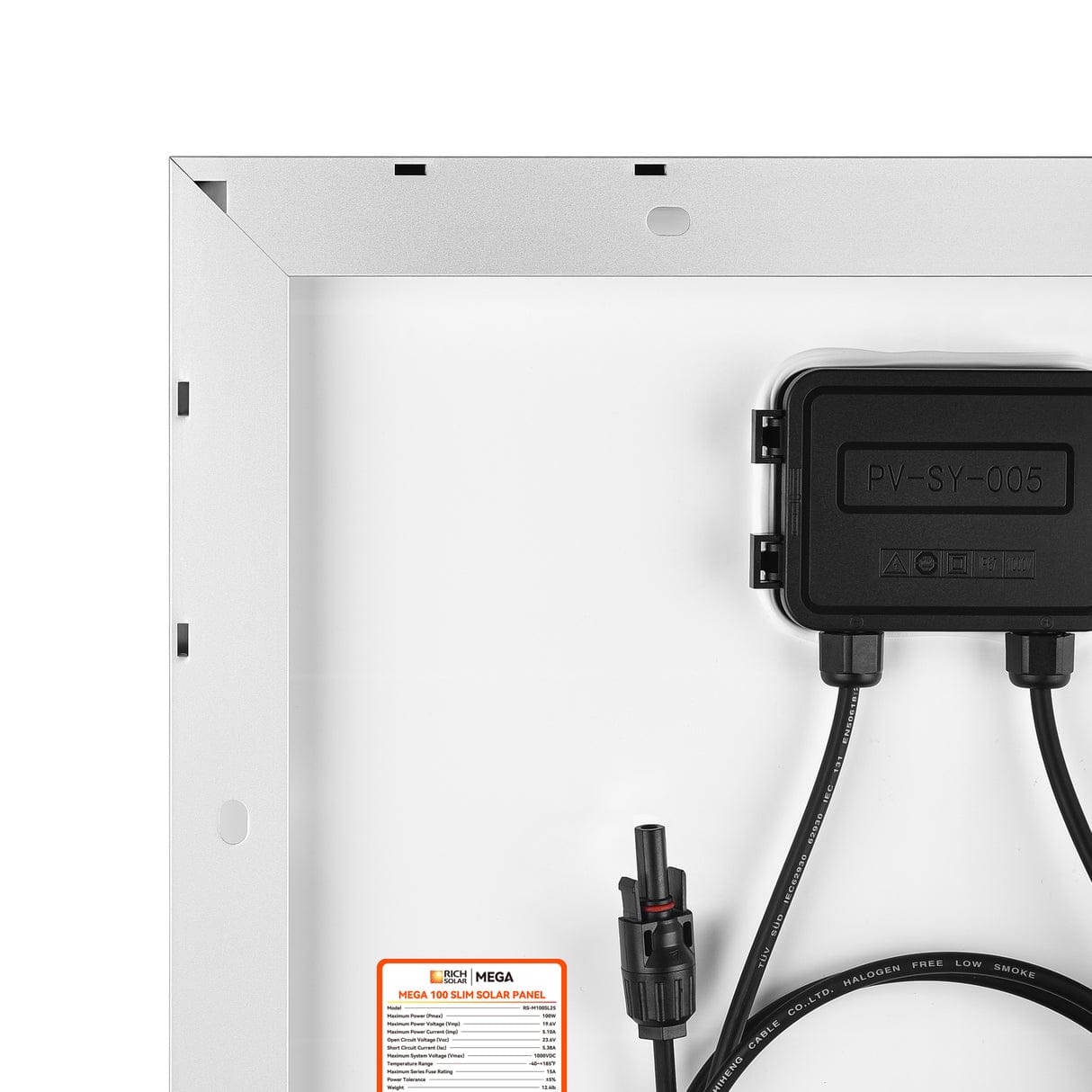

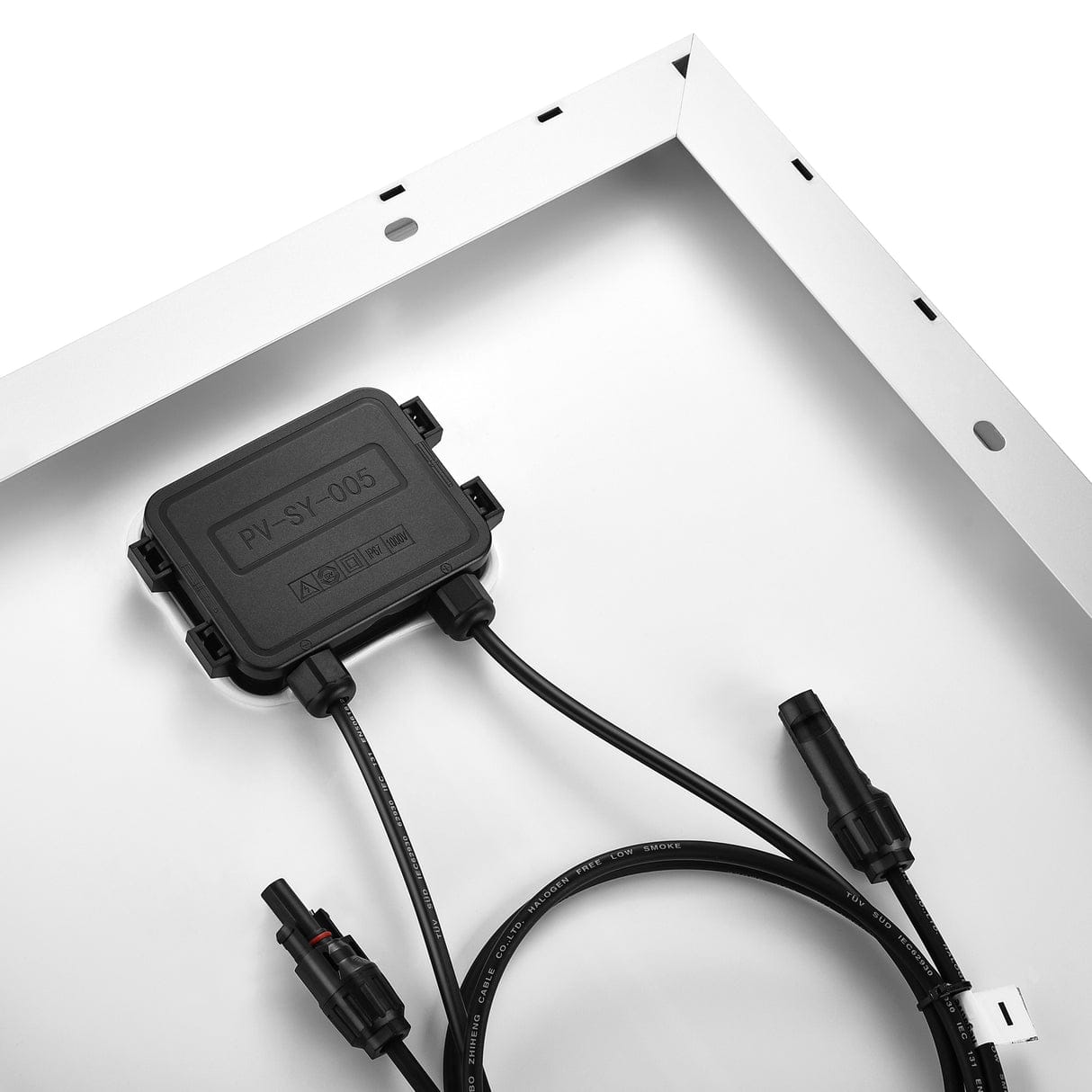

- IP67-rated junction box and cables
- Pre-attached 4-foot solar leads and connectors
- 25-year output and 10-year workmanship warranty
What’s Included
- One MEGA 100 SLIM 100W solar panel
- Factory-installed leads and solar connectors
- Manufacturer documentation
Best Uses
- Camper vans and Class B RV roofs
- Boats and marine charging systems
- Overland vehicles and roof racks
- Cabins, sheds, and narrow mounting areas
- 12V battery charging with a compatible controller
Full Specifications
| Current SKU | RS-M100SL25 |
|---|---|
| Rated Power | 100W |
| Vmp / Imp | 19.6V / 5.1A |
| Voc / Isc | 23.6V / 5.38A |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse | 15A |
| Temperature Range | -40°F to 185°F |

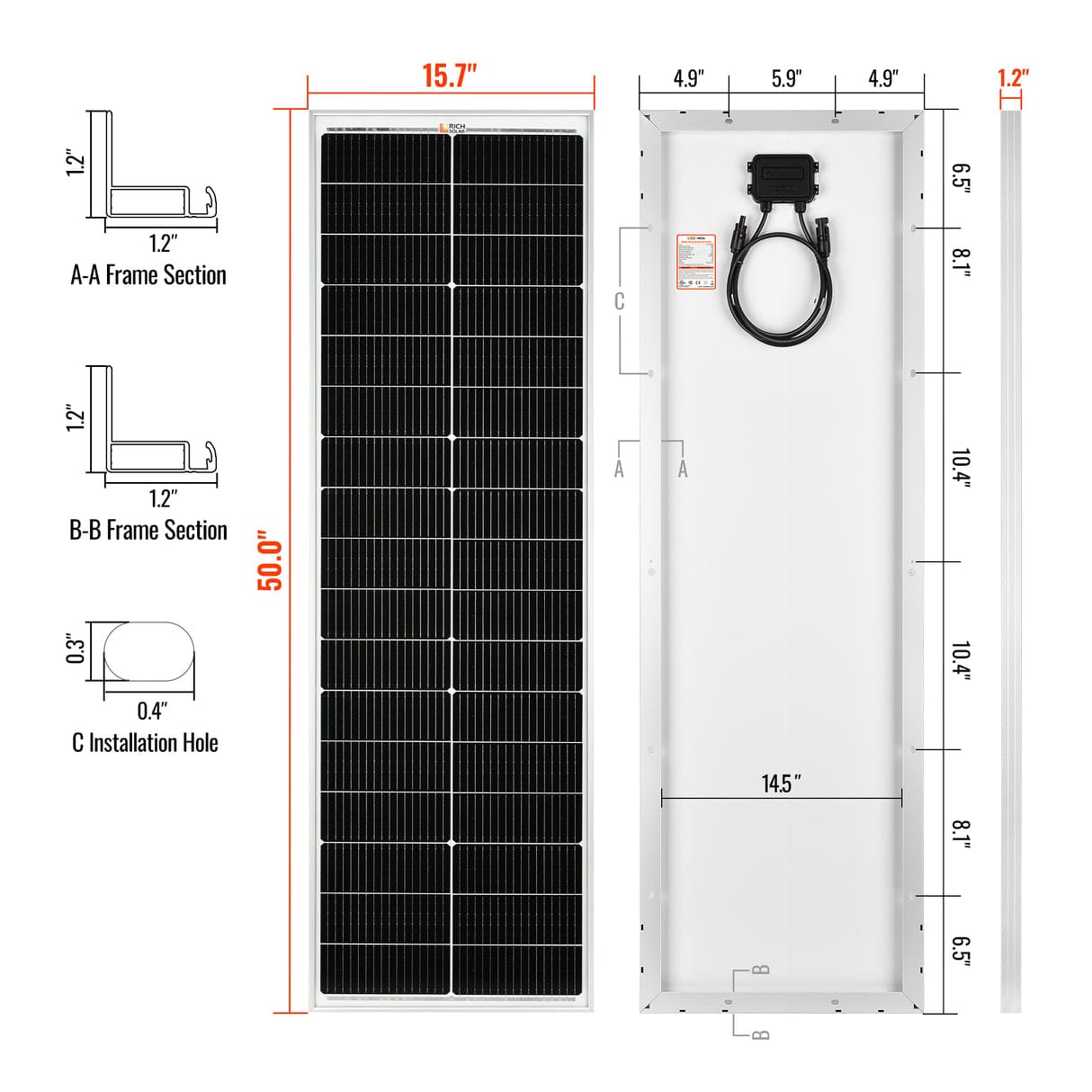

| Dimensions | 50 × 15.7 × 1.2 in |
| Weight | 12.4 lb |
| Cell Technology | N-type TOPCon |
| Protection | IP67 |
Compatibility and Installation
Check the full array Voc, current, and cold-weather voltage against your charge controller or power station limits. Series wiring increases voltage and parallel wiring increases current. Use correctly sized cable, proper overcurrent protection, secure mounting, and weatherproof roof penetrations. Follow applicable electrical and building codes.
Frequently Asked Questions
Why choose a slim panel?
The narrow format can fit between roof equipment and on spaces where a standard-width 100W panel will not.
Can it charge a 12V battery?
Yes, through a compatible solar charge controller. Never connect an unregulated panel directly to a battery.
Can panels be combined?
Yes, when the full array remains inside the connected equipment’s voltage, current, and wattage limits.
Is mounting hardware included?
Mounting hardware and charge-control equipment are sold separately unless specifically shown as included.
What warranty applies?
Rich Solar lists a 25-year limited output warranty and a 10-year workmanship warranty.
