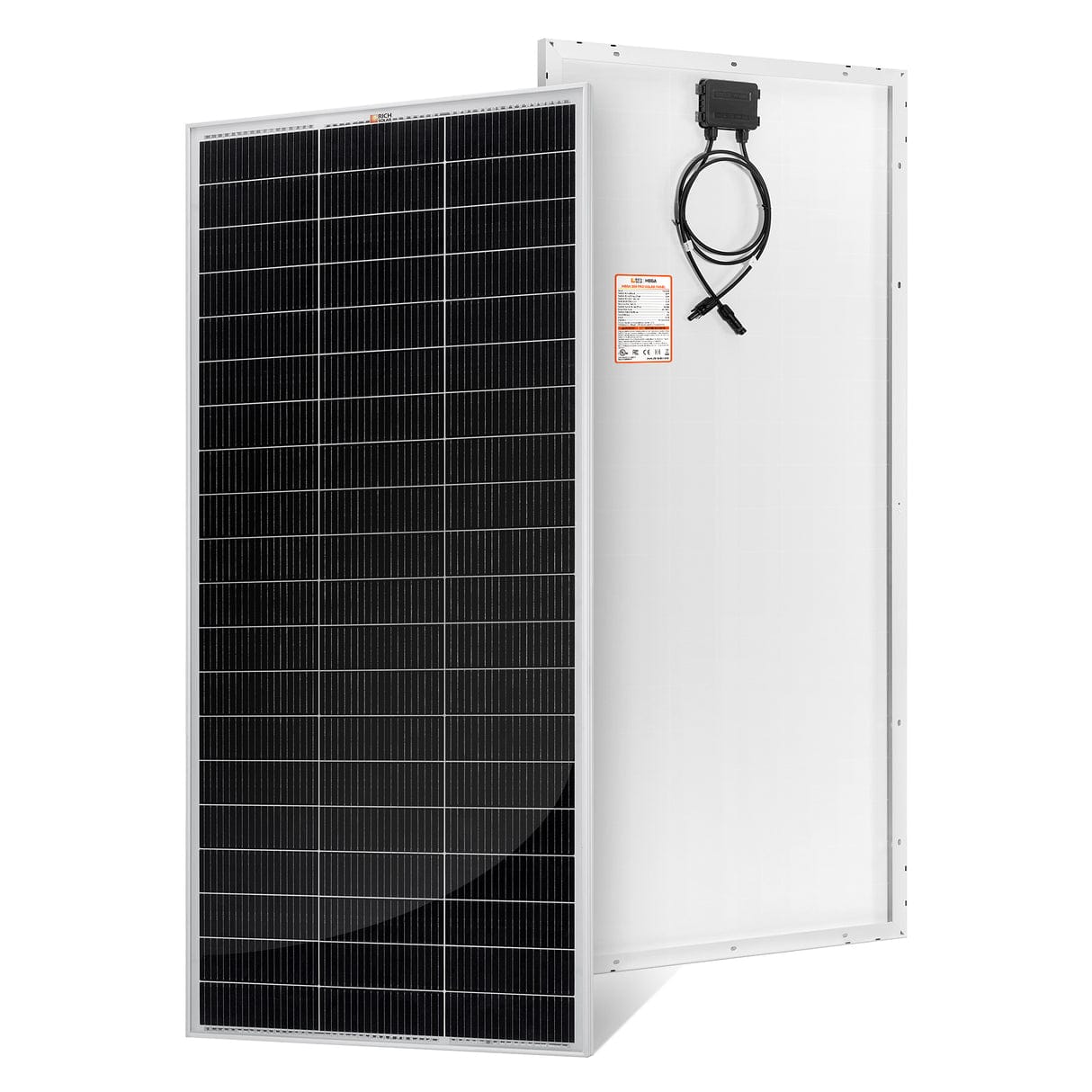

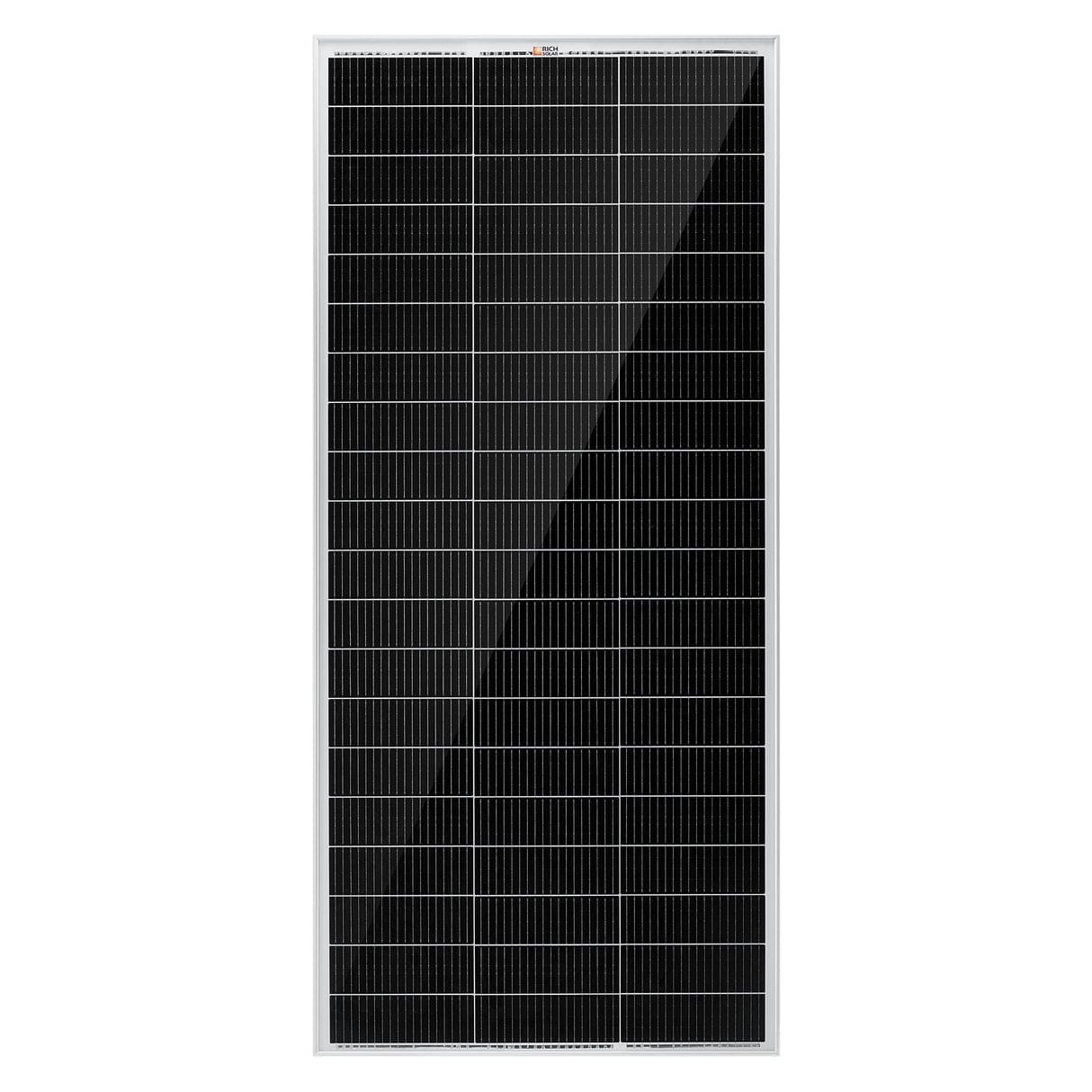

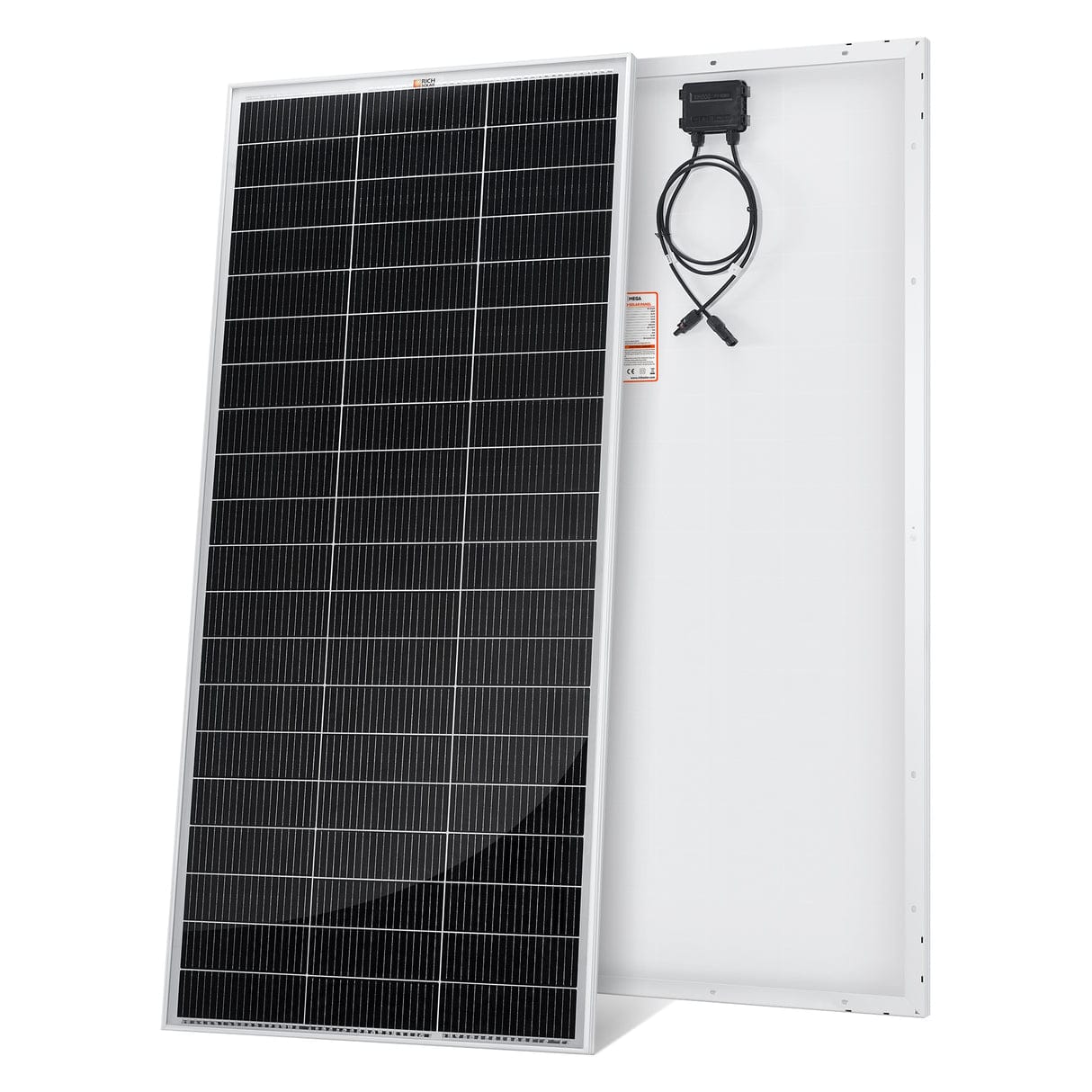

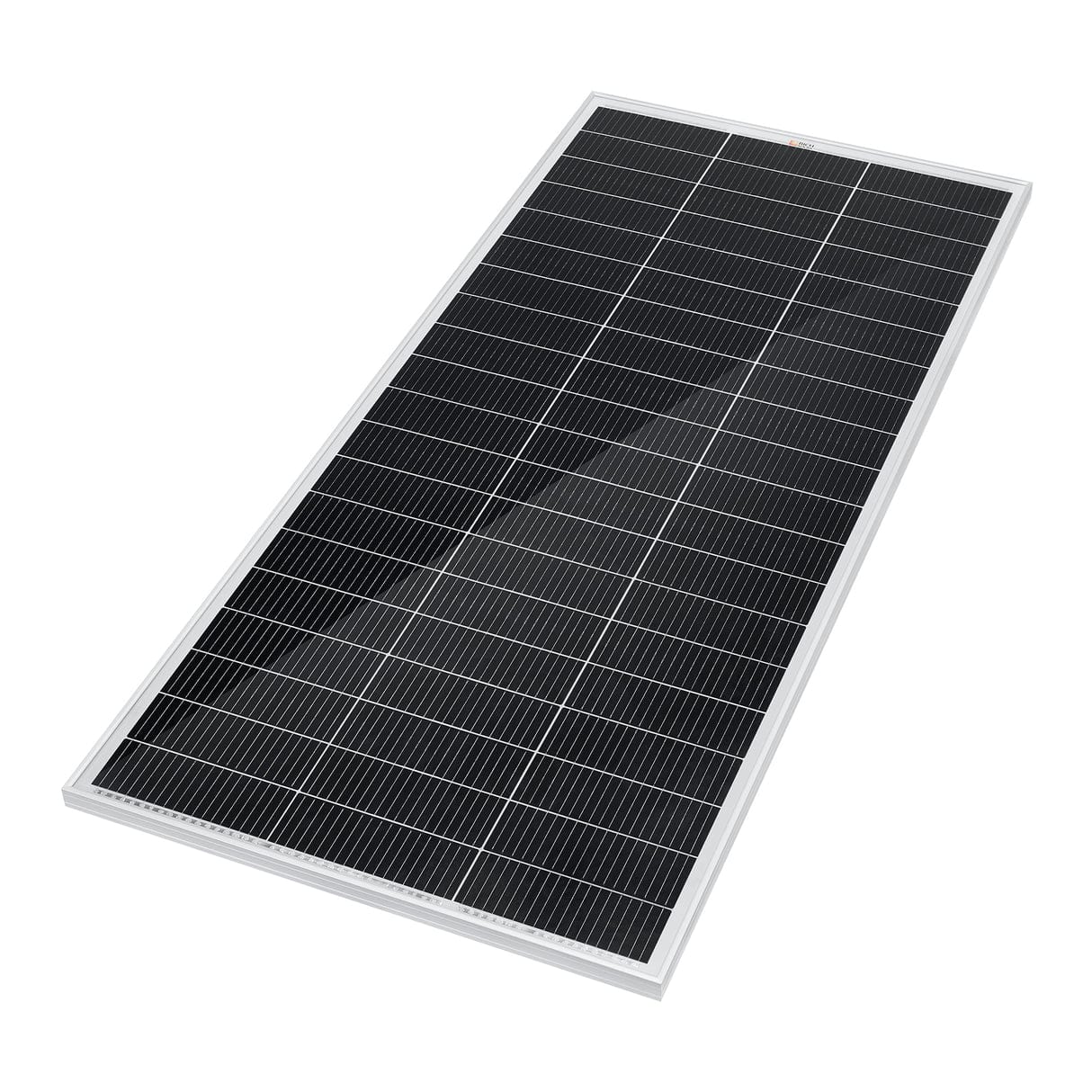

Rich Solar MEGA 200 PRO 200W 24V Solar Panel
The MEGA 200 PRO gives you a clean 200-watt building block for 24V off-grid and backup-power systems. Its relatively narrow frame is useful when you need to plan around limited roof or rack space.
Why this panel works: A 36.3V operating voltage keeps array current moderate and works well with properly sized MPPT equipment.
Key Benefits
- 200W monocrystalline output
- 24V-class electrical design

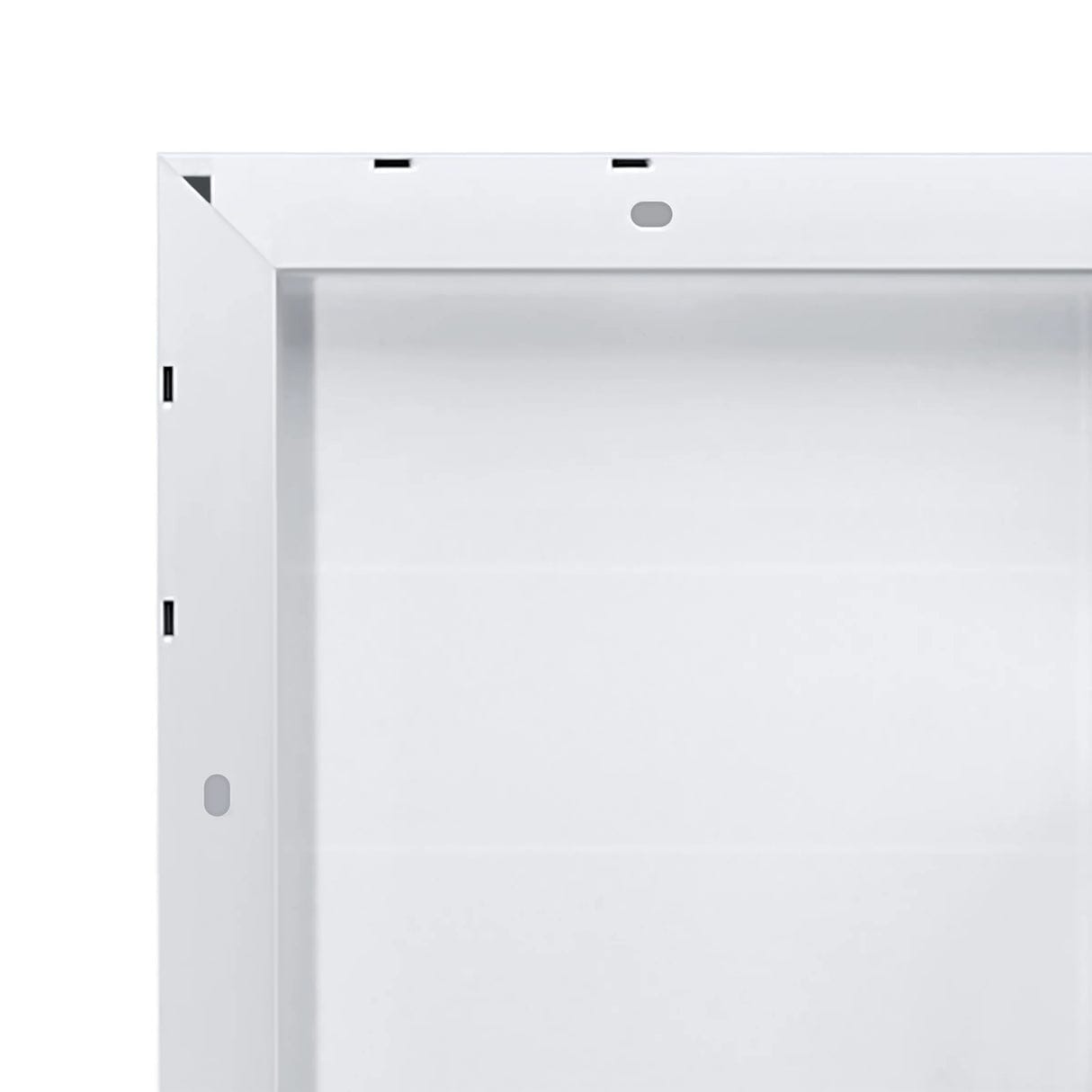

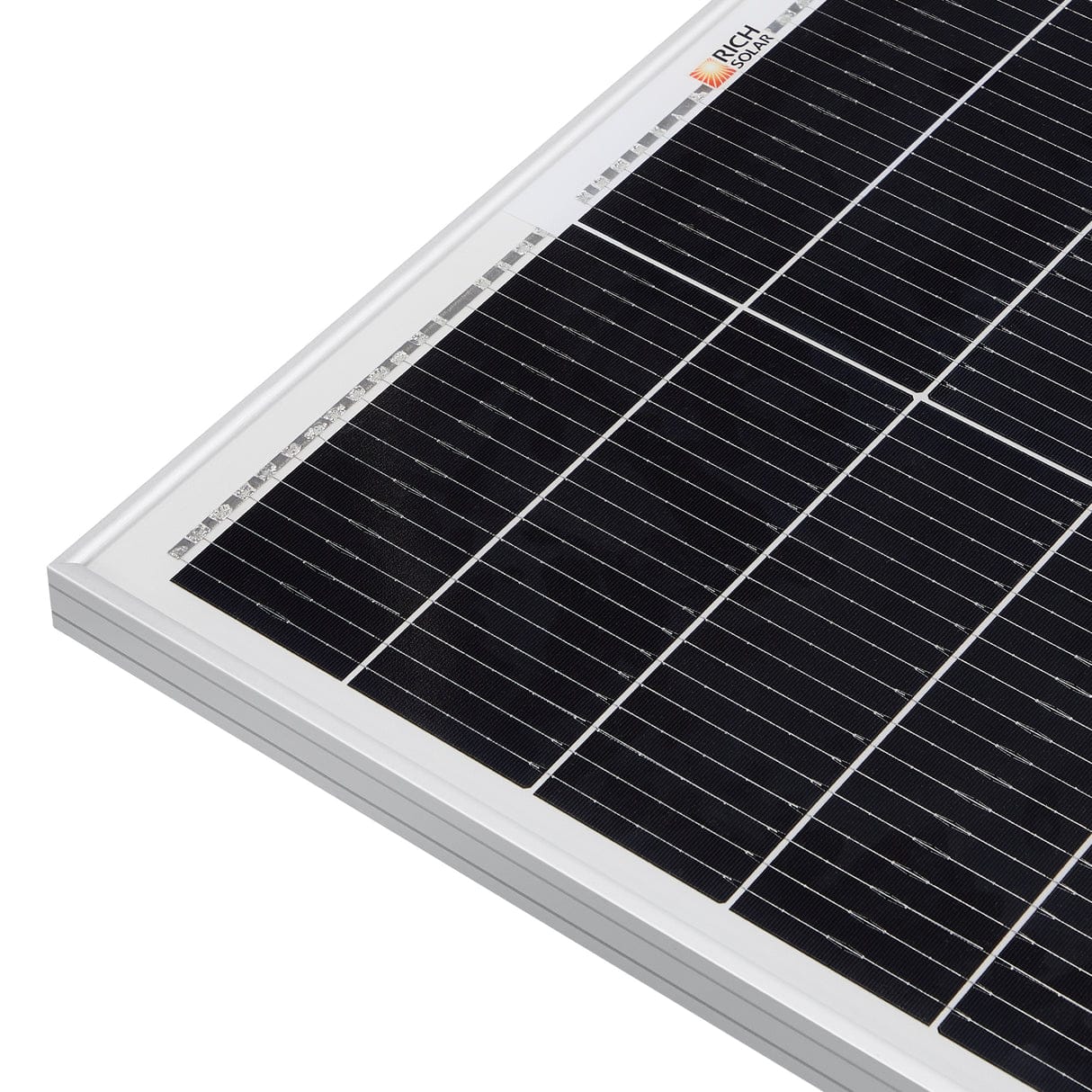

- Rigid aluminum frame for permanent mounting
- Factory solar connectors for faster wiring
- 25-year output and 10-year workmanship warranty
What’s Included
- One Rich Solar MEGA 200 PRO 200W 24V Solar Panel

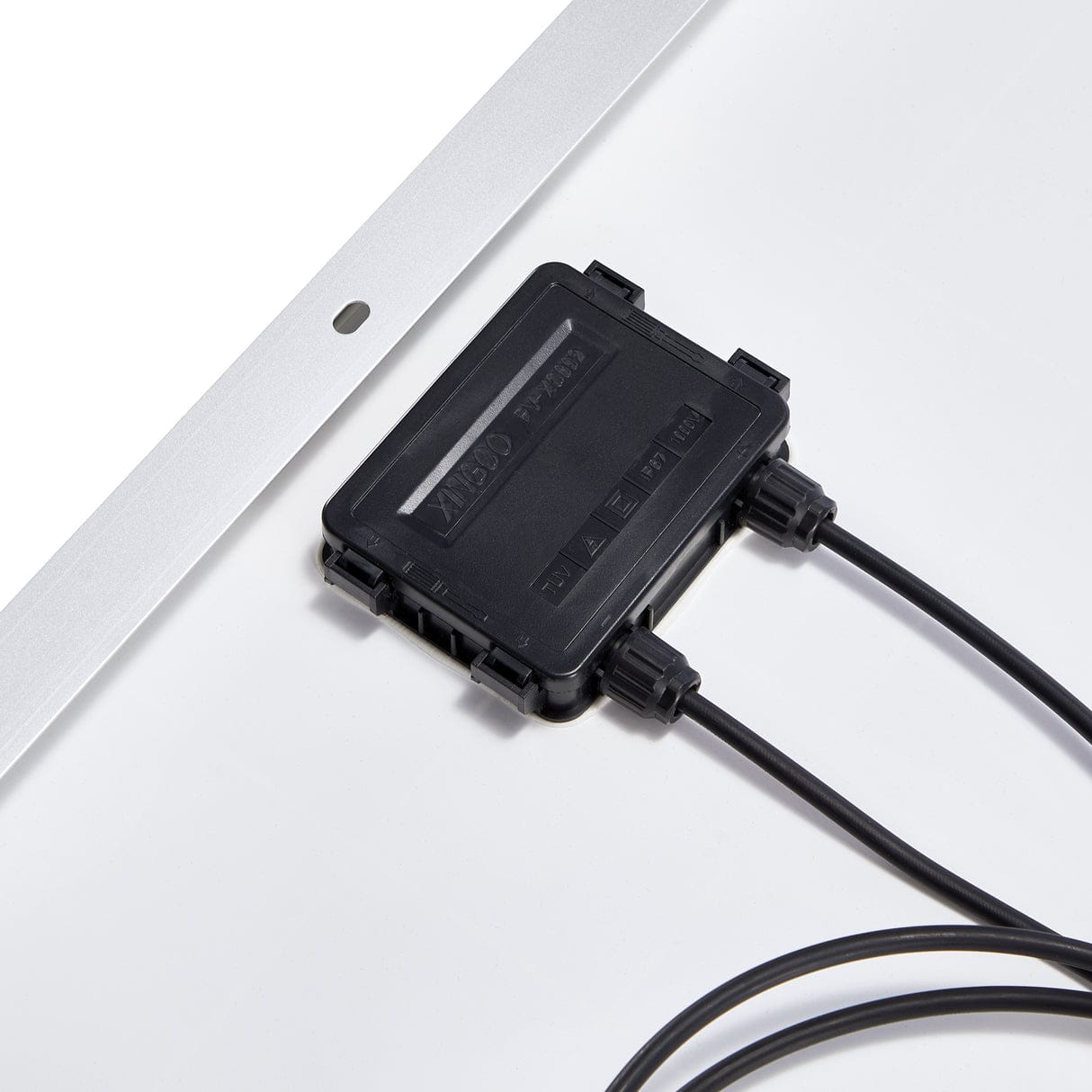

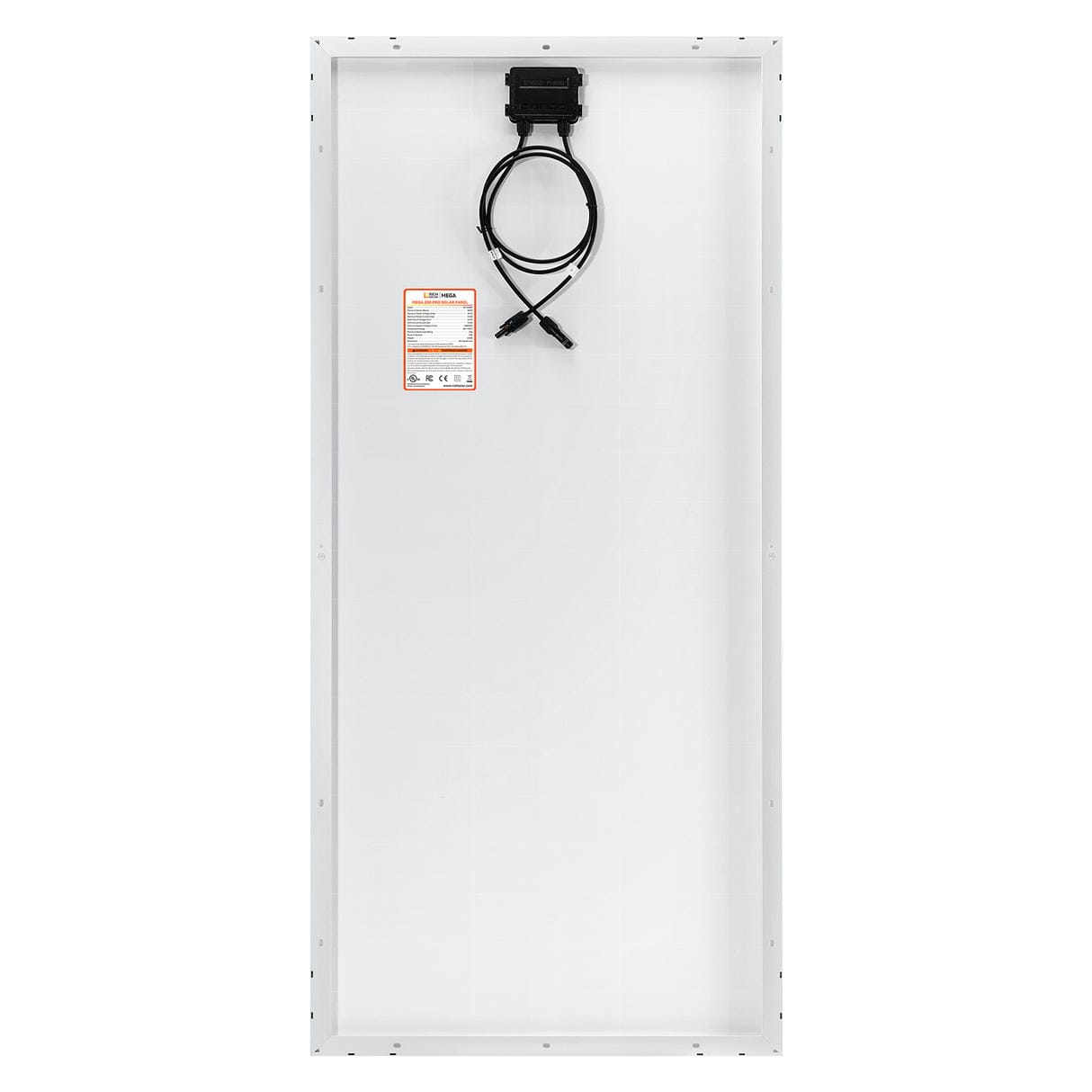

- Factory-installed junction box and solar connectors
- Manufacturer documentation
Best Uses
- 24V cabin and shed systems
- RV and overland solar arrays
- Backup battery charging
- Solar generators within the stated PV input window
- Custom roof or ground-mount arrays
Full Specifications
| Model / SKU | RS-M200P |
|---|---|
| Rated Power | 200W |
| Maximum Power Voltage (Vmp) | 36.3V |
| Maximum Power Current (Imp) | 5.51A |
| Open-Circuit Voltage (Voc) | 43.5V |
| Short-Circuit Current (Isc) | 5.93A |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse | 15A |
| Operating Temperature | -40°F to 185°F |

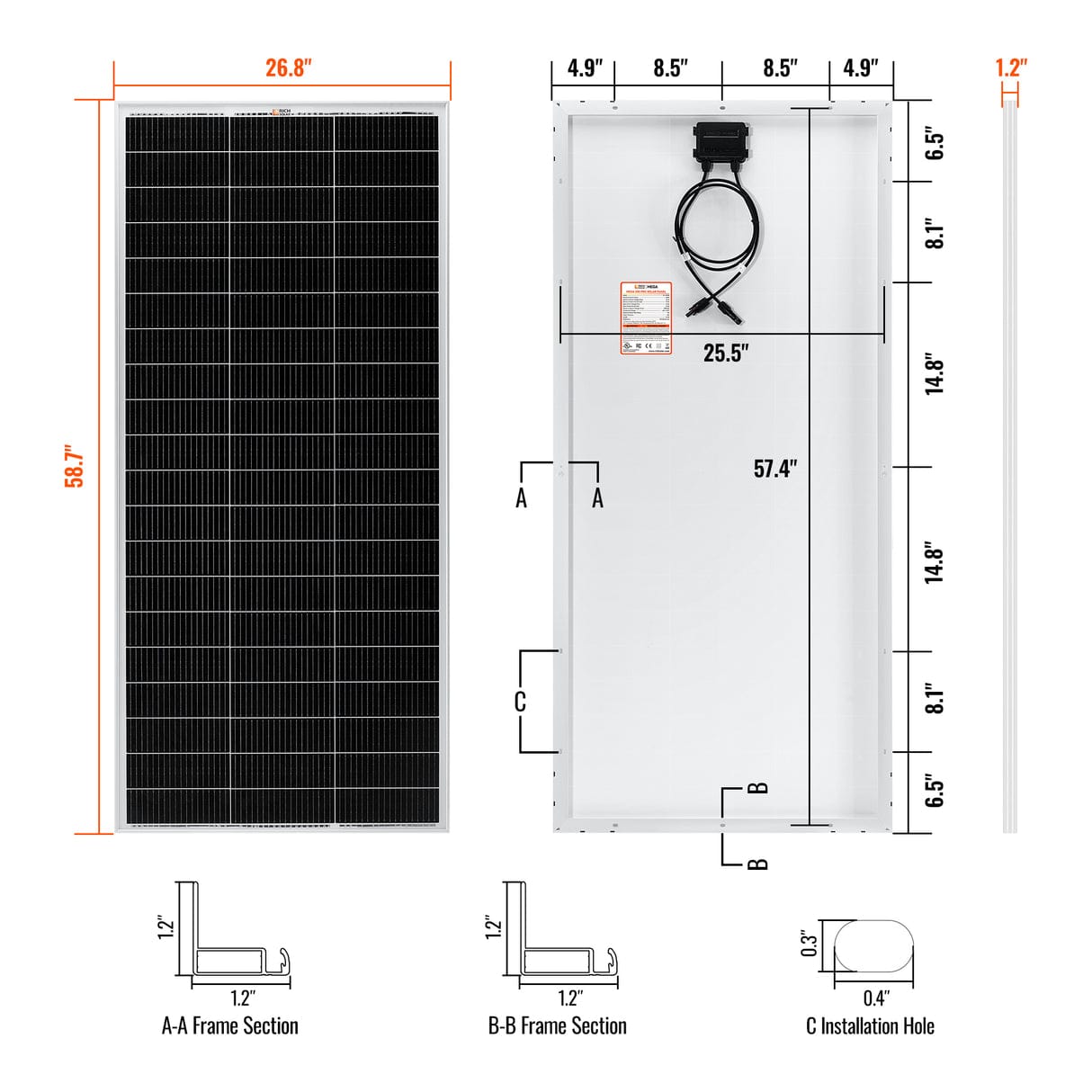

| Dimensions | 58.7 × 26.8 × 1.2 in |
| Weight | 24 lb |
| Cell Type | Monocrystalline |
Compatibility and Installation
This is a nominal 24V solar panel. Match the array’s open-circuit voltage, operating current, and cold-weather corrected voltage to the limits of your charge controller, inverter, or portable power station. Series wiring raises voltage; parallel wiring raises current. Use correctly sized solar cable, overcurrent protection where required, and suitable mounting hardware. Professional installation is recommended whenever local electrical or building rules apply.
Frequently Asked Questions
Is this a 12V or 24V panel?
This is a nominal 24V-class panel. Confirm that its 43.5V open-circuit voltage and the full array voltage remain within your equipment limits.
Can I connect several panels together?
Yes, if the complete array stays within the voltage, current, and power limits of the connected equipment. Verify the design before making series or parallel connections.
Will it always produce the rated wattage?
Rated power is measured under standard test conditions. Weather, shade, temperature, mounting angle, wiring loss, and controller efficiency affect real-world output.
Does it include a charge controller?
No. This listing is for the solar panel and its factory-installed leads/connectors. Select a compatible controller or power station separately.
What warranty applies?
Rich Solar lists a 25-year output warranty and a 10-year workmanship warranty.
