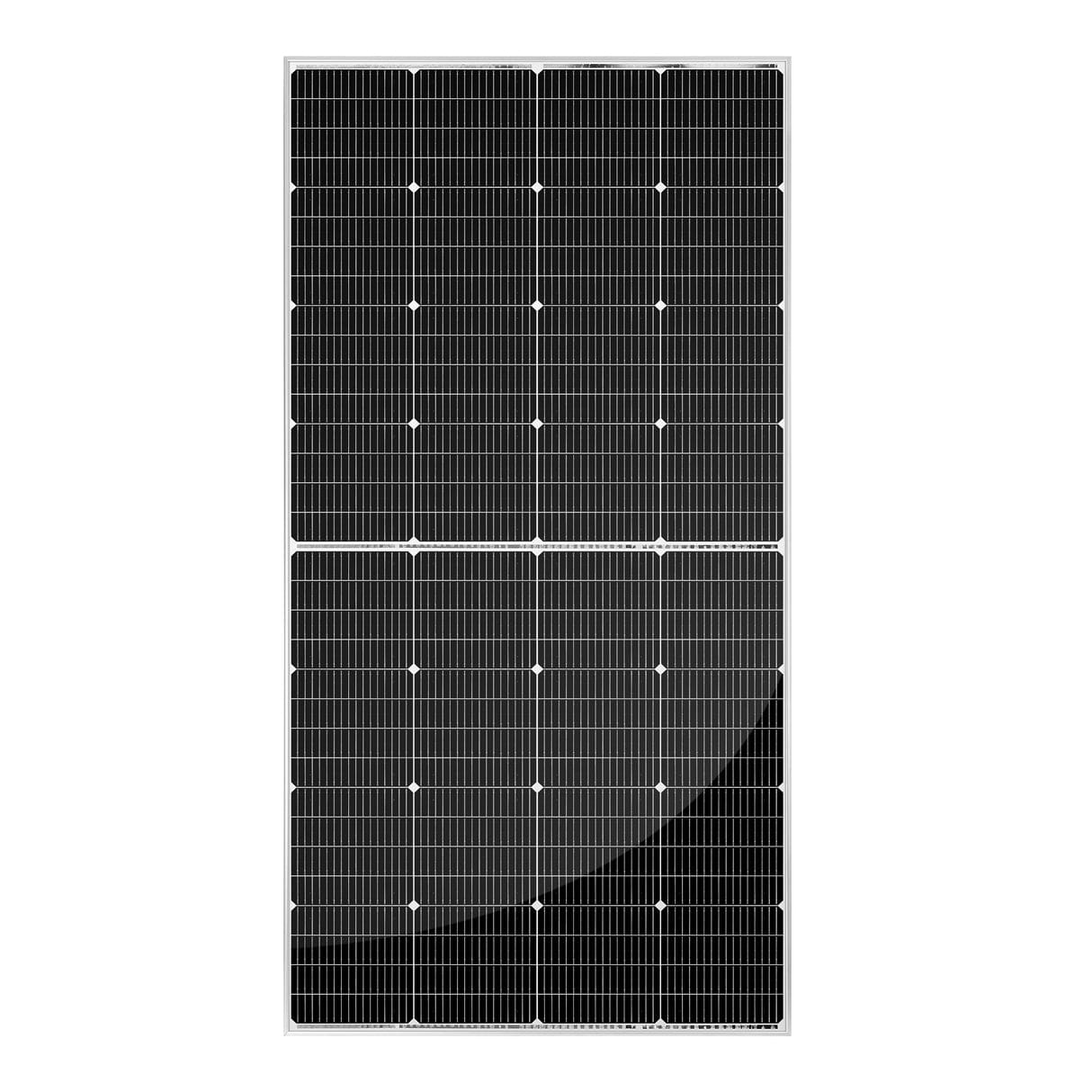

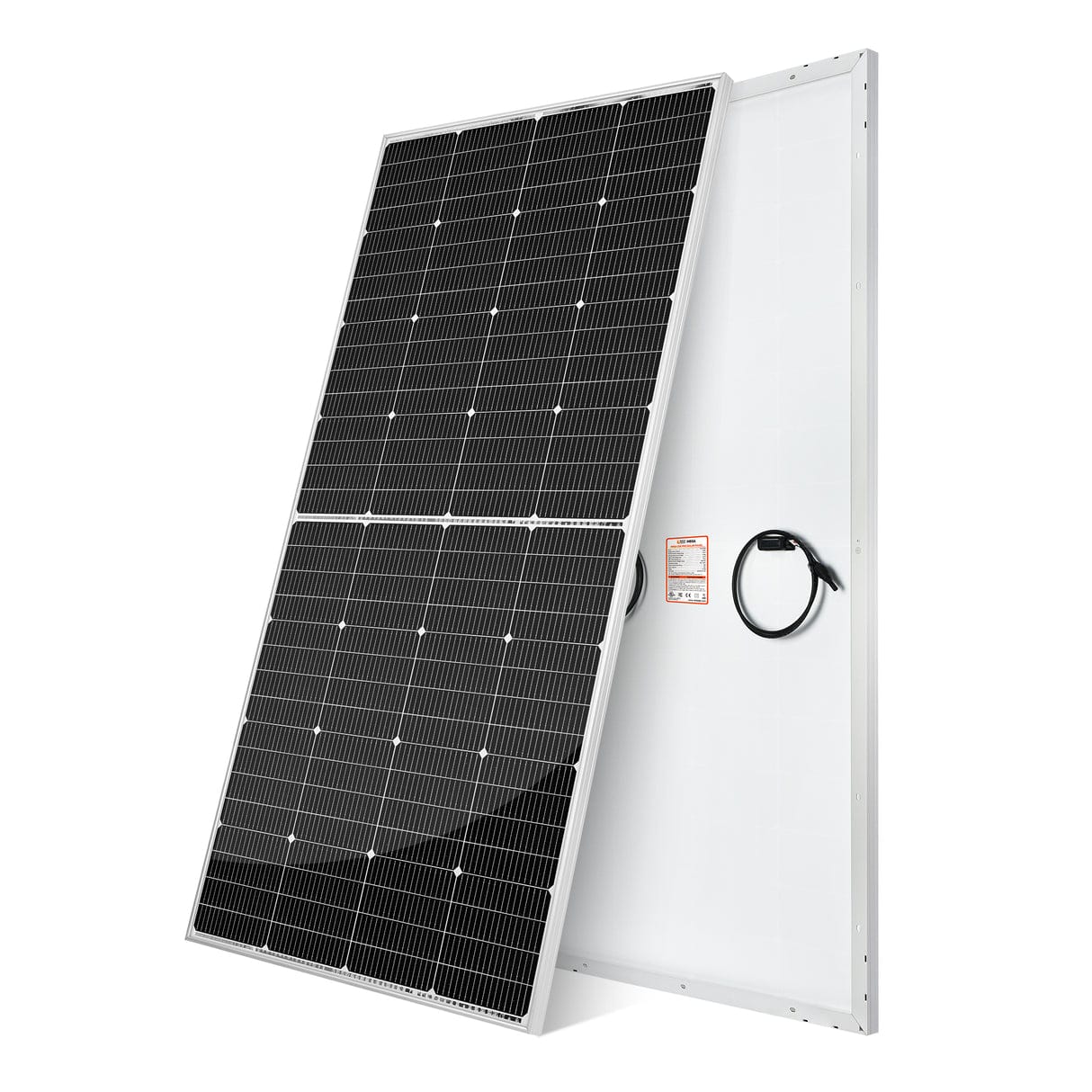

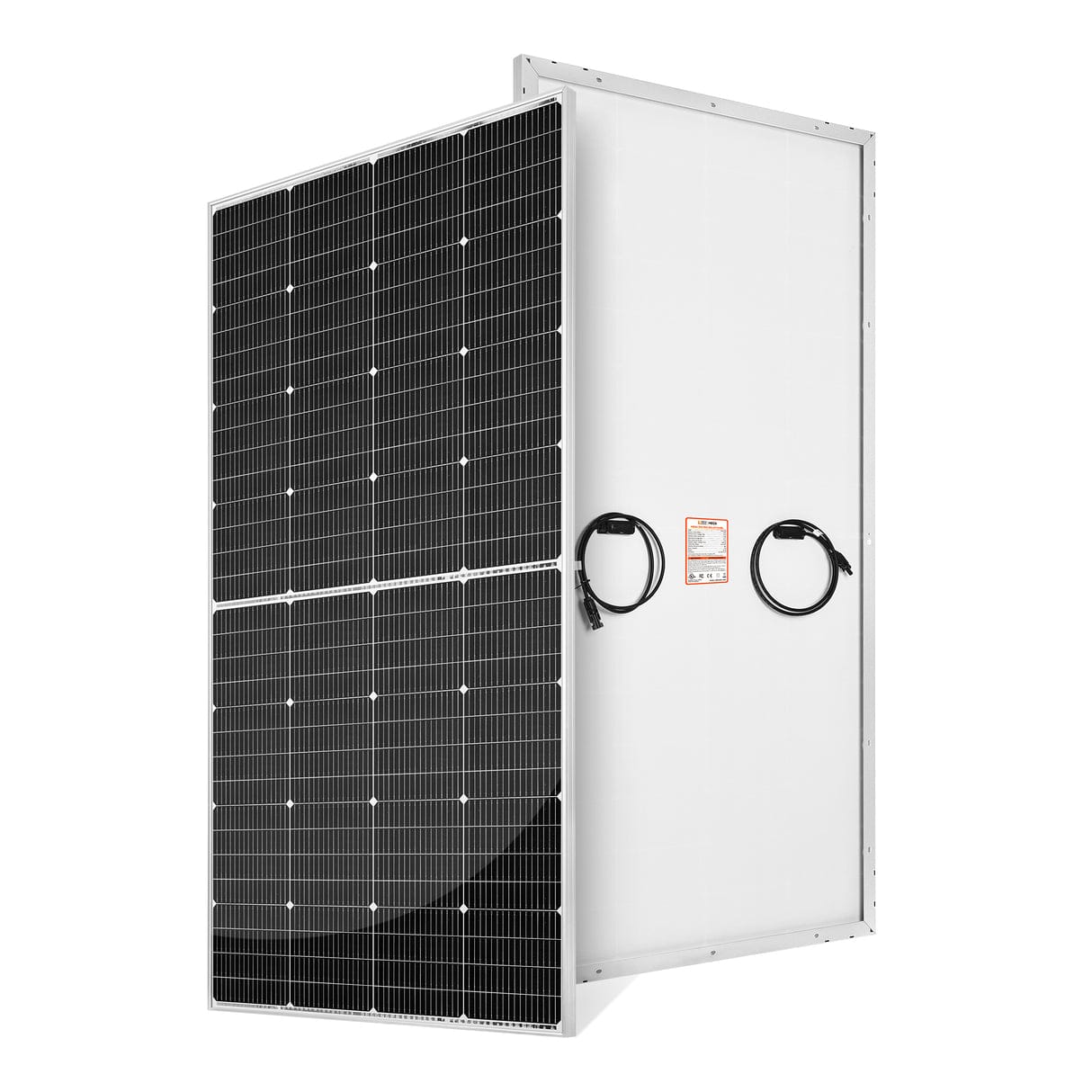

Rich Solar MEGA 250 PRO 250W 24V Solar Panel
The MEGA 250 PRO is for buyers who want 250 watts with a higher-voltage 24V-class design. It is a smart fit for compact off-grid arrays and solar generators that benefit from lower current at the same wattage.
Why this panel works: N-type TOPCon cells and a 36.9V operating voltage combine efficient energy collection with cleaner long-run array design.
Key Benefits
- 250W N-type TOPCon monocrystalline panel
- 36.9V Vmp and 6.78A Imp
- 16-busbar cell design
- IP68-rated outdoor junction box
- 25-year output and 10-year workmanship coverage
What’s Included
- One Rich Solar MEGA 250 PRO 250W 24V Solar Panel
- Factory-installed junction box and solar connectors
- Manufacturer documentation
Best Uses
- 24V battery systems with a compatible MPPT controller
- Cabin and remote-site arrays
- Solar generator charging within input limits
- RV and overland systems designed for higher PV voltage
- Series arrays where equipment voltage limits are carefully observed
Full Specifications
| Model / SKU | RS-M250P |
|---|---|
| Rated Power | 250W |
| Maximum Power Voltage (Vmp) | 36.9V |
| Maximum Power Current (Imp) | 6.78A |
| Open-Circuit Voltage (Voc) | 44.7V |
| Short-Circuit Current (Isc) | 7.24A |
| Maximum System Voltage | 1500V DC |
| Operating Temperature | -40°F to 185°F |

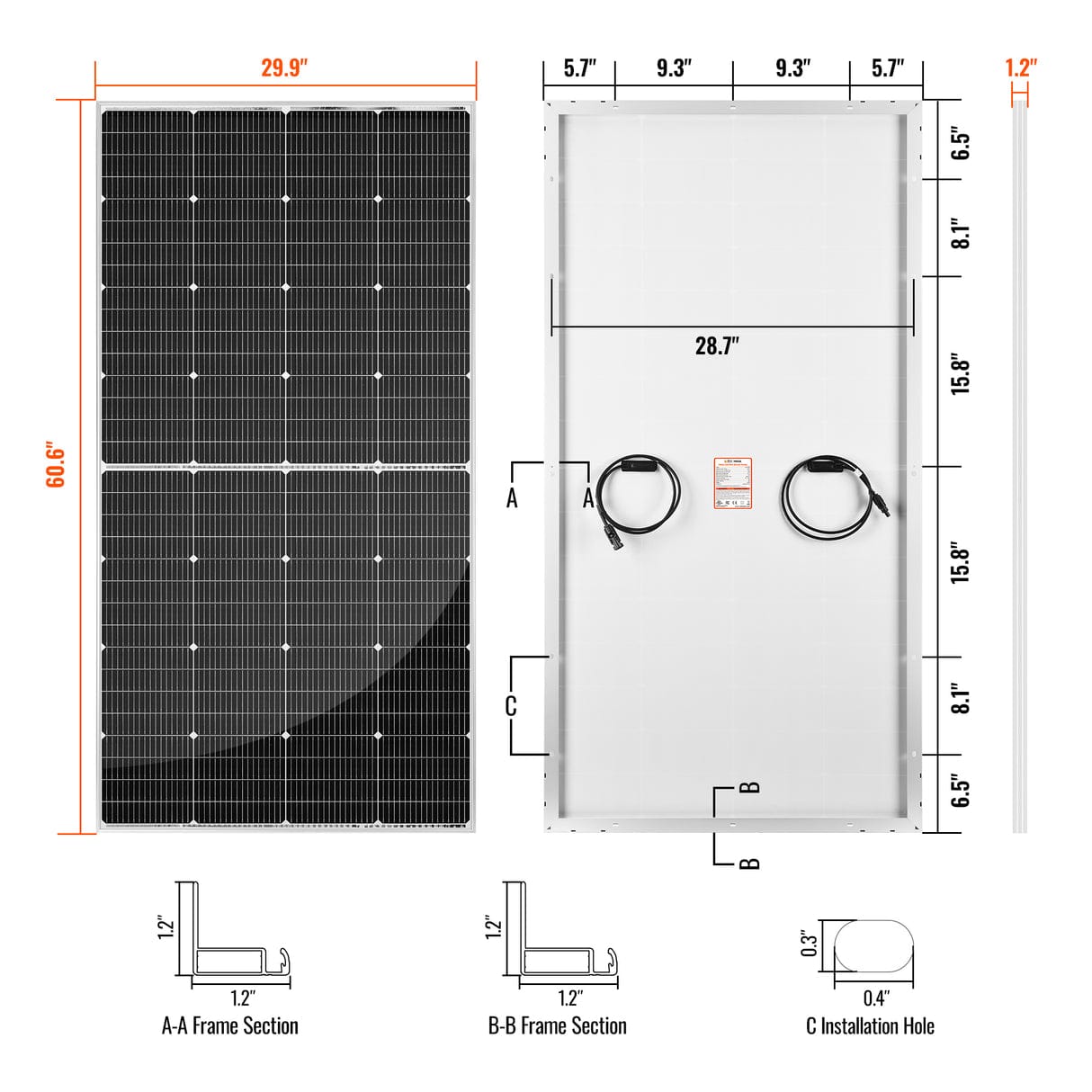

| Dimensions | 60.6 × 29.9 × 1.2 in |
| Weight | 26.9 lb |

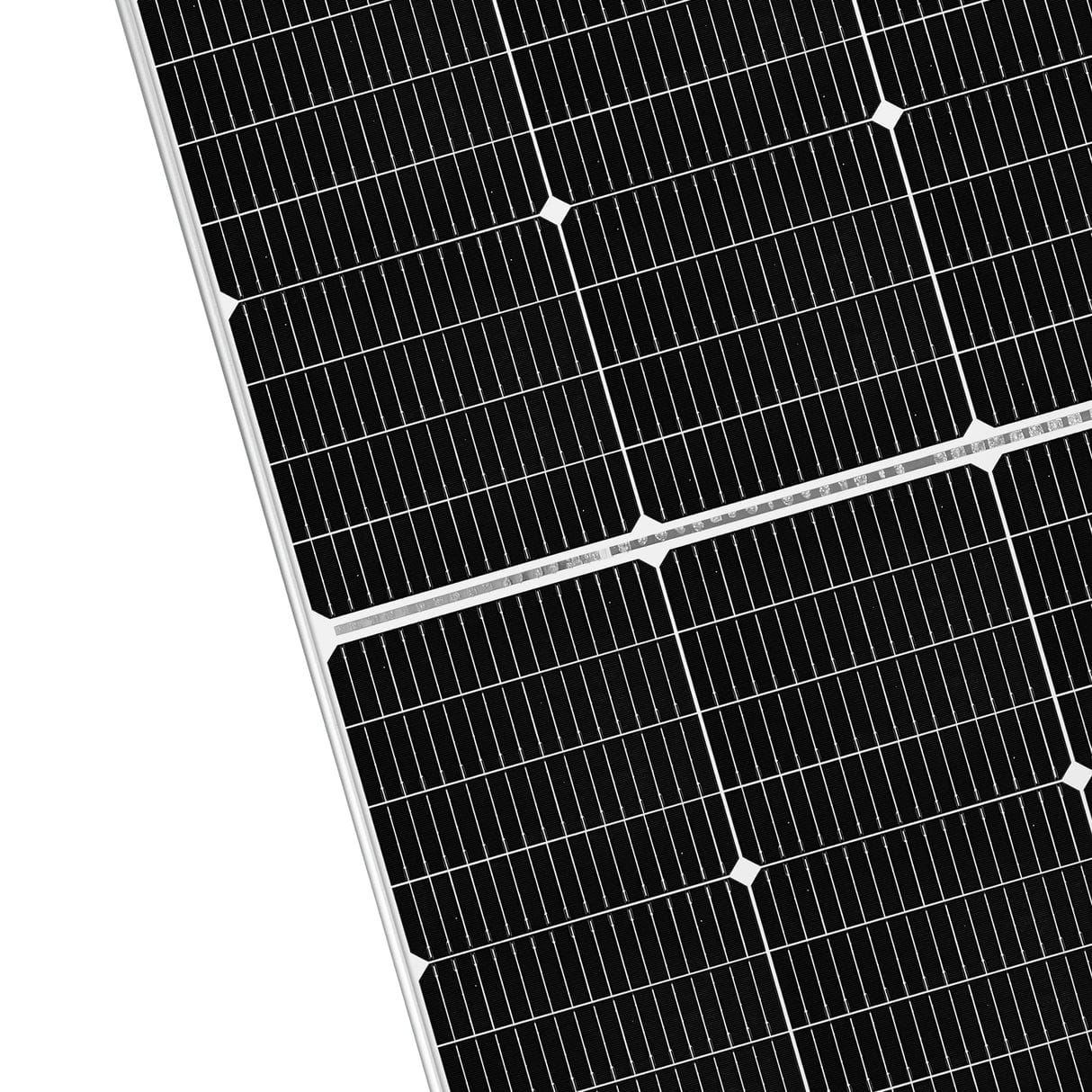

| Cell Technology | N-type TOPCon, 16 busbar |

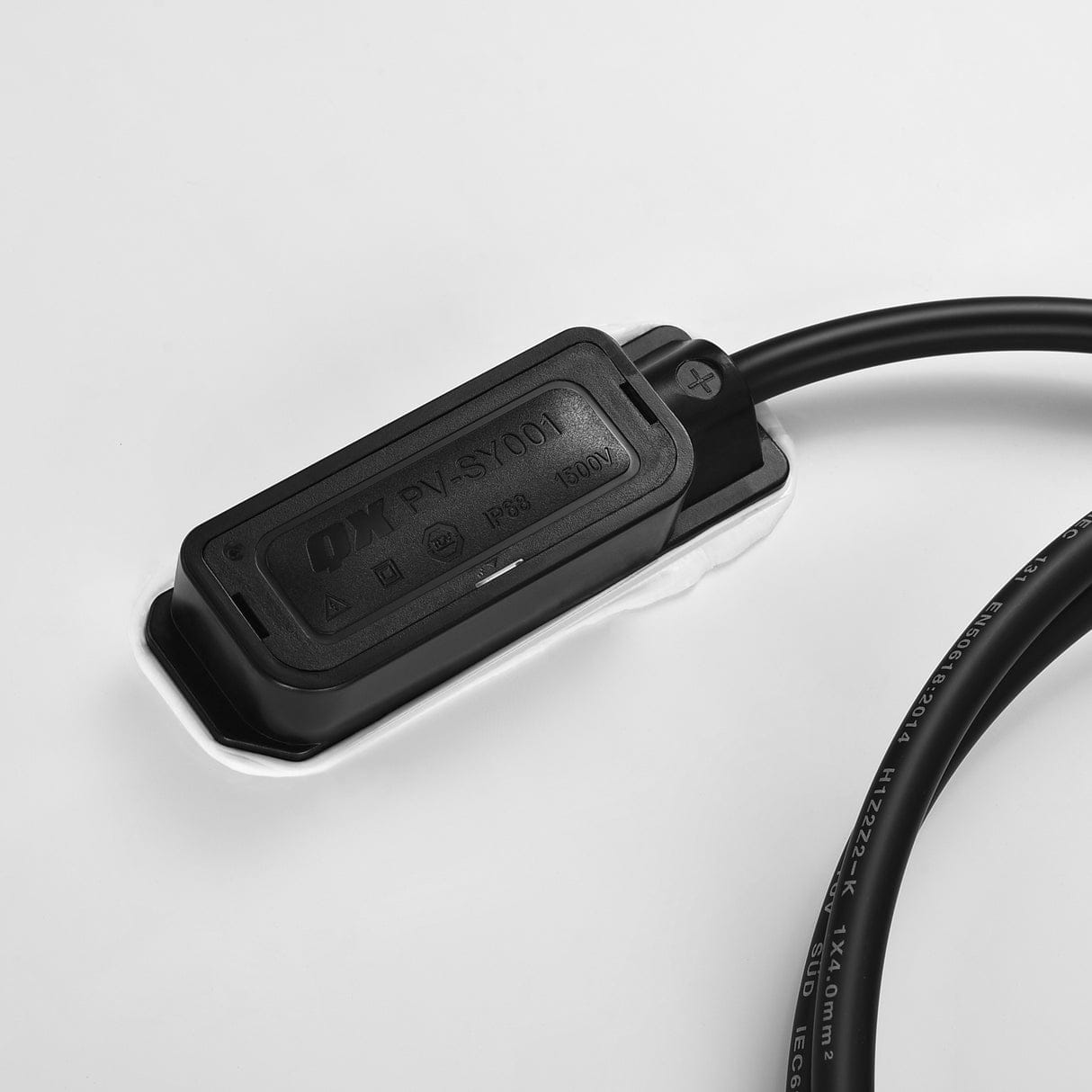

| Junction Box | IP68 |
Compatibility and Installation
This is a nominal 24V solar panel. Match the array’s open-circuit voltage, operating current, and cold-weather corrected voltage to the limits of your charge controller, inverter, or portable power station. Series wiring raises voltage; parallel wiring raises current. Use correctly sized solar cable, overcurrent protection where required, and suitable mounting hardware. Professional installation is recommended whenever local electrical or building rules apply.
Frequently Asked Questions
Is this a 12V or 24V panel?
This is a nominal 24V-class panel with a 36.9V Vmp and 44.7V Voc. Use the actual values—not only the nominal label—when checking compatibility.
Can I connect several panels together?
Yes, if the complete array stays within the voltage, current, and power limits of the connected equipment. Verify the design before making series or parallel connections.
Will it always produce the rated wattage?
Rated power is measured under standard test conditions. Weather, shade, temperature, mounting angle, wiring loss, and controller efficiency affect real-world output.
Does it include a charge controller?
No. This listing is for the solar panel and its factory-installed leads/connectors. Select a compatible controller or power station separately.
What warranty applies?
Rich Solar lists a 25-year output warranty and a 10-year workmanship warranty.
