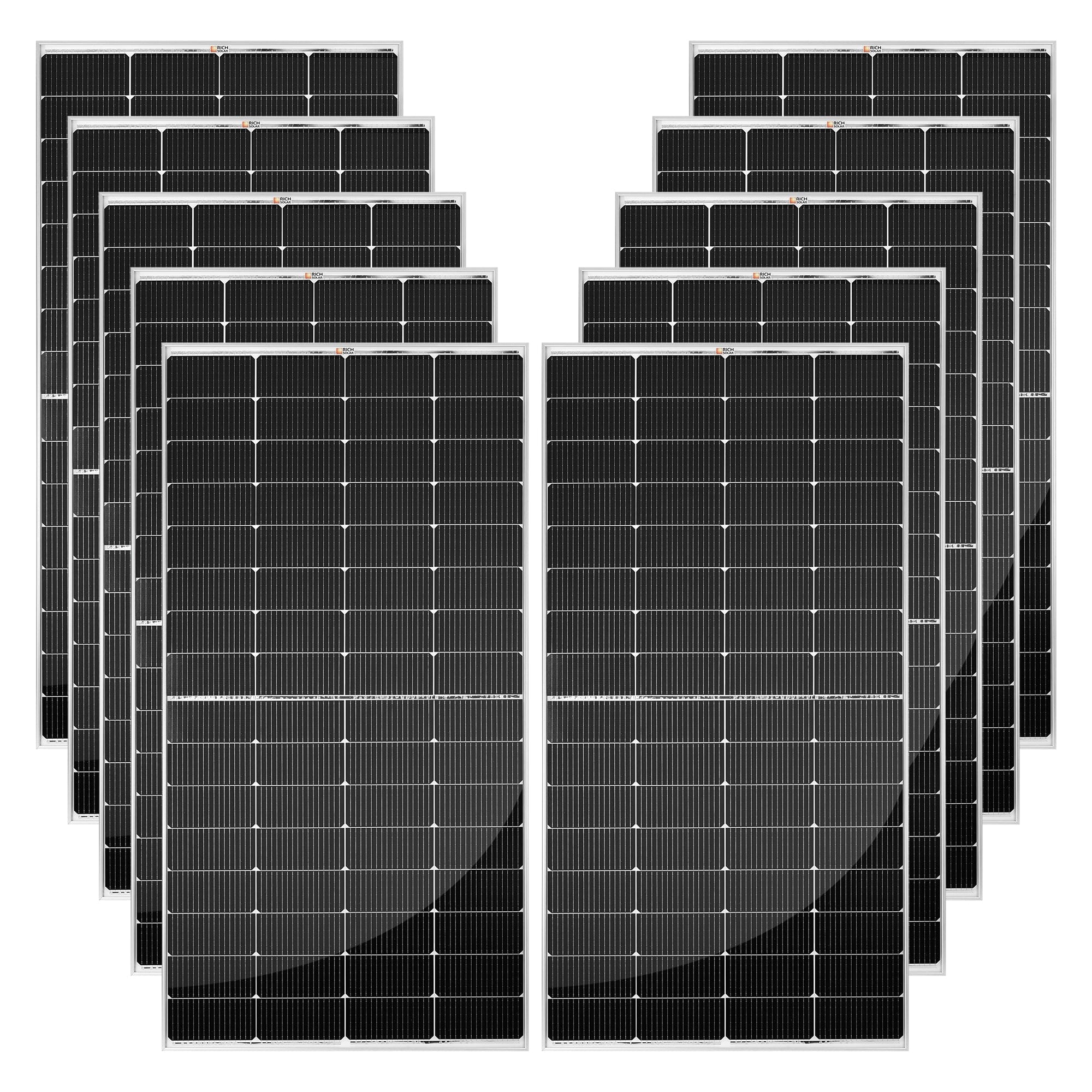

Rich Solar RS-CBK2500240 ten mega 250 panels

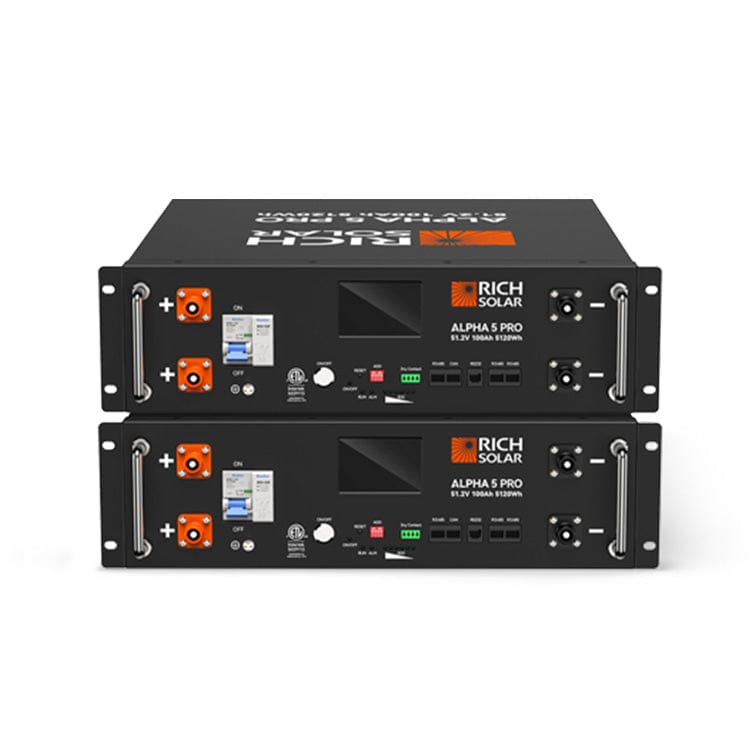

Rich Solar RS-CBK2500240 two alpha 5 pro batteries

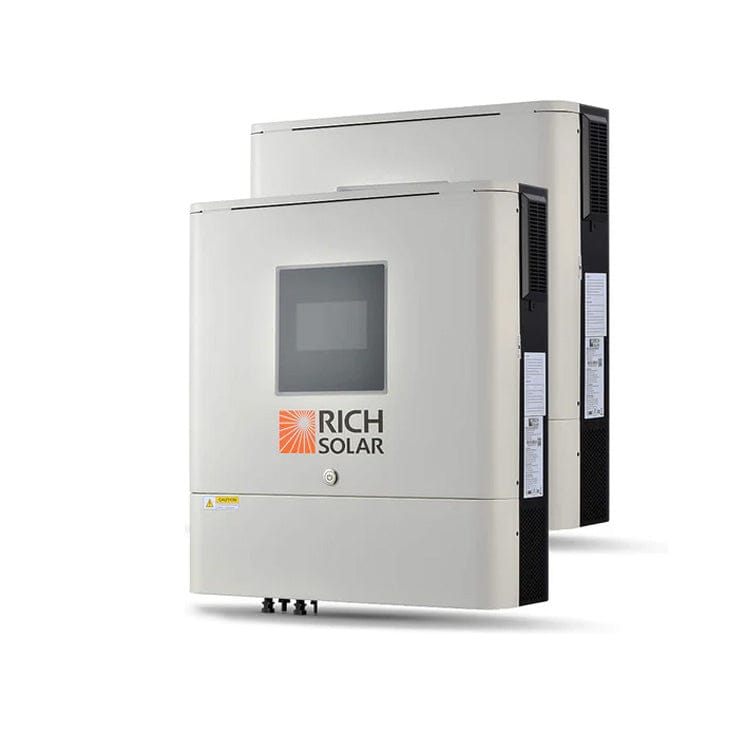

Rich Solar RS-CBK2500240 two nova 6500s inverters

Rich Solar 2500W 120/240V Solar Kit | 10.24kWh Battery

Name: Rich Solar 2500W 120/240V Solar Kit | 10.24kWh Battery
Brand: Rich Solar
SKU: RS-CBK2500240
Price: 9499.99 USD
Availability: InStock

SKU: RS-CBK2500240

Your Price:

$9,499.99

This 2,500W solar kit gives you a route to 120/240V power with ten panels and a 10.24kWh battery bank. It is suited to a carefully planned mix of essential circuits. Two inverters are included, but the supplied two-battery bank limits battery-only continuous output below their combined nameplate rating.

Factory SKU: RS-CBK2500240. Installation is required. Battery capacity is nominal; usable AC energy is lower after losses and reserve settings.

Best use cases

Cabins needing a mix of 120V and 240V circuits
Essential-circuit backup with active load management
Remote workshops with modest simultaneous power demand

Why choose this kit?

Ten 250W panels provide a manageable array footprint
Two 6.5kW inverters support split-phase wiring
Modular battery storage allows a future professionally designed expansion

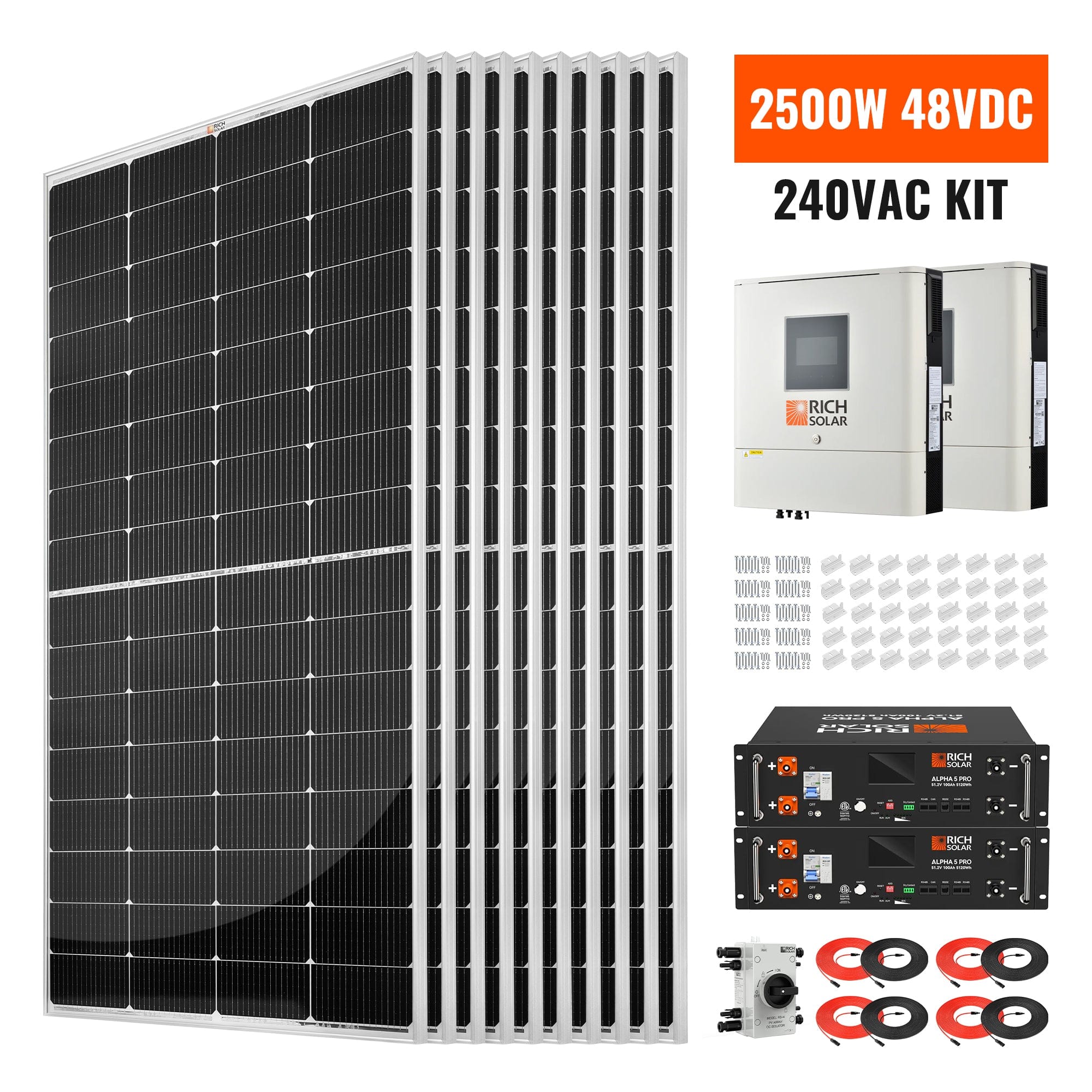

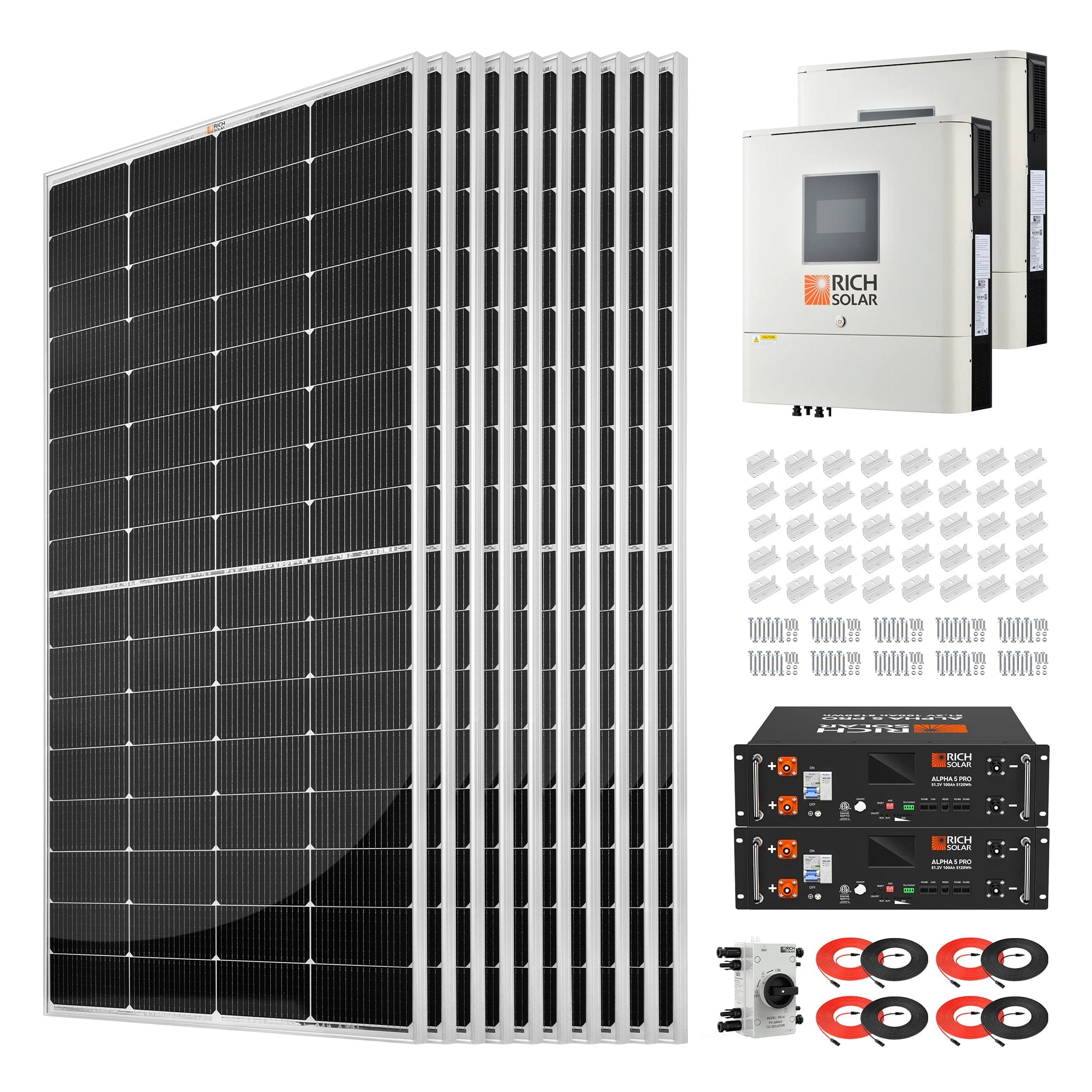

What is included?

2 x 6500W 48V Off-grid Solar Inverters (H6548S)
10 x MEGA 250 12V 250W Solar Panels (RS-M250)
2 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Batteries (RS-B5121P)
2 x 10 AWG 30 ft Extension Cables (RS-30102)
2 x 10 AWG 10 ft Extension Cables (RS-10102)
15 x Z Bracket sets (one set of 4) (RS-ZB4C)
1 x PV DC Quick Disconnect (RS-i4)

Only the listed equipment is included. Installation labor, permits, building transfer equipment, and additional site-specific materials are separate. A rack is included only where explicitly listed.

Full specifications

Factory SKU	RS-CBK2500240
Solar array	2500W
Battery bank	10.24kWh nominal
Battery count	2
DC system	48V class
AC configuration	120/240V split phase when configured
Inverter nameplate total	13000W
Surge nameplate	26000VA combined; system and battery limits apply

Solar panel specifications

Panel model	RS-M250
Rated power per panel	250W
Vmp / Imp	18.9V / 13.2A
Voc / Isc	22.8V / 13.7A
Maximum series fuse	20A
Dimensions per panel	60.6 × 29.9 × 1.2 in
Weight per panel	26.9 lb
Operating temperature	-40°F to 185°F
Frame / glass	Anodized aluminum / AR-coated tempered glass
Power output warranty	25 years; manufacturer terms apply

Battery specifications — per ALPHA 5 PRO

Model	ALPHA 5 PRO / RS-B5121P
Per-battery voltage / capacity	51.2V / 100Ah / 5,120Wh
Chemistry	LiFePO4
Max charge / continuous discharge	100A / 100A per battery
Max charge voltage / cutoff	57.6V / 40.0V
Recommended charge current	20A per battery
Cycle rating	7,000+ at 70% depth of discharge
Dimensions per battery	17.7 × 17.8 × 5.2 in
Weight per battery	100.9 lb
Protection / housing	IP21 / metal; protected indoor location
Charging / discharge temperatures	32°F to 140°F / -4°F to 149°F
Monitoring / communication	Wi-Fi, Bluetooth, RS485, CAN, RS232, dry contact
Heating	150W internal heater
Expansion	Up to 30 in parallel, subject to design and revision compatibility
Warranty	10-year limited manufacturer warranty

Hybrid inverter specifications — per unit

Model	NOVA 6500S / RS-H6548S
Per-inverter continuous / surge	6,500W / 13,000VA; battery limits apply
Per-inverter AC output	120V ±5%, pure sine wave
Two-inverter configuration	120/240V split phase only when correctly wired and configured
Nominal DC input	48V
Nominal AC input / sensing	120V; 50/60Hz automatic
Peak efficiency	91%
Transfer time	10ms UPS / 20ms appliance setting per unit; parallel operation may differ
Maximum PV array per inverter	8,000W (4,000W × 2)
MPPT / maximum PV Voc	90–230V / 250V per linked kit datasheet; confirm revision
PV input current	Confirm delivered revision
Maximum total charging current	120A per inverter; set within battery-bank limits
Dimensions per inverter	6.2 × 19.8 × 20.9 in
Weight per inverter	44 lb
Operating temperature	14°F to 104°F
Humidity	5–95% noncondensing
Communication	USB, RS232, RS485, Wi-Fi, dry contact
Parallel capability	Up to 6 compatible units
Warranty	3-year limited manufacturer warranty

PV-input revision check: The kit-linked NOVA 6500S sheet lists a 90–230V MPPT range and 250V maximum open-circuit voltage. The standalone product page lists a different revision at 90–450V / 550V. Your installer must confirm the supplied inverter nameplate and manual before choosing solar strings; do not assume the higher limit.

Power planning and installation

Two 100A batteries provide about 10,240W DC at nominal voltage before inverter losses. Battery-only continuous AC output is therefore below the 13,000W inverter total. Additional compatible battery capacity and proper design are needed to approach full inverter power.

Have a qualified installer check cold-weather panel open-circuit voltage, MPPT startup voltage, input current, battery settings, cable ampacity, fusing, grounding, and mounting. House circuits require approved transfer or isolation equipment. Keep indoor-rated electronics protected, and never backfeed an outlet.

Solar production depends on location, season, shade, panel angle, and system losses. Panel wattage is a laboratory rating; it is not a guaranteed charging rate. Loads running during charging reduce the energy stored.

Frequently asked questions

Why can’t two batteries deliver all 13000W continuously?

Their combined continuous battery rating is approximately 10240W DC before conversion losses. The inverter pair’s nameplate does not increase the batteries’ discharge capability.

Does 2500W mean the kit only powers 2500W of appliances?

No. It is the rated solar-array capacity. AC output, battery discharge power, and stored energy have separate limits.

How do I estimate runtime?

Plan around 10,240Wh of nominal storage and the actual average load on both 120V legs. Simultaneous large loads use that energy quickly and may also exceed the supplied bank’s continuous discharge limit.

Is installation included?

No. The two-inverter 120/240V configuration requires correct wiring, phase settings, grounding, and overcurrent protection. Have your installer verify that the planned battery bank can supply your loads.

What warranty applies?

Manufacturer warranties apply by component, including 10 years for the ALPHA 5 PRO batteries and 3 years for the hybrid inverters. The panels carry 25-year output coverage. Review the applicable exclusions and installation requirements.

Manufacturer specifications and manuals

Battery figures above follow the linked August 2026 sheets. Earlier kit copy may show different revision specifications; confirm delivered labels and manuals before configuring the system.
