Have room for four panels on your RV, van, or cabin? The 800W kit adds more daytime charging to a compact 12V system with a 2.56kWh ALPHA 2 battery. It is a practical fit for lights, electronics, and carefully sized appliance loads. Check the battery limit before planning to use the full 3,000W inverter rating.
Factory SKU: RS-CK800. Installation is required. Battery capacity is nominal; usable AC energy is lower after losses and reserve settings.
Best use cases
- RVs with enough mounting space for four rigid panels
- Vans supporting lighting, electronics, and smaller AC loads
- Small cabins with measured daily energy demand
Why choose this kit?
- Four MEGA 200 panels and a BRAVO 60 MPPT controller
- ALPHA 2 battery with Bluetooth and internal heating
- Pure sine wave 120V output for compatible equipment

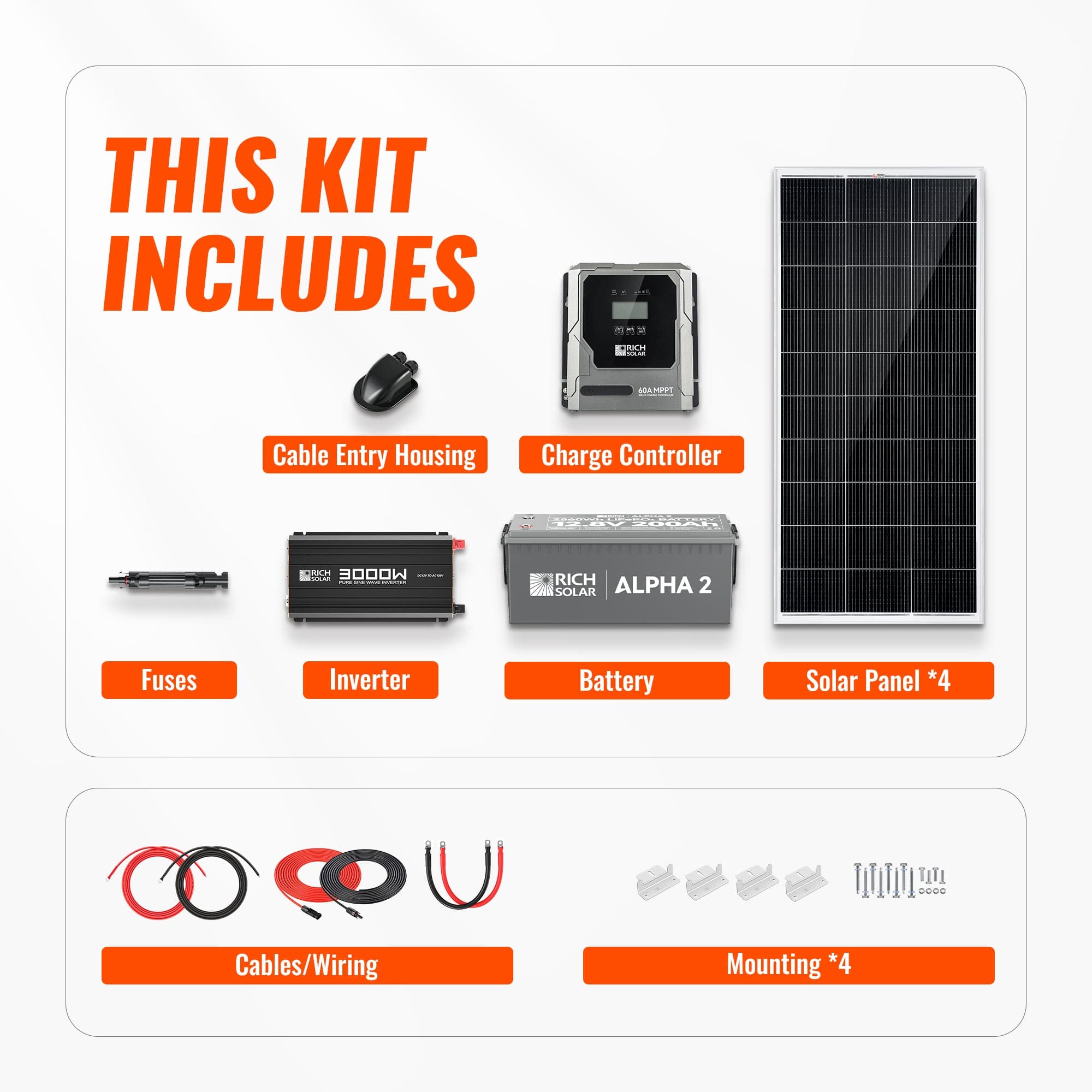

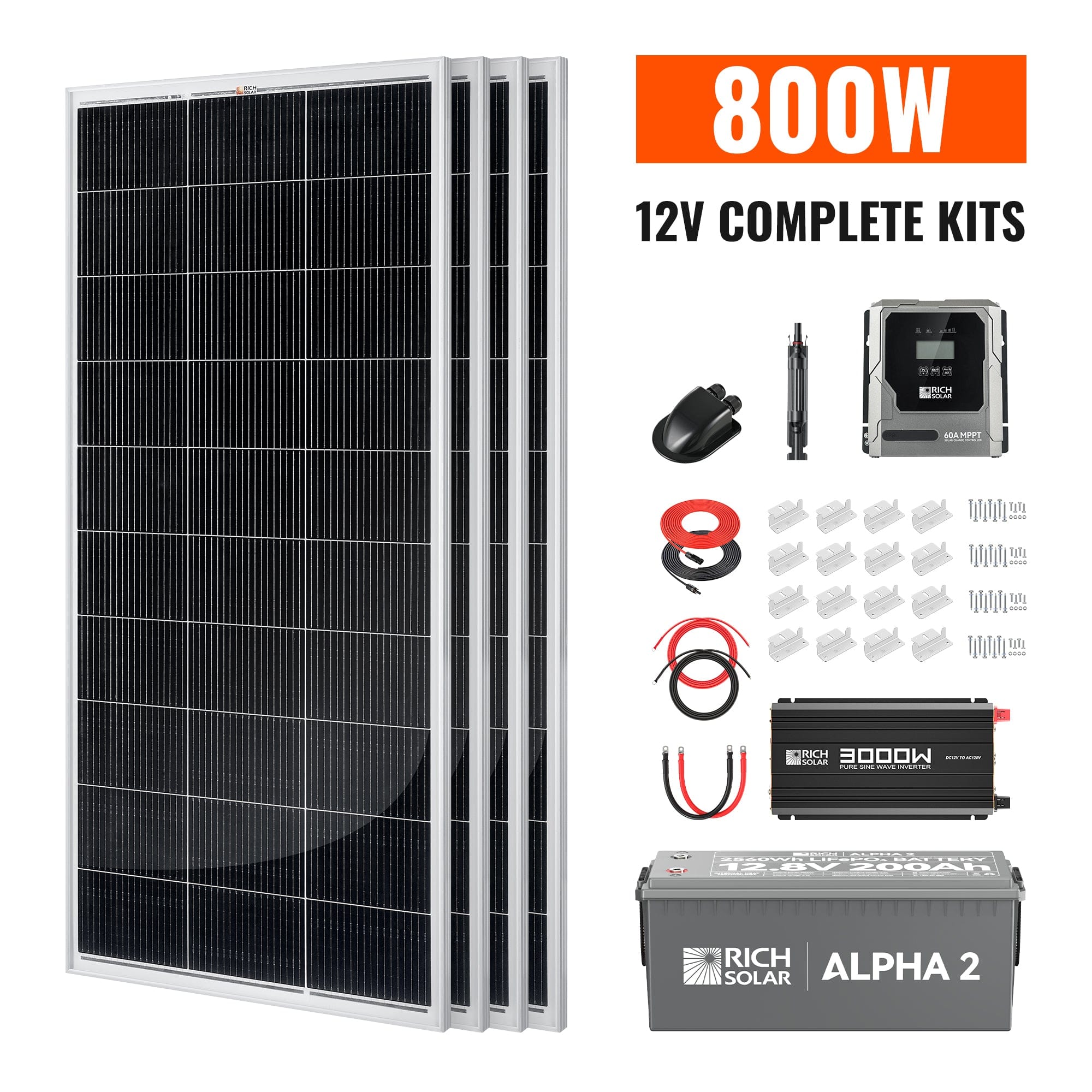

What is included?
- 4 x MEGA 200 12V 200W Solar Panels (RS-M200)
- 1 x Bravo 60A MPPT Charge Controller (RS-MPPT60PB)
- 1 x ALPHA 2 12V 200Ah Lithium Battery (RS-B122S)
- 1 x NOVA PURE 3K 12V 3000W Inverter (RS-V3P12)
- 4 x Z Bracket sets (one set of 4) (RS-ZB4C)
- 1 x Cable Entry Housing (RS-C2B)
- 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
- 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
- 1 x 10 ft 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
- 1 x 4/0 AWG 3/8" Battery Cables 3 ft Cable Set (Inverter to Battery) (RS-4/0A3F3)
Only the listed equipment is included. Installation labor, permits, building transfer equipment, and additional site-specific materials are separate. A rack is included only where explicitly listed.
Full specifications
| Factory SKU | RS-CK800 |
|---|---|
| Solar array | 800W |
| Battery bank | 2.56kWh nominal |
| Battery count | 1 |
| DC system | 12V class |
| AC configuration | 120V single phase |
| Inverter nameplate total | 3000W |
| Surge nameplate | 6000W |

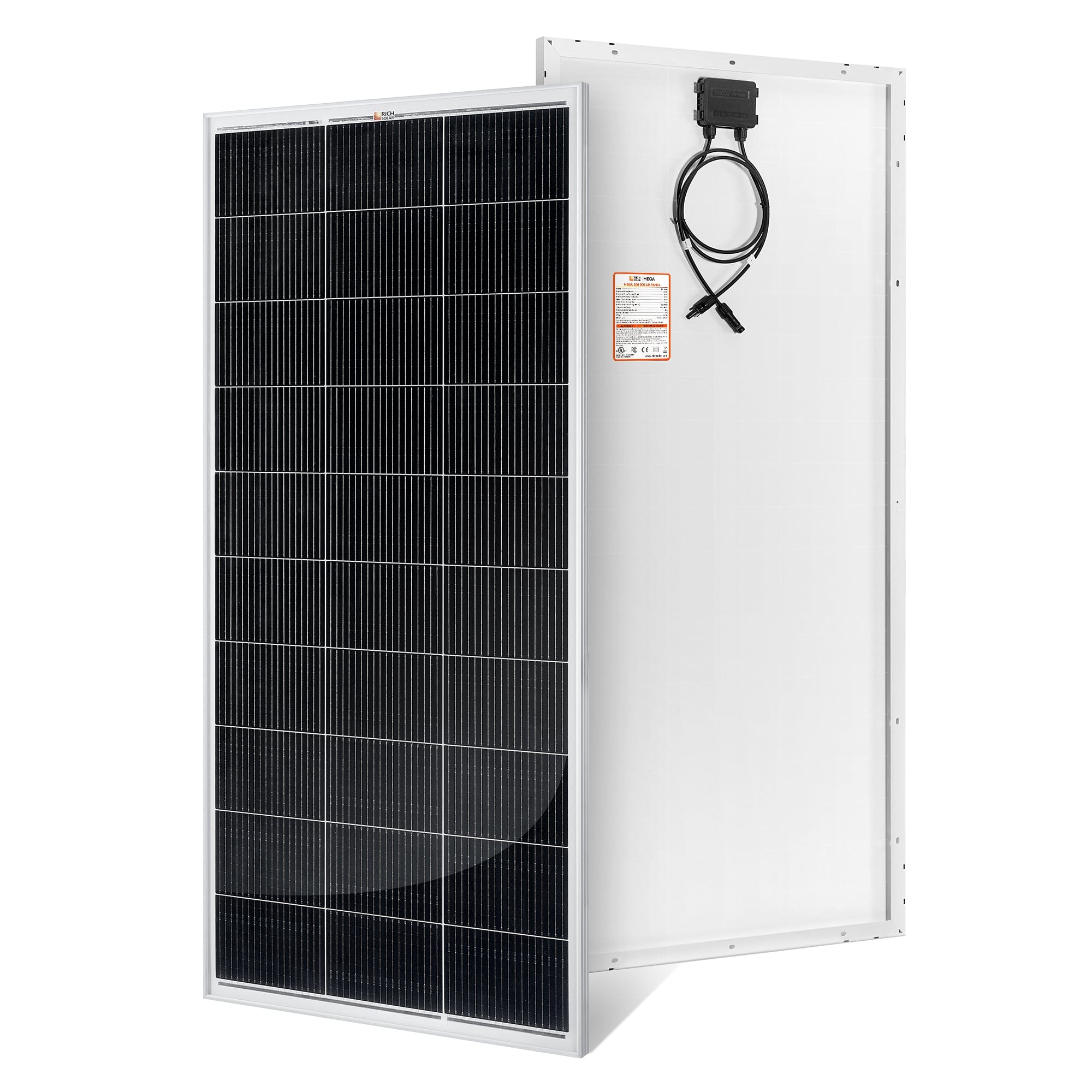

Solar panel specifications
| Panel model | RS-M200 |
|---|---|
| Rated power per panel | 200W |
| Vmp / Imp | 18.4V / 10.9A |
| Voc / Isc | 21.8V / 11.6A |
| Maximum series fuse | 15A |
| Dimensions per panel | 58.7 × 26.8 × 1.2 in |
| Weight per panel | 24 lb |
| Operating temperature | -40°F to 185°F |
| Frame / glass | Anodized aluminum / AR-coated tempered glass |
| Power output warranty | 25 years; manufacturer terms apply |

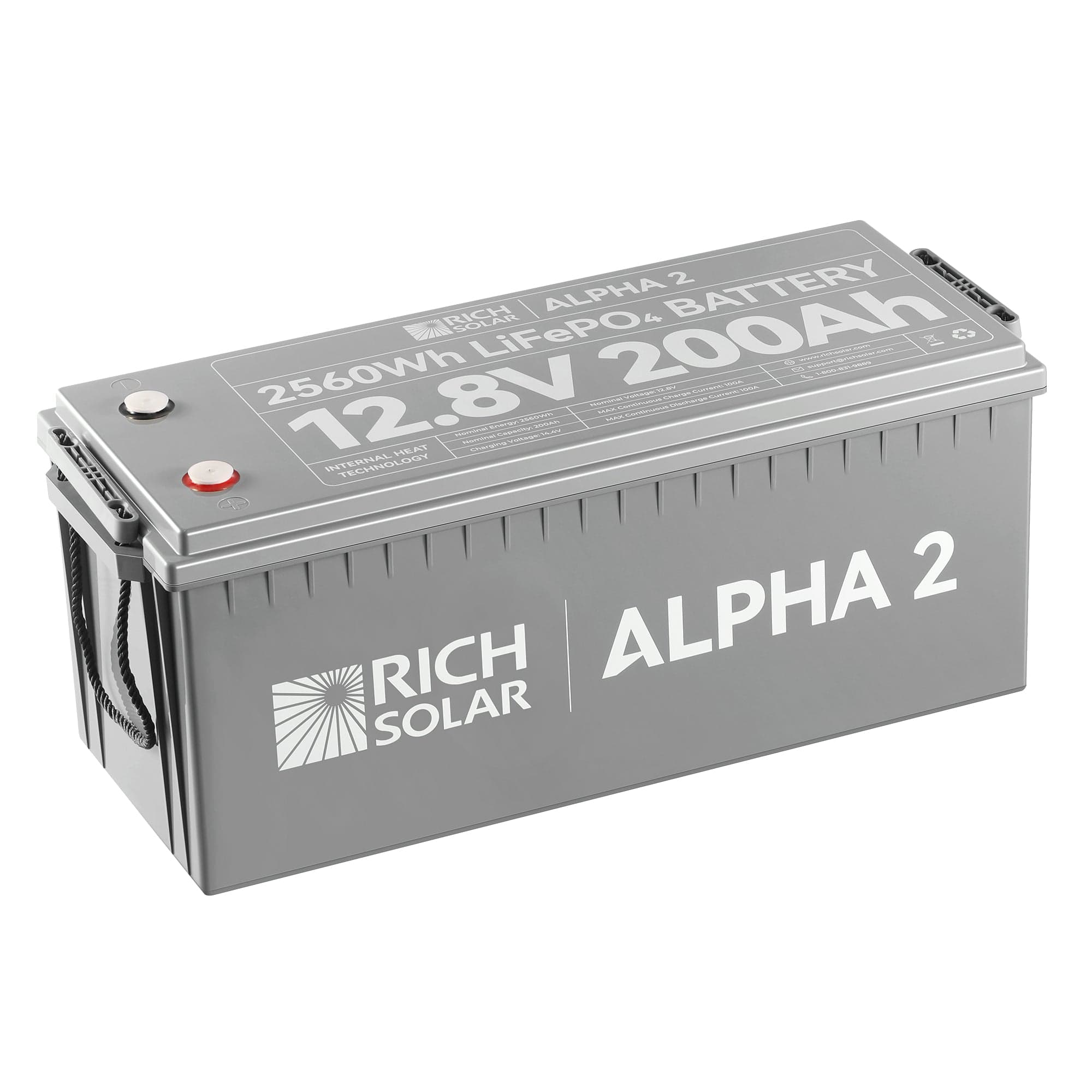

ALPHA 2 battery
| Model | RS-B122S |
|---|---|
| Voltage / capacity | 12.8V / 200Ah / 2560Wh |
| Chemistry | LiFePO4 |
| Current August 2026 datasheet | 200A max continuous discharge and max charging; 2560W DC maximum |
| Charge voltage | 14.2V recommended / 14.4V maximum |
| Recommended charging current | 100A per current datasheet; controller limits apply |
| Cycle life | 5000+ at 80% DoD |
| Dimensions / weight | 20.9 × 8.1 × 8.5 in / 52.9 lb |
| Heating / monitoring | 100W internal heater / Bluetooth |
| Protection | IP65 / M8 terminals |
| Charge / discharge temperatures | 32°F to 131°F / -4°F to 140°F |
| Expansion | Up to 4 compatible batteries in parallel |
| Warranty | 5-year limited manufacturer warranty |

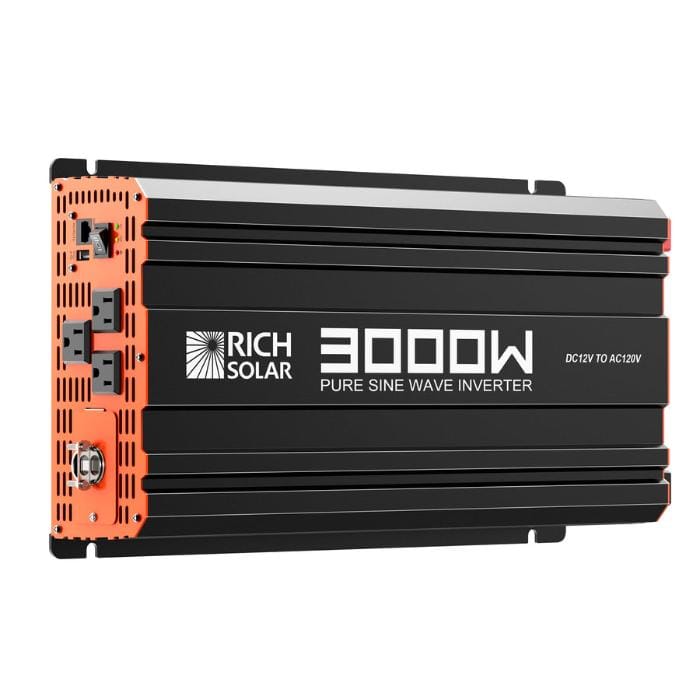

NOVA PURE 3K inverter
| Model | RS-V3P12 |
|---|---|
| Input / output | 12V DC / 120V AC, 60Hz |
| Continuous / surge | 3000W / 6000W nameplate; battery limits apply |
| Waveform / THD | Pure sine wave / <3% |
| Efficiency | >88% |
| Connections | 3 AC sockets; 5V 2.1A USB |
| Dimensions / weight | 18.7 × 9.6 × 4.0 in / 12.1 lb |
| Temperature | 14°F to 122°F |

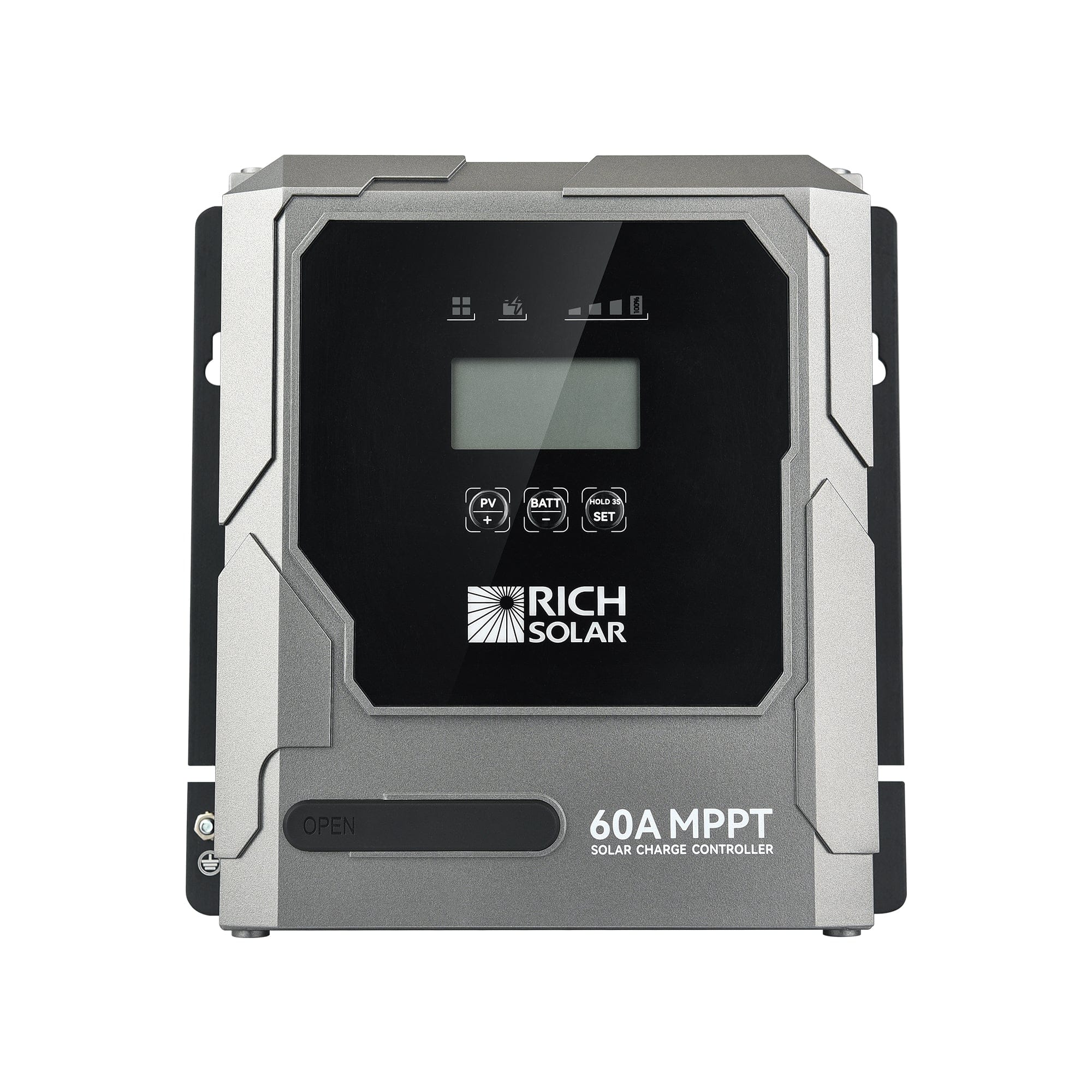

BRAVO 60 MPPT controller
| Kit model | RS-MPPT60PB |
|---|---|
| System voltage | 12V/24V auto |
| Max PV Voc / charge current | 100V DC / 60A |
| Recommended PV power | 900W at 12V / 1800W at 24V |
| Tracking / conversion efficiency | >99.5% / up to 98% |
| Dimensions / weight | 7.9 × 7.7 × 3.3 in / 4.18 lb |
| Protection rating | IP43 internal board / IP22 connections |
Power planning and installation
The current ALPHA 2 sheet lists 200A continuous, or about 2,560W DC at nominal voltage before inverter losses. Older kit copy lists 100A. Verify the delivered revision; either version cannot sustain the full 3,000W inverter rating from one battery alone.
Have a qualified installer check cold-weather panel open-circuit voltage, MPPT startup voltage, input current, battery settings, cable ampacity, fusing, grounding, and mounting. House circuits require approved transfer or isolation equipment. Keep indoor-rated electronics protected, and never backfeed an outlet.
Solar production depends on location, season, shade, panel angle, and system losses. Panel wattage is a laboratory rating; it is not a guaranteed charging rate. Loads running during charging reduce the energy stored.
Frequently asked questions
Can I run 3000W continuously from the included battery?
No. The current battery’s 2560W DC limit is already below 3000W, and inverter losses reduce available AC power further. Older battery revisions may have a lower current rating.
Can these four panels go on an RV roof?
Possibly. Each panel measures 58.7 × 26.8 inches. Check roof layout, mounting structure, shade, clearances, and cable routing before ordering.
How do I estimate runtime?
The included ALPHA 2 stores 2,560Wh nominally. A refrigerator cycles on and off, so use measured daily energy rather than its running watts alone. Inverter losses and idle consumption must also be included.
Is installation included?
Mounting and wiring are required before use. The installer must check roof structure, panel string voltage, wire sizes, fuses, and battery settings. Labor and any materials beyond the included list are separate.
What warranty applies?
The ALPHA 2 battery carries a 5-year limited manufacturer warranty, and the panels have a 25-year output warranty. Controller and inverter terms are separate; contact AllProGenerators to confirm current coverage before purchase.
Manufacturer specifications and manuals
- RS-M200 M200B 20260717.pdf
- ALPHA 2 SERIES 20260826.pdf
- NOVA PURE 20260827.pdf
- RS-MPPT60P-Specification-250610.pdf
- ALPHA 2 Manual 240925.pdf
- RS-V3P24 RS-V3P12 USER MANUAL 260323.pdf
- RS-MPPT60P Manual 241227 compressed.pdf
Battery figures above follow the linked August 2026 sheets. Earlier kit copy may show different revision specifications; confirm delivered labels and manuals before configuring the system.
AllProGenerators support
A quick load check now is easier than finding out your setup is too small on the first trip. Call Frank at 954-249-2314. AllProGenerators has served generator buyers since 2018.
Compare off-grid solar systems and browse our Rich Solar products.
| Shipping | This item ships to |
 |
Fast Shipping in the USA. Items ship the same or next day We process orders 7 days a week to ensure the fastest shipping possible. All generators are shipped as fast as possible out of several US locations to ensure the fastest delivery. |
|
 |
We Put Our Customers First We have done the research for you to find the best manufacturers with the best warranties. Every unit on our site is covered by a high quality manufacturers warranty. |
|
 |
We offer the absolute lowest price we can offer |
|
 |
We insist that you love our service. If you're unhappy for any reason whatsoever, just let us know and we'll bend over backwards to make things right again. |
|
 |
Ordering from AllProGenerators.com is 100% safe and secure so you can rest easy. Your personal details are never shared, sold or rented to anyone either. |
Description
