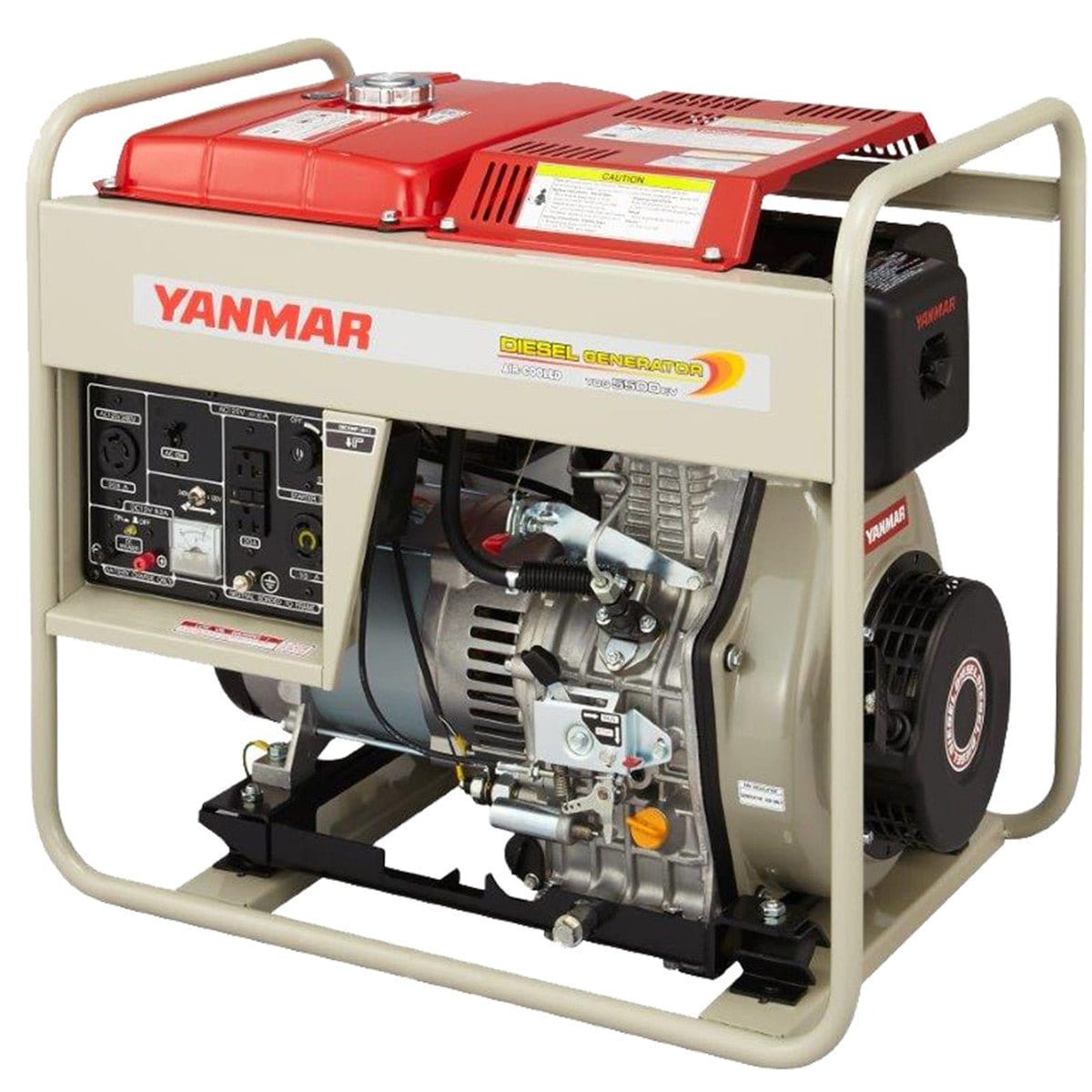

YANMAR - 50HZ - YDG5500N -5500W Diesel Generator- Export model 50HZ

Powerful & Efficient Performance

The Yanmar YDG5500N‑5EB generator delivers reliable 5.5 kVA peak (4.2 kVA continuous) power—ideal for job sites, backup use, and remote work. Driven by Yanmar’s direct‑injection, air‑cooled diesel engine, it offers industry‑leading fuel efficiency and consistent output with an AVR (automatic voltage regulator) that minimizes voltage fluctuations.

Engineered for Durability and Ease

Yanmar L100 series engine: vertical, 4‑cycle, air‑cooled, direct‑injection for long service life and low fuel use :contentReference[oaicite:1]{index=1}
435 cc displacement delivers ~5.7 kW @ 3000 rpm (50 Hz) or ~6.6 kW @ 3600 rpm (60 Hz) :contentReference[oaicite:2]{index=2}
Dual start system: recoil pull‑start with optional electric start—dependable even when battery’s low :contentReference[oaicite:3]{index=3}

Fuel & Run‑Time

13 L fuel tank: provides 6–7 hours of continuous run-time at 50 Hz; slightly less at 60 Hz :contentReference[oaicite:4]{index=4}
Low fuel consumption: thanks to engine’s compact, direct‑injection design—perfect for long‑haul work sessions :contentReference[oaicite:5]{index=5}

Robust & Portable Design

Open-frame, full roll frame keeps components safe and allows easy access :contentReference[oaicite:6]{index=6}
Vibration-isolated mounts: smoother operation and less wear :contentReference[oaicite:7]{index=7}
Compact dimensions: 720 × 480 × 578 mm—portable yet powerful :contentReference[oaicite:8]{index=8}
Dry weight: 95 kg for recoil, 108 kg with electric start :contentReference[oaicite:9]{index=9}

Convenience & Safety Features

AVR system: delivers stable voltage for sensitive electronics :contentReference[oaicite:10]{index=10}
12 V DC output (8.3 A): charges batteries or runs DC tools :contentReference[oaicite:11]{index=11}
Low-oil shutdown: protects engine from damage :contentReference[oaicite:12]{index=12}
Noise at 7 m: ~84 dB(A)—quiet relative to its class :contentReference[oaicite:13]{index=13}
Single-phase output: versatile 120–240 V range—supports 110/220 or 120/240 setups :contentReference[oaicite:14]{index=14}

Ideal Uses

From powering tools on construction sites, keeping you going during outages, to fueling remote cabins or events, the YDG5500N‑5EB balances portability, performance, and reliability in a compact package.

Browse the full Yanmar Diesel Generator collection →

SPECIFICATIONS

Model		YDG2700N		YDG3700N		YDG5500N		YDG6600TN
Generator	Type	Revolving field type 2 pole generator
	Frequency [Hz]	50	60	50	60	50	60	50	60
	Max. AC output [kVA]	2.2	2.7	3.2	3.7	4.6	5.5	5.5	6.6
	Cont. AC output [kVA]	2	2.5	3	3.5	4.2	5	5.0(1.7)	6.0(2.0)
	DC output (generator & charger) [V-A]	12-8.3						-
	Voltage [V]	120, 220, 240, 110 / 220, 120 / 240						380 (220)
	Rated power factor [%]	100						80(100)
	Phase	Single Phase						3-phase (single)
	Excitation system	Self-excitation						Self & separate excitation
Engine	Model	L48N5/6-G(E)Y		L70N5/6-G(E)Y		L100N5/6-G(E)Y		L-100N5/6-GEYT
	Type	Vertical, 4-cycle, air-cooled diesel engine
	Displacement [cc]	219		320		435
	Cont. output [kW/min-1(rpm)]	2.8/3000	3.1/3600	4.1/3000	4.4/3600	5.7/3000	6.6/3600	5.7/3000	6.6/3600
	Starting system	Recoil or Recoil / Electric						Electric
	Combustion system	Direct injection
	Governor system	All speed by centrifugal weight
	Fuel oil	Diesel fuel oil
	Fuel tank capacity [lit.]	7.2		13
	Lube oil capacity [lit.]	0.8		1.1		1.65
	Operation capacity (One tankful)* approx. [hr.]	7	6.5	9.5	8	7	6	5.5	4.9
Unit	Noise level at 7m (approx.) [dB (A)]	79	80	81	82	84	85	84	85
	Dimensions L x W x H (Recoil) [mm]	590 x 416 x 500		650 x 496 x 530		720 x 480 x 578		-
	Dry weight (Recoil) [kg]	55		70		95		-
	Dimensions L x W x H (Electric) [mm]	649 x 416 x 500		650 x 496 x 530		720 x 480 x 578
	Dry weight (Electric) [kg]	64		82		108
