DETAILS
A WIDE OPTION
YANMAR’s pump series range in bore size from 2“ to 4“ for fresh water, semi-trash, trash, and diaphragm models. The series can handle all types of water, from fresh to muddy sludge.
LONG-RUNNING, FUEL-THRIFTY DIESELS
Fuel-efficient diesel pumps can be operated 1.5-4 times longer than gasoline pumps. This advantage truly shows in night time and other continuous pumping operation at sites where no commercial power is available.
DURABLE CONSTRUCTION
The principal parts of each pump are reinforced for superior wear resistance. The trash pumps are further strengthened by adding liners to the inner casings.
EASY MAINTENANCE
Cleaning the inside of the casing can be done simply by just removing a few bolts. With trash pumps, the casing cover and the inner casing come in one block, so separation and fitting is very easy.
KEY FEATURES
- Cast aluminum with cast iron wear parts
- Silicon carbide / Viton mechanical seal
- EPDM / EPR O-Rings
- 2”, 3”, or 4” removable male NPT suction and discharge ports
- Discharge rotates in 90o increments
- Easy clean out with one tool serviceability
- Maximum solids handling up to 1-1/4”
- Maximum flow up to 460 GPM
- Maximum head up to 110 ft
- Self-priming to 26 ft
- Optional Wheel Kit and Hose Kit available
STANDARD FEATURES
- CAST IRON IMPELLER
- ONE TOOL PUMP SERVICEABILITY
- SILICON CARBIDE MECHANICAL SEAL WITH GRAPHITE-IMPREGNATED SEAT AND VITON ELASTOMERS
- HEAVY-DUTY STEEL ROLL FRAME AND STRAINER INCLUDED
- BUILT-IN EPDM/EPR CHECK VALVE
- REMOVABLE / REPLACEABLE CAST IRON SUCTION / DISCHARGE PORTS
- THE DISCHARGE PORT ROTATES IN 90O INCREMENTS
- VIBRATION DAMPENING FEET
- MAXIMUM FLUID TEMPERATURE OF 180O F
Yanmar Diesel Trash Pump in Action:

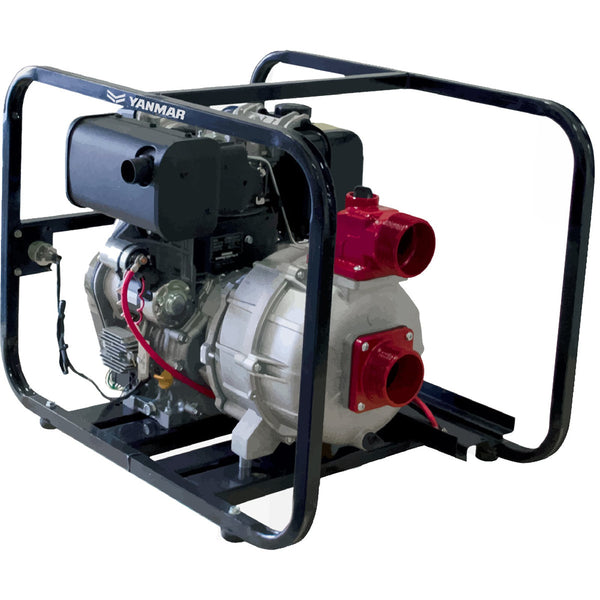

The YANMAR Diesel Pump - YDP40TW - Trash Pump is your reliable and efficient solution for all your trash pumping needs. Its powerful diesel engine ensures quick and easy removal of debris and waste, saving you time and effort. With its strong and durable construction, it is built to withstand heavy-duty use and provide long-lasting performance. Keep your worksite clean and productive with the YANMAR Diesel Pump - YDP40TW - Trash Pump.
|
PUMP MAX FLOW RATE (LPM / GPM) | PUMP MAX LIFTING HEAD (M/FT) (M/FT) | LENGTH (IN / MM) | WIDTH (IN/ MM) | HEIGHT (IN / MM) | |
YDP40TW-E4 | 1740 / 460 | 29 / 95 | 31 / 787.4 | 22.5 / 571.5 |
23.6 / 599.4 |
MODEL | ENGINE FAMILY | REGULATION | CYLINDERS | BORE X STROKE (MM) | DISPLACEMENT (L / IN3) | COMBUSTION TYPE | ASPIRATION | GROSS INTERMITTENT RA POWER (KW) | TED SPEED | STARTING SYSTEM | GOVERNOR TYPE |
YDP40TW-E4 | L100W | FINAL TIER 4 | 1 | 86 X 75 | 0.435 / 26.5 | Direct Injection |
Natural |
6.8 | 3600 | Electric / Recoil | Mechanical |
