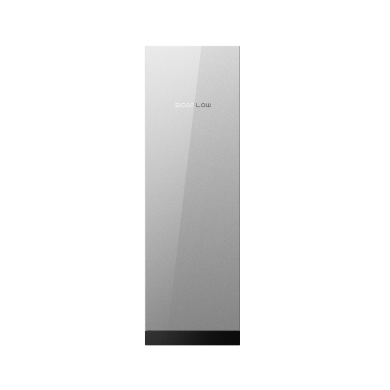

EcoFlow Smart Home Panel 3

EcoFlow Smart Home Panel 3 – 32-Circuit Whole-Home Energy Management

The EcoFlow Smart Home Panel 3 is EcoFlow's next-generation whole-home energy management panel, featuring 32 independently controlled circuits for significantly greater coverage and control than previous EcoFlow Smart Home Panels. Designed to work with the EcoFlow DELTA Pro Ultra X ecosystem, the Smart Home Panel 3 provides automatic backup power, circuit-level monitoring, intelligent load management, and advanced home energy control from one integrated system.

With support for 32 load circuits, the Smart Home Panel 3 moves beyond essential-load backup and is designed for much broader whole-home power management. Each circuit can be independently monitored and controlled, allowing homeowners to prioritize essential loads, manage energy consumption, and automatically shed non-essential loads when necessary to extend available backup time.

32 Independently Controlled Circuits

One of the biggest upgrades with the EcoFlow Smart Home Panel 3 is its expanded 32-circuit design. The previous Smart Home Panel 2 supports 12 circuits, while the original EcoFlow Smart Home Panel supported up to 10 circuits.

With 32 independently controlled circuits, Smart Home Panel 3 can accommodate far more of a typical home's electrical loads, providing greater flexibility for whole-home backup, energy monitoring, automation, and load management.

Smart Home Panel 3 vs. Smart Home Panel 2

Fast Automatic Backup Power

When utility power fails, the EcoFlow Smart Home Panel 3 can automatically switch the home from grid power to a compatible EcoFlow battery system in under 20 milliseconds. This provides fast, automatic backup without requiring the homeowner to manually transfer loads during an outage.

Intelligent Circuit-Level Energy Control

The Smart Home Panel 3 provides real-time monitoring, independent control, and scheduling for all 32 circuits. Homeowners can identify high-energy loads, prioritize essential appliances, schedule circuits, and manage how stored battery energy is distributed throughout the home.

During an extended outage, loads can be categorized based on priority so available battery capacity is directed toward the circuits that matter most. This gives homeowners greater control over backup runtime instead of simply powering every connected load continuously.

Designed for the EcoFlow DELTA Pro Ultra X

The Smart Home Panel 3 is designed to integrate with the EcoFlow DELTA Pro Ultra X whole-home backup ecosystem. The system can combine battery storage, solar generation, generator backup, grid power, and intelligent energy management to create a scalable home backup solution.

Smart Home Panel 3 Specifications

• Number of Load Branches: 32
• Independent Circuit Control: 32 circuits
• Grid Compatibility: 120/240V and 120/208V, 60Hz
• Maximum Continuous Input Current: 160A
• Branch Circuit Rating: Up to 90A on 8 circuit outputs and up to 60A on 24 circuit outputs
• Automatic Switchover: Under 20 ms with compatible system configuration
• Enclosure Rating: NEMA 3R
• Operating Temperature: -22°F to 122°F (-30°C to 50°C)
• Dimensions: 14.37 × 7.40 × 45.28 in.
• Weight: Approximately 88.8 lb.
• Warranty: 10 years

Why Upgrade to Smart Home Panel 3?

For homeowners who want more than essential-circuit backup, the Smart Home Panel 3 represents a major expansion over previous EcoFlow panels. Its 32-circuit capacity compared with 12 circuits on Smart Home Panel 2 allows substantially more of the home's electrical system to participate in smart energy management and backup power.

Combined with DELTA Pro Ultra X, solar, compatible generator input, and EcoFlow's intelligent energy management platform, Smart Home Panel 3 provides a scalable foundation for whole-home backup power and long-term residential energy management.
