EcoFlow TITAN 5000 Whole-Home Backup Power

The TITAN 5000 is built for homeowners who want serious 120V/240V split-phase backup power without starting with a permanently installed, oversized battery system. One unit delivers 5,017.6Wh of LFP storage and 7,200W of rated output, with expansion up to 30kWh using five TITAN 5kWh Extra Batteries.

This is real whole-home-capable power in a modular format. It can support demanding household loads, including central air conditioning, while giving you several ways to recharge—from the grid, solar, or a compatible generator. Add the EcoFlow Smart Home Panel 10 when you want automatic backup, circuit-level control and grid-connected energy management.

Choose Your EcoFlow TITAN 5000 Configuration

Select the package that matches how you plan to use the system. Every option begins with the same TITAN 5000 main unit and its standard charging cables.

• TITAN 5000: One 5,017.6Wh power station for direct 120V/240V use.
• TITAN 5000 + TITAN Battery: Adds one 5kWh TITAN Battery for approximately 10kWh of total storage.
• TITAN 5000 + Smart Home Panel 10 (240V): Adds the compatible ten-circuit panel for automatic home backup and circuit-level control.

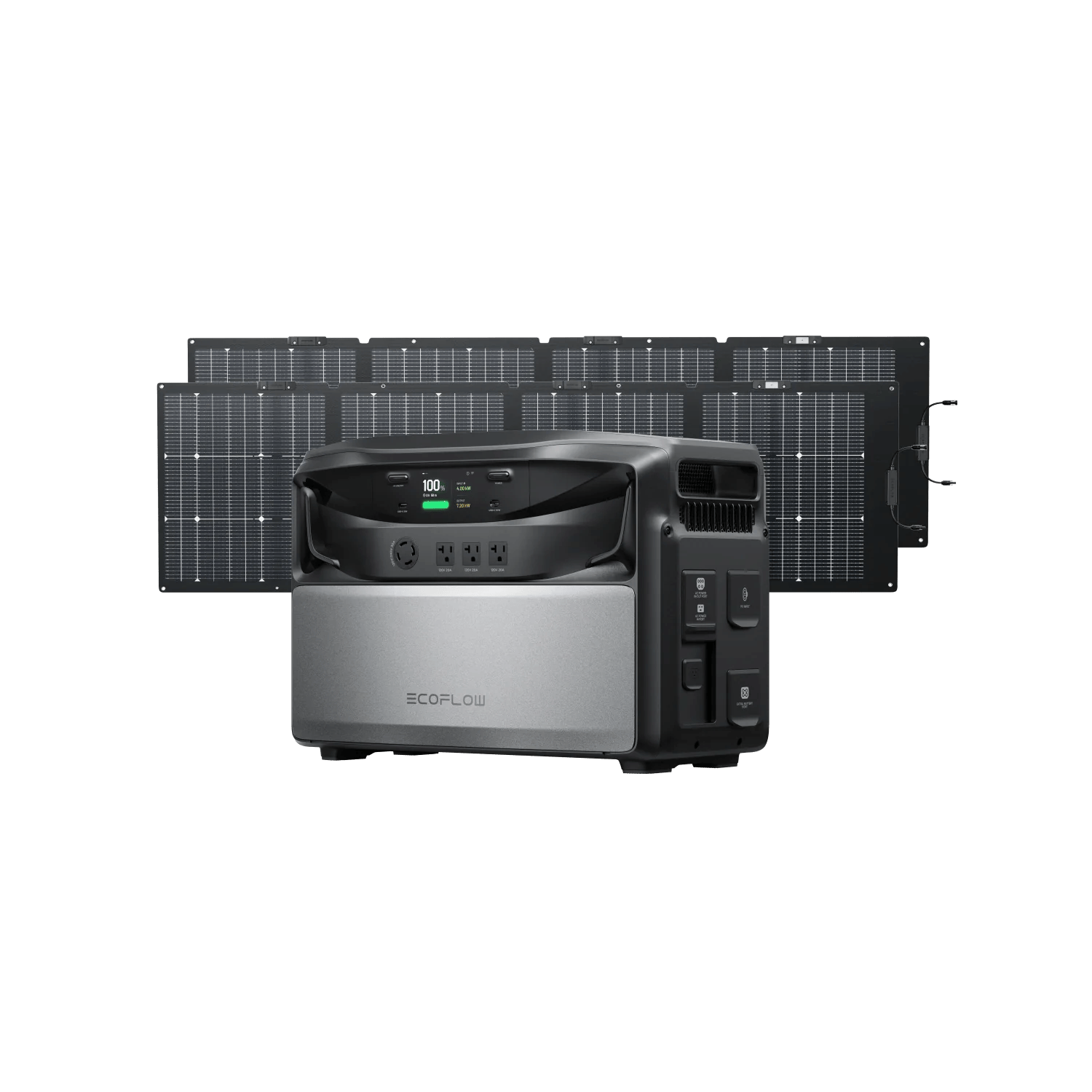

• TITAN 5000 + 2 × 220W Portable Solar Panels: Adds two EcoFlow 220W portable panels for 440W of portable solar.
• TITAN 5000 + 2 × 400W Portable Solar Panels: Adds two EcoFlow 400W portable panels for 800W of portable solar. This option may remain unavailable when EcoFlow has no bundle inventory.
• TITAN 5000 + TITAN Battery + Smart Home Panel 10 (240V): Combines approximately 10kWh of storage with automatic ten-circuit home integration.

Bundle components may ship in separate cartons. Smart Home Panel installation must follow applicable electrical codes and should be completed by a qualified electrician.

Why the TITAN 5000 Stands Out

• 7,200W rated AC output: Designed to run major 120V and 240V household loads.
• 5–30kWh modular capacity: Start with 5,017.6Wh and add up to five extra batteries as your backup needs grow.

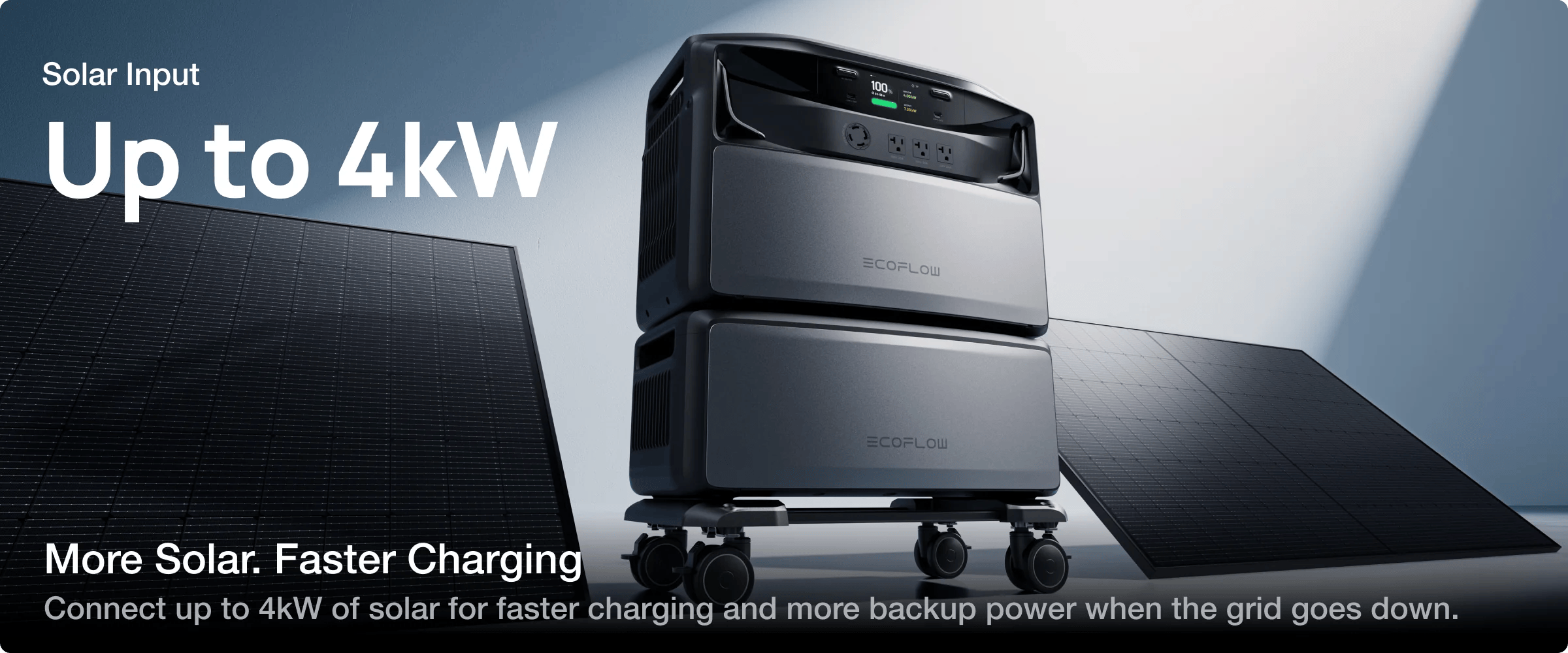

• Up to 4,000W solar input: One high-voltage MPPT input supports substantial solar charging.
• Fast AC charging: Up to 7,200W maximum AC input.
• LFP battery chemistry: Durable lithium iron phosphate cells for long-term home and emergency use.
• Split-phase 120V/240V power: Supports both standard appliances and larger household equipment.

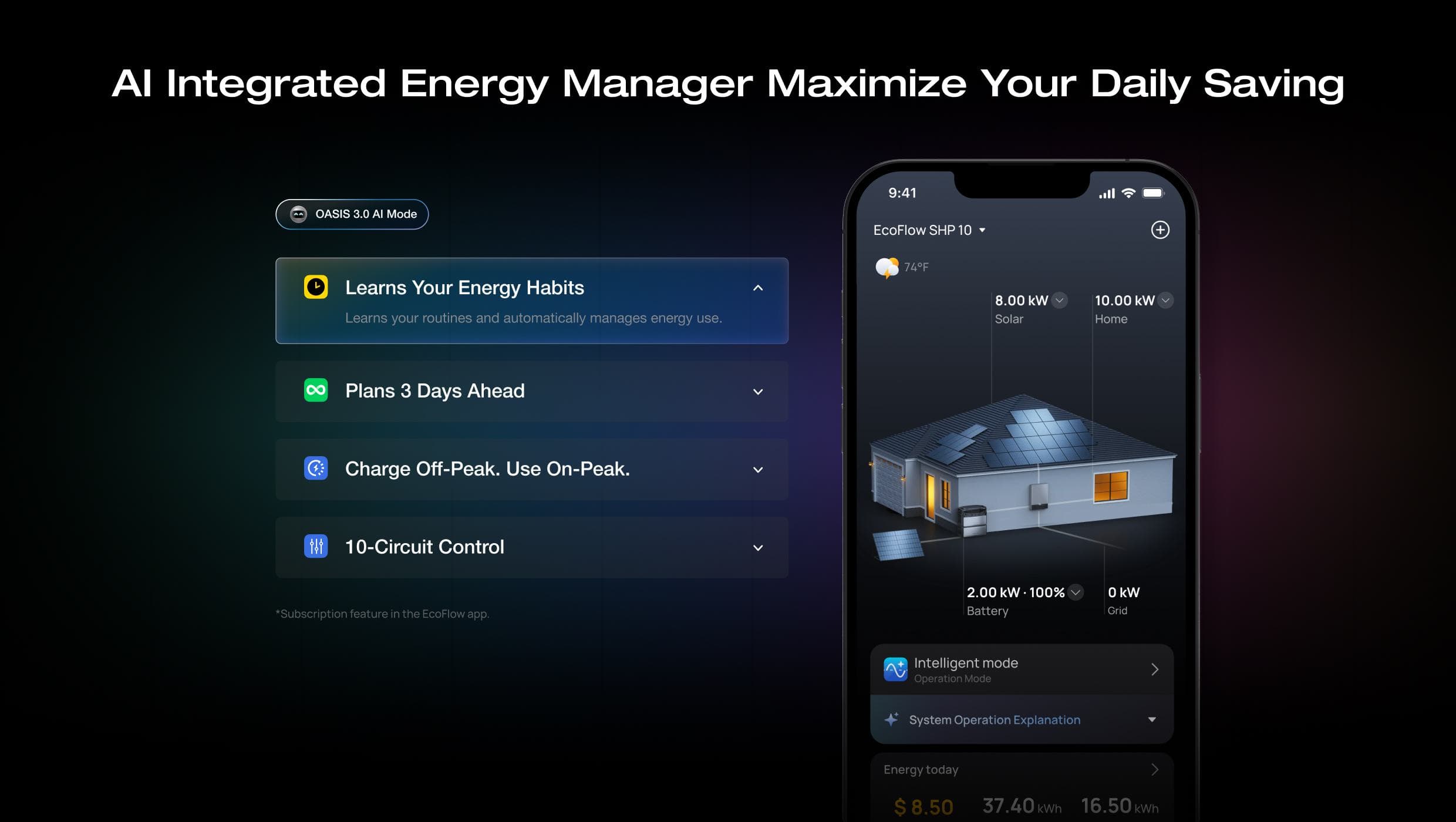

• Smart energy management: Wi-Fi, Bluetooth 5.0 and EcoFlow OASIS 3.0 support monitoring and automated energy strategies.
• Home integration ready: Compatible with the EcoFlow Smart Home Panel 10 (240V) for automatic backup and ten-circuit control.

Best Uses

• Whole-home emergency backup during outages
• Running refrigerators, freezers, lighting, internet and medical equipment
• Powering a compatible central air-conditioning system
• Time-of-use energy management with the Smart Home Panel 10
• Solar-powered home backup and off-grid energy storage
• Generator-assisted backup where longer runtime is required
• Homeowners who want to start at 5kWh and expand later

Performance and Power

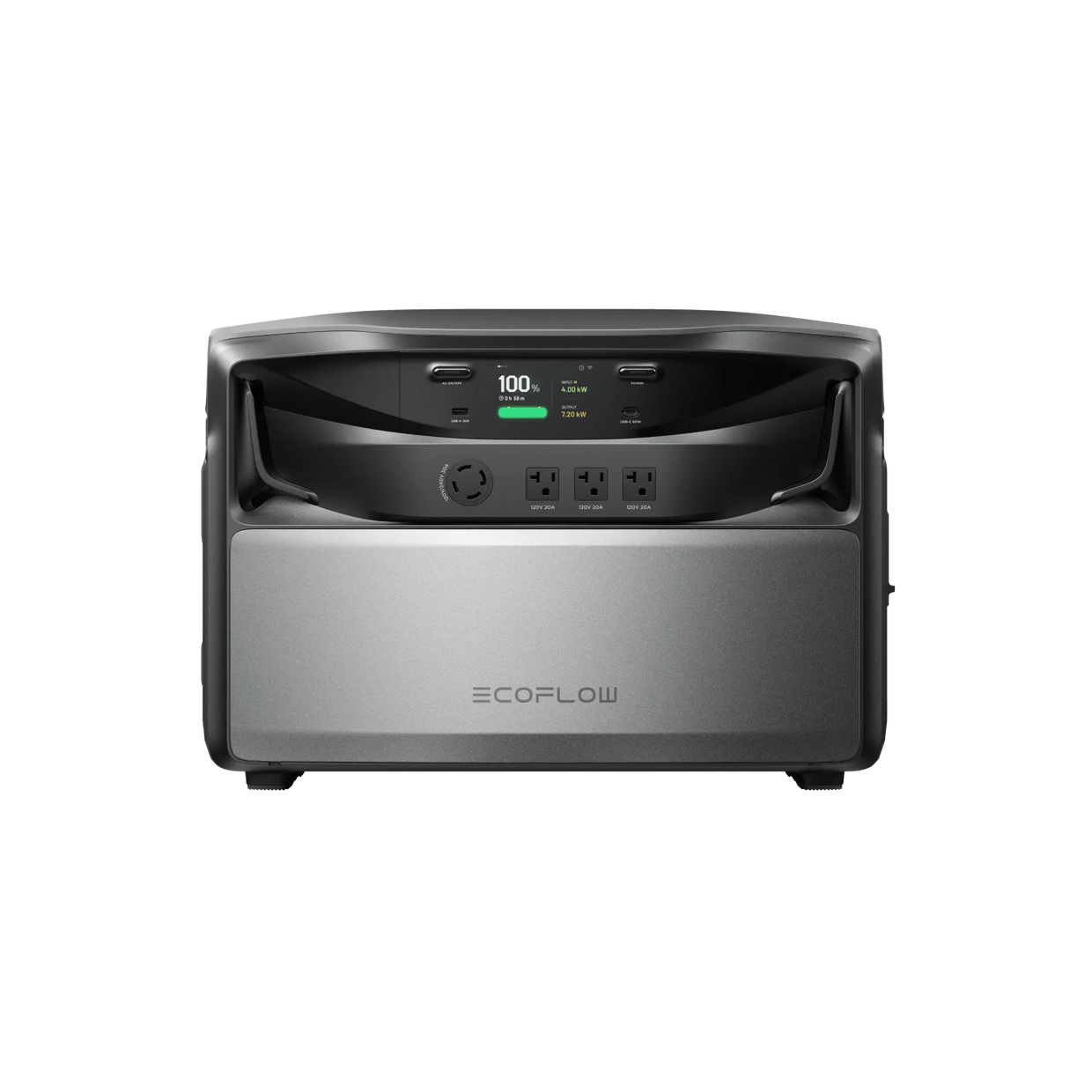

The TITAN 5000 supplies 7,200W of rated output at 120V/240V, 60Hz split phase. On the front panel you get three NEMA 5-20R outlets for standard loads and one NEMA L14-30R outlet for high-power 120V/240V equipment. USB-C and USB-A outputs handle phones, tablets and other small electronics.

For home backup, the Smart Home Panel 10 enables a transfer time under 20 milliseconds. It also adds circuit-level control and supports grid connection without export. If you plan to AC-couple an existing rooftop solar system, EcoFlow specifies the Smart Home Panel 10 (240V) and a CT sensor.

Full Specifications

What’s Included

• 1 × EcoFlow TITAN 5000
• 1 × EcoFlow Solar-to-HP500 Charging Cable
• 1 × EcoFlow AC Charging Cable (C20)
• 1 × Quick Start Guide

Frequently Asked Questions

Is the EcoFlow TITAN 5000 available now?

Yes. The TITAN 5000 and the available EcoFlow bundle configurations can be ordered from this page. An option marked sold out cannot be purchased until inventory returns.

Can the TITAN 5000 power a whole house?

It is designed for whole-home backup applications and provides 7,200W of split-phase output. Actual coverage depends on the starting and running wattage of your appliances, which circuits you select and how long you need them to run.

Can it run central air conditioning?

EcoFlow states that the TITAN 5000 can power a 3-ton air conditioner along with other household essentials. Your specific HVAC system should still be checked for running watts, locked-rotor or starting demand, and installation requirements.

How much battery capacity can I add?

The base unit includes 5,017.6Wh. You can add up to five TITAN 5kWh Extra Batteries for a maximum system capacity of 30kWh.

How much solar can the TITAN 5000 accept?

Maximum solar input is 4,000W through one 40–450V, 16A input. Solar array voltage, current and wiring must stay within EcoFlow’s published limits.

Do I need the Smart Home Panel 10?

No for portable use through the TITAN’s built-in outlets. The Smart Home Panel 10 is required for integrated automatic home backup, circuit control and supported grid connection. AC coupling with an existing rooftop solar system also requires the 240V panel and a CT sensor.

Can I charge it with a generator?

EcoFlow designed the TITAN platform for broad generator compatibility. Generator size, waveform, connection method and charging settings must be compatible with EcoFlow’s requirements.

Is professional installation required?

The portable unit can be used from its built-in outlets. Any connection to a home electrical system or Smart Home Panel should be completed under applicable codes by a qualified electrician.

Specifications and bundle contents were checked against EcoFlow’s current U.S. product information. Manufacturer details can change; review the supplied manuals before installation.
