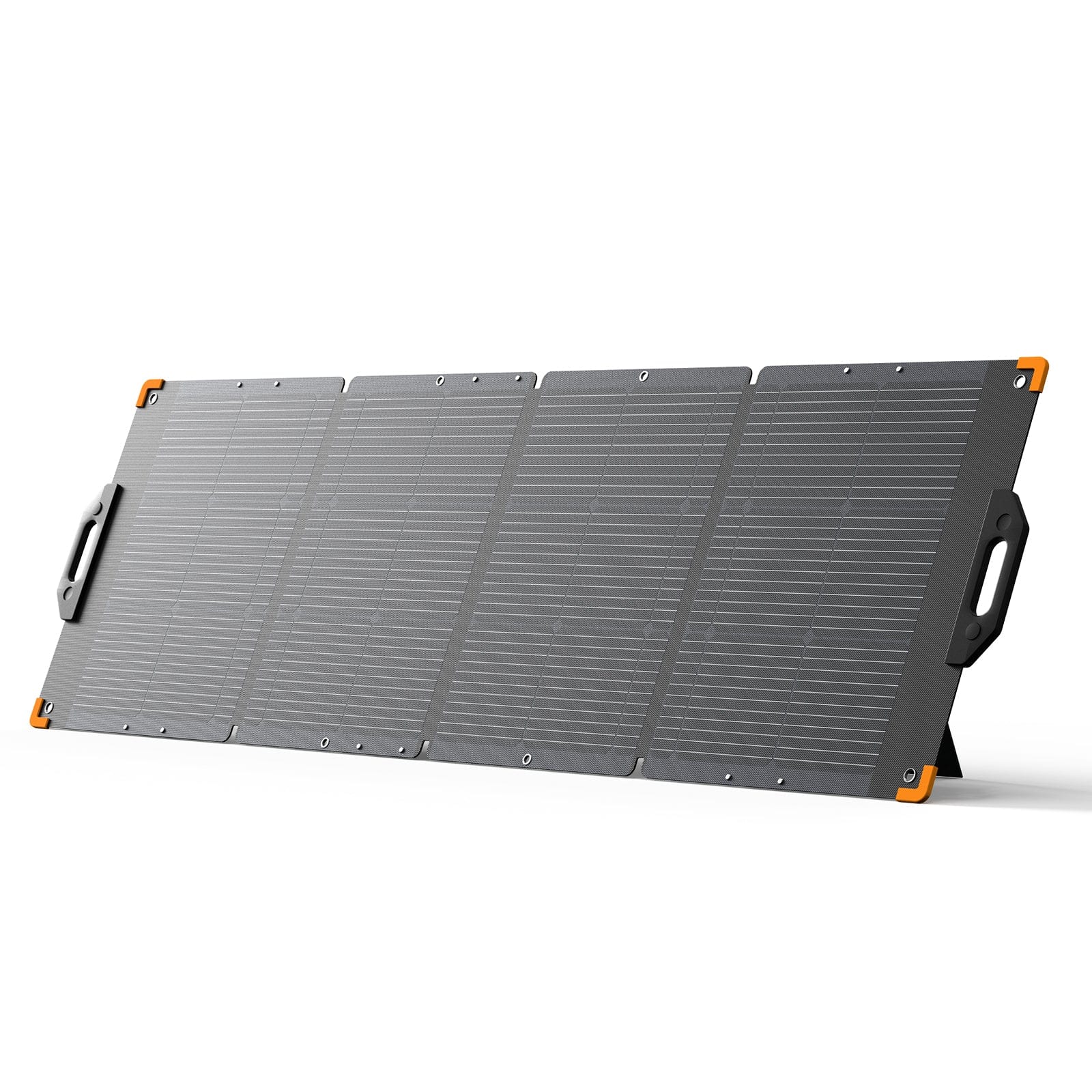

The PECRON PV200 is a good everyday portable panel—large enough to charge at a useful rate, but still manageable for camping, travel, and backup power. The four-fold design packs down neatly, the MC4 connection keeps it flexible, and the IP67 rating gives you added confidence when conditions are less than perfect.
This is the panel we would look at for customers who want more than a small trickle charger but do not need the size or weight of the PV300 or PV500. Put the whole panel in direct sun and keep every section clear of shade; even a small shadow can cut output more than people expect.
PECRON PV200 Highlights
- 200W rated output
- Four-fold portable design
- High-efficiency monocrystalline cells
- MC4 solar connection
- IP67 dust and water resistance
- Approx. 15.2 lb—easy to store in an RV, vehicle, or emergency kit
Best Uses
- Portable power stations with compatible solar inputs
- Camping, tailgating, RV, and overland travel
- Emergency lights, communications, and small appliances through a power station
- Cabin and remote-work charging
- Adding portable solar without mounting hardware
Full Specifications
| Model | PV200 |
|---|---|
| Panel type | Monocrystalline, four-fold portable |
| Nominal power | 200W (-5W to +10%) |
| Operating voltage | 36V ±5% |
| Operating current | 5.4A ±5% |
| Open-circuit voltage | 41.4V ±5% |
| Short-circuit current | 5.7A ±5% |
| Cell efficiency | At least 22.5% |
| Weather rating | IP67 |
| Operating temperature | -10°C to 65°C (14°F to 149°F) |
| Connector | MC4 |
| Unfolded dimensions | 2064 × 595 × 5 mm (approx. 81.3 × 23.4 × 0.2 in) |
| Folded dimensions | 561 × 595 × 40 mm (approx. 22.1 × 23.4 × 1.6 in) |
| Weight | Approx. 6.9 kg / 15.2 lb |
Compatibility note: Before connecting any solar panel, confirm your power station or charge controller accepts the panel's open-circuit voltage, operating voltage, current, wattage, connector, and polarity. Never exceed the receiving device's solar-input limits. Series wiring raises voltage; parallel wiring raises current. Cold weather can also raise panel voltage.
Real-world output: Solar-panel wattage is a laboratory rating. Actual output changes with sun angle, cloud cover, temperature, shading, panel cleanliness, cable length, and the limits of the connected power station.
Frequently Asked Questions
Will the PECRON PV200 work with a non-PECRON power station?
It may, but the plug alone does not prove compatibility. Match the voltage range, maximum open-circuit voltage, current limit, wattage limit, connector, and polarity before connecting it. An adapter may be required.
What connector does it use?
The PECRON PV200 uses MC4 connectors. Check the input on your power station before ordering an adapter.
Will it always produce its rated wattage?
No portable panel produces its nameplate rating all day. For the strongest output, point the entire panel directly at clear sun, keep every section unshaded, and reposition it as the sun moves.
Can I leave it outside in the rain?
The panel carries an IP67 rating, but portable panels and connectors should not be submerged or left sitting in water. Keep connections dry, close unused ports, and let everything dry before folding and storing.
Can I connect more than one panel?
Only if the final array stays within your power station or charge controller's voltage, current, and wattage limits. If you are not sure, contact us with the exact power-station model before connecting panels in series or parallel.
AllProGenerators Support
Need an adapter or unsure about input limits? Contact us with the power-station model and we will help you sort it out before you connect anything.
