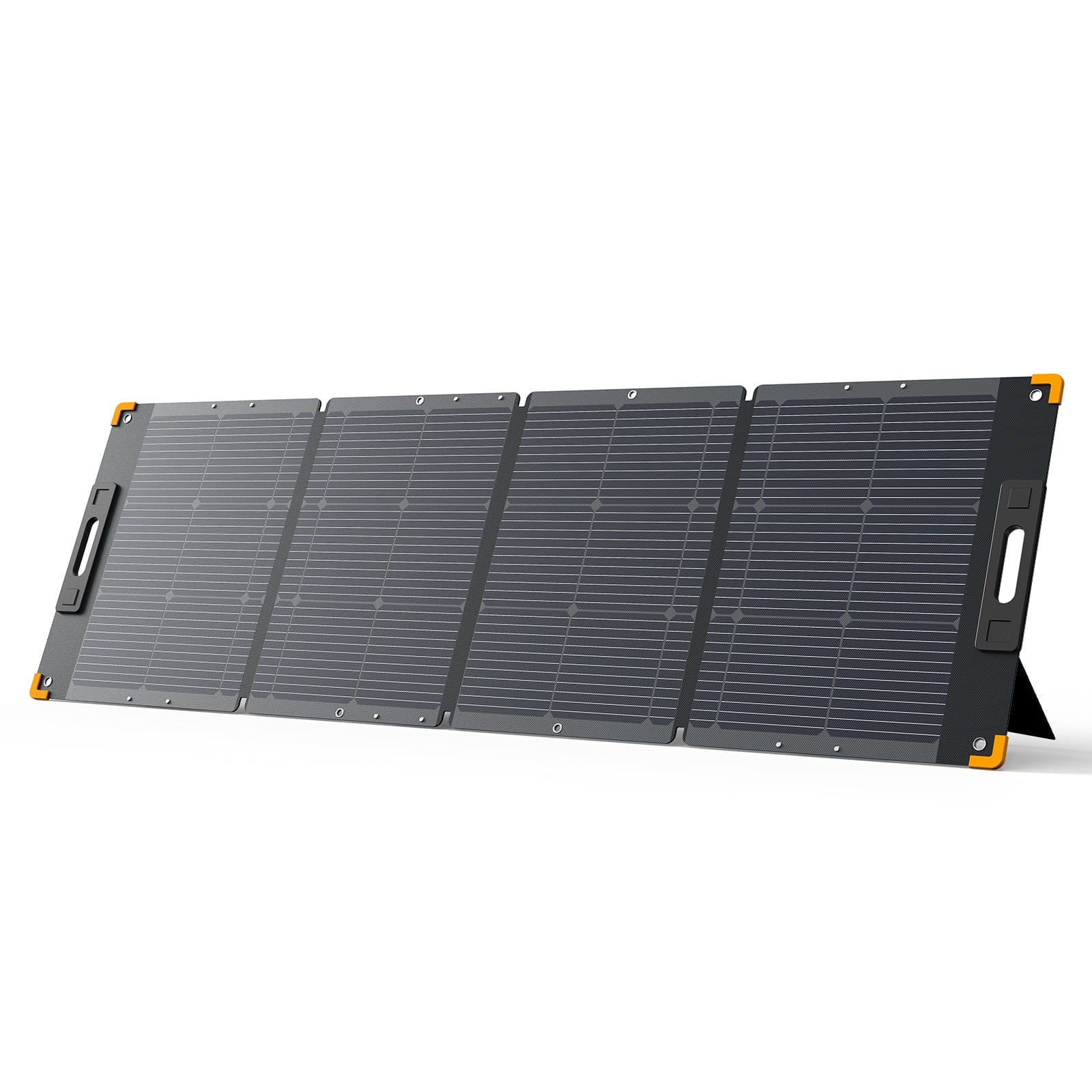

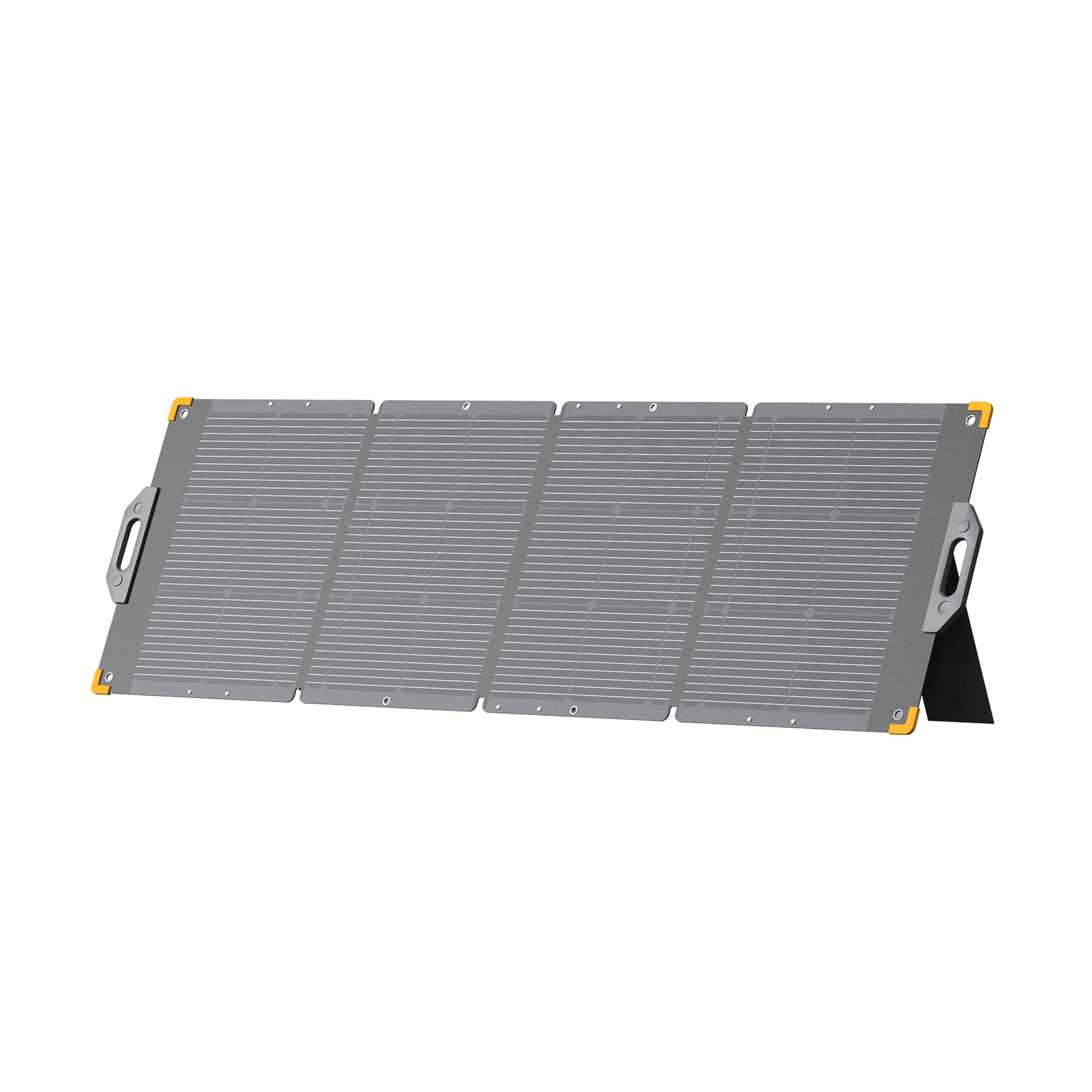

The PECRON PV300 hits a very useful middle ground: enough solar power to make a real difference, without dragging around a full-size 500W panel. It folds into four sections, uses efficient monocrystalline cells, and connects through universal MC4 leads. For camping, RV travel, emergency charging, or a larger portable power station, this is one of the easier panels to handle.
Set it where the full panel receives clean sun, use the kickstand angle that works for the time of day, and move it when needed. Simple setup matters in the real world, and that is where the PV300 earns its keep.
PECRON PV300 Highlights
- 300W rated solar output with +5% tolerance
- Four-fold portable design
- High-efficiency monocrystalline cells
- IP67 dust and water resistance
- MC4 solar connectors
- Approx. 28.1 lb for transport and storage
Best Uses
- Medium and large portable power stations
- Emergency backup charging
- RV, trailer, van, and overland trips
- Camping and remote job sites
- Portable off-grid power where permanent panels are not practical
Full Specifications
| Model | PV300 / SOLAR300 |
|---|---|
| Panel type | Monocrystalline, four-fold portable |
| Maximum power | 300W +5% |
| Operating voltage | 36V +5% |
| Operating current | 8.3A +5% |
| Open-circuit voltage | 41.4V +5% |
| Short-circuit current | 8.7A +5% |
| Cell efficiency | At least 25% |
| Weather rating | IP67 |
| Operating temperature | -10°C to 65°C (14°F to 149°F) |
| Connector | MC4 |
| Unfolded dimensions | 2362 × 787 × 4.5 mm (approx. 93.0 × 31.0 × 0.18 in) |
| Folded dimensions | 636 × 789 × 49 mm (approx. 25.0 × 31.1 × 1.9 in) |
| Net weight | Approx. 12.74 kg / 28.1 lb |
Compatibility note: Before connecting any solar panel, confirm your power station or charge controller accepts the panel's open-circuit voltage, operating voltage, current, wattage, connector, and polarity. Never exceed the receiving device's solar-input limits. Series wiring raises voltage; parallel wiring raises current. Cold weather can also raise panel voltage.
Real-world output: Solar-panel wattage is a laboratory rating. Actual output changes with sun angle, cloud cover, temperature, shading, panel cleanliness, cable length, and the limits of the connected power station.
Frequently Asked Questions
Will the PECRON PV300 work with a non-PECRON power station?
It may, but the plug alone does not prove compatibility. Match the voltage range, maximum open-circuit voltage, current limit, wattage limit, connector, and polarity before connecting it. An adapter may be required.
What connector does it use?
The PECRON PV300 uses MC4 connectors. Check the input on your power station before ordering an adapter.
Will it always produce its rated wattage?
No portable panel produces its nameplate rating all day. For the strongest output, point the entire panel directly at clear sun, keep every section unshaded, and reposition it as the sun moves.
Can I leave it outside in the rain?
The panel carries an IP67 rating, but portable panels and connectors should not be submerged or left sitting in water. Keep connections dry, close unused ports, and let everything dry before folding and storing.
Can I connect more than one panel?
Only if the final array stays within your power station or charge controller's voltage, current, and wattage limits. If you are not sure, contact us with the exact power-station model before connecting panels in series or parallel.
AllProGenerators Support
If you want us to check compatibility, send the exact model number of your power station. We can compare its solar-input range with the PV300 before you place the order.
