If you have room for eight panels, this kit gives you more daytime charging without stepping up to a larger inverter. The 1600W array, two ALPHA 4 batteries, and 3000W pure sine wave inverter make a practical foundation for a cabin, larger RV, or small off-grid living space.
Factory kit: RS-CK1600. This is a component-based solar system requiring installation, with 1600W of rated solar capacity and 5.12kWh of nominal battery storage.
Why choose this kit?
- 8 rigid monocrystalline panels for 1600W of total rated solar capacity.
- 5.12kWh LiFePO4 storage for power use after sunlight fades.
- Pure sine wave 120V AC inverter for compatible equipment, within battery limits.
- MPPT solar charging and factory-specified connection hardware.
- Separate components allow the installation to be laid out for your space.
Best use cases
- Cabins with planned refrigeration and lighting loads
- Large RVs with adequate roof area
- Tiny homes with measured daily energy use
Match both running watts and startup demand to the complete system. Whole-home coverage, central air conditioning, and electric heating should not be assumed.

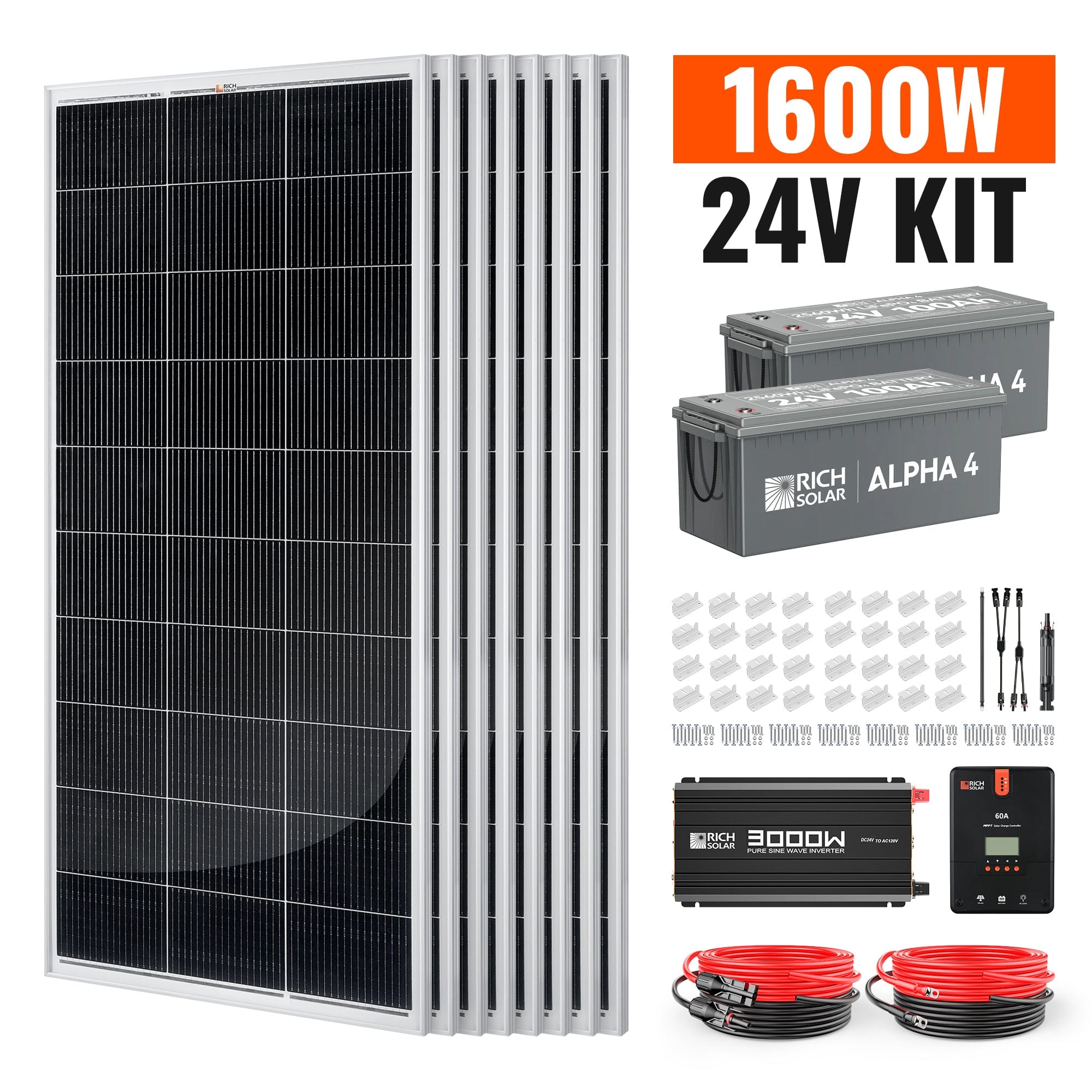

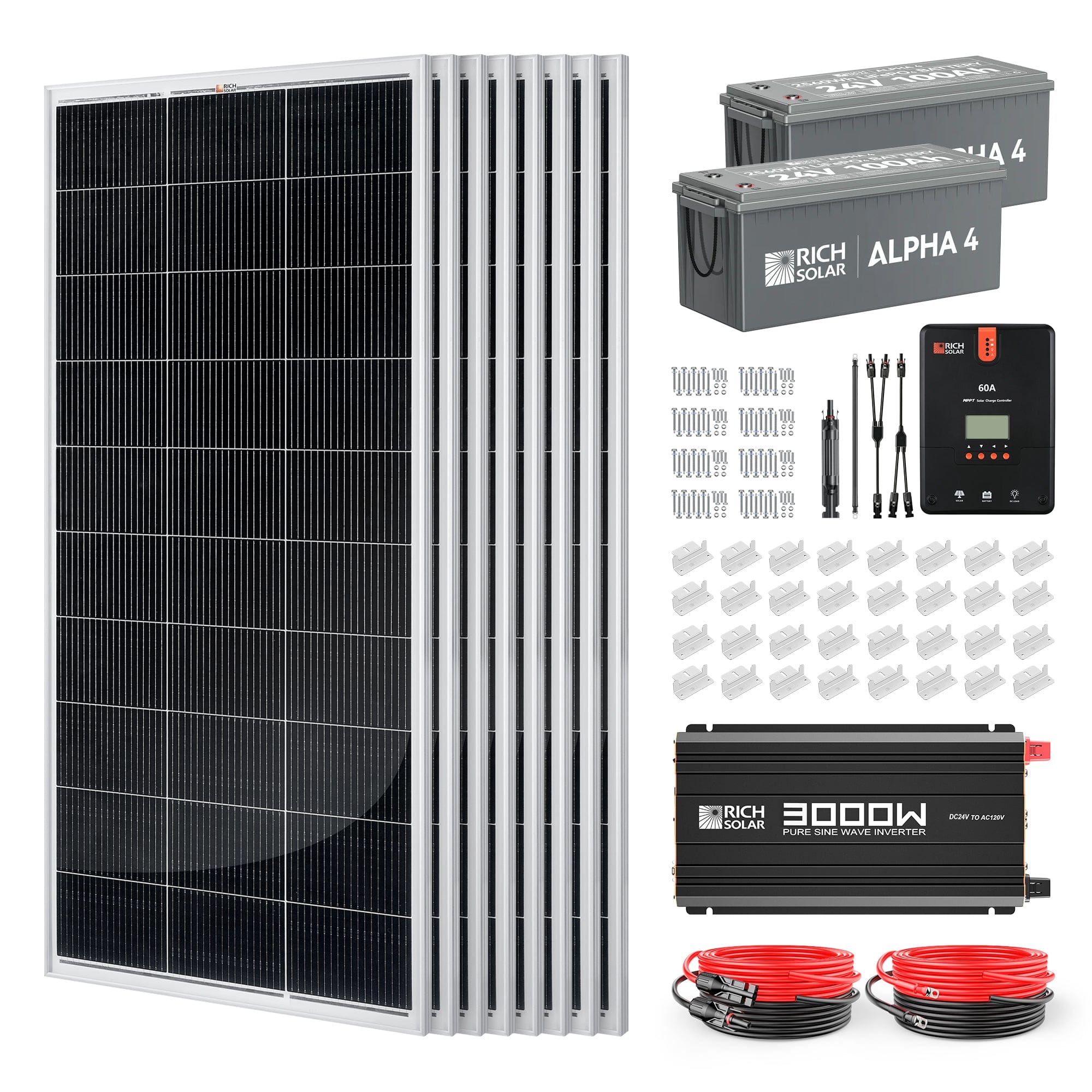

What is included?
- 8 x MEGA 200W 12V Panels (RS-M200)
- 2 x ALPHA 4 Lithium Batteries (RS-B241S)
- 1 x 3000W 24V Inverter (RS-V3P24)
- 1 x 60A MPPT Charge Controller (RS-MPPT60)
- 8 x Z Bracket sets (one set of 4) (RS-ZB4C)
- 1 x 30A Inline Fuse Holder (RS-SC30F)
- 1 x Y Branch Parallel Adapter (RS-Y2)
- 1 x 2 AWG 1 ft Inverter Battery Cable Red (RS-C21R)
- 1 x 2 AWG 1 ft Inverter Battery Cable Black (RS-C21B)
- 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
- 1 x 10 ft 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
- 1 x 8 ft 4 AWG Battery Cable Set (RS-C48R & RS-C48B)
Only the listed components are included. Appliances pictured in diagrams, installation labor, permits, transfer equipment, and site-specific materials are not included unless expressly listed.
Full specifications
| Brand / factory SKU | Rich Solar / RS-CK1600 |
|---|---|
| Array rated capacity | 1600W |
| System class | 24V DC |
| Nominal stored energy | 5120Wh |
| Inverter nameplate output | 3000W; battery and system limits apply |
| AC output | 120V single-phase pure sine wave; no 240V output |
| Inverter surge rating | 6000W; subject to battery and installation limits |
Solar panels
| Panel model / quantity | MEGA 200 / RS-M200 / 8 |
|---|---|
| Power per panel | 200W |
| Vmp / Imp | 18.4V / 10.9A |
| Voc / Isc | 21.8V / 11.6A |
| Maximum series fuse per panel | 15A |
| Dimensions / weight per panel | 58.7 × 26.8 × 1.2 in / 24 lb |
| Construction | Monocrystalline cells, tempered glass, aluminum frame |
| Panel operating temperature | -40°F to 185°F |
| Panel limited warranty | 25-year power output / 10-year workmanship, subject to manufacturer terms |
Battery storage
| Model / quantity | ALPHA 4 / RS-B241S / 2 |
|---|---|
| Nominal voltage / capacity per battery | 25.6V / 100Ah / 2560Wh |
| Total bank energy | 5120Wh |
| Continuous discharge / max charging current per battery | 100A / 100A |
| Dimensions / weight per battery | 20.9 × 8.1 × 8.5 in / 48.5 lb |
| Protection / features | BMS, IP65 enclosure, Bluetooth, internal heating |
| Charging / discharging temperature | 32°F to 131°F / -4°F to 140°F |
| Battery warranty | 5 years, subject to manufacturer terms |
| Battery chemistry | LiFePO4 |
Inverter
| Model | RS-V3P24 |
|---|---|
| Output frequency | 60Hz |
| AC outlets / USB | 3 AC sockets / 5V 2.1A USB |
| Output efficiency | >88% |
| Dimensions / weight | 18.7 × 9.6 × 4.0 in / 12.1 lb |
| Operating temperature | 14°F to 122°F |
| Inverter warranty | 2 years, subject to manufacturer terms |
Solar charge controller
| Model | RS-MPPT60 |
|---|---|
| Battery charge / load current | 60A / 20A |
| Supported system voltages | 12/24/36/48V |
| PV power limit at 24V | 1600W |
| Maximum PV voltage | 150V at 77°F; 145V at -13°F |
| Dimensions / weight | 11.2 × 8.1 × 3.7 in / 7.94 lb |
| Operating temperature | -31°F to 113°F |
| Controller warranty | 2 years, subject to manufacturer terms |
Power and installation planning
The inverter's 3000W rating assumes a correctly installed battery bank with suitable cables and protection. These two 25.6V batteries are intended for a 24V-class bank; do not connect them in series to the included 24V inverter.
Rich Solar estimates about 5.8kWh of solar energy per day with four peak-sun hours. Actual production varies with weather, season, shading, temperature, cable losses, charge limits, and battery state of charge. This estimate is not a daily guarantee, and AC energy available from the battery is lower than nominal capacity.

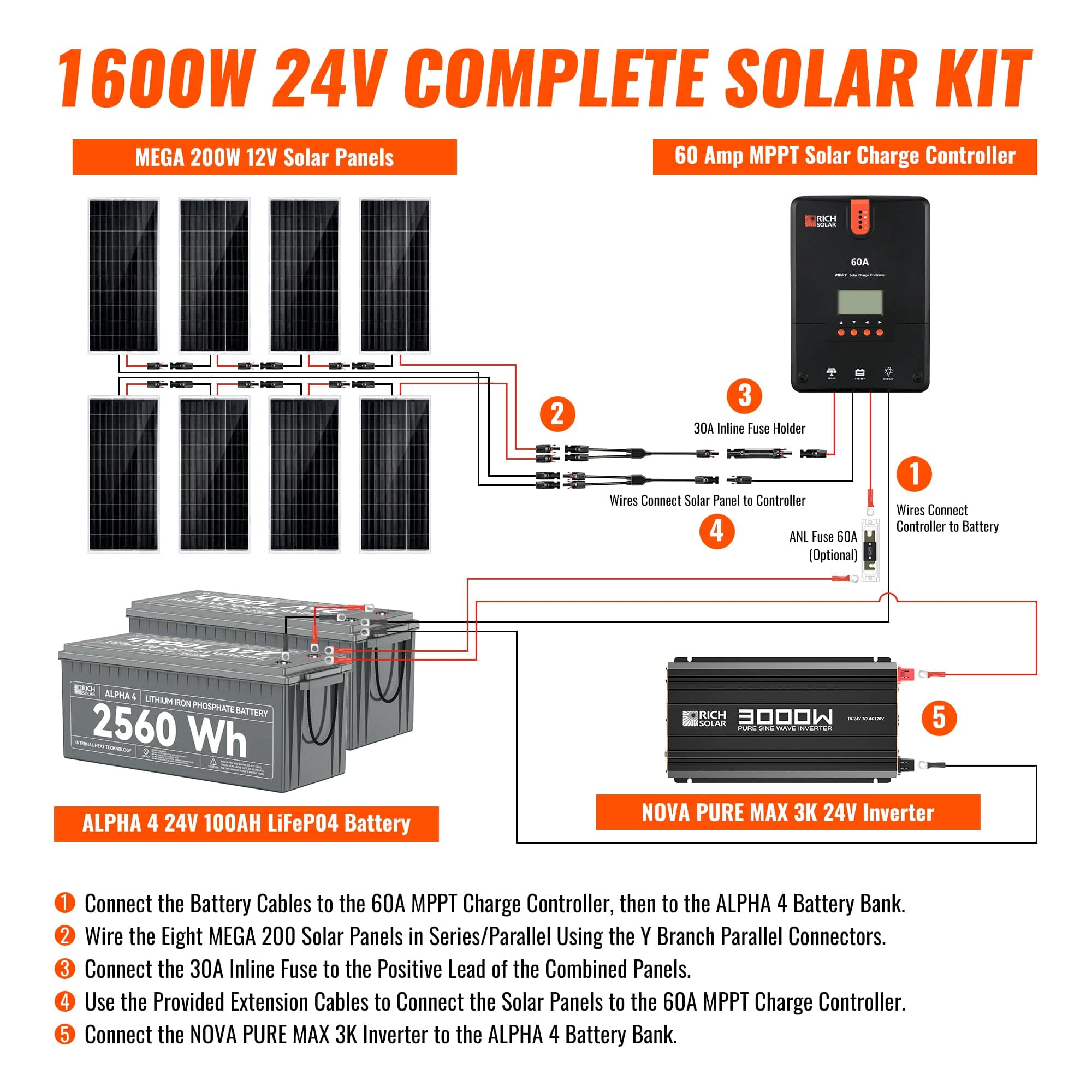

A qualified installer should verify string voltage and current, cold-weather open-circuit voltage, battery configuration, grounding, fusing, cable sizing, mounting loads, and local requirements. Follow the current manuals and delivered component nameplates. Never backfeed a home through an outlet; building backup circuits need appropriate transfer or isolation equipment.
Frequently asked questions
Does 1600W describe the AC power I can use?
No. It describes rated solar-array capacity. The inverter is rated at 3000W, while stored energy is 5.12kWh. The battery's discharge limit and the installation can restrict usable power below the inverter rating.
How long will the battery run my equipment?
Runtime depends on average load, inverter consumption, usable battery energy, temperature, and reserve settings. Divide usable watt-hours by average load watts for a rough estimate, allowing for conversion losses. Send us your appliance list for sizing help.
Is this a plug-and-play portable generator?
No. It is an installation kit. Components must be mounted, wired, configured, and protected correctly before operation.
Can I add panels or batteries?
Compatible expansion may be possible after checking controller ratings, battery compatibility, charging settings, cable size, overcurrent protection, and available mounting space. Do not exceed any component limit.
Can this kit run a 240V pump or appliance?
No. This configuration supplies 120V single-phase AC. A 240V load needs a different, properly designed system.
What warranty applies?
Coverage is component-specific, not one blanket kit warranty. Verified terms are listed in the specifications above. Manufacturer exclusions and installation requirements apply; contact us to confirm coverage for your application.
Get practical help from AllProGenerators
Tell us what you need to run and for how long. We would rather help you size it now than have you guess and buy the wrong setup. Call Frank at 954-249-2314 for USA-based product support. AllProGenerators has served generator buyers since 2018.
