Two panels make this a useful step up from a small starter setup. The RS-CK400 combines 400W of solar charging with an ALPHA 1 battery, BRAVO 30 controller, and a 2000W-rated pure sine wave inverter. Keep the loads realistic and it is a practical package for an RV, van, or small cabin.
Factory kit: RS-CK400. This is a component-based solar system requiring installation, with 400W of rated solar capacity and 1.28kWh of nominal battery storage.
Why choose this kit?
- 2 rigid monocrystalline panels for 400W of total rated solar capacity.
- 1.28kWh LiFePO4 storage for power use after sunlight fades.
- Pure sine wave 120V AC inverter for compatible equipment, within battery limits.
- MPPT solar charging and factory-specified connection hardware.
- Separate components allow the installation to be laid out for your space.
Best use cases
- Camper vans and small RVs
- Weekend cabin lights and electronics
- Remote communications equipment
Match both running watts and startup demand to the complete system. Whole-home coverage, central air conditioning, and electric heating should not be assumed.

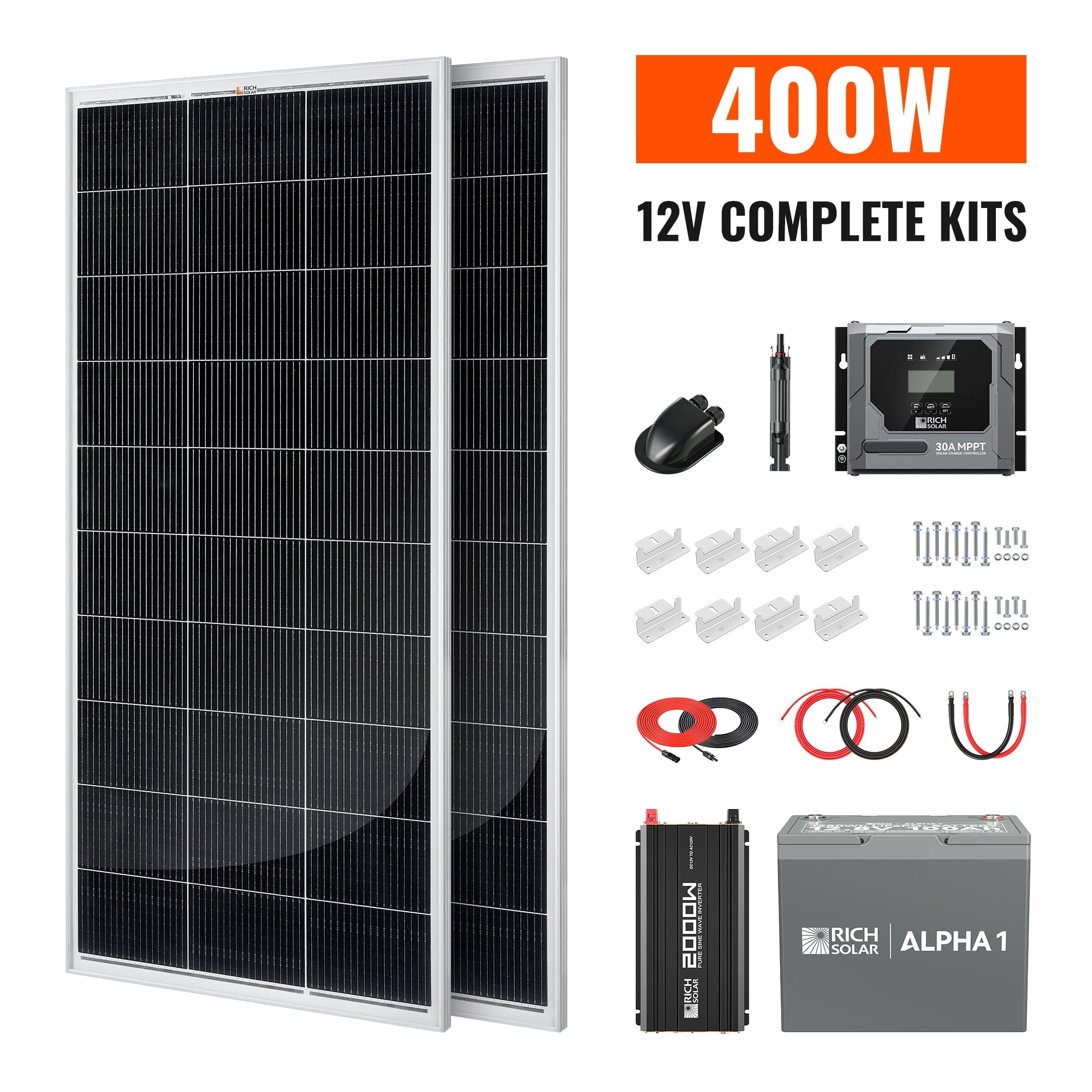

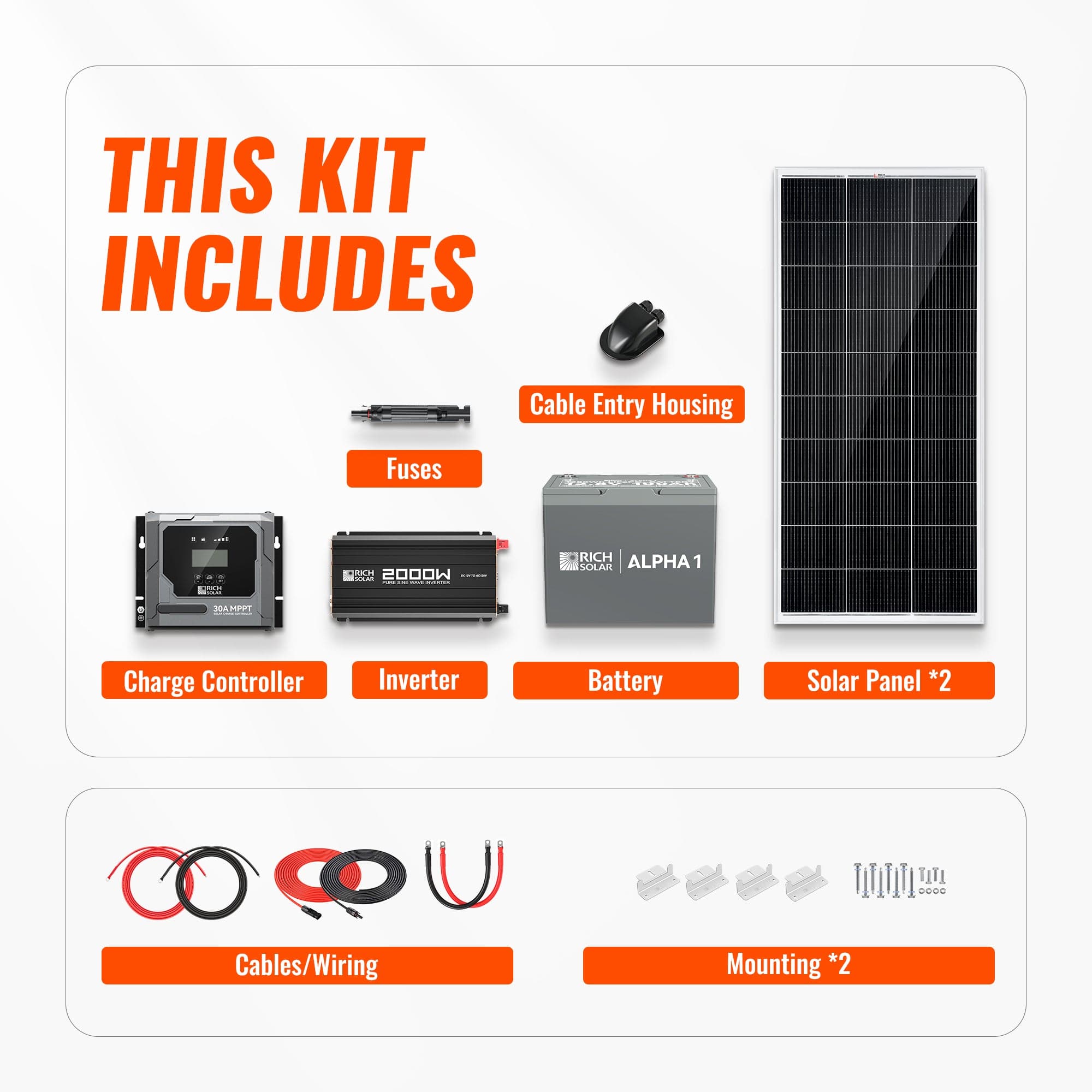

What is included?
- 2 x MEGA 200 12V 200W Solar Panels (RS-M200)
- 1 x Bravo 30 30A MPPT Charge Controller (RS-MPPT30PB)
- 1 x ALPHA 1 12V 100Ah Lithium Battery (RS-B121S)
- 1 x NOVA PURE 2K 12V 2000W Inverter (RS-V2P12)
- 2 x Z Bracket sets (one set of 4) (RS-ZB4C)
- 1 x Cable Entry Housing (RS-C2B)
- 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
- 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
- 1 x 10 ft 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)
- 1 x 2/0 AWG 3/8" Battery Cables 4 ft Cable Set (Inverter to Battery) (RS-2/0A4F3)
Only the listed components are included. Appliances pictured in diagrams, installation labor, permits, transfer equipment, and site-specific materials are not included unless expressly listed.
Full specifications
| Brand / factory SKU | Rich Solar / RS-CK400 |
|---|---|
| Array rated capacity | 400W |
| System class | 12V DC |
| Nominal stored energy | 1280Wh |
| Inverter nameplate output | 2000W; battery and system limits apply |
| AC output | 120V single-phase pure sine wave; no 240V output |
| Inverter surge rating | 4000W; subject to battery and installation limits |
Solar panels
| Panel model / quantity | MEGA 200 / RS-M200 / 2 |
|---|---|
| Power per panel | 200W |
| Vmp / Imp | 18.4V / 10.9A |
| Voc / Isc | 21.8V / 11.6A |
| Maximum series fuse per panel | 15A |
| Dimensions / weight per panel | 58.7 × 26.8 × 1.2 in / 24 lb |
| Construction | Monocrystalline cells, tempered glass, aluminum frame |
| Panel operating temperature | -40°F to 185°F |
| Panel limited warranty | 25-year power output / 10-year workmanship, subject to manufacturer terms |
Battery storage
| Model / quantity | ALPHA 1 / RS-B121S / 1 |
|---|---|
| Nominal voltage / capacity | 12.8V / 100Ah / 1280Wh |
| Continuous discharge / maximum charging current | 100A / 100A |
| 10-second discharge rating | 110A |
| Charging voltage | 14.4V ±0.2V |
| Dimensions / weight | 10.2 × 6.6 × 8.3 in / 24 lb |
| Protection / features | BMS, IP65 enclosure, Bluetooth, internal heating |
| Charging / discharging temperature | 32°F to 131°F / -4°F to 140°F |
| Battery warranty | 5 years, subject to manufacturer terms |
| Battery chemistry | LiFePO4 |
Inverter
| Model | RS-V2P12 |
|---|---|
| Output frequency | 60Hz |
| AC outlets / USB | 3 AC sockets / 5V 2.1A USB |
| Output efficiency | >88% |
| Dimensions / weight | 16.1 × 9.6 × 4.0 in / 10.1 lb |
| Operating temperature | 14°F to 122°F |
| Inverter warranty | 2 years, subject to manufacturer terms |
Solar charge controller
| Model | BRAVO 30 / RS-MPPT30PB |
|---|---|
| Maximum charging current | 30A |
| System voltage | 12/24V automatic |
| Recommended PV power at 12V | 500W |
| Maximum PV open-circuit voltage | 100V DC |
| Tracking / conversion efficiency | Up to 99.5% / 98% |
| Protection | IP43 internal board / IP22 connections; install protected from weather |
| Dimensions / weight | 7.0 × 5.5 × 2.9 in / 1.8 lb |
Power and installation planning
The included battery is rated for 100A continuous discharge. At 12.8V nominal, that is approximately 1280W DC before inverter losses. This single battery cannot supply the inverter's full nameplate output continuously. Battery capacity, BMS limits, fusing, and wiring must be checked before adding higher-power loads.
Rich Solar estimates about 1.4kWh of solar energy per day with four peak-sun hours. Actual production varies with weather, season, shading, temperature, cable losses, charge limits, and battery state of charge. This estimate is not a daily guarantee, and AC energy available from the battery is lower than nominal capacity.
A qualified installer should verify string voltage and current, cold-weather open-circuit voltage, battery configuration, grounding, fusing, cable sizing, mounting loads, and local requirements. Follow the current manuals and delivered component nameplates. Never backfeed a home through an outlet; building backup circuits need appropriate transfer or isolation equipment.
Frequently asked questions
Does 400W describe the AC power I can use?
No. It describes rated solar-array capacity. The inverter is rated at 2000W, while stored energy is 1.28kWh. The battery's discharge limit and the installation can restrict usable power below the inverter rating.
How long will the battery run my equipment?
Runtime depends on average load, inverter consumption, usable battery energy, temperature, and reserve settings. Divide usable watt-hours by average load watts for a rough estimate, allowing for conversion losses. Send us your appliance list for sizing help.
Is this a plug-and-play portable generator?
No. It is an installation kit. Components must be mounted, wired, configured, and protected correctly before operation.
Can I add panels or batteries?
Compatible expansion may be possible after checking controller ratings, battery compatibility, charging settings, cable size, overcurrent protection, and available mounting space. Do not exceed any component limit.
Can this kit run a 240V pump or appliance?
No. This configuration supplies 120V single-phase AC. A 240V load needs a different, properly designed system.
What warranty applies?
Coverage is component-specific, not one blanket kit warranty. Verified terms are listed in the specifications above. Manufacturer exclusions and installation requirements apply; contact us to confirm coverage for your application.
Get practical help from AllProGenerators
