Anker SOLIX E10 Ultra Off-Grid Kit + 10x 440W Rigid Solar Panels

Anker SOLIX E10 Ultra Off-Grid Kit + 10x 440W Rigid Solar Panels

The Anker SOLIX E10 Ultra Off-Grid Kit is built for homeowners who want more than basic emergency backup. This high-capacity bundle includes 2 E10 PowerModules, 4 E10 batteries, the Anker SOLIX Power Dock, and 10x 440W rigid solar panels, giving you a powerful dual-unit setup designed for extended backup, off-grid energy storage, and serious solar charging capability.

Compared to smaller E10 bundles, the Ultra Kit is made for larger homes, heavier electrical loads, longer outages, and customers who want the added flexibility of a Power Dock-based setup. With dual E10 PowerModules and expanded battery storage, this system is a strong choice for hurricane backup, off-grid properties, emergency preparedness, and solar-powered home energy independence.

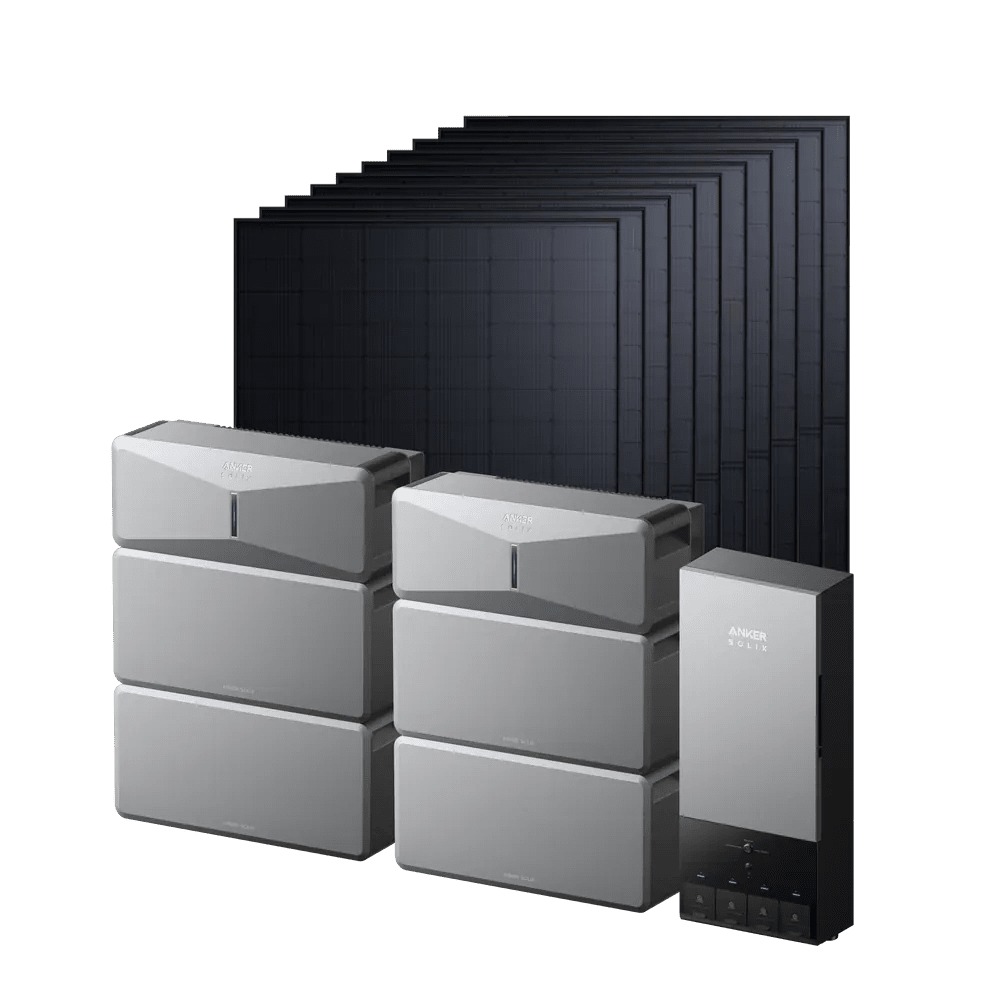

What’s Included

• 2 x Anker SOLIX E10 PowerModules
• 4 x Anker SOLIX E10 Batteries
• 1 x Anker SOLIX Power Dock
• 10 x 440W Rigid Solar Panels

Built for Bigger Backup Needs

The E10 Ultra Kit uses two E10 PowerModules instead of one, giving you more available output and more system flexibility than a single-unit package. Each E10 is designed for strong whole-home backup performance, and the dual-system configuration helps support larger loads, longer runtime, and more demanding backup needs.

Power Dock Included for a More Complete System

This Ultra bundle includes the Anker SOLIX Power Dock, making it a more advanced option for customers planning a serious home energy setup. The Power Dock is designed to help integrate the E10 system for whole-home backup applications and a smoother home power experience when installed properly.

10x 440W Rigid Solar Panels for High Solar Input

With ten 440W rigid solar panels included, this bundle gives you a strong solar foundation right out of the box. The included solar array helps recharge the batteries during the day, reduce generator dependence, and support longer off-grid or outage scenarios when sunlight is available.

Ideal Uses

• Whole-home emergency backup
• Hurricane and storm preparedness
• Off-grid cabins and remote properties
• Solar-powered home energy storage
• Backup for refrigerators, lights, outlets, internet, tools, and selected household circuits
• Customers who want more capacity than the E10 Prime Kit

Why Choose the E10 Ultra Kit?

• Dual E10 setup: Includes 2 PowerModules for higher power capability than single-unit kits.
• Expanded storage: Includes 4 E10 batteries for longer runtime during outages.
• Power Dock included: Designed for a more complete home backup configuration.
• Solar-ready bundle: Includes 10 high-output 440W rigid solar panels.
• Expandable energy system: Built around Anker’s modular E10 platform.
• Great for larger homes: A better fit for customers with heavier backup needs.

E10 Ultra Kit vs. E10 Prime Kit

The E10 Prime Kit is a strong entry point for off-grid and backup power, but the E10 Ultra Kit is the better choice when you need more power, more battery capacity, and Power Dock integration. If your goal is to support a larger home, longer outage window, or a more complete backup setup, the Ultra Kit is the higher-capability option.

Important Installation Note

Home backup systems should be installed and connected according to local electrical code. For whole-home backup, transfer equipment, Power Dock integration, and panel connections, a licensed electrician may be required. Always confirm system design, permits, and installation requirements before connecting to a home electrical panel.

FAQ

What comes with the Anker SOLIX E10 Ultra Off-Grid Kit?

This bundle includes 2 E10 PowerModules, 4 E10 batteries, 1 Power Dock, and 10x 440W rigid solar panels.

Is this kit larger than the E10 Prime Kit?

Yes. The Ultra Kit includes two PowerModules, four batteries, and a Power Dock, making it a higher-capacity option for larger backup and off-grid needs.

Can the E10 Ultra Kit be used for whole-home backup?

Yes, the E10 platform is designed for whole-home backup applications when properly configured and installed with the required equipment.

Does this bundle include solar panels?

Yes. This kit includes 10 rigid solar panels rated at 440W each.

Is professional installation required?

Professional installation may be required depending on your home setup, electrical panel, local code, and whether the system is being connected for whole-home backup.

Who is this kit best for?

This kit is best for homeowners who want a larger E10 setup with more output, more battery storage, Power Dock integration, and a strong solar charging package.

Anker SOLIX E10 Ultra Off-Grid Kit + 10× 440W Rigid Solar Panels

The Anker SOLIX E10 Ultra Off-Grid Kit combines two E10 power modules, four B6000 LFP battery modules, and ten 440W rigid solar panels to create a powerful, expandable off-grid energy system. With 24.576kWh of included battery storage, up to 15.2kW of continuous AC output, up to 20kW of Turbo Backup output, and a 4.4kW solar array, this system is designed for demanding residential, remote property, cabin, and extended backup applications.

System Specifications

Anker SOLIX E10 Ultra System

• Configuration: Dual Anker SOLIX E10 System
• Power Modules: 2 × Anker SOLIX E10 Power Modules
• Battery Modules: 4 × Anker SOLIX B6000 Battery Modules
• Battery Capacity per Module: 6,144Wh (6.144kWh)
• Total Included Battery Capacity: 24,576Wh (24.576kWh)
• Battery Chemistry: Lithium Iron Phosphate (LFP / LiFePO4)
• Battery Voltage: 400V
• Rated AC Voltage: 120V / 240V Split Phase
• Rated Frequency: 60Hz
• Continuous Output per E10: 7,680W (7.68kW), 32A
• Dual E10 Continuous Output: Up to 15,360W (15.36kW)
• Turbo Backup Output per E10: Up to 10,000W (10kW), 41.6A for up to 90 minutes when configured with 2 or more batteries
• Dual E10 Turbo Backup Output: Up to 20,000W (20kW)
• Starting Capability: Up to 275A LRA with 2 or more inverters and 2 or more batteries per inverter
• Solar Input per E10: Up to 9,000W
• Dual E10 Maximum Solar Input: Up to 18,000W
• PV Inputs per E10: 2 × 4,500W
• PV Input Voltage: 30–450V DC
• PV Input Current: 15A Imp per input
• DC Generator Input: Up to 4,500W per E10
• AC Recharging: Up to 7,680W at 240V / 32A per E10
• AC Bypass: Up to 9,600W at 240V / 40A per E10
• Connectivity: Wi-Fi and Bluetooth
• Enclosure Rating: NEMA Type 4 / IP66
• Power Module Operating Temperature: -4°F to 131°F (-20°C to 55°C)
• Installation: Modular and stackable; floor or compatible wall-mount installation
• Power Module Dimensions: 26.4 × 11.8 × 10.2 in. (670 × 300 × 260 mm)
• Power Module Weight: 60.6 lb (27.5 kg) each
• Battery Module Dimensions: 26.4 × 12.7 × 11.1 in. (670 × 322 × 281 mm)
• Battery Module Weight: 130 lb (59 kg) each
• Battery Certifications: UL 9540 and UL 9540A
• Power Module Warranty: 5 Years
• Battery Module Warranty: 5 Years

Anker SOLIX 440W Rigid Solar Panel Specifications

• Quantity Included: 10 Panels
• Rated Maximum Power (Pmax): 440W per panel
• Total Rated Solar Array: 4,400W (4.4kW)
• Power Sorting: 0–5W
• Voltage at Maximum Power (Vmp): 33.21V
• Current at Maximum Power (Imp): 13.25A
• Open-Circuit Voltage (Voc): 39.16V
• Short-Circuit Current (Isc): 13.88A
• Maximum System Voltage: 1500V
• Maximum Series Fuse Rating: 30A
• Panel Technology: Bifacial rigid solar panel
• Conversion Efficiency: Up to 25%
• Bifacial Performance: Rear-side generation can capture additional solar energy under favorable installation conditions
• Weather Protection: IP68
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Panel Dimensions: 1,722 × 1,134 × 35 mm (approximately 67.8 × 44.6 × 1.38 in.)
• Panel Weight: 46.3 lb each
• Total Panel Weight: Approximately 463 lb for 10 panels
• Solar Panel Warranty: Up to 10 Years
• Linear Performance Guarantee: Up to 30 Years

What's Included

• 2 × Anker SOLIX E10 Power Modules
• 4 × Anker SOLIX B6000 LFP Battery Modules
• 10 × Anker SOLIX 440W Rigid Solar Panels
• Required standard E10 connection accessories supplied with the E10 system
• Solar panel connection cables/accessories supplied by Anker with the solar panel packages
• User documentation

Important: Installation hardware, mounting equipment, electrical components, additional cabling, transfer equipment, and other site-specific materials may be required depending on the installation. Professional installation should be performed in accordance with applicable electrical codes and local requirements.

Best Use Cases

• Large Off-Grid Homes: The combination of 24.576kWh of included battery storage and a 4.4kW solar array makes this package well suited for homes requiring substantial stored energy without depending solely on utility power.
• Extended Power Outages: Store a large amount of energy before an outage and replenish the batteries with solar during daylight hours for longer-duration backup.
• Hurricane & Severe Weather Backup: A strong solution for areas where hurricanes, storms, and other weather events can cause multi-day utility outages.
• High-Demand 120V/240V Loads: Dual E10 power modules provide 120V/240V split-phase output for supporting a much wider range of household appliances and equipment than conventional 120V portable power stations.
• Central Air Conditioning: The E10 platform is engineered with high surge capability for demanding motor loads, including large residential air-conditioning systems when the system and installation are properly configured.
• Remote Cabins & Properties: Ideal for remote locations where extending utility service may be impractical or expensive.
• Solar-Powered Energy Independence: The included ten-panel array provides 4,400W of rated solar capacity, allowing the batteries to recharge from renewable energy and reducing dependence on grid or generator power.
• Expandable Off-Grid Systems: The E10 platform can be expanded with additional battery capacity and solar generation as energy requirements increase.
• Generator + Solar Hybrid Systems: Integrate compatible generator charging with battery storage and solar to provide another source of energy during extended periods of poor solar production.
• Workshops, Farms & Outbuildings: The high-output 120V/240V architecture makes the system suitable for demanding tools, pumps, refrigeration, lighting, and other equipment in remote or grid-limited locations.

System Highlights

• 24.576kWh Included Battery Storage
• 15.36kW Dual-E10 Continuous Output
• Up to 20kW Dual-E10 Turbo Backup Output
• 4.4kW Included Solar Array
• Up to 18kW Solar Input Capability with Dual E10 Power Modules
• 120V / 240V Split-Phase Power
• High Starting Capability for Demanding Motor Loads
• Expandable Battery and Solar Architecture
• NEMA Type 4 / IP66 E10 Enclosure
• IP68-Rated 440W Rigid Solar Panels
• Wi-Fi & Bluetooth Connectivity
• Designed for Off-Grid, Backup and Energy Independence Applications
