Cummins C175D6D 175kW Agriculture Diesel Generator 120/240V 1-Phase | A061T476

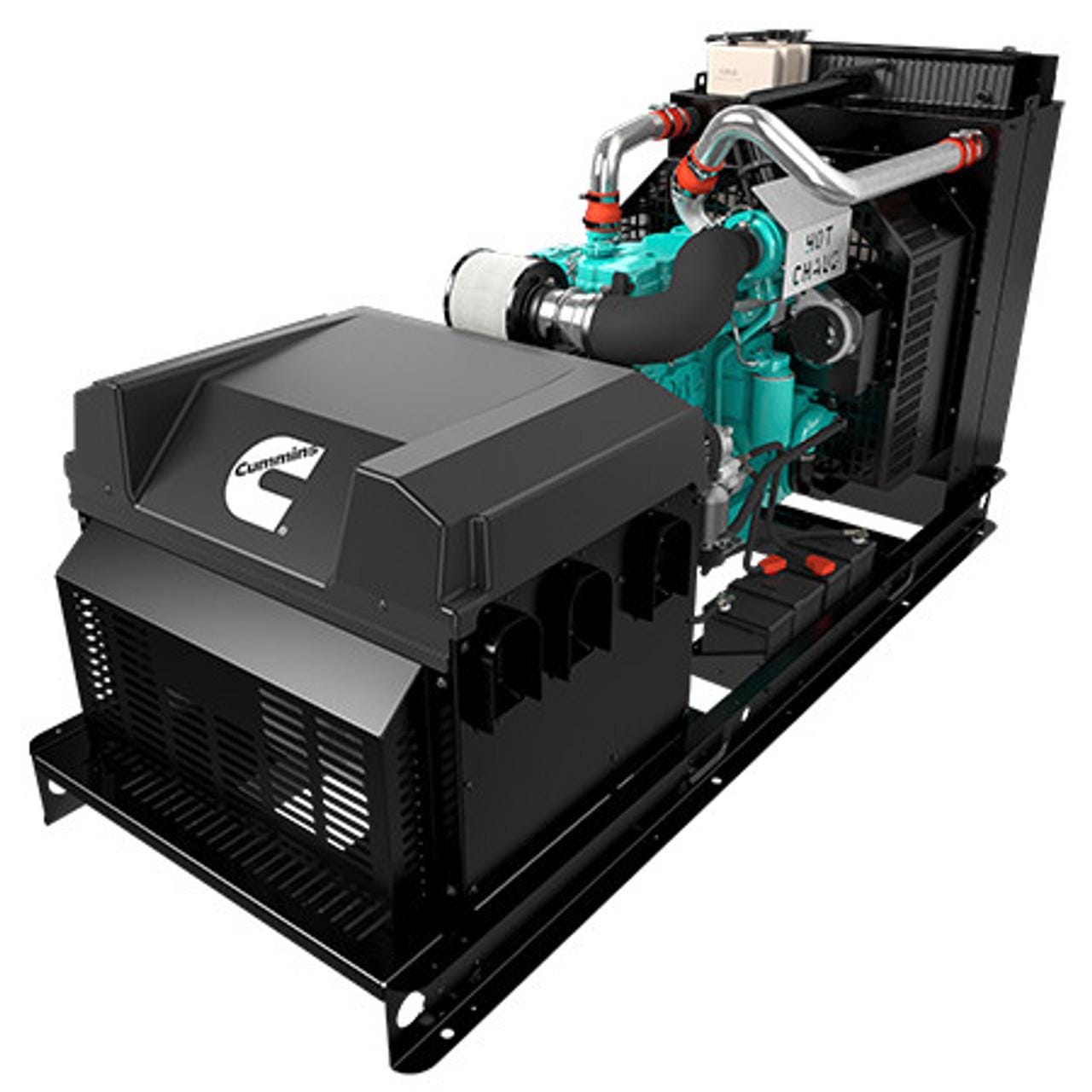

Cummins C175D6D 175kW Agricultural Diesel Generator

Protect essential farm operations during utility outages with the Cummins C175D6D 175kW Agricultural Diesel Generator. Cummins part number A061T476 is a factory-configured agricultural standby generator designed for farms, dairy facilities, poultry houses, livestock operations, irrigation systems, grain facilities, greenhouses, agricultural refrigeration and other applications requiring dependable 120/240-volt single-phase backup power.

This heavy-duty farm generator delivers 175kW of emergency standby power at 120/240V single phase. It combines a Cummins QSB7-G5 industrial diesel engine, brushless four-pole alternator, PowerCommand 1.1 electronic controls and an 800-amp main circuit breaker in an open-skid agricultural configuration.

175kW Standby Power for Agricultural Operations

Modern agricultural facilities rely on electricity for ventilation, refrigeration, irrigation, milking systems, feeding equipment, grain handling, water pumps, lighting and environmental controls. A utility outage can quickly place livestock, crops, stored products and daily production at risk.

The Cummins C175D6D is designed to provide dependable emergency power and fast response as electrical loads change. Its high-capacity 120/240V single-phase output is suitable for larger farms and rural facilities with substantial single-phase electrical services.

When paired with a properly selected automatic transfer switch, the generator can automatically start after a utility-power failure and supply approved farm loads until utility service returns.

Key Features

• 175kW emergency standby power rating
• 120/240V single-phase electrical output
• 60 Hz operating frequency
• Approximately 729 amps at full 175kW output
• 800-amp adjustable main circuit breaker
• Cummins QSB7-G5 industrial diesel engine
• 6.69-liter heavy-duty engine
• Turbocharged and charge-air-cooled operation
• 1,800 RPM rated engine speed
• PowerCommand 1.1 electronic control system
• Automatic remote-start and stop capability
• Battle Short Mode
• Flexible generator exercise scheduling
• Integrated generator protection and diagnostics
• Brushless four-pole alternator
• Low-reactance 2/3-pitch windings
• Low waveform distortion
• High-ambient liquid-cooling system
• Open-skid agricultural configuration
• No enclosure or diesel fuel tank included

Cummins QSB7-G5 Industrial Diesel Engine

The C175D6D agricultural generator is powered by the Cummins QSB7-G5, a rugged 6.69-liter, four-cycle industrial diesel engine engineered for stationary power-generation applications.

The engine uses turbocharging and charge-air cooling to provide dependable power and rapid response when agricultural loads start or change. Its 1,800 RPM operating speed is designed for stationary standby-generator service.

Heavy-duty cast-iron construction, liquid cooling, a spin-on oil filter and an engine-driven battery-charging alternator support dependable emergency operation when the generator is correctly installed and maintained.

Engine Features

• Cummins QSB7-G5 diesel engine
• 6.69-liter displacement
• Heavy-duty cast-iron construction
• Four-cycle industrial design
• Turbocharged and charge-air cooled
• Liquid-cooled operation
• 1,800 RPM rated speed
• Engine-driven battery-charging alternator
• Spin-on oil filter with pressure-relief valve
• Designed for rapid response to load changes

PowerCommand 1.1 Electronic Control System

The integrated Cummins PowerCommand 1.1 control system coordinates the generator engine, alternator and protective functions. It supports automatic operation when connected to compatible transfer equipment and provides generator monitoring, voltage regulation, frequency regulation, fault protection and system diagnostics.

PowerCommand Control Features

• Automatic remote starting and stopping
• Precise voltage regulation
• Precise frequency regulation
• Generator output metering
• Engine and generator status monitoring
• Alarm and operating-status display
• Automatic shutdown when qualifying faults are detected
• Integrated generator protection
• Industry-leading self-diagnostic capabilities
• NFPA 110 Level 1 control functionality
• Programmable exercise scheduling

Battle Short Mode

Battle Short Mode allows selected generator-protection shutdowns to be overridden when maintaining electrical power is considered more important than protecting the generator from possible damage.

This capability may be valuable during an agricultural emergency where the immediate loss of ventilation, refrigeration, water pumps, feeding systems or environmental controls could threaten livestock, crops or stored products.

Battle Short Mode must only be used by qualified personnel and in accordance with Cummins operating instructions.

Flexible Generator Exercise Scheduling

Routine generator exercise helps verify that the engine, starting system, alternator and controls are prepared for a utility outage. PowerCommand flexible exercise scheduling allows the operating time, frequency and duration to be programmed around the needs of the agricultural facility.

A properly planned exercise schedule can help reduce unnecessary diesel consumption, noise and emissions while keeping the generator ready for emergency operation.

Brushless Alternator Performance

The Cummins alternator uses a brushless, four-pole revolving-field design with low-reactance 2/3-pitch windings. This configuration helps provide stable voltage, low waveform distortion and dependable motor-starting performance for demanding agricultural loads.

Alternator Features

• Brushless four-pole design
• Drip-proof revolving field
• Low-reactance 2/3-pitch windings
• Direct-coupled rotor
• Automatic voltage regulation
• Less than 5% total harmonic distortion
• Short-circuit fault-clearing capability
• Selectable motor-starting capability
• Direct-drive centrifugal cooling blower
• Full single-phase output at the generator's standby rating

High-Ambient Cooling System

The standard generator cooling package is designed to support operation in ambient temperatures up to 50°C or 122°F under applicable Cummins operating and derating conditions.

Proper installation must provide adequate combustion air, radiator airflow and discharge ventilation. Agricultural dust, debris and restricted airflow can reduce cooling performance and should be addressed during site design.

Coolant heaters are included with the agricultural configuration to help support reliable cold-weather starting when correctly powered and installed.

Common Agricultural Applications

• Dairy farms and automated milking systems
• Poultry houses and ventilation equipment
• Livestock barns and environmental controls
• Automated feeding and watering equipment
• Irrigation pumps and agricultural wells
• Greenhouses and climate-control systems
• Grain elevators and material-handling systems
• Grain drying and storage facilities
• Produce refrigeration and cold storage
• Farm shops and equipment buildings
• Agricultural processing equipment
• Large rural properties with single-phase service
• Emergency power for critical farm infrastructure

Motor Starting and Generator Sizing

Agricultural facilities commonly operate irrigation pumps, ventilation fans, refrigeration compressors, augers, conveyors and other electric motors that can draw substantially more current during startup than during normal operation.

Generator selection should not be based only on total running wattage. A proper analysis should consider motor horsepower, locked-rotor current, starting method, voltage drop, load sequencing, simultaneous operation, elevation, ambient temperature and possible future expansion.

A qualified generator professional or electrical engineer should complete a detailed load and motor-starting analysis before the generator is ordered.

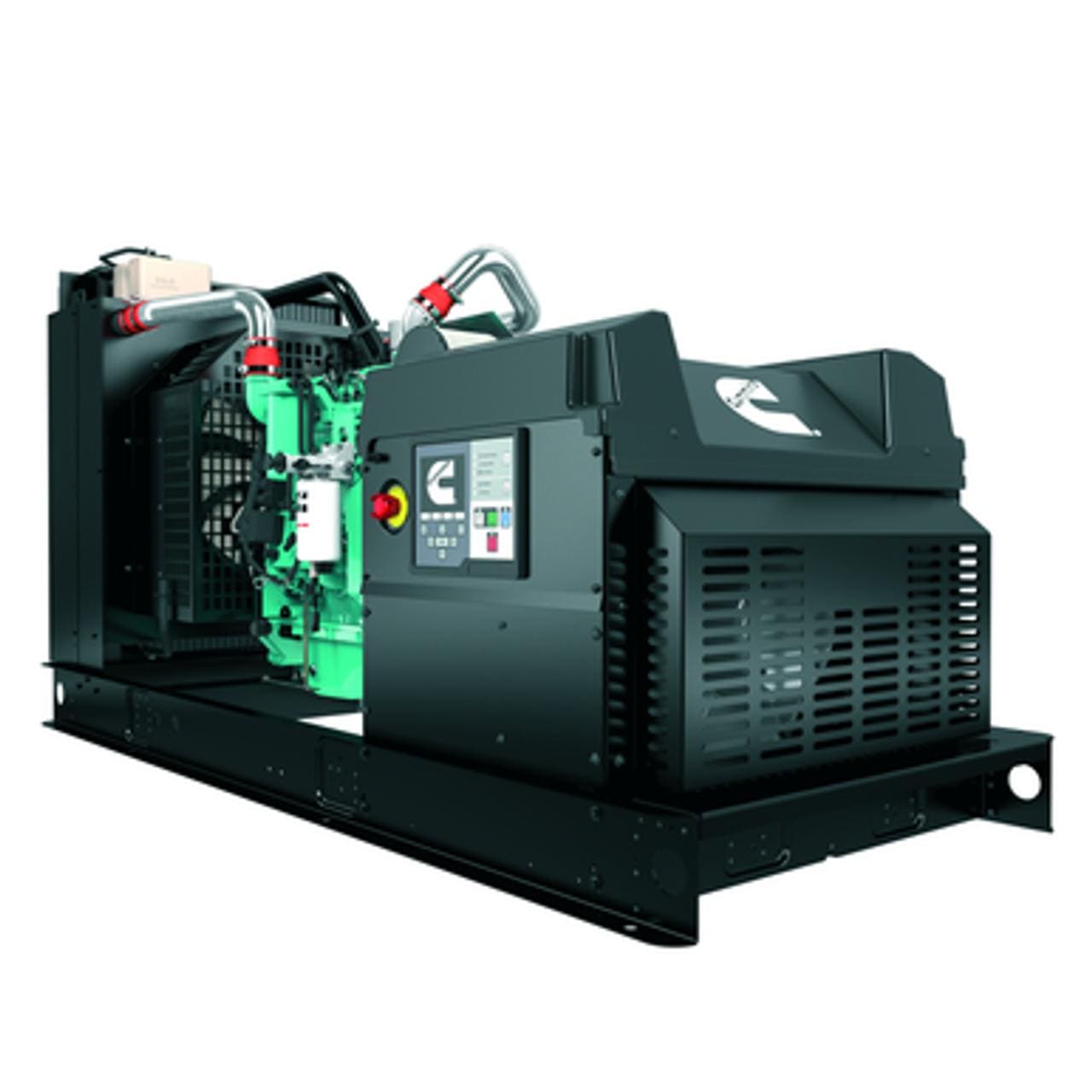

Open-Skid Agricultural Configuration

Cummins A061T476 does not include a weather-protective or sound-attenuated enclosure. The engine, radiator, alternator, controls and other generator components remain exposed on the open structural skid.

The generator must be installed inside a properly designed generator room, agricultural equipment building or compatible separately purchased enclosure. The installation must provide adequate ventilation, combustion air, radiator discharge, weather protection, exhaust routing, service access and protection from unauthorized personnel.

Do not order this model expecting an enclosed outdoor generator. Cummins and distributor images may show optional equipment or representative configurations that are not included with A061T476.

No Diesel Fuel Tank Included

This generator does not include an onboard, belly-mounted or sub-base diesel fuel tank. A properly sized external diesel fuel tank or compatible separately purchased sub-base tank must be provided as part of the installation.

The fuel system should account for the desired emergency runtime, fuel consumption, supply and return piping, maximum fuel lift, filtration, containment, fuel quality and applicable fire and environmental regulations.

Automatic Transfer Switch Not Included

An automatic transfer switch is not included. Approved transfer equipment is required for automatic backup of a building or electrical service.

The transfer switch must match the farm's 120/240V single-phase service, required amperage, service-entrance arrangement and applicable electrical codes. An 800-amp transfer switch or a separately engineered load-distribution and load-management system may be required, depending on the installation.

Never connect the generator directly to utility-supplied wiring without approved transfer equipment.

Starting Batteries Required

The Cummins C175D6D agricultural generator requires two 12-volt starting batteries rated at approximately 850 cold-cranking amps each.

Starting batteries are not included. Battery cables and an external battery charger are also not included unless specifically listed on the final sales order.

Cummins C175D6D A061T476 Specifications

What Is Included

• Cummins C175D6D agricultural diesel generator set
• Cummins QSB7-G5 industrial diesel engine
• 120/240V single-phase alternator
• PowerCommand 1.1 electronic control system
• 800-amp adjustable main circuit breaker
• Set-mounted radiator and liquid-cooling system
• Coolant heaters
• Open structural generator skid
• Standard factory equipment associated with A061T476
• Cummins manufacturer documentation

What Is Not Included

• Weather-protective enclosure
• Sound-attenuated enclosure
• Integrated, belly-mounted or sub-base diesel fuel tank
• Automatic transfer switch
• Two required 12V starting batteries
• Battery cables or external battery charger unless listed
• Concrete generator pad or engineered foundation
• External exhaust piping and installation
• Fuel lines, fuel filtration or fuel-system installation
• Electrical wiring and installation materials
• Permits, engineering or site preparation
• Generator building or separately purchased enclosure
• Forklift, crane or unloading services
• Startup or commissioning unless purchased separately

Professional Installation Required

The Cummins C175D6D must be installed by qualified generator, electrical, mechanical, exhaust and fuel-system professionals. The completed installation must comply with Cummins requirements and all applicable national, state and local electrical, fire, fuel, emissions, environmental and building codes.

Installation planning should address:

• Complete electrical-load analysis
• Motor-starting and locked-rotor current
• Load sequencing and load management
• Automatic transfer-switch sizing
• Foundation and vibration isolation
• Weather protection for the open generator
• Combustion air and radiator airflow
• Exhaust routing and permissible backpressure
• Diesel fuel storage and containment
• Grounding and electrical protection
• Starting batteries and battery charging
• Maintenance and service clearances
• Emergency shutdown requirements

Freight Shipping and Delivery

This commercial agricultural generator ships by freight. The customer must provide a delivery location accessible to a full-size freight carrier and arrange equipment capable of safely unloading the generator.

A properly rated forklift, crane or other lifting equipment will normally be required. Standard liftgate service may not be available or sufficient for unloading a generator weighing approximately 3,179 pounds.

Farm delivery, residential delivery, limited-access service, jobsite delivery, storage, redelivery, reconsignment and other special freight services may result in additional charges.

Inspect the generator and shipping materials before signing the delivery receipt. Any visible damage, missing components or packaging concerns must be clearly documented on the carrier's delivery receipt at the time of delivery.

Cummins Limited Warranty

The Cummins C175D6D A061T476 is covered by the applicable Cummins two-year limited generator-set warranty. Warranty coverage is subject to Cummins terms, application limitations, operating-hour limits, maintenance requirements and exclusions.

The generator should be registered after installation. Authorized startup, documented maintenance and the use of approved parts and fluids may be required to preserve warranty coverage.

Refer to the Cummins limited warranty statement supplied with the generator for the complete and controlling warranty terms.

Frequently Asked Questions

Is A061T476 the agricultural version of the Cummins C175D6D?

Yes. A061T476 is the agricultural-spec C175D6D configured for 175kW of emergency standby power at 120/240V single phase.

Does this generator include an enclosure?

No. It is an open-skid generator without a weather-protective or sound-attenuated enclosure.

Can this generator be installed outdoors as delivered?

No. The exposed generator requires a properly engineered equipment building or compatible separately purchased weather enclosure.

Does A061T476 include a diesel fuel tank?

No. It does not include an onboard, belly-mounted or sub-base fuel tank. A properly sized external diesel fuel system is required.

Does it include an automatic transfer switch?

No. Transfer equipment must be purchased separately and selected for the farm's service voltage, phase, amperage and applicable code requirements.

How much standby power does the C175D6D produce?

The A061T476 agricultural configuration is rated for 175kW of emergency standby power.

What voltage and phase does it produce?

It produces 120/240V single-phase, 60 Hz electrical power.

How many amps does the generator produce?

A 175kW load at 240V single phase calculates to approximately 729 amps. The agricultural package includes an 800-amp adjustable circuit breaker.

What engine is installed in the generator?

The C175D6D uses a Cummins QSB7-G5 6.69-liter industrial diesel engine operating at 1,800 RPM.

How much diesel fuel does it consume?

Published product data lists approximately 6.8 gallons per hour at 50% load and 12.7 gallons per hour at full standby load. Actual consumption varies with load, fuel quality, installation and operating conditions.

Are starting batteries included?

No. The generator requires two 12V starting batteries rated at approximately 850 cold-cranking amps each. Batteries are not included unless specifically stated on the final sales order.

Can this generator power an entire farm?

It may support a substantial portion of a farm's electrical load, but a professional load and motor-starting analysis is required before ordering.

Can it start large irrigation pumps?

Potentially. Suitability depends on pump horsepower, motor voltage, locked-rotor current, starting method, wiring distance and other equipment operating at the same time.

What is PowerCommand 1.1?

PowerCommand 1.1 is Cummins' integrated electronic generator-control system. It manages remote starting, voltage and frequency regulation, output metering, fault protection and system diagnostics.

What is Battle Short Mode?

Battle Short Mode allows selected protective shutdowns to be overridden when maintaining power is considered more critical than protecting the generator from possible damage.

Does the generator exercise automatically?

Yes. PowerCommand provides flexible exercise scheduling that can be programmed for the preferred time, duration and frequency.

Is this generator intended for prime power?

This specific A061T476 agricultural package is marketed for emergency standby applications. Do not use or advertise it for prime power without written application approval from Cummins.

What are the generator dimensions?

The open generator measures approximately 113 inches long, 40 inches wide and 56 inches high. Use the order-specific Cummins outline drawing for final foundation and installation planning.

How much does the generator weigh?

The published product weight is approximately 3,179 pounds. Confirm the final shipping weight before arranging unloading equipment.

Does this generator require professional installation?

Yes. Professional generator, electrical, mechanical, exhaust and fuel-system installation is required.

Can this generator be sold or used in California?

This specific agricultural configuration is listed as not for sale or use in California.

Important Ordering Information

Commercial generators may be factory built, configured or allocated for a specific customer order. Confirm the following before purchasing:

• Cummins part number A061T476
• C175D6D agricultural configuration
• 175kW standby rating
• 120/240V single-phase output
• 800-amp adjustable circuit breaker
• Open generator configuration
• No enclosure included
• No diesel fuel tank included
• No automatic transfer switch included
• No starting batteries included
• Local emissions eligibility
• Current production lead time
• Final factory-installed options
• Freight and unloading requirements
• Cancellation and return restrictions

Manufacturer: Cummins Power Generation
Model: C175D6D
Part Number: A061T476
Application: Agricultural standby power
Standby Rating: 175kW
Voltage: 120/240V
Phase: Single phase
Frequency: 60 Hz
Fuel: Diesel
Main Circuit Breaker: 800 amps
Configuration: Open-skid generator with no enclosure or fuel tank

Specifications, availability and standard factory equipment are subject to change. Product images may show optional equipment or a representative configuration. The final Cummins order acknowledgment and order-specific submittal documents determine the exact equipment supplied.
