EcoFlow PowerInsight 2 Smart Home Energy Monitor

EcoFlow PowerInsight 2 Smart Home Energy Monitor

Take control of your home energy system from one intuitive display with the EcoFlow PowerInsight 2. Designed as a central visual hub for compatible EcoFlow energy systems and smart home devices, PowerInsight 2 gives you real-time insight into solar generation, battery storage, grid usage, home energy consumption and connected devices from a high-resolution 10.95-inch touchscreen.

Powered by EcoFlow's smart energy ecosystem, PowerInsight 2 makes complex home energy information easier to understand while providing convenient control over compatible devices. Monitor where your electricity is coming from, see where it is going, review historical energy data, manage compatible smart devices and use the built-in EcoFlow AI Assistant for hands-free interaction.

With Wi-Fi, Bluetooth and Matter support, PowerInsight 2 can serve as a central interface for both compatible EcoFlow equipment and supported third-party smart home devices.

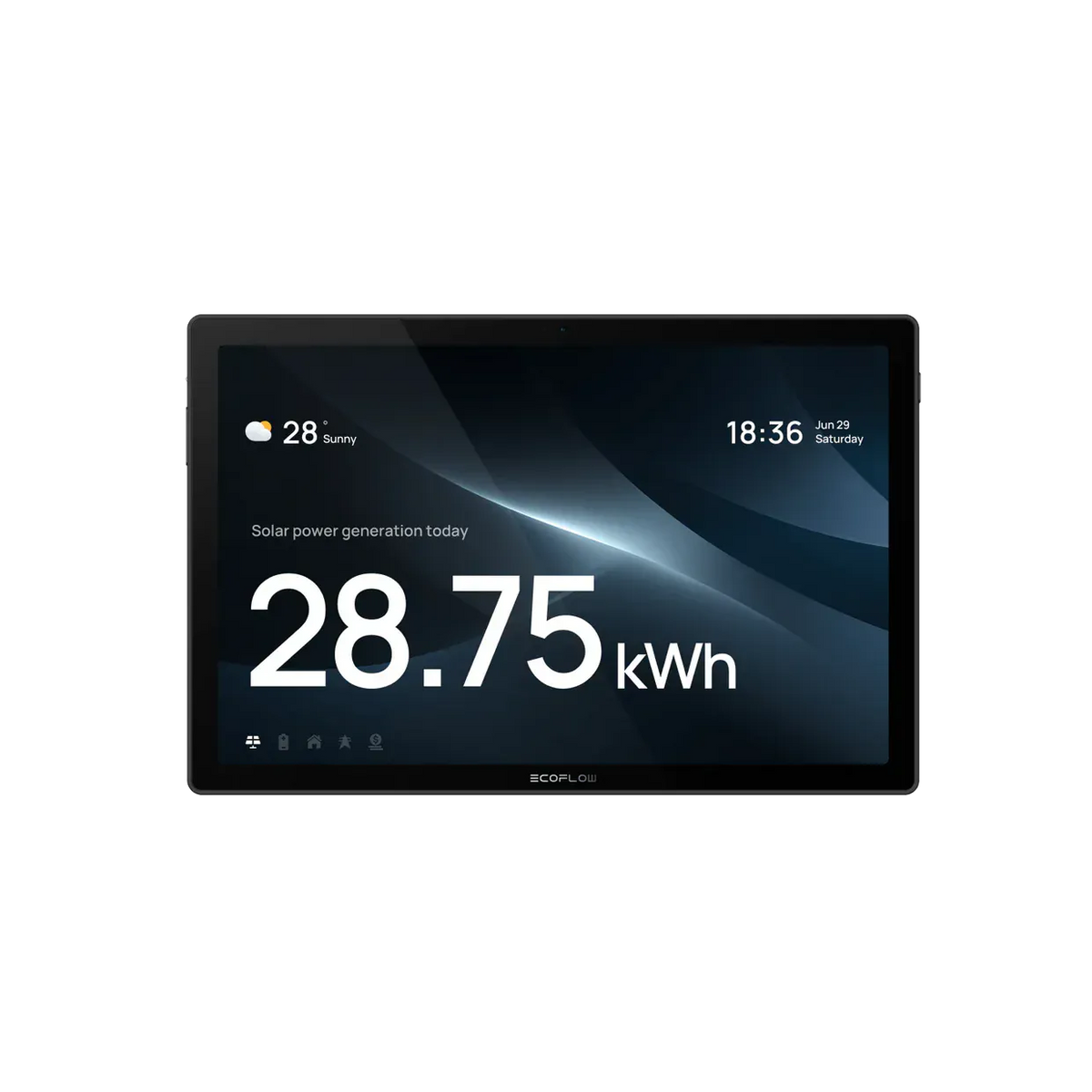

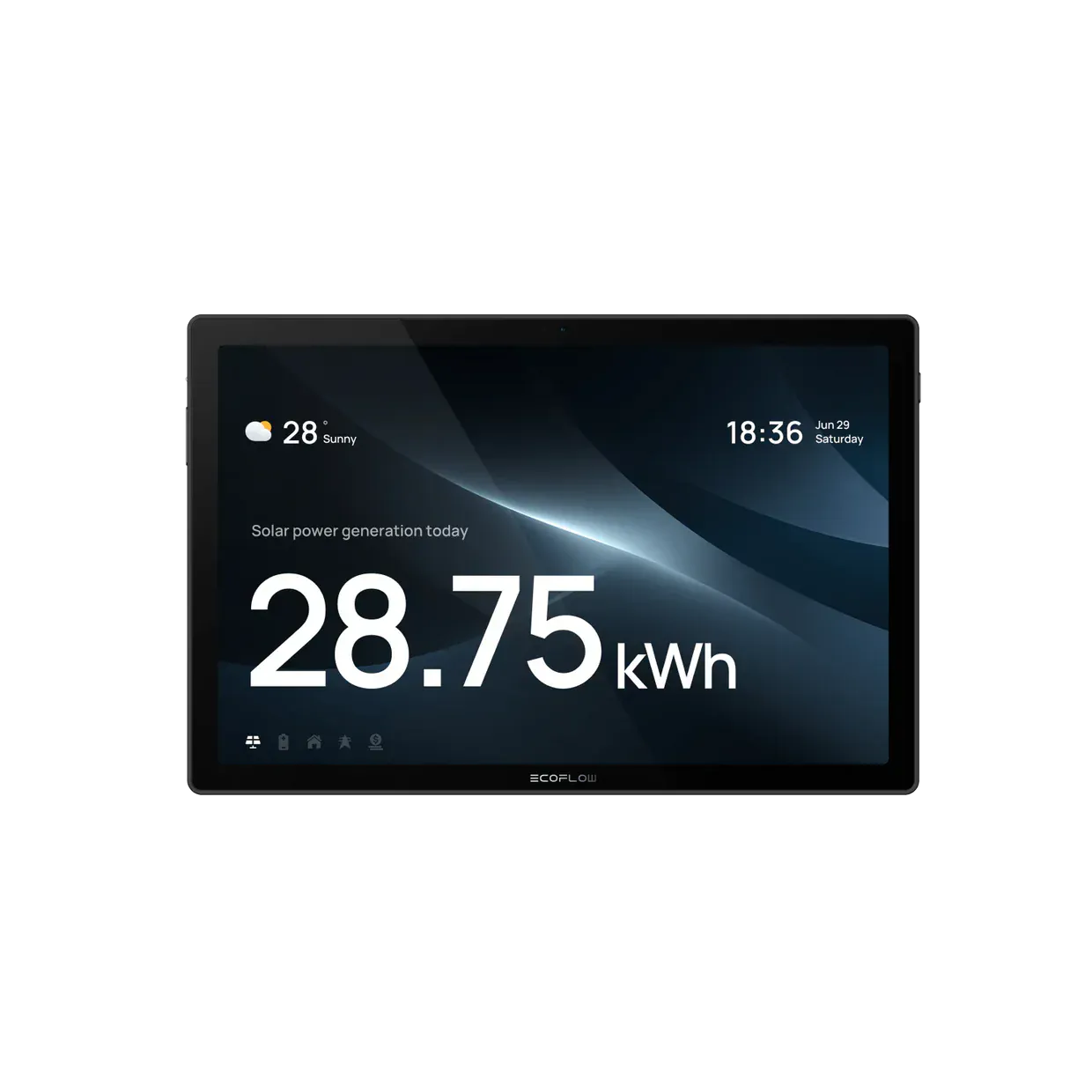

11-Inch High-Resolution Touchscreen

PowerInsight 2 features a 10.95-inch fully laminated IPS touchscreen with a 1920 × 1200 resolution, 16:10 aspect ratio and 60Hz refresh rate. The large display provides an easy-to-read view of your home's energy system without constantly opening the EcoFlow mobile app.

The screen also features a glass surface with an anti-fingerprint coating, adaptive brightness and a proximity sensor that can automatically wake the display as you approach.

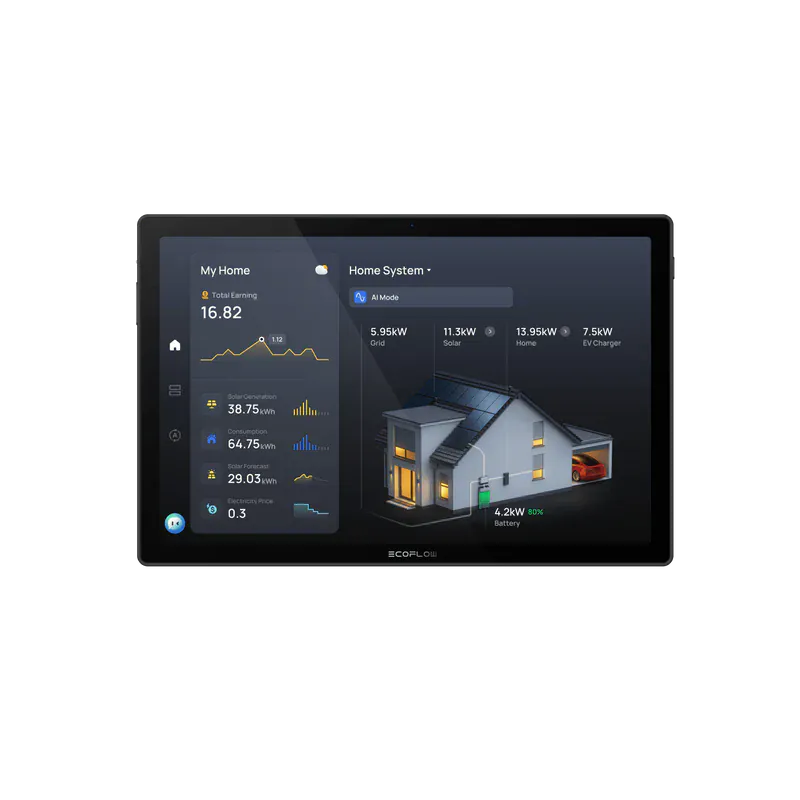

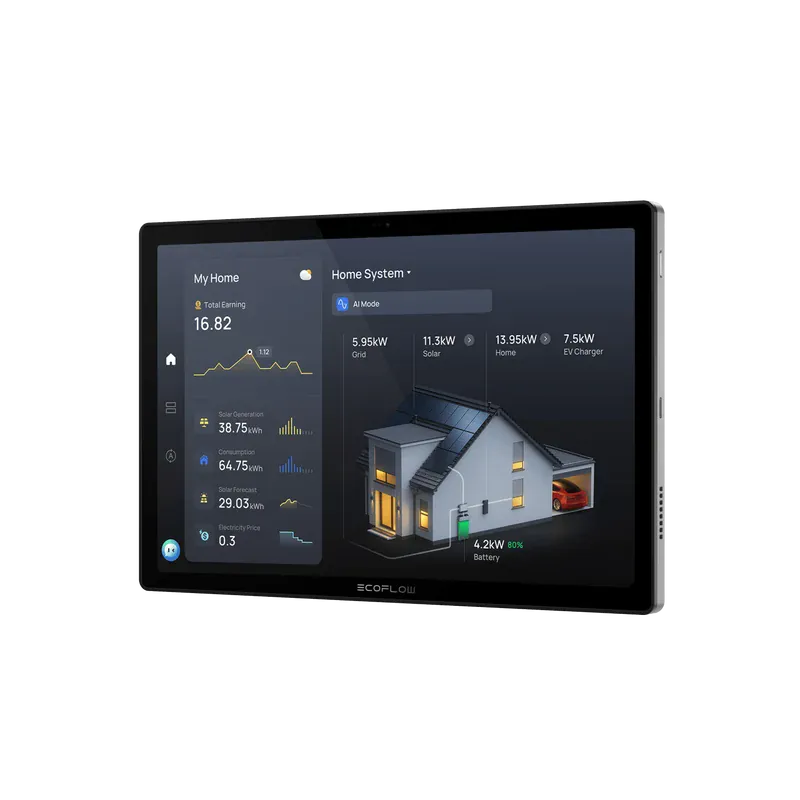

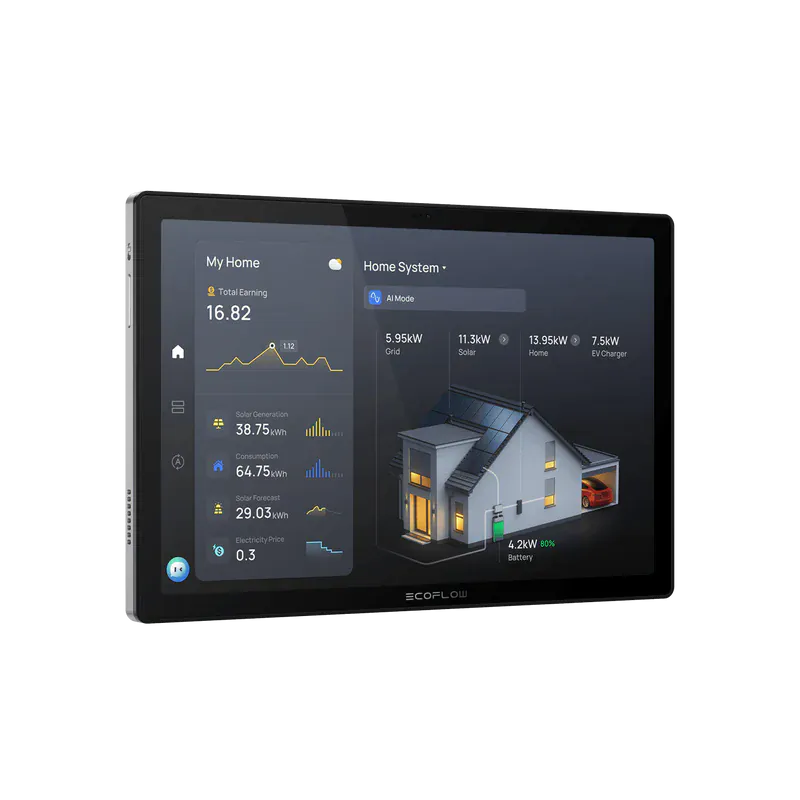

Real-Time Home Energy Monitoring

See how energy moves through your home in real time. Depending on your connected EcoFlow system and devices, PowerInsight 2 can display information including:

• Solar power generation
• Home electricity consumption
• Grid electricity usage
• Battery charging and discharging
• Battery energy storage status
• EV charger usage
• Energy savings information
• Predicted solar generation
• Electricity pricing information when available

Energy information can be reviewed over different time periods, including day, week, month and year, helping homeowners better understand energy production and consumption.

EcoFlow AI Assistant & Voice Control

PowerInsight 2 includes the EcoFlow AI Assistant for convenient hands-free interaction. Say "Hey EcoFlow" when voice wake-up is enabled to access the assistant and interact with your energy system.

The system incorporates four microphones and supports voice interaction from up to approximately 5 meters under suitable conditions. A physical microphone disconnect button provides an additional level of privacy when voice functions are not needed.

Smart Home Control with Matter

PowerInsight 2 supports the Matter smart home protocol, allowing compatible smart devices to be integrated into the EcoFlow ecosystem for centralized monitoring and control.

Supported Matter device categories can include:

• Smart light bulbs
• Smart plugs and outlets
• Thermostats and temperature controllers
• EV charging equipment
• Heat pumps
• Water heaters
• Room air conditioners

Third-party integrations supported by EcoFlow include select devices from brands such as Shelly, Ecobee, Google Nest, Kasa, Tapo and Tibber Pulse. Compatibility depends on the individual device and current EcoFlow software support.

Create and Manage Smart Automations

Automation rules created through the EcoFlow mobile app can automatically synchronize with PowerInsight 2. Compatible automation rules can also be created, modified or deleted directly from PowerInsight 2, giving you another way to manage your connected home energy ecosystem.

Built-In 9,300mAh Battery

Unlike a permanently installed wall display, PowerInsight 2 contains a large 9,300mAh internal battery. A full charge provides approximately 8 hours of continuous operation, allowing the display to be removed from its wall bracket and used around the home.

EcoFlow also states that PowerInsight 2 can operate for more than 24 hours with the screen off.

Flexible Wall-Mounted or Portable Design

Install PowerInsight 2 on the included wall bracket for a clean, permanent smart-home display or remove it and use it as a handheld touchscreen. It can also be placed on a compatible tablet stand, sold separately.

The included wall bracket provides charging and connectivity interfaces, including USB-C and POGO pin connections.

Proximity Wake-Up

A built-in ToF proximity sensor can automatically wake PowerInsight 2 when you approach the display. The maximum sensing distance is approximately 1 meter / 39.37 inches, making your energy dashboard available without needing to manually wake the screen.

Compatible EcoFlow Products

According to EcoFlow's current PowerInsight 2 documentation, supported EcoFlow products include:

• EcoFlow OCEAN Pro
• EcoFlow OCEAN Panel
• EcoFlow PowerOcean Plus
• EcoFlow PowerOcean
• EcoFlow PowerOcean Single-Phase
• EcoFlow PowerOcean DC Fit
• EcoFlow PowerHeat when used with a compatible PowerOcean system
• EcoFlow PowerGlow
• EcoFlow Power Kits 5kVA 48V Power System / Power Hub 5kVA
• EcoFlow DELTA Pro Ultra
• EcoFlow DELTA Pro Ultra X
• EcoFlow DELTA Pro 3
• EcoFlow Smart Home Panel 2
• EcoFlow Smart Plug
• EcoFlow PowerPulse Residential EV Charger
• EcoFlow PowerPulse 2

Compatibility is software-dependent and EcoFlow periodically adds support for additional products. Keep PowerInsight 2 updated to the latest system and IoT software versions. Products not currently supported may not appear on PowerInsight 2 even if they appear in the EcoFlow mobile app.

EcoFlow PowerInsight 2 Specifications

• Model: EF-MT-002
• Display Size: 10.95 inches
• Display Type: IPS, fully laminated touchscreen
• Touch: 10-point multi-touch
• Resolution: 1920 × 1200
• Aspect Ratio: 16:10
• Refresh Rate: 60Hz
• Typical Brightness: 300 nits
• Surface: Glass with anti-fingerprint coating
• Operating System: Android
• NPU Computing Power: 6 TOPS
• RAM: 6GB
• Storage / ROM: 64GB
• Battery Capacity: 9,300mAh
• Continuous Battery Runtime: Approximately 8 hours per full charge
• Charging: 18W wired fast charging
• Host Interface: 1 × USB Type-C (USB 3.0)
• Bracket Interface: 1 × USB-C charging + 1 × USB-C for CAN devices + POGO pin
• USB-C Input: 5V/3A, 9V/2A, 12V/1.5A
• Bracket USB-C Input: 5V/3A, 9V/3A, 12V/2.5A
• USB-C Output: 5V/0.5A
• Wireless Connectivity: Wi-Fi and Bluetooth
• IoT Connectivity: Wi-Fi, Bluetooth and Matter
• Wi-Fi: 2.4GHz and 5GHz
• Bluetooth: Supported
• Smart Home Protocol: Matter
• Speakers: 2
• Microphones: 4
• Voice Assistant: EcoFlow Assistant
• Photosensitive Sensor: Ambient brightness detection
• Proximity Sensor: ToF sensor, maximum approximately 1 m / 39.37 in.
• Water/Dust Resistance: IP42
• Operating Temperature: 32°F to 113°F (0°C to 45°C)
• Storage Temperature: 14°F to 131°F (-10°C to 55°C)
• Operating/Storage Humidity: 10%–90% RH, non-condensing
• Maximum Operating Altitude: Approximately 9,842 ft / 3,000 m
• Dimensions: 10.17 × 6.65 × 0.50 in. (258.4 × 169 × 12.6 mm)
• Weight: Approximately 1.4 lb (620 g)
• Software Support Period: 5 years

What's Included

• 1 × EcoFlow PowerInsight 2 Monitor
• 1 × Wall Bracket
• 1 × USB-C to USB-C Power Cable – 6.6 ft / 2 m
• 4 × Wall Expansion Anchors
• 4 × Self-Tapping Screws
• 1 × Quick Start Guide and Warranty Card

Note: A USB-C charger is not included. EcoFlow recommends an 18W or higher USB-C charger for the best charging experience.

Ideal Uses

• Monitoring compatible EcoFlow whole-home backup systems
• Monitoring DELTA Pro Ultra energy systems
• Monitoring DELTA Pro 3 home backup installations
• Smart Home Panel 2 system monitoring
• Viewing solar production and household consumption
• Monitoring battery charge and discharge
• Managing compatible Matter smart home devices
• Creating a dedicated wall-mounted home energy dashboard
• Controlling compatible smart plugs, lights and thermostats
• Reviewing energy consumption and historical energy data

Frequently Asked Questions

What is EcoFlow PowerInsight 2?

EcoFlow PowerInsight 2 is a dedicated smart home energy monitor and control display. It connects to compatible EcoFlow systems through the EcoFlow ecosystem and provides a centralized touchscreen interface for monitoring energy production, storage and consumption while controlling supported smart home devices.

Does PowerInsight 2 work with EcoFlow DELTA Pro Ultra?

Yes. EcoFlow DELTA Pro Ultra is currently listed by EcoFlow as a supported PowerInsight 2 device.

Does PowerInsight 2 work with EcoFlow DELTA Pro 3?

Yes. EcoFlow's current PowerInsight 2 documentation lists DELTA Pro 3 as a supported device.

Does PowerInsight 2 work with Smart Home Panel 2?

Yes. EcoFlow Smart Home Panel 2 is currently listed as a supported device.

Does PowerInsight 2 work with the DELTA Pro Ultra X?

Yes, EcoFlow recommends a bundle that includes the Delta Pro Ultra X and the PowerInsight Monitor 2.

Does PowerInsight 2 need to remain plugged in?

No. PowerInsight 2 contains a built-in 9,300mAh battery and can be removed from its wall mount and used independently. EcoFlow rates continuous battery operation at approximately 8 hours on a full charge.

Can PowerInsight 2 be mounted on a wall?

Yes. A wall bracket, mounting anchors and screws are included. The wall bracket is designed for landscape installation.

Can I use PowerInsight 2 without mounting it?

Yes. It can be held and used like a tablet or placed on a compatible tablet stand. A tabletop stand is not included.

Does PowerInsight 2 support voice control?

Yes. PowerInsight 2 features the EcoFlow AI Assistant and supports voice wake-up using "Hey EcoFlow." It also includes a physical microphone disconnect button for privacy.

Does PowerInsight 2 support Matter?

Yes. PowerInsight 2 supports Matter-compatible smart home devices and can act as the central gateway when adding compatible Matter devices to the EcoFlow ecosystem.

Can PowerInsight 2 control third-party smart home devices?

Yes, when the device and integration are supported. EcoFlow currently identifies supported categories and integrations including certain smart plugs, thermostats, smart meters, lighting, EV charging equipment, heat pumps, water heaters and room air conditioners.

Does PowerInsight 2 replace the EcoFlow app?

PowerInsight 2 provides a dedicated interface for monitoring and controlling supported devices, but the EcoFlow mobile app is still used for initial setup and adding new devices. Once compatible devices are added through the app, they synchronize with PowerInsight 2.

Does PowerInsight 2 have Wi-Fi?

Yes. PowerInsight 2 supports both 2.4GHz and 5GHz Wi-Fi for internet connectivity. Matter local-area-network functionality uses 2.4GHz Wi-Fi.

What is the PowerInsight 2 model number?

The EcoFlow model number is EF-MT-002.

Is a USB-C charger included?

No. A 2-meter / 6.6-foot USB-C to USB-C cable is included, but the USB-C wall charger is not. EcoFlow recommends an 18W or higher charger.
